GRJ71L-RJMRKV (2009)

Toyota Land Cruiser

Production Jul 2009 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0701- )FZJ71,GRJ71,HZJ71

Click highlighted areas on diagram

diagram 57627C 57628C 57663B 57664B 58011A 58012A 58247C 58248C 58266B 58266B 58266B 58267A 58296C 58297K 58307 58308 58311 58325E 58336B 58339B 58346A 58346A 58346A 58346A 58357A 58379C 62671C 62671C 65557 65557 66301 66301 66301C 66301C 74413F 74453C 76617 76618 9018905016 91511B0614 91511B0614 9155380616 9155380616 9353015014 9356014010 9356014010
Part # Description Qty Price
57627C - COVER, REAR FLOOR SIDE MEMBER, RH
57627-60020

HZJ71;GRJ71..LHD

 1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-60010

HZJ71;GRJ71..LHD

 1
57663B - PANEL, REAR FLOOR SIDE, REAR RH
57663-60050

HZJ71;GRJ71..LHD

 1
57664B - PANEL, REAR FLOOR SIDE, REAR LH
57664-90K02

HZJ71;GRJ71..LHD

 1
58011A - PANEL SUB-ASSY, FLOOR PANEL SIDE, RH
58011-90K00

HZJ71;GRJ71..LHD

 1
58012A - PANEL SUB-ASSY, FLOOR PANEL SIDE, LH
58012-60010

HZJ71;GRJ71..LHD

 1
58247C - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-90K00

GRJ71..HT..GCC

AUXILIARY FUEL TANK-WITH(1 TANK),BACK DOOR&REAR SEAT-TRANSVERSE REAR SEAT

 1
58247-90K00

GRJ71..HT..GCC

REAR SEAT-TRANSVERSE REAR SEAT

 1
58248C - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58248-90K02

GRJ71..HT..GCC

REAR SEAT-TRANSVERSE REAR SEAT

 1
58248-90K02

GRJ71..HT..GCC

AUXILIARY FUEL TANK-WITH(1 TANK),BACK DOOR&REAR SEAT-TRANSVERSE REAR SEAT

 1
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

HZJ71;GRJ71..LHD

 3
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

HZJ71;GRJ71..LHD

 3
58266B - BRACKET, FUEL TUBE CLAMP
58266-90K00

HZJ71;GRJ71..LHD

 3
58267A - BRACKET, FUEL TUBE CLAMP, NO.2
58267-60030

GRJ71,76..LHD;HZJ71,76,VDJ76

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-60240

GRJ71..HT..GCC

AUXILIARY FUEL TANK-WITH(1 TANK),BACK DOOR&REAR SEAT-TRANSVERSE REAR SEAT

 1
58307-60250

HZJ71;GRJ71..LHD

 1
58307-60240

HZJ71;GRJ71..LHD

AUXILIARY FUEL TANK-WITH(1 TANK),BACK DOOR

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-60230

HZJ71;GRJ71..LHD

 1
58311 - PAN, REAR FLOOR
58311-60161

GRJ71..HT..GCC

REAR SEAT-TRANSVERSE REAR SEAT

 1
58311-60161

GRJ71..HT..GCC

AUXILIARY FUEL TANK-WITH(1 TANK),BACK DOOR&REAR SEAT-TRANSVERSE REAR SEAT

 1
58311-60181

HZJ71;GRJ71..LHD..STD

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-90K00

GRJ71,76..LHD;HZJ71,76,VDJ76

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-90K00

GRJ71,78..LHD;HZJ71,78,VDJ78

 1
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-90K00

GRJ71,76..LHD;HZJ71,76,VDJ76

 1
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

HZJ71;GRJ71..LHD

 4
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

HZJ71;GRJ71..LHD

 4
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

HZJ71;GRJ71..LHD

 4
58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58346-90K00

HZJ71;GRJ71..LHD

 4
58357A - REINFORCEMENT, JACK CARRIER
58357-90K01

GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78

 1
58379C - PROTECTOR, BODY LOWER BACK
58379-60010

GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78

 1
62671C - COVER, LOWER BACK PANEL
62671-60020

GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78

 1
62671-60020

GRJ71,76,78,HZJ71,76,78,VDJ76,78

 2
62671C - COVER, LOWER BACK PANEL
62671-60020

GRJ71,76,78..LHD;HZJ71,76,78,VDJ76,78

 1
62671-60020

GRJ71,76,78,HZJ71,76,78,VDJ76,78

 2
65557 - RETAINER, ROPE HOOK
65557-90K00

HZJ71;GRJ71..LHD..STD

 2
65557 - RETAINER, ROPE HOOK
65557-90K00

HZJ71;GRJ71..LHD..STD

 2
66301 - HOOK SUB-ASSY, ROPE
66301-90K02

HZJ71..HT;GRJ71..LHD..HT..STD

REAR SEAT-TRANSVERSE REAR SEAT

 1
66301-90K02

GRJ71..LHD..STD;GRJ76,HZJ71,76,VDJ76

 2
66301 - HOOK SUB-ASSY, ROPE
66301-90K02

HZJ71..HT;GRJ71..LHD..HT..STD

REAR SEAT-TRANSVERSE REAR SEAT

 1
66301-90K02

GRJ71..LHD..STD;GRJ76,HZJ71,76,VDJ76

 2
66301C - HOOK SUB-ASSY, ROPE, LH
66302-90K00

HZJ71..HT;GRJ71..LHD..HT..STD

REAR SEAT-TRANSVERSE REAR SEAT

 1
66302-90K00

GRJ71..LHD..STD;GRJ76,HZJ71,76,VDJ76

 2
66301C - HOOK SUB-ASSY, ROPE, LH
66302-90K00

HZJ71..HT;GRJ71..LHD..HT..STD

REAR SEAT-TRANSVERSE REAR SEAT

 1
66302-90K00

GRJ71..LHD..STD;GRJ76,HZJ71,76,VDJ76

 2
76617 - MUDGUARD, LOWER BACK PANEL, FRONT RH
76617-60010

GRJ71,78..LHD;HZJ71,78,VDJ78

 1
76618 - MUDGUARD, LOWER BACK PANEL, FRONT LH
76618-60010

GRJ71,78..LHD;HZJ71,78,VDJ78

 1
Common parts
90189-05016
91511-B0614
91553-80616
93530-15014
93560-14010

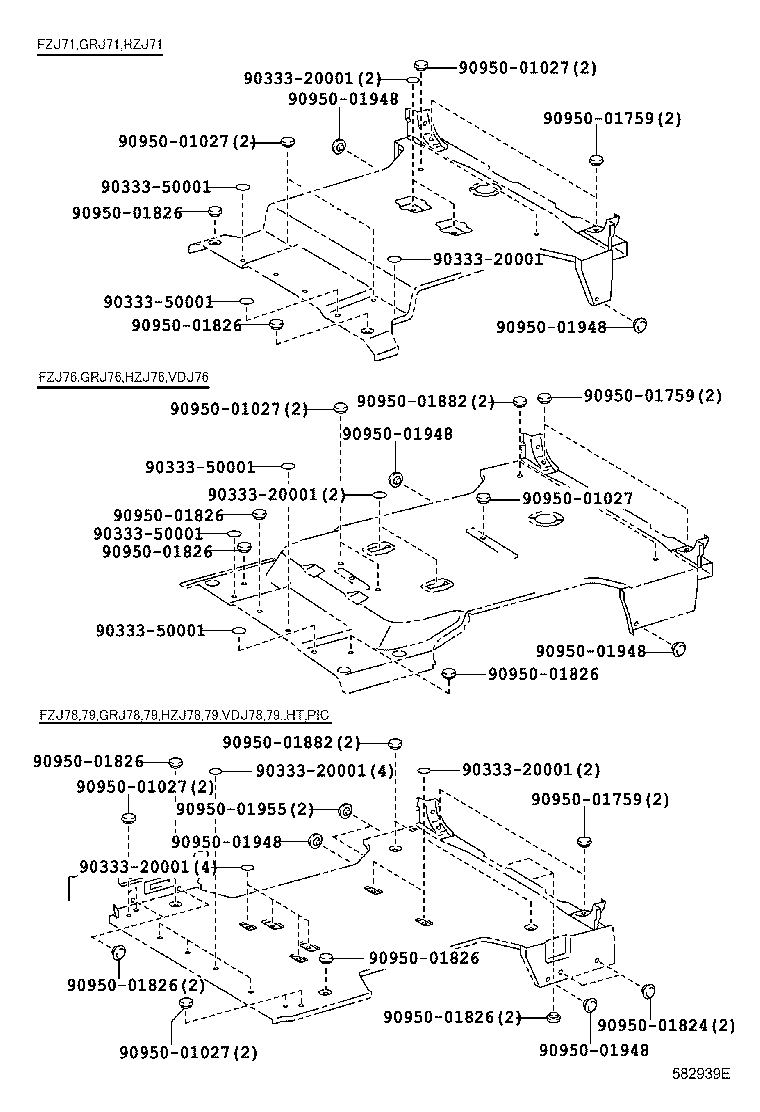

ILLUST NO. 2 OF 2(0701-1608)HT,PIC,SOT

Click highlighted areas on diagram

HOLE PLUG

diagram 9033320001 9033320001 9033320001 9033320001 9033320001 9033320001 9033350001 9033350001 9033350001 9033350001 9033350001 9095001027 9095001027 9095001027 9095001027 9095001027 9095001027 9095001759 9095001759 9095001759 9095001824 9095001826 9095001826 9095001826 9095001826 9095001826 9095001826 9095001826 9095001826 9095001826 9095001882 9095001882 9095001948 9095001948 9095001948 9095001948 9095001948 9095001948 9095001955
Part # Description Qty Price
Common parts
90333-20001
90333-50001
90950-01027
90950-01759
90950-01824
90950-01826
90950-01882
90950-01948
90950-01955
