GRJ71L-RJMRK (2009)

Toyota Land Cruiser

Production Jul 2009 - Aug 2016
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )VDJ79 ; (1208- )VDJ78..LX ; (1208-)VDJ78..GCC ; (1208- )GRJ7#,

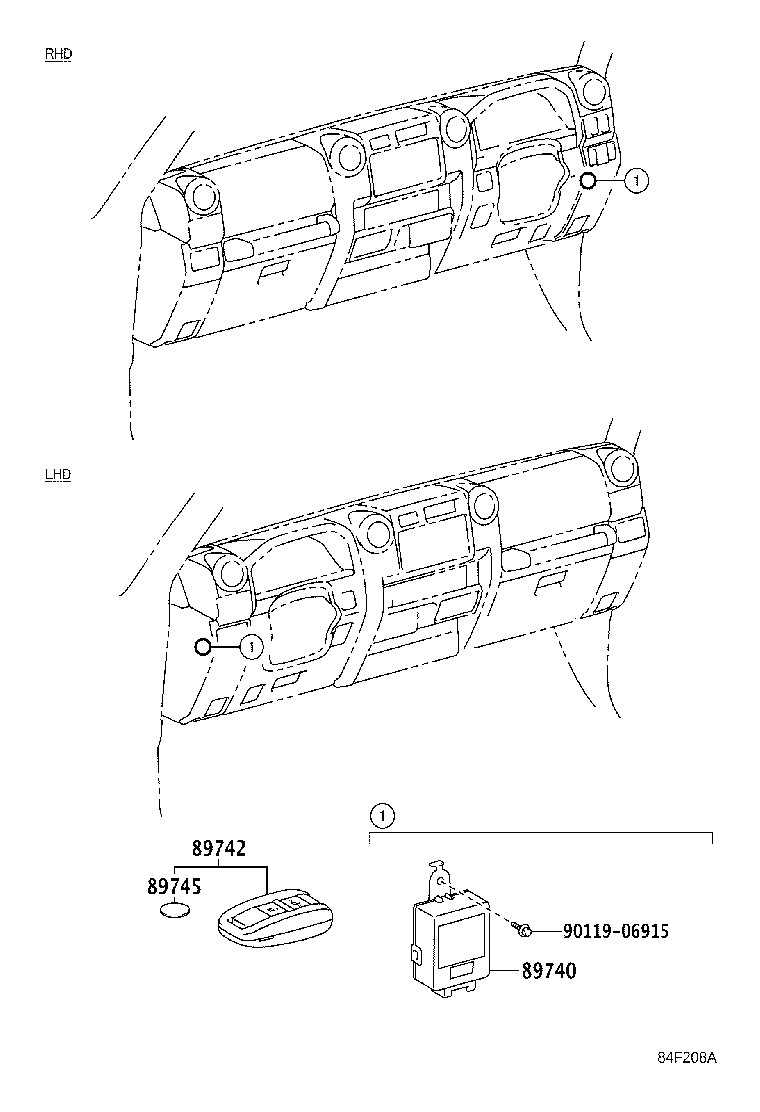

Click highlighted areas on diagram

diagram 89740 89742 89745 9011906915
Part # Description Qty Price
89740 - COMPUTER ASSY, DOOR CONTROL W/RECEIVER
89740-60200

GRJ7#,HZJ7#,VDJ79..(DCB,HT,PIC)..CBU

WIRELESS DOOR LOCK-WITH

 1
89740-60201

GRJ7#,HZJ7#,VDJ79..(DCB,HT,PIC)..CBU

WIRELESS DOOR LOCK-WITH

 1
89742 - TRANSMITTER, DOOR CONTROL
89742-60101

GRJ7#,HZJ7#,VDJ79..(DCB,HT,PIC)..CBU

WIRELESS DOOR LOCK-WITH

 2
89742-60100

GRJ7#,HZJ7#,VDJ79..(DCB,HT,PIC)..CBU

WIRELESS DOOR LOCK-WITH

 2
Common parts
90119-06915
