GRJ300L-GNTVKV (2021)
Toyota Land Cruiser

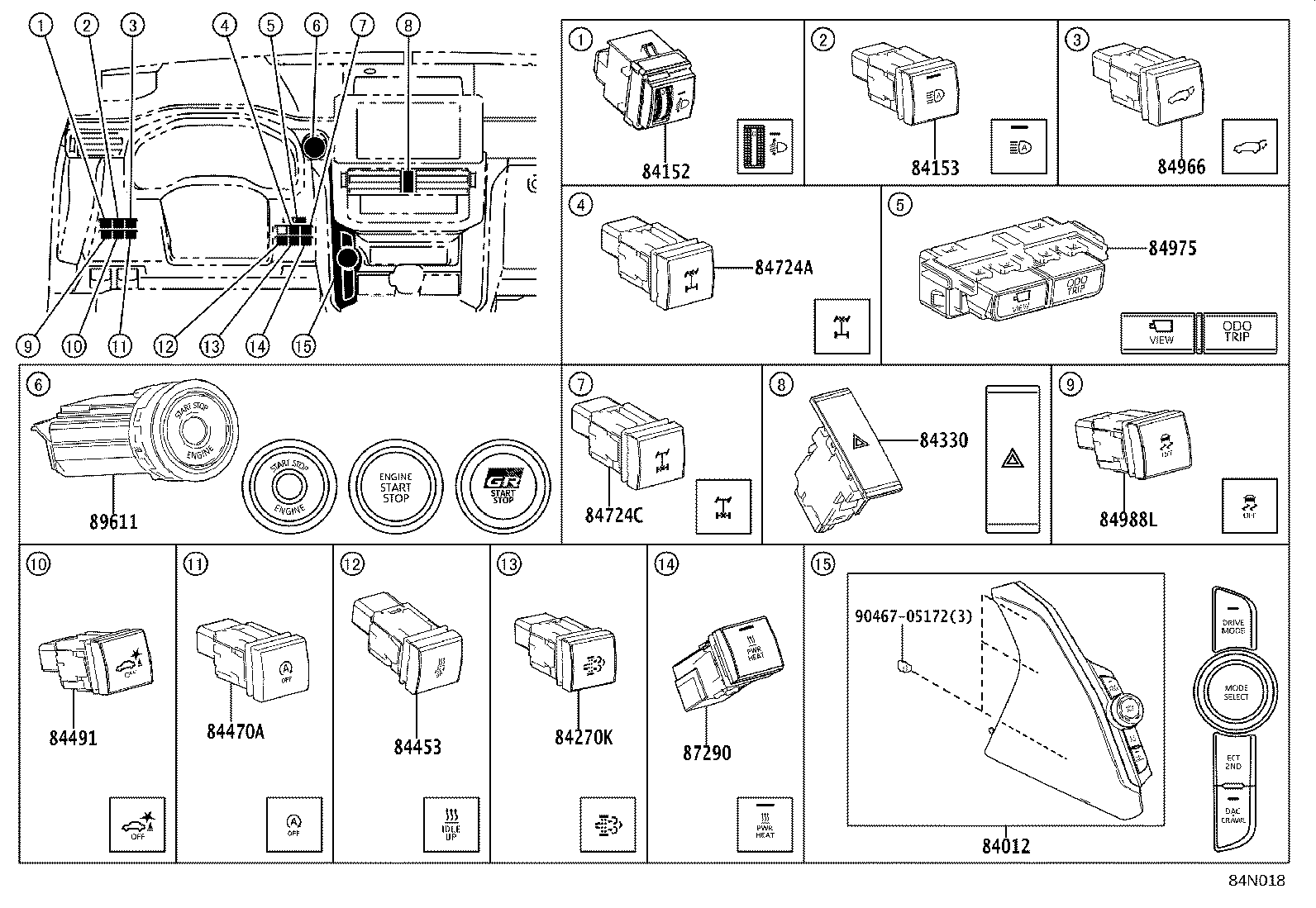

ILLUST NO. 5 OF11(2104- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-60820E0 |
GRJ300..A,G NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60810C0 |
GRJ300..A WITH(*ATC&VSC&*TSC&*DAC&*CRCO),BLACK,TRIM2# |
1 | ||
| 84012-60810E0 |
GRJ300..A WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60830C0 |
GRJ300..V BLACK,TRIM2# |
1 | ||
| 84012-60820C0 |
GRJ300..A,G BLACK,TRIM2# |
1 | ||
| 84012-60810C0 |
GRJ300..A WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC),BLACK,TRIM2# |
1 | ||
| 84012-60830E0 |
GRJ300..A UPGRADE PACKAGE&WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60840C0 |
GRJ300..A UPGRADE PACKAGE,BLACK,TRIM2# |
1 | ||
| 84012-60830E0 |
GRJ300..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60810E0 |
GRJ300..A WITH(*ATC&VSC&*TSC&*DAC&*CRCO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60830E0 |
GRJ300..A UPGRADE PACKAGE(AERO)&WITH(*ATC&VSC&*TSC&*DAC&*CRCO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60830C0 |
GRJ300..A UPGRADE PACKAGE(AERO)&WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC),BLACK,TRIM2# |
1 | ||
| 84012-60830C0 |
GRJ300..A UPGRADE PACKAGE(AERO)&WITH(*ATC&VSC&*TSC&*DAC&*CRCO),BLACK,TRIM2# |
1 | ||
| 84012-60830E0 |
GRJ300..A UPGRADE PACKAGE&WITH(*ATC&VSC&*TSC&*DAC&*CRCO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60830C0 |
GRJ300..A UPGRADE PACKAGE&WITH(*ATC&VSC&*TSC&*DAC&*CRCO),BLACK,TRIM2# |
1 | ||
| 84012-60830E0 |
GRJ300..A UPGRADE PACKAGE(AERO)&WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60840C0 |
GRJ300..A UPGRADE PACKAGE(AERO),BLACK,TRIM2# |
1 | ||
| 84012-60840E0 |
GRJ300..A UPGRADE PACKAGE,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60840E0 |
GRJ300..A UPGRADE PACKAGE(AERO),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84012-60830C0 |
GRJ300..A UPGRADE PACKAGE&WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC),BLACK,TRIM2# |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-26040 |
GRJ300,VJA300..A,G |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-48030 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 84153-48030 |
GRJ300..A,G;VJA300..GEN;VJA300..A..GCC;VJA300..(A,Z)..EUR ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE) |
1 | ||
| 84153-48030 |
GRJ300,VJA300..(V,Z)..GCC ACTIVE SAFETY PACKAGE-WITHOUT |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60450 |
GRJ300,VJA300 |
1 | ||
| 84491 - SWITCH, PARKING SUPPORT BRAKE CANCEL | ||||
| 84491-55010 |
VJA300..A..EUR;GRJ300,VJA300..V..GCC;VJA300..(V,Z)..(EUR,GEN) PARKING SUPPORT BRAKE-WITH |
1 | ||
| 84491-55010 |
GRJ300,VJA300..V..GCC;VJA300..7S..(V,Z)..(EUR,GEN) PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE) |
1 | ||
| 84491-55010 |
GRJ300,VJA300..V..GCC;VJA300..(V,Z)..(EUR,GEN) PARKING SUPPORT BRAKE-WITH & WITH(*RCDE) |
1 | ||
| 84491-55010 |
VJA300..LHD..GEN;GRJ300,VJA300..V..GCC PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE) |
1 | ||
| 84724A - SWITCH, FRONT DIFFERENTIAL LOCK | ||||
| 84724-60070 |
GRJ300..G,V;VJA300..A..EUR;VJA300..V..(EUR,GCC) DIFFERENTIAL LOCK-WITH(FRONT & REAR) |
1 | ||
| 84724C - SWITCH, REAR DIFFERENTIAL LOCK | ||||
| 84724-60080 |
GRJ300;VJA300..A,V DIFFERENTIAL LOCK-WITH(REAR) |
1 | ||
| 84724-60080 |
GRJ300..G,V;VJA300..A..EUR;VJA300..V..(EUR,GCC) DIFFERENTIAL LOCK-WITH(FRONT & REAR) |
1 | ||
| 84966 - SWITCH, POWER BACK DOOR CONTROL | ||||
| 84966-52020 |
GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-60060 |
VJA300..Z..EUR;GRJ300,VJA300..V..(EUR,GCC) BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER) |
1 | ||
| 84975-60070 |
VJA300..Z..EUR;GRJ300,VJA300..A,G,V |
1 | ||
| 84975-60060 |
VJA300..Z..EUR;GRJ300,VJA300..V BACK MONITOR-WITH(WITH/*PVM & *MTMO) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
GRJ300,VJA300 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89613-60010 |
GRJ300..A,V ANTI-THEFT SYSTEM-*IM & SIREN & *IS & TILT & FINGER PRINT |
1 | ||
| 89611-12010 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
ILLUST NO. 6 OF11(2104- )LHD
CONSOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 840C0A - CONTROL ASSY, INTEGRATION | ||||
| 840C0-60090 |
GRJ300..V |
1 | ||
| 840C0-60100 |
GRJ300..A,G |
1 | ||
| 840C0-60090 |
GRJ300..A WITH(*ATC&VSC&*TSC&*DAC&*CRCO) |
1 | ||
| 840C0-60090 |
GRJ300..A WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC) |
1 | ||
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60110 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 84223-60110 |
GRJ300,VJA300..A..GCC WITH(*ATC&VSC&*TSC&*DAC&*CRCO) |
1 | ||
| 84223-60110 |
GRJ300,VJA300..A..GCC WITH(*ATC&VSC&*TSC&*DAC&*CRCO&*ACC) |
1 | ||
| 84223-60120 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-60060 |
GRJ300,VJA300..LHD |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
GRJ300,VJA300 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
GRJ300,VJA300 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-60010 |
GRJ300..A,G;VJA300..7S..A ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
1 | ||
| 85532-60010 |
GRJ300,VJA300..V,Z |
1 | ||
| 85532-60010 |
GRJ300..G ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1) |
1 | ||
| 85532C - SOCKET, USB CHARGER, NO.2 | ||||
| 85532-60020 |
GRJ300..A,G;VJA300..7S..A ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
1 | ||
| 85532-60020 |
GRJ300,VJA300..V,Z |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-30020 |
GRJ300,VJA300 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-30020 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 5855 | ||||
| 8601 | ||||
| 8606 | ||||

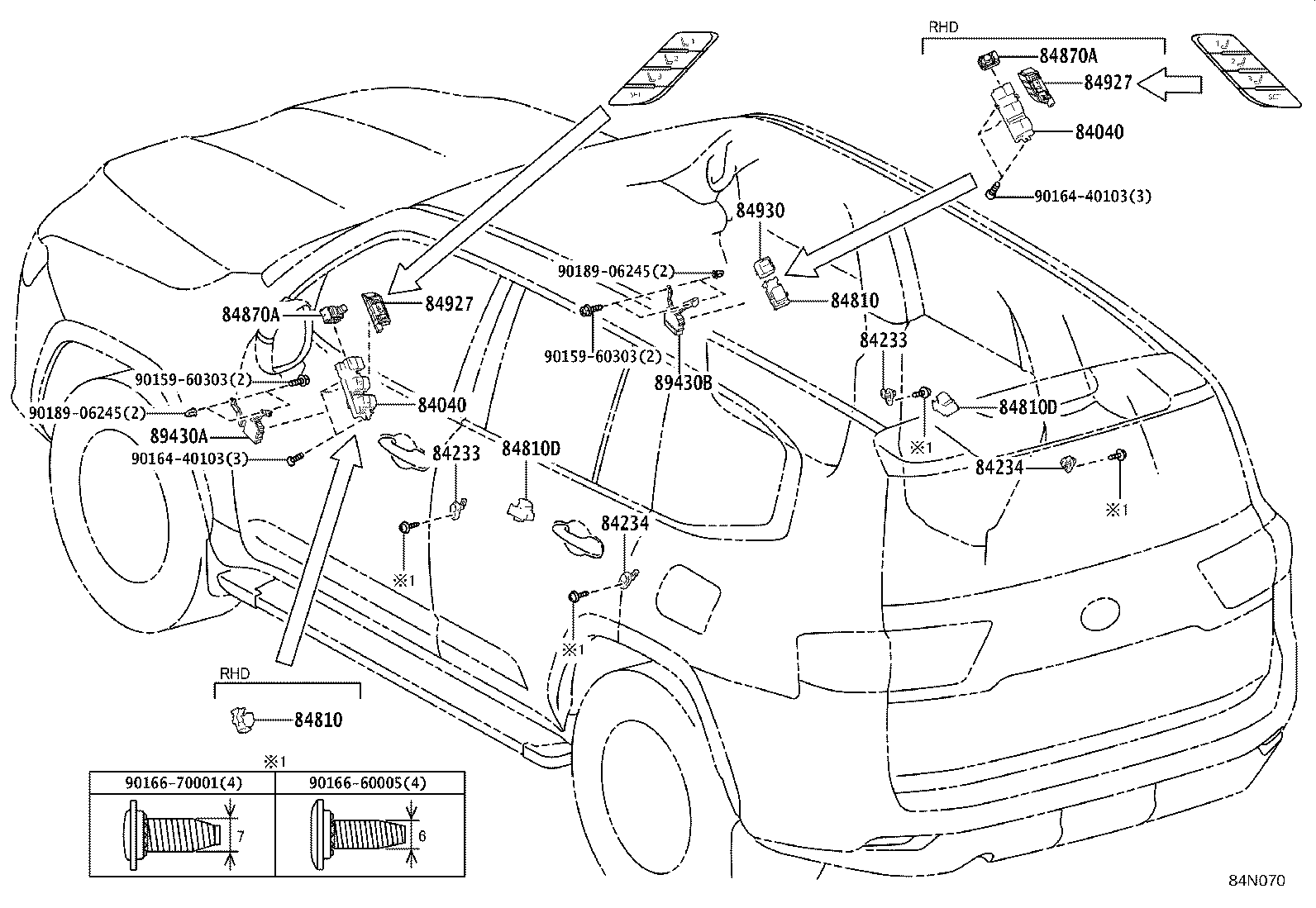

ILLUST NO. 9 OF11(2104- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12240 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 84040-10040 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 84040-12240 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 84040-12240 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12240 |
GRJ300,VJA300..LHD..(V,Z) |
1 | ||
| 84040-10040 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 84040-12240 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 84040-12240 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRJ300,VJA300 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRJ300,VJA300 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRJ300,VJA300 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRJ300,VJA300 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
GRJ300,VJA300..A,G |
1 | ||
| 84810-12120 |
GRJ300,VJA300..V,Z |
1 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-26040 |
GRJ300,VJA300..A,G |
1 | ||
| 84810-12120 |
GRJ300,VJA300..V,Z |
1 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
GRJ300,VJA300..V,Z |
2 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
2 | ||
| 84810-26040 |
GRJ300,VJA300..A,G |
2 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
GRJ300,VJA300..V,Z |
2 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
2 | ||
| 84810-26040 |
GRJ300,VJA300..A,G |
2 | ||
| 84810-12120 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-60140 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 84872-60170 |
GRJ300,VJA300..A..GCC OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60160 |
GRJ300,VJA300..V..GCC |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60170 |
GRJ300,VJA300..LHD..A OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60160 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 84872-62050 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60160 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 84872-62050 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| 84872-62050 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-60140 |
GRJ300,VJA300..LHD..(A,G) |
1 | ||
| 84872-60170 |
GRJ300,VJA300..A..GCC OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60160 |
GRJ300,VJA300..V..GCC |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60170 |
GRJ300,VJA300..LHD..A OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60160 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO) |
1 | ||
| 84872-62050 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-60160 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 84872-62050 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 84872-62050 |
GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)&OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| 84872-62050 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 84872-62050 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84927-60120 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12270 |
GRJ300,VJA300..(V,Z)..GCC |
1 | ||
| 84930-12270 |
GRJ300..G;VJA300..A..GCC SAUDI ARABIA SPEC |
1 | ||
| 89430A - COMPUTER ASSY, OUTER MIRROR CONTROL, LH | ||||
| 89430-60190 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| 89430-60190 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| 89430-60190 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 89430-60190 |
GRJ300,VJA300..A..GCC OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 89430-60190 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 89430-60190 |
VJA300..A;GRJ300..A,V OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 89430-60190 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 89430-60190 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 89430-60190 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 89430B - COMPUTER ASSY, OUTER MIRROR CONTROL, RH | ||||
| 89430-60180 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 89430-60180 |
VJA300..A;GRJ300..A,V OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 89430-60180 |
GRJ300,VJA300..A..GCC OUTSIDE REAR VIEW MIRROR-*273 & *RIF |
1 | ||
| 89430-60180 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| 89430-60180 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 89430-60180 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 89430-60180 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA |
1 | ||
| 89430-60180 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM |
1 | ||
| 89430-60180 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90189-06245 | ||||

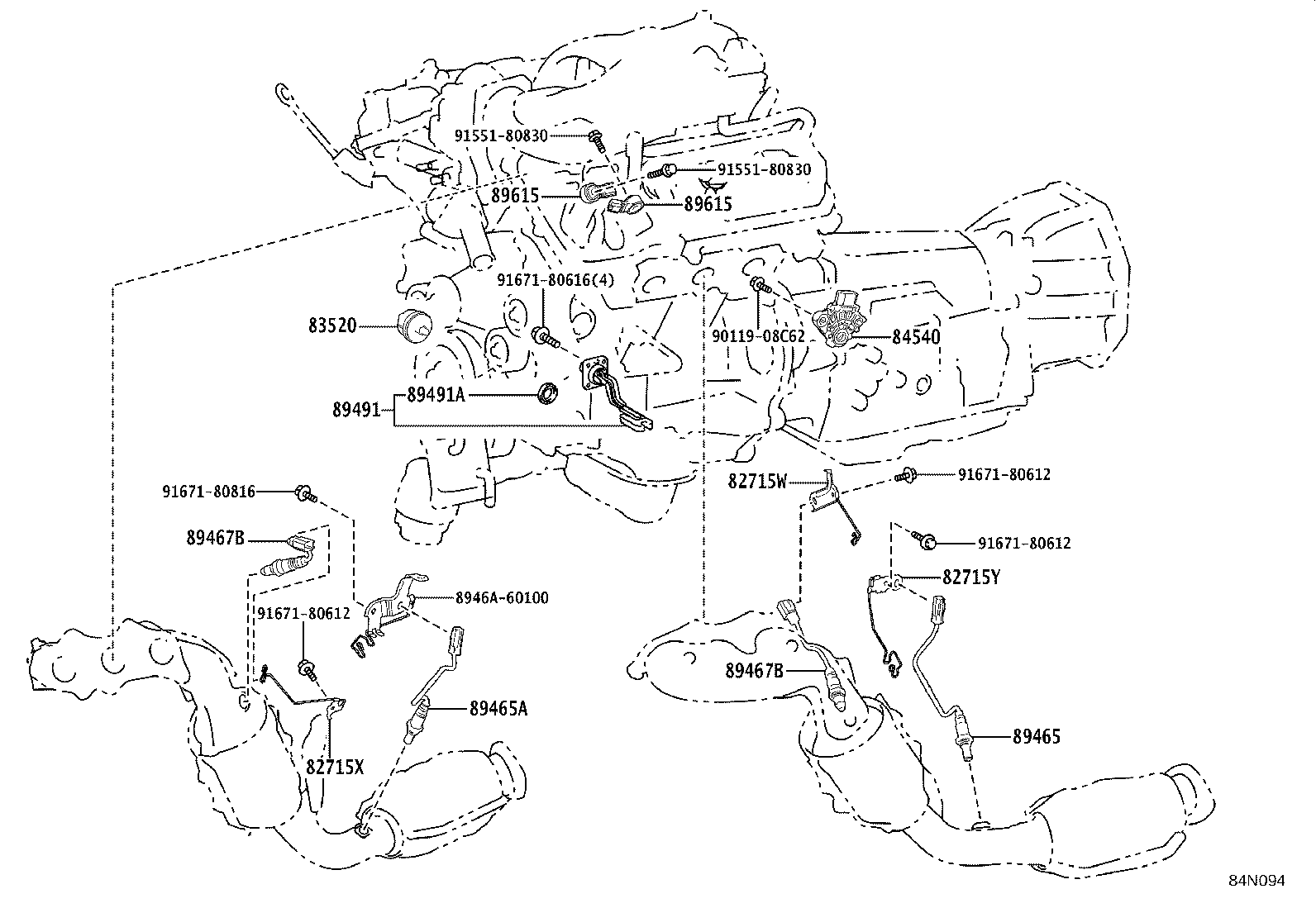

ILLUST NO. 1 OF11(2104- )GRJ300
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715W - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-60D00 |
GRJ300 |
1 | ||
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 8946A-60080 |
GRJ300 |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 8946A-60090 |
GRJ300 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60051 |
GRJ300 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60050 |
GRJ300 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60540 |
GRJ300 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60550 |
GRJ300 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-35130 |
GRJ300 |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-35130 |
GRJ300 |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60140 |
GRJ300 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
GRJ300 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRJ300,VJA300 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRJ300,VJA300 |
2 | ||
| Common parts | ||||
| 8946A-60100 | ||||
| 90119-08C62 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||

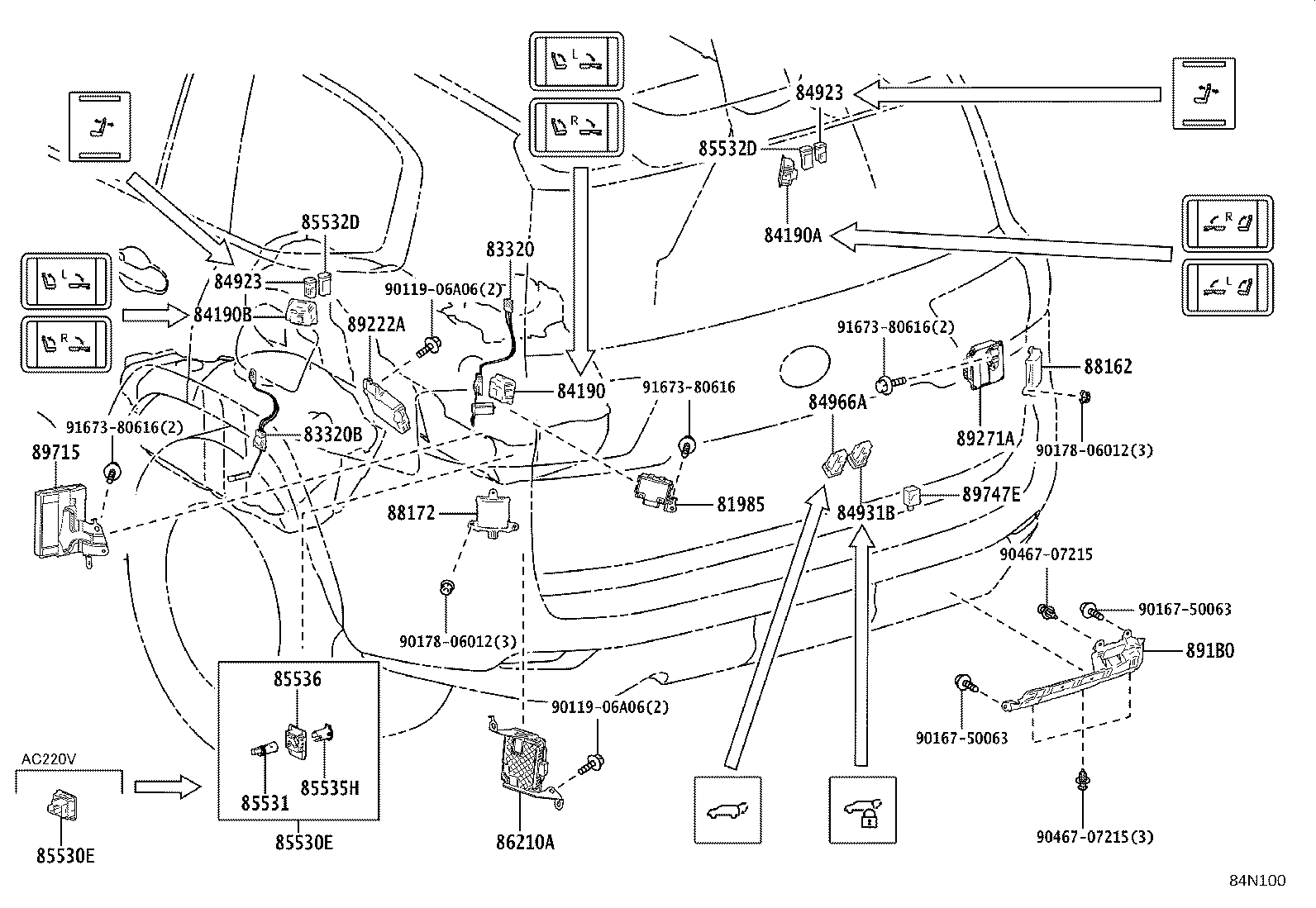

ILLUST NO.10 OF11(2104- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60660 |
GRJ300,VJA300 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-60790 |
GRJ300,VJA300 |
1 | ||
| 84190 - SWITCH ASSY, FOLD SEAT | ||||
| 84190-60230E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84190-60230C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84190A - SWITCH ASSY, FOLD SEAT, NO.1 | ||||
| 84190-60240E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84190-60240C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60180C0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84190-60180E0 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60070 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60070 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-78050 |
GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 84966A - SWITCH, POWER BACK DOOR CONTROL, NO.1 | ||||
| 84966-78010 |
GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-60160C1 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V)..(GCC,GEN) BLACK,TRIM2# |
1 | ||
| 85530-60160C1 |
GRJ300..G;VJA300..A..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220V(DECK SIDE),BLACK,TRIM2# |
1 | ||
| 85530-60160E1 |
GRJ300..G;VJA300..A..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220V(DECK SIDE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290C1 |
GRJ300..A KAZAKHSTAN SPEC,BLACK,TRIM2# |
1 | ||
| 85530-60290C1 |
GRJ300..A KYRGYZ SPEC,BLACK,TRIM2# |
1 | ||
| 85530-60290E0 |
GRJ300..A UZBEKISTAN SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60160E1 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60430C0 |
GRJ300..G;VJA300..A..GEN BLACK,TRIM2# |
1 | ||
| 85530-60290C1 |
GRJ300..A ARMENIA SPEC,BLACK,TRIM2# |
1 | ||
| 85530-60290E0 |
GRJ300..A ARMENIA SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290E0 |
GRJ300..A KAZAKHSTAN SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60430E0 |
GRJ300..G;VJA300..A..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290E0 |
GRJ300..A KYRGYZ SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290C1 |
GRJ300..A UZBEKISTAN SPEC,BLACK,TRIM2# |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-60160C1 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V)..(GCC,GEN) BLACK,TRIM2# |
1 | ||
| 85530-60160C1 |
GRJ300..G;VJA300..A..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220V(DECK SIDE),BLACK,TRIM2# |
1 | ||
| 85530-60160E1 |
GRJ300..G;VJA300..A..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220V(DECK SIDE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290C1 |
GRJ300..A KAZAKHSTAN SPEC,BLACK,TRIM2# |
1 | ||
| 85530-60290C1 |
GRJ300..A KYRGYZ SPEC,BLACK,TRIM2# |
1 | ||
| 85530-60290E0 |
GRJ300..A UZBEKISTAN SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60160E1 |
GRJ300..A,V;VJA300..A..GCC;VJA300..(G,V,Z)..(GCC,GEN) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60430C0 |
GRJ300..G;VJA300..A..GEN BLACK,TRIM2# |
1 | ||
| 85530-60290C1 |
GRJ300..A ARMENIA SPEC,BLACK,TRIM2# |
1 | ||
| 85530-60290E0 |
GRJ300..A ARMENIA SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290E0 |
GRJ300..A KAZAKHSTAN SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60430E0 |
GRJ300..G;VJA300..A..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290E0 |
GRJ300..A KYRGYZ SPEC,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60290C1 |
GRJ300..A UZBEKISTAN SPEC,BLACK,TRIM2# |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85530-42010 |
GRJ300..G;VJA300..A..GEN |
1 | ||
| 85532D - SOCKET, USB CHARGER, NO.3 | ||||
| 85532-60030 |
GRJ300..A,G;VJA300..7S..A ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
2 | ||
| 85532-60030 |
GRJ300,VJA300..7S..(V,Z) |
2 | ||
| 85532D - SOCKET, USB CHARGER, NO.3 | ||||
| 85532-60030 |
GRJ300..A,G;VJA300..7S..A ACCESSORY CONNECTOR(USB CHARGER SOCKET)-USB(FRONT:1 , REAR:3) |
2 | ||
| 85532-60030 |
GRJ300,VJA300..7S..(V,Z) |
2 | ||
| 85535H - COVER, POWER OUTLET SOCKET, NO.3 | ||||
| 85535-44050C1 |
GRJ300..G;VJA300..A..GEN BLACK,TRIM2# |
1 | ||
| 85535-44050E2 |
GRJ300..G;VJA300..A..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60120C0 |
GRJ300..G;VJA300..A..GEN BLACK,TRIM2# |
1 | ||
| 85536-60120E0 |
GRJ300..G;VJA300..A..GEN NEUTRAL BEIGE,TRIM4# |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60180 |
GRJ300..G;VJA300..A..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220V(DECK SIDE) |
1 | ||
| 86210-60180 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO& WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA& *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA& *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO& WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA& *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA& *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITHOUT & WITH(*RCTA & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL)&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO)&BLIND SPOT MONITOR-WITH |
1 | ||
| 88162-60010 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&AUDIO(FOR OVERSEASMARKET)-EMV(WITH/DVD) & 10SPEAKER&PARKING SUPPORT BRAKE-WITH & WITH(*BSM & *RCDE)&BACK MONITOR-WITH(WITH/*PVM & *MTMO & WASHER)&BLIND SPOT MONITOR-WITH |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-60090 |
GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR) |
1 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-60100 |
GRJ300,VJA300..7S..V SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-60030 |
GRJ300,VJA300..(A,V)..(GCC,GEN) BACK DOOR-WITH(POWER BACK DOOR) |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90167-50063 | ||||
| 90178-06012 | ||||
| 90467-07215 | ||||
| 91673-80616 | ||||

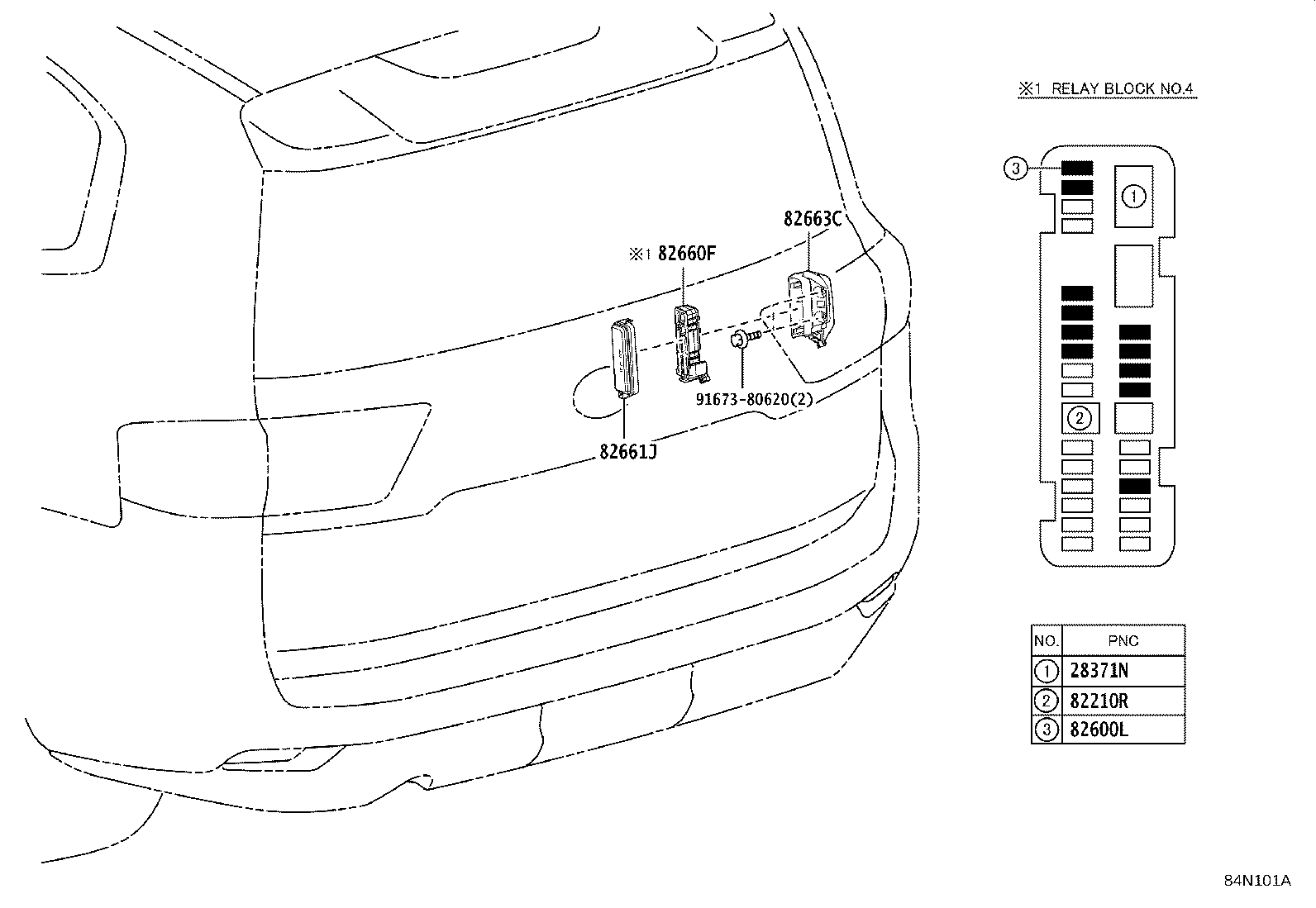

ILLUST NO.11 OF11(2104- )
REAR RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371N - RELAY, IGP, NO.3 | ||||
| 90987-02027 |
V35AFTS,1GRFE..GRJ300,VJA300..V SEAT HEATER-WITH(DRIVER & PASSENGER)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 90987-02027 |
V35AFTS,1GRFE..GRJ300,VJA300..V SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1)&VENTILATION SEAT-WITH(DRIVER & PASSENGER & REAR) |
1 | ||
| 82210R - LUGGAGE ROOM FUSIBLE LINK | ||||
| 90982-08295 |
GRJ300,VJA300 |
1 | ||
| 82600L - LUGGAGE ROOM FUSE | ||||
| 90982-09022 |
GRJ300,VJA300 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ300,VJA300 30A,MINI FUSE,GRN |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-60280 |
GRJ300,VJA300 |
1 | ||
| 82661J - COVER, RELAY BLOCK, NO.4 | ||||
| 82661-60690 |
GRJ300,VJA300 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-60350 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 91673-80620 | ||||

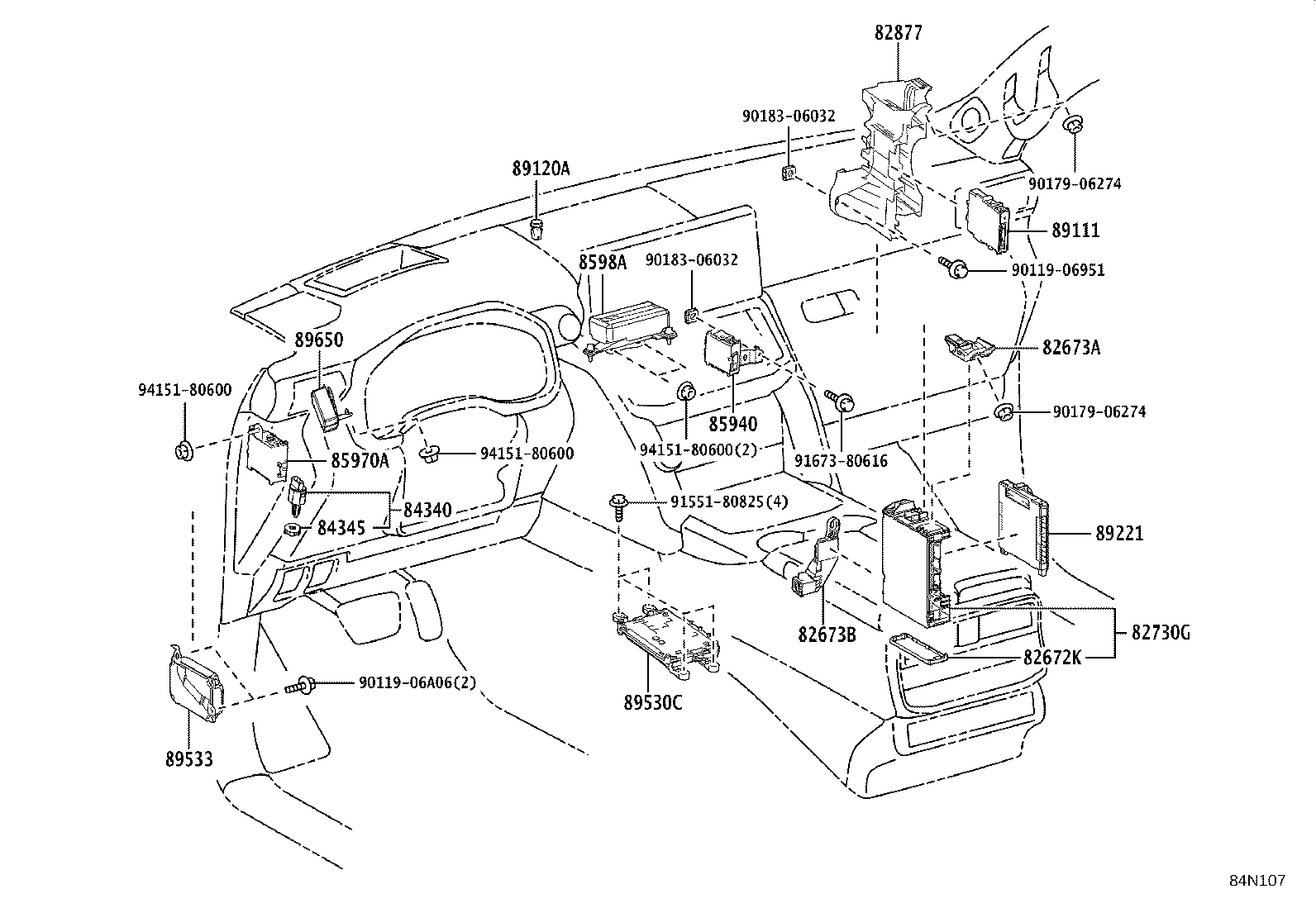

ILLUST NO. 4 OF11(2104- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82672K - COVER, POWER DISTRIBUTION BOX | ||||
| 82672-60130 |
GRJ300,VJA300 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-60190 |
GRJ300,VJA300..LHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-60210 |
GRJ300,VJA300..LHD |
1 | ||
| 82730G - BOX ASSY, POWER DISTRIBUTION | ||||
| 82730-60230 |
GRJ300..A ARMENIA SPEC |
1 | ||
| 82730-60230 |
GRJ300..A KAZAKHSTAN SPEC |
1 | ||
| 82730-60250 |
GRJ300,VJA300..7S..(A,G) |
1 | ||
| 82730-60230 |
VJA300..A..EUR;GRJ300,VJA300..V,Z |
1 | ||
| 82730-60230 |
GRJ300..A UZBEKISTAN SPEC |
1 | ||
| 82730-60230 |
GRJ300..G;VJA300..A..GCC SAUDI ARABIA SPEC |
1 | ||
| 82730-60230 |
GRJ300..A KYRGYZ SPEC |
1 | ||
| 82730-60230 |
GRJ300..A AZER, GEORGIA SPEC |
1 | ||
| 82730-60230 |
GRJ300..A,G TAJIKISTAN, TURKMENISTAN SPEC |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-60030 |
GRJ300,VJA300..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19095 |
GRJ300,VJA300 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GRJ300,VJA300 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60150 |
GRJ300,VJA300..LHD |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-60100 |
GRJ300..A KAZAKHSTAN SPEC |
1 | ||
| 85970-60100 |
GRJ300..A AZER, GEORGIA SPEC |
1 | ||
| 85970-60100 |
GRJ300..A UZBEKISTAN SPEC |
1 | ||
| 85970-60100 |
GRJ300..A KYRGYZ SPEC |
1 | ||
| 85970-60100 |
GRJ300..A ARMENIA SPEC |
1 | ||
| 85970-60100 |
GRJ300 TAJIKISTAN, TURKMENISTAN SPEC |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-60060 |
GRJ300..A KAZAKHSTAN SPEC |
1 | ||
| 8598A-60060 |
GRJ300..A KYRGYZ SPEC |
1 | ||
| 8598A-60060 |
GRJ300..A ARMENIA SPEC |
1 | ||
| 8598A-60060 |
GRJ300..A UZBEKISTAN SPEC |
1 | ||
| 8598A-60060 |
GRJ300..G;VJA300..A..GCC SAUDI ARABIA SPEC |
1 | ||
| 8598A-60060 |
VJA300..A..EUR;GRJ300,VJA300..V,Z |
1 | ||
| 8598A-60060 |
GRJ300..A AZER, GEORGIA SPEC |
1 | ||
| 8598A-60060 |
GRJ300..A,G TAJIKISTAN, TURKMENISTAN SPEC |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-60140 |
GRJ300,VJA300 *614 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GRJ300,VJA300 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-60661 |
GRJ300,VJA300 |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60440 |
GRJ300;VJA300..A,V DIFFERENTIAL LOCK-WITH(REAR),*614 |
1 | ||
| 89533-60430 |
GRJ300,VJA300 *614 |
1 | ||
| 89533-60450 |
GRJ300..G,V;VJA300..A..EUR;VJA300..V..(EUR,GCC) DIFFERENTIAL LOCK-WITH(FRONT & REAR),*614 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A06 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91551-80825 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||

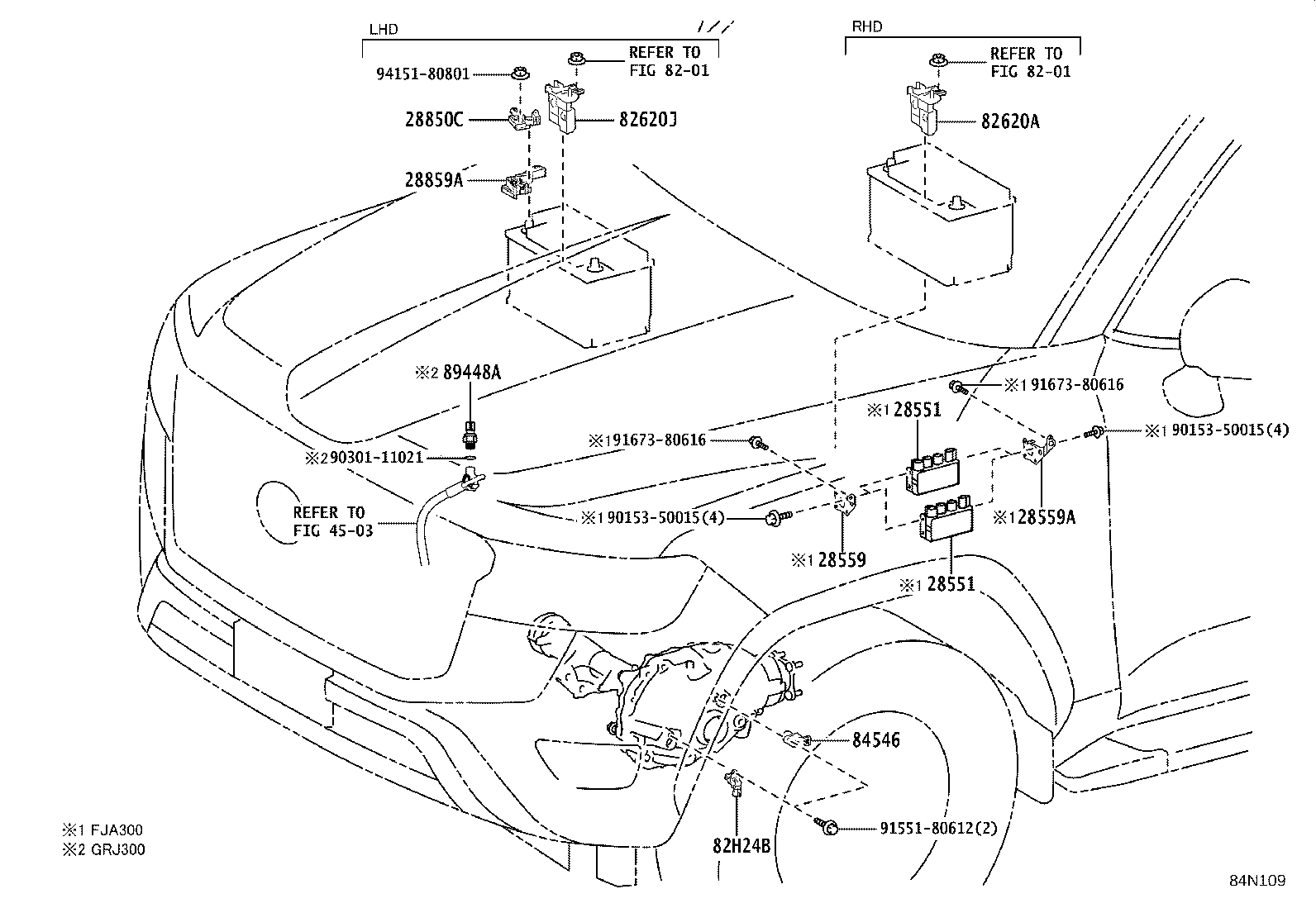

ILLUST NO. 2 OF11(2104- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82620J - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60320 |
GRJ300 |
1 | ||
| 82H24B - CONNECTOR, WIRING HARNESS | ||||
| 82824-60C40 |
GRJ300..G,V;VJA300..A..EUR;VJA300..V..(EUR,GCC) DIFFERENTIAL LOCK-WITH(FRONT & REAR) |
1 | ||
| 84546 - SWITCH, 4 WHEEL DRIVE POSITION, NO.1 | ||||
| 84546-60010 |
GRJ300..G,V;VJA300..A..EUR;VJA300..V..(EUR,GCC) DIFFERENTIAL LOCK-WITH(FRONT & REAR) |
1 | ||
| 89448A - SENSOR, POWER STEERING OIL PRESSURE | ||||
| 89448-34020 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 90301-11021 | ||||
| 91551-80612 | ||||
| 91673-80616 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 4503 | ||||
| 8201 | ||||
ILLUST NO. 3 OF11(2104- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17616A - RELAY, AIR PUMP | ||||
| 90987-02027 |
1GRFE..GRJ300..A KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
1GRFE..GRJ300..A ARMENIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
1GRFE..GRJ300..A KYRGYZ SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
1GRFE..GRJ300..A AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
1GRFE..GRJ300..A UZBEKISTAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02033 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02027 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 28371L - RELAY, IGP | ||||
| 90987-02033 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 28371M - RELAY, IGP, NO.2 | ||||
| 90987-02033 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
GRJ300,VJA300 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
GRJ300,VJA300 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
GRJ300,VJA300 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GRJ300,VJA300 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GRJ300,VJA300 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ300,VJA300 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRJ300,VJA300 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
GRJ300,VJA300 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GRJ300,VJA300 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09023 |
GRJ300,VJA300 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
GRJ300,VJA300 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GRJ300,VJA300 10A,MINI FUSE,RED |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-60140 |
GRJ300,VJA300 |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-60150 |
GRJ300,VJA300 |
1 | ||
| 82610D - BLOCK ASSY, FUSE | ||||
| 82610-60160 |
GRJ300,VJA300 |
1 | ||
| 82610E - BLOCK ASSY, FUSE | ||||
| 82610-60170 |
GRJ300,VJA300 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ300,VJA300 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60330 |
GRJ300,VJA300 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60340 |
GRJ300,VJA300 |
1 | ||
| 82620E - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60410 |
GRJ300 |
1 | ||
| 82620F - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60360 |
GRJ300,VJA300 |
1 | ||
| 82620G - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60370 |
GRJ300,VJA300 |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-60010 |
GRJ300,VJA300..V,Z |
1 | ||
| 82644-60030 |
GRJ300,VJA300..A,G |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-60300 |
GRJ300,VJA300 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-60310 |
GRJ300,VJA300 |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-60310 |
GRJ300,VJA300 |
2 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60560 |
GRJ300 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-60590 |
GRJ300 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60260 |
GRJ300,VJA300..LHD |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-60300 |
GRJ300,VJA300..LHD |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60170 |
GRJ300,VJA300..LHD |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-60200 |
GRJ300,VJA300 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
GRJ300..A KYRGYZ SPEC&COLD AREA SPEC |
1 | ||
| 90987-02027 |
GRJ300..A KAZAKHSTAN SPEC&COLD AREA SPEC |
1 | ||
| 90987-02027 |
GRJ300..A ARMENIA SPEC&COLD AREA SPEC |
1 | ||
| 90987-02027 |
GRJ300..A UZBEKISTAN SPEC&COLD AREA SPEC |
1 | ||
| 90987-02027 |
GRJ300..A MONGOLIA SPEC&COLD AREA SPEC |
1 | ||
| 90987-02027 |
GRJ300..A AZER, GEORGIA SPEC&COLD AREA SPEC |
1 | ||
| 90987-02027 |
GRJ300..A TAJIKISTAN, TURKMENISTAN SPEC&COLD AREA SPEC |
1 | ||
| 90987-02027 |
GRJ300..G,V;VJA300..LHD..GEN COLD AREA SPEC |
1 | ||
| 85912F - RELAY, HWD | ||||
| 90987-04010 |
GRJ300..A UZBEKISTAN SPEC&COLD AREA SPEC |
2 | ||
| 90987-04010 |
GRJ300..A KAZAKHSTAN SPEC&COLD AREA SPEC |
2 | ||
| 90987-04010 |
GRJ300..A KYRGYZ SPEC&COLD AREA SPEC |
2 | ||
| 90987-04010 |
GRJ300..A ARMENIA SPEC&COLD AREA SPEC |
2 | ||
| 90987-04010 |
GRJ300..A AZER, GEORGIA SPEC&COLD AREA SPEC |
2 | ||
| 85917D - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR) | ||||
| 90987-02027 |
GRJ300,VJA300 |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-02027 |
GRJ300,VJA300 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
GRJ300..A,V;VJA300..GCC |
1 | ||
| 90987-02027 |
GRJ300..G SUN VISOR-WITH(MIRROR & BULB LAMP & SLIDE )&AIR CONDITIONER-AUTO(FRONT DUAL CONTROL & RR COOLER) |
1 | ||
| 85935 - RELAY, FUEL PUMP | ||||
| 90987-02027 |
GRJ300 |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02027 |
GRJ300,VJA300 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 90987-02027 |
GRJ300,VJA300..V,Z |
1 | ||
| 90987-02027 |
GRJ300,VJA300..A HEADLAMP CLEANER-WITH |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
GRJ300..G;VJA300..A..GEN ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220V(DECK SIDE) |
1 | ||
| 90987-02027 |
GRJ300..A,V;VJA300..G,V,Z;VJA300..LHD..A |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GRJ300,VJA300 |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
GRJ300,VJA300..(V,Z)..(GCC,GEN) |
1 | ||
| 90987-02027 |
GRJ300,VJA300..7S..A ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN) |
1 | ||
| 87299C - RELAY, WASHER NOZZLE HEATER | ||||
| 90987-02027 |
GRJ300..A COLD AREA SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE)&WINDSHIELD DEICER-WITH(FOR WIPER) & WITH(*EHL) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02033 |
GRJ300..A KAZAKHSTAN SPEC&COLD AREA SPEC |
3 | ||
| 90987-02033 |
GRJ300..A ARMENIA SPEC&COLD AREA SPEC |
3 | ||
| 90987-02033 |
GRJ300..A UZBEKISTAN SPEC&COLD AREA SPEC |
3 | ||
| 90987-02033 |
GRJ300 TAJIKISTAN, TURKMENISTAN SPEC&COLD AREA SPEC |
3 | ||
| 90987-02033 |
GRJ300..A,V MONGOLIA SPEC&COLD AREA SPEC |
3 | ||
| 90987-02033 |
GRJ300..A KYRGYZ SPEC&COLD AREA SPEC |
3 | ||
| 90987-02033 |
GRJ300..A AZER, GEORGIA SPEC&COLD AREA SPEC |
3 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
GRJ300 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
GRJ300 |
1 | ||
| 89589B - RELAY, AI VALVE | ||||
| 90987-02027 |
GRJ300 OMAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300 QATAR, BAHRAIN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300..A KAZAKHSTAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300..A UZBEKISTAN SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300 KUWAIT SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300..A AZER, GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300 UAE SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300..A ARMENIA SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90987-02027 |
GRJ300..A KYRGYZ SPEC&EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS) |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
ILLUST NO. 7 OF11(2104- )LHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-60460C0 |
GRJ300,VJA300..A,G BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC UAE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC LEBANON SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC UAE SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G SAUDI ARABIA SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60490C0 |
GRJ300,VJA300..V..GCC ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC OMAN SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G LEBANON SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G UAE SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G OMAN SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G JORDAN SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G QATAR, BAHRAIN SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC JORDAN SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC QATAR, BAHRAIN SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC IRAQ SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC YEMEN SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..V TAJIKISTAN, TURKMENISTAN SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..V MONGOLIA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC KUWAIT SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G YEMEN SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G KUWAIT SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G TAJIKISTAN, TURKMENISTAN SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300..G IRAQ SPEC&CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH/DVD) & 7INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 10SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60510C0 |
GRJ300,VJA300..V..GCC BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..V..GCC ACTIVE SAFETY PACKAGE-WITHOUT&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 84250-60510C0 |
GRJ300..G ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60500C0 |
GRJ300,VJA300..A..GCC CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60510C0 |
GRJ300,VJA300..A..GCC CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,*ACC,*LDA&LANE KEEPING SYSTEM-LDA+BRK+VIB,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC LEBANON SPEC&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300..G UAE SPEC&ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300..G SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60510C0 |
GRJ300,VJA300..A..GCC CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,*ACC,*LDA&LANE KEEPING SYSTEM-LDA+BRK,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC UAE SPEC&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300..G LEBANON SPEC&ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300..G OMAN SPEC&ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALLSPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC QATAR, BAHRAIN SPEC&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC JORDAN SPEC&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC UAE SPEC&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-LESS(WITHOUT/BRACKET & COVER) & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC KUWAIT SPEC&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300..G KUWAIT SPEC&ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300..G QATAR, BAHRAIN SPEC&ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300..G JORDAN SPEC&ACTIVE SAFETY PACKAGE-WITH(TOYOTA SAFETY SENSE)&CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC OMAN SPEC&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-*DA & 9INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..A..GCC CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&LANE KEEPING SYSTEM-LDA+BRK,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-EMV(WITHOUT/DECK)& 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH/DVD) & 7INCH DISPLAY & 6SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..V..GCC STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&AUDIO(FOR OVERSEAS MARKET)-EMV(WITH/DVD) & 14SPEAKER(JBL),BLACK,TRIM2#,4# |
1 | ||
| 84250-60580C0 |
GRJ300..A,G;VJA300..A..GCC CRUISE CONTROL-WITH(NORMAL)&STEERING SWITCH-AUDIO,MID,TEL,*CC,BLACK,TRIM2#,4# |
1 | ||
| 84250-60520C0 |
GRJ300,VJA300..A..GCC CRUISE CONTROL-WITH(ALL SPEED RANGE *ACC)&STEERING SWITCH-AUDIO,MID,TEL,VOICE,*ACC,*LDA&LANE KEEPING SYSTEM-LDA+BRK+VIB,BLACK,TRIM2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-60040 |
GRJ300,VJA300 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
GRJ300,VJA300..LHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12110 |
GRJ300..A,G;VJA300..A..GCC |
1 | ||
| 84329-12140 |
GRJ300,VJA300..LHD..(V,Z)..(GCC,GEN) |
1 | ||
| 84329-12140 |
GRJ300..A,G;VJA300..A..GCC FRONT FOG LAMP-WITH |
1 | ||
| 84329-12170 |
GRJ300..A ARMENIA SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84329-12170 |
GRJ300..A KYRGYZ SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84329-12170 |
GRJ300,VJA300..A..GCC EGYPT SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84329-12170 |
GRJ300..A KAZAKHSTAN SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84329-12170 |
GRJ300..A AZER, GEORGIA SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84329-12170 |
GRJ300..A UZBEKISTAN SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84329-12170 |
GRJ300..A,G TAJIKISTAN, TURKMENISTAN SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300..A KAZAKHSTAN SPEC&FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33060 |
GRJ300..A,G;VJA300..A..GCC FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33060 |
GRJ300,VJA300..LHD..(V,Z)..(GCC,GEN) REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300..A KYRGYZ SPEC&FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300..A ARMENIA SPEC&FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300..A UZBEKISTAN SPEC&FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300,VJA300..A..GCC EGYPT SPEC&FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33070 |
GRJ300..A,G;VJA300..A..GCC REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300..A AZER, GEORGIA SPEC&FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300..A,G TAJIKISTAN, TURKMENISTAN SPEC&FRONT FOG LAMP-WITH&REAR FOG LAMP-WITH |
1 | ||
| 84329-33090 |
GRJ300..V TAJIKISTAN, TURKMENISTAN SPEC&REAR FOG LAMP-WITH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42200 |
GRJ300..A KAZAKHSTAN SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE) |
1 | ||
| 84652-42200 |
GRJ300..A KYRGYZ SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE) |
1 | ||
| 84652-26750 |
GRJ300,VJA300..(A,G)..GCC |
1 | ||
| 84652-42200 |
GRJ300..A AZER, GEORGIA SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE) |
1 | ||
| 84652-12A70 |
GRJ300..V |
1 | ||
| 84652-42200 |
GRJ300..A ARMENIA SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE) |
1 | ||
| 84652-42200 |
GRJ300..A UZBEKISTAN SPEC&WINDSHIELD GLASS-GREEN(WITH TOP SHADE, ACOUSTIC TYPE) |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-60010 |
GRJ300,VJA300 *614 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 8 OF11(2104- )LHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921N - KNOB, POWER SEAT SWITCH, RH (FOR RECLINING) | ||||
| 84921-33200C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
VJA300..A..GEN;GRJ300,VJA300..LHD..V FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33200E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
VJA300..A..GEN;GRJ300,VJA300..LHD..V FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33200E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921P - KNOB, POWER SEAT SWITCH, RH (FOR SLIDE & VERTICAL) | ||||
| 84921-33190C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
VJA300..A..GEN;GRJ300,VJA300..LHD..V FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84921-33190E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-33190E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
VJA300..A..GEN;GRJ300,VJA300..LHD..V FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921Q - KNOB, POWER SEAT SWITCH, LH (FOR RECLINING) | ||||
| 84921-33180C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 84921-33180E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33180C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-33180C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-33180E0 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33180E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921R - KNOB, POWER SEAT SWITCH, LH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-33170E0 |
VJA300..RHD..Z;GRJ300,VJA300..LHD..(V,Z) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33170C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 84921-33170C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-33170E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33170E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33170 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33170 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33170 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33170 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33170 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33170 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33170 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33170 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 84922-33170 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 84922-33210C0 |
GRJ300,VJA300..LHD..V BLACK,TRIM2# |
1 | ||
| 84922-33170 |
GRJ300,VJA300..LHD..V FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 84922-33210E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33210C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER) & MANUAL(PASSENGER),BLACK,TRIM2# |
1 | ||
| 84922-33210E0 |
GRJ300,VJA300..LHD..V NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33160C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33160E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33160C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160C0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33160E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33160E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33210C0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84922-33210E0 |
GRJ300,VJA300..LHD..A FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33160C0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),BLACK,TRIM2# |
1 | ||
| 84922-33160E0 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33160E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33160E0 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33210E0 |
GRJ300,VJA300..LHD..V FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33210C0 |
GRJ300,VJA300..LHD..V FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-60020 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89710-60020 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89710-60020 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89710-60020 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89710-60020 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89710-60020 |
GRJ300,VJA300..V..GCC OUTSIDE REAR VIEW MIRROR-*273(*CR) & *RIF&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89710-60020 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273(*CR)&*RIF&WITH(CAMERA)&*FLA&*BSM&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| 89710-60020 |
GRJ300..V OUTSIDE REAR VIEW MIRROR-*273 & *RIF & WITH(CAMERA) & *FLA&FRONT SEAT-POWER(*DRP)& W(DRIVER SIDE SEAT MEMORY)&SEAT COVER MATERIAL-LEATHER(SMOOTH) |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7156 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
