Toyota Land cruiser GRJ300 HOOD & FRONT FENDER

GRJ300L-GNTVKV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999

Engine 1GRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

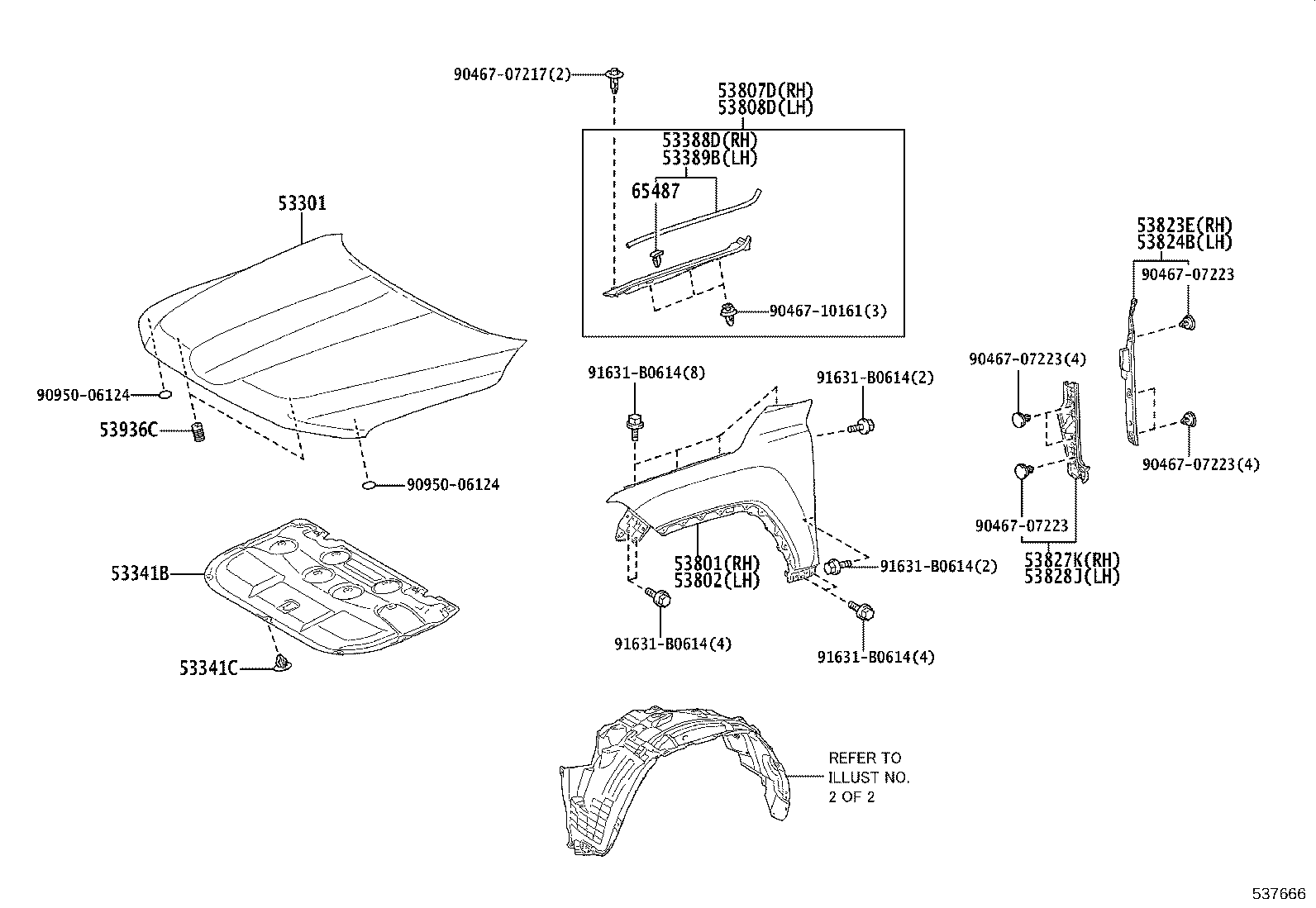

ILLUST NO. 1 OF 2(2104- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
53301 - HOOD SUB-ASSY
53301-60720	GRJ300,VJA300	04/2021 - 12/2999	1
53341B - INSULATOR, HOOD
53341-60480	GRJ300	04/2021 - 12/2999	1
53341C - CLIP(FOR HOOD INSULATOR)
90467-07229	GRJ300,VJA300	04/2021 - 12/2999	13
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-60090	GRJ300,VJA300	04/2021 - 12/2999	1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53389-60110	GRJ300,VJA300	04/2021 - 12/2999	1
53801 - FENDER SUB-ASSY, FRONT RH
53801-60E20	GRJ300,VJA300	04/2021 - 12/2999	1
53802 - FENDER SUB-ASSY, FRONT LH
53802-60E40	GRJ300,VJA300	04/2021 - 12/2999	1
53807D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807-60200	GRJ300,VJA300	04/2021 - 12/2999	1
53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53808-60150	GRJ300,VJA300	04/2021 - 12/2999	1
53823E - PROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823-60020	GRJ300,VJA300	04/2021 - 12/2999	1
53824B - PROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824-60020	GRJ300,VJA300	04/2021 - 12/2999	1
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-60050	GRJ300,VJA300	04/2021 - 12/2999	1
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-60080	GRJ300,VJA300	04/2021 - 12/2999	1
53936C - CUSHION
90541-15034	GRJ300,VJA300	04/2021 - 12/2999	2
65487 - CLIP, CORNER PROTECTOR
65487-60010	GRJ300,VJA300	04/2021 - 12/2999	22
Common parts
90467-07217
90467-07223
90467-10161
90950-06124
91631-B0614

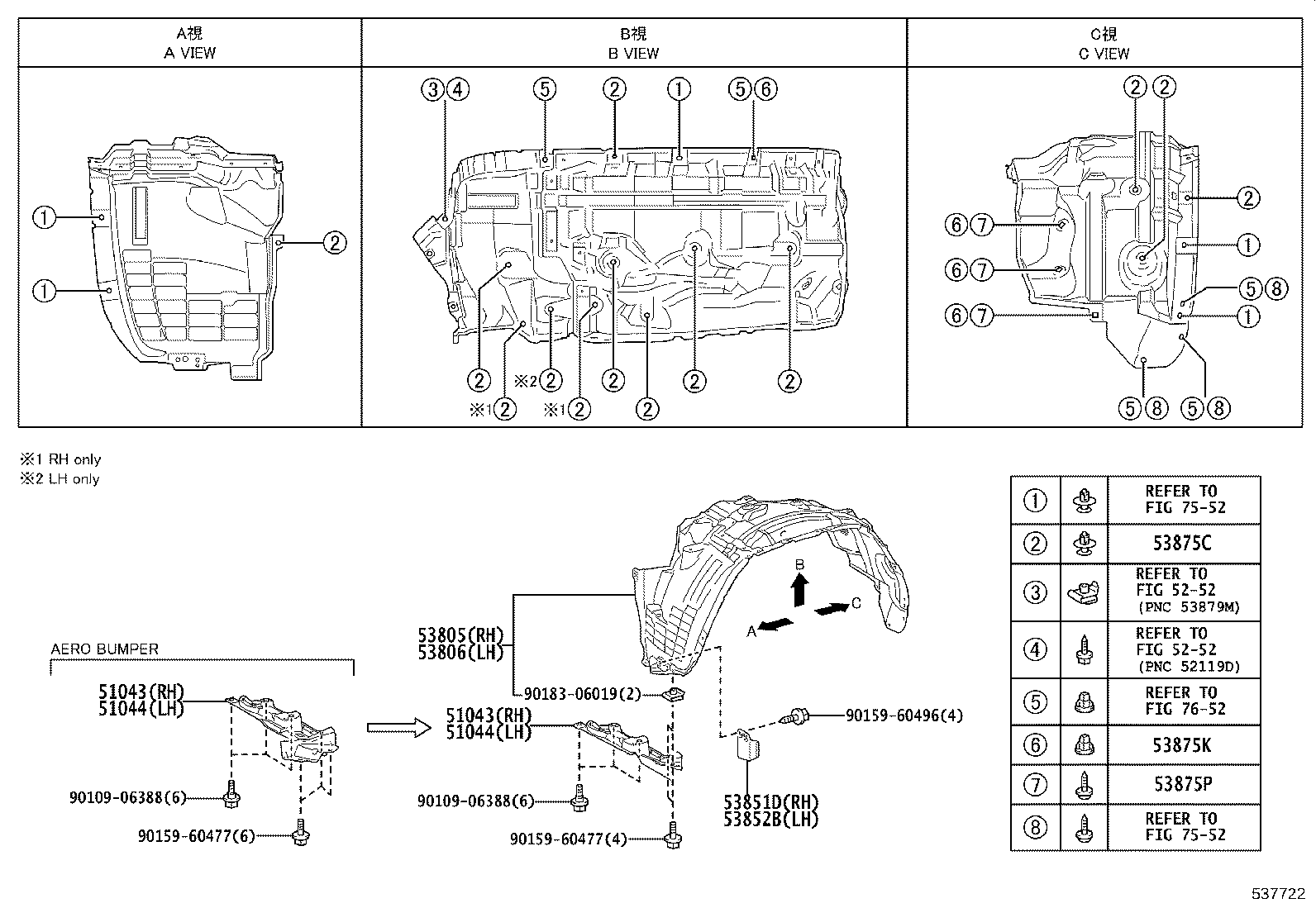

ILLUST NO. 2 OF 2(2104- )

Click highlighted areas on diagram

FENDER LINER

Part #	Description	Period	Qty
51043 - COVER SUB-ASSY, ENGINE SIDE, RH
51043-60010	GRJ300,VJA300..A,G,V	04/2021 - 12/2999	1
51043-60020	GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)	04/2021 - 12/2999	1
51043-60020	GRJ300,VJA300..V..GCC AERO PACKAGE	04/2021 - 12/2999	1
51043 - COVER SUB-ASSY, ENGINE SIDE, RH
51043-60010	GRJ300,VJA300..A,G,V	04/2021 - 12/2999	1
51043-60020	GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)	04/2021 - 12/2999	1
51043-60020	GRJ300,VJA300..V..GCC AERO PACKAGE	04/2021 - 12/2999	1
51044 - COVER SUB-ASSY, ENGINE SIDE, LH
51044-60010	GRJ300,VJA300..A,G,V	04/2021 - 12/2999	1
51044-60020	GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)	04/2021 - 12/2999	1
51044-60020	GRJ300,VJA300..V..GCC AERO PACKAGE	04/2021 - 12/2999	1
51044 - COVER SUB-ASSY, ENGINE SIDE, LH
51044-60010	GRJ300,VJA300..A,G,V	04/2021 - 12/2999	1
51044-60020	GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)	04/2021 - 12/2999	1
51044-60020	GRJ300,VJA300..V..GCC AERO PACKAGE	04/2021 - 12/2999	1
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-60130	GRJ300,VJA300..V	04/2021 - 12/2999	1
53805-60140	GRJ300,VJA300..A,G	04/2021 - 12/2999	1
53805-60180	GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)	04/2021 - 12/2999	1
53805-60170	GRJ300,VJA300..V..GCC AERO PACKAGE	04/2021 - 12/2999	1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-60110	GRJ300,VJA300..V	04/2021 - 12/2999	1
53806-60130	GRJ300,VJA300..A,G	04/2021 - 12/2999	1
53806-60180	GRJ300,VJA300..A..GCC UPGRADE PACKAGE(AERO)	04/2021 - 12/2999	1
53806-60170	GRJ300,VJA300..V..GCC AERO PACKAGE	04/2021 - 12/2999	1
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-60230	GRJ300,VJA300	04/2021 - 12/2999	1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-60120	GRJ300,VJA300	04/2021 - 12/2999	1
53875C - CLIP, FRONT FENDER LINER
90467-07215	GRJ300,VJA300	04/2021 - 12/2999	23
53875K - GROMMET, SCREW
90189-06236	GRJ300,VJA300	04/2021 - 12/2999	8
53875P - SCREW, NO.1
90159-60625	GRJ300,VJA300	04/2021 - 12/2999	6
Common parts
90109-06388
90159-60477
90159-60496
90183-06019
Linked diagrams
5252
7552
7652

GRJ300L-GNTVKV (2021)

ILLUST NO. 1 OF 2(2104- )

ILLUST NO. 2 OF 2(2104- )
