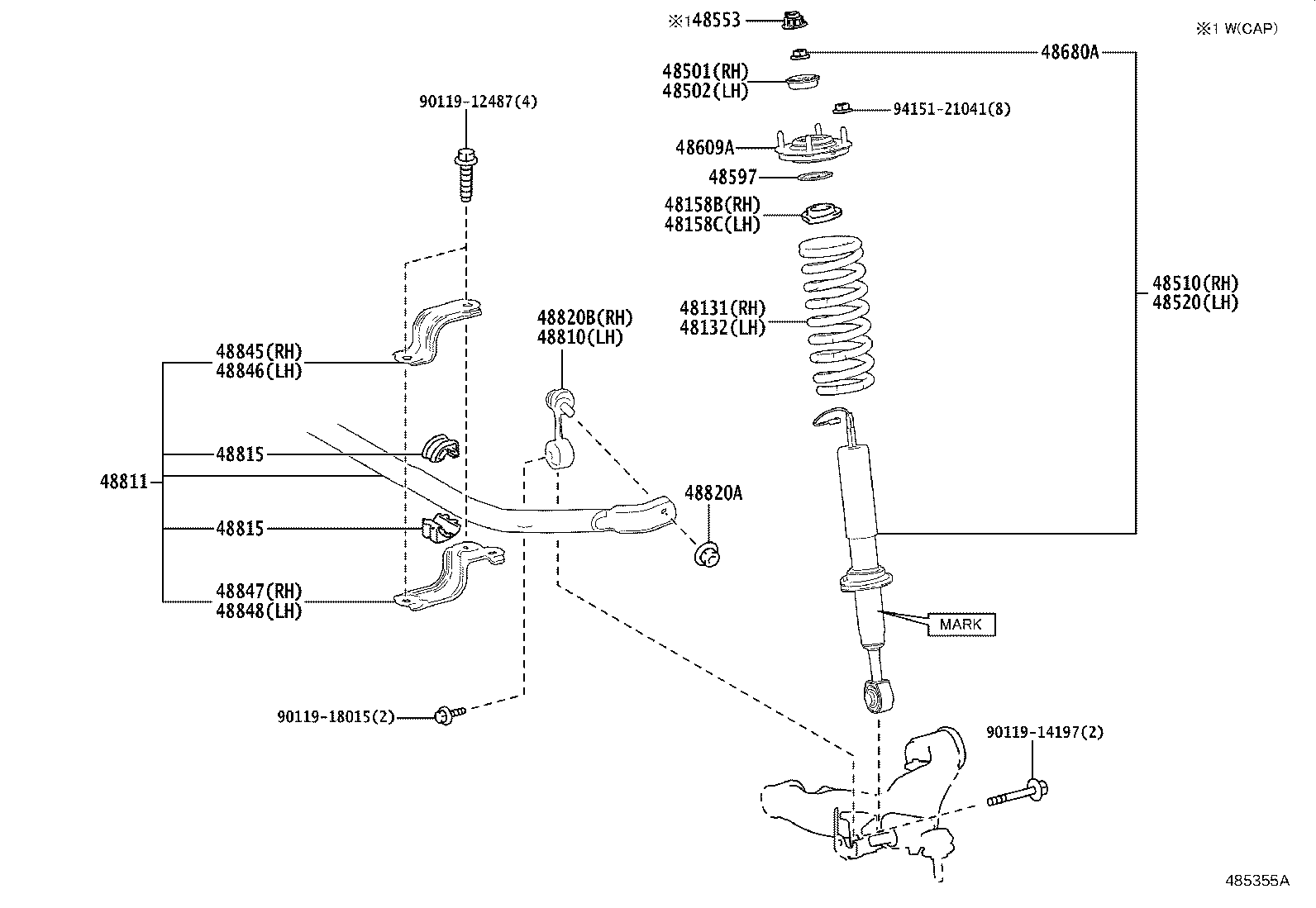

GRJ300L-GNTAKV (2021)
Toyota Land Cruiser
(2104- )
W/O(AVS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60N80 |
GRJ300..A,G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60N70 |
GRJ300 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60N80 |
GRJ300..A,G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60N70 |
GRJ300 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-60020 |
GRJ300,VJA300 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-60020 |
GRJ300,VJA300 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-60030 |
GRJ300,VJA300 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48501-60030 |
GRJ300,VJA300 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80B70 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48510-60490,EGYPT SPEC |
1 | ||
| 48510-80B68 |
GRJ300,VJA300..A,G,V MARK 48510-60470 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80B70 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48510-60490,EGYPT SPEC |
1 | ||
| 48510-80B68 |
GRJ300,VJA300..A,G,V MARK 48510-60470 |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-60010 |
GRJ300..A AZER, GEORGIA SPEC |
2 | ||
| 48553-60010 |
GRJ300 TAJIKISTAN, TURKMENISTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A KAZAKHSTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A ARMENIA SPEC |
2 | ||
| 48553-60010 |
GRJ300..A UZBEKISTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A KYRGYZ SPEC |
2 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60150 |
GRJ300,VJA300 |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-60110 |
GRJ300,VJA300 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
GRJ300,VJA300 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-60120 |
GRJ300,VJA300 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60180 |
GRJ300,VJA300 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60430 |
GRJ300,VJA300 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60430 |
GRJ300,VJA300 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21441 |
GRJ300,VJA300 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60120 |
GRJ300,VJA300 |
1 | ||
| 48845 - BRACKET, FRONT STABILIZER BUSH, RH | ||||
| 48845-60010 |
GRJ300,VJA300 |
1 | ||
| 48846 - BRACKET, FRONT STABILIZER BUSH, LH | ||||
| 48846-60010 |
GRJ300,VJA300 |
1 | ||
| 48847 - BRACKET, FRONT STABILIZER BUSH, RH NO.2 | ||||
| 48847-60010 |
GRJ300,VJA300 |
1 | ||
| 48848 - BRACKET, FRONT STABILIZER BUSH, LH NO.2 | ||||
| 48848-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-12487 | ||||
| 90119-14197 | ||||
| 90119-18015 | ||||
| 94151-21041 | ||||

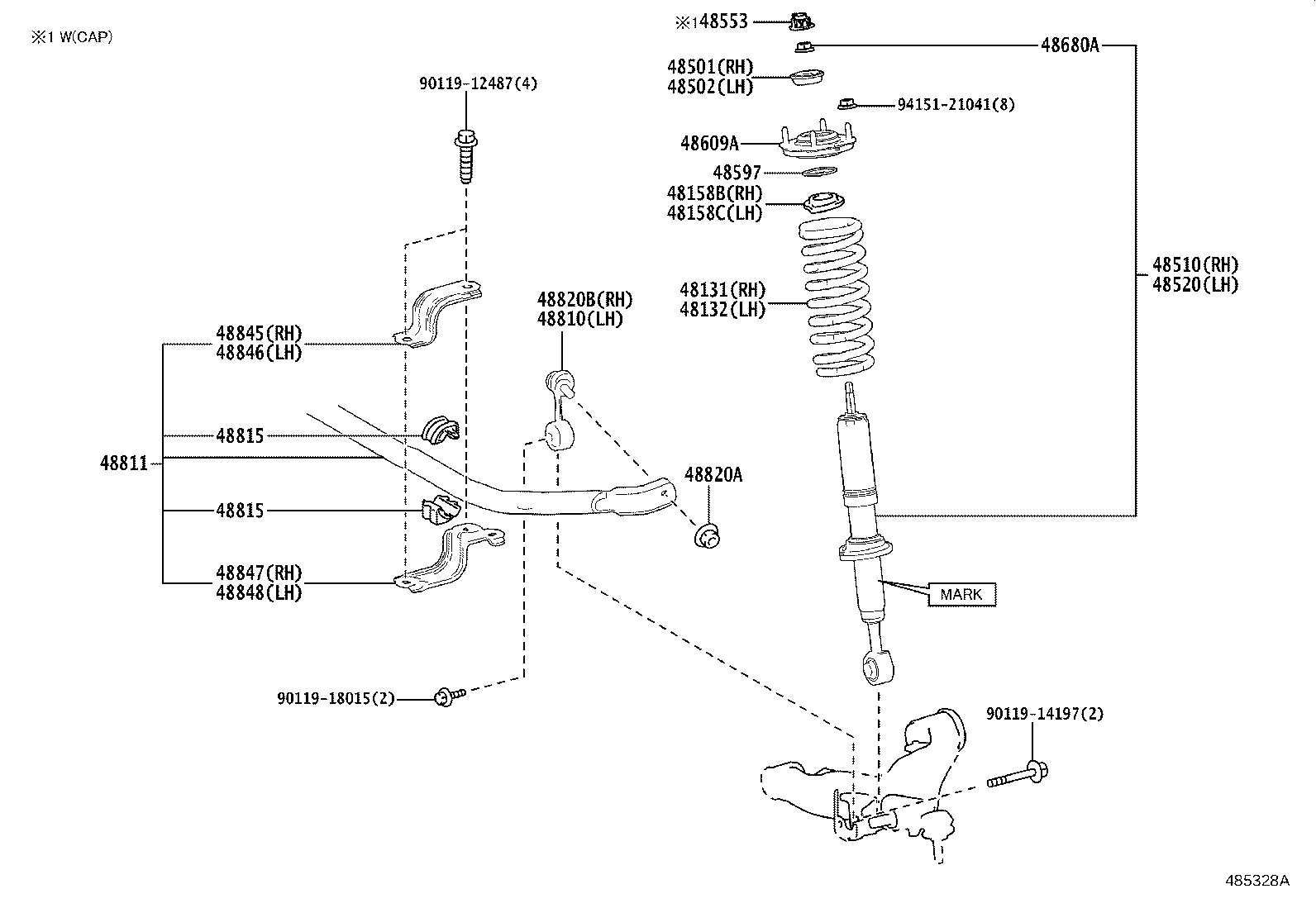

(2104- )
W(AVS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60N80 |
GRJ300..A,G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60N70 |
GRJ300 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60N80 |
GRJ300..A,G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60N70 |
GRJ300 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-60020 |
GRJ300,VJA300 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-60020 |
GRJ300,VJA300 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-60030 |
GRJ300,VJA300 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48501-60030 |
GRJ300,VJA300 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80B70 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48510-60490,EGYPT SPEC |
1 | ||
| 48510-80B68 |
GRJ300,VJA300..A,G,V MARK 48510-60470 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80B70 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48510-60490,EGYPT SPEC |
1 | ||
| 48510-80B68 |
GRJ300,VJA300..A,G,V MARK 48510-60470 |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-60010 |
GRJ300..A UZBEKISTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A AZER, GEORGIA SPEC |
2 | ||
| 48553-60010 |
GRJ300 TAJIKISTAN, TURKMENISTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A KAZAKHSTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A ARMENIA SPEC |
2 | ||
| 48553-60010 |
GRJ300..A KYRGYZ SPEC |
2 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60150 |
GRJ300,VJA300 |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-60110 |
GRJ300,VJA300 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
GRJ300,VJA300 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-60120 |
GRJ300,VJA300 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60180 |
GRJ300,VJA300 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60430 |
GRJ300,VJA300 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60430 |
GRJ300,VJA300 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21441 |
GRJ300,VJA300 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60120 |
GRJ300,VJA300 |
1 | ||
| 48845 - BRACKET, FRONT STABILIZER BUSH, RH | ||||
| 48845-60010 |
GRJ300,VJA300 |
1 | ||
| 48846 - BRACKET, FRONT STABILIZER BUSH, LH | ||||
| 48846-60010 |
GRJ300,VJA300 |
1 | ||
| 48847 - BRACKET, FRONT STABILIZER BUSH, RH NO.2 | ||||
| 48847-60010 |
GRJ300,VJA300 |
1 | ||
| 48848 - BRACKET, FRONT STABILIZER BUSH, LH NO.2 | ||||
| 48848-60010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-12487 | ||||
| 90119-14197 | ||||
| 90119-18015 | ||||
| 94151-21041 | ||||

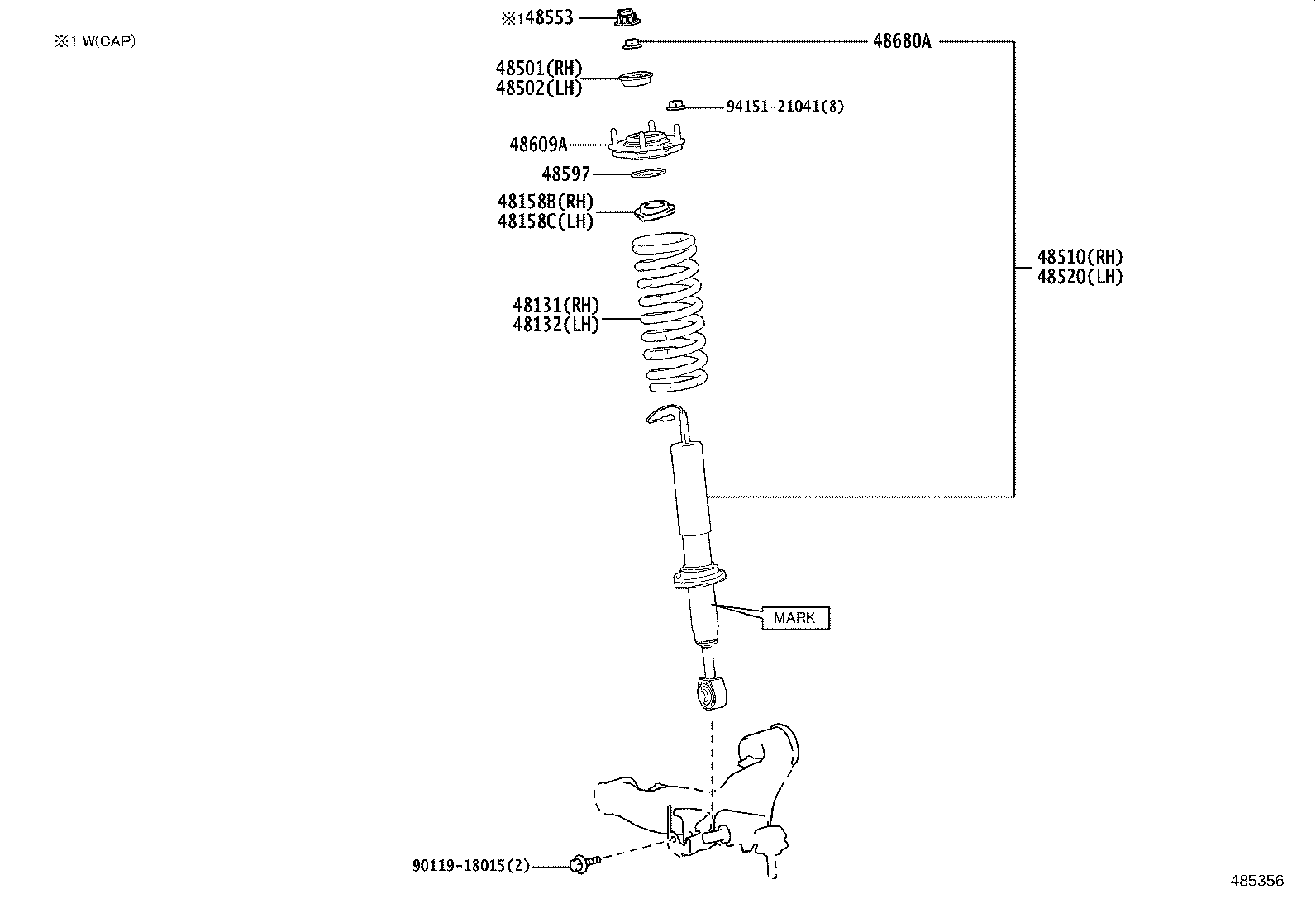

ILLUST NO. 1 OF 2(2104- )
W(AVS & E-KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60N80 |
GRJ300..A,G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60N70 |
GRJ300 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60N80 |
GRJ300..A,G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60N70 |
GRJ300 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-60020 |
GRJ300,VJA300 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-60020 |
GRJ300,VJA300 |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48501-60030 |
GRJ300,VJA300 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48501-60030 |
GRJ300,VJA300 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80B70 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48510-60490,EGYPT SPEC |
1 | ||
| 48510-80B68 |
GRJ300,VJA300..A,G,V MARK 48510-60470 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80B70 |
GRJ300..A;VJA300..(A,V)..GCC MARK 48510-60490,EGYPT SPEC |
1 | ||
| 48510-80B68 |
GRJ300,VJA300..A,G,V MARK 48510-60470 |
1 | ||
| 48553 - CAP, SHOCK ABSORBER, UPPER | ||||
| 48553-60010 |
GRJ300..A UZBEKISTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A AZER, GEORGIA SPEC |
2 | ||
| 48553-60010 |
GRJ300 TAJIKISTAN, TURKMENISTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A KAZAKHSTAN SPEC |
2 | ||
| 48553-60010 |
GRJ300..A ARMENIA SPEC |
2 | ||
| 48553-60010 |
GRJ300..A KYRGYZ SPEC |
2 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60150 |
GRJ300,VJA300 |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-60110 |
GRJ300,VJA300 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
GRJ300,VJA300 |
2 | ||
| Common parts | ||||
| 90119-18015 | ||||
| 94151-21041 | ||||

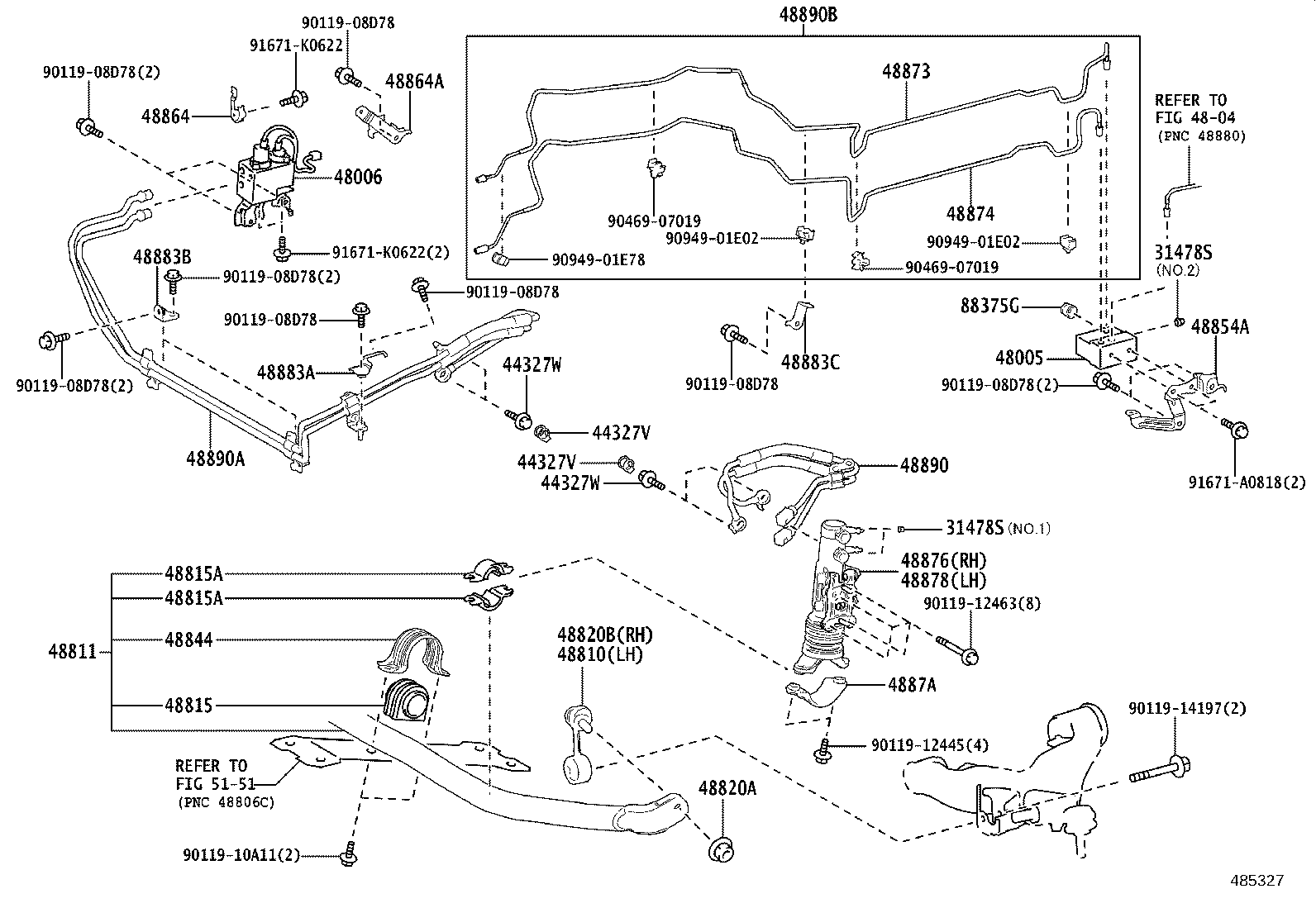

ILLUST NO. 2 OF 2(2104- )
W(AVS & E-KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-60120 |
GRJ300,VJA300 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-60180 |
GRJ300,VJA300 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-60430 |
GRJ300,VJA300 |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 94151-21441 |
GRJ300,VJA300 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60120 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-08D78 | ||||
| 90119-10A11 | ||||
| 90119-12445 | ||||
| 90119-12463 | ||||
| 90119-14197 | ||||
| 90469-07019 | ||||
| 90949-01E02 | ||||
| 90949-01E78 | ||||
| 91671-A0818 | ||||
| 91671-K0622 | ||||
| Linked diagrams | ||||
| 4804 | ||||
| 5151 | ||||
