GRJ300L-GNTAKV (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )GRJ300

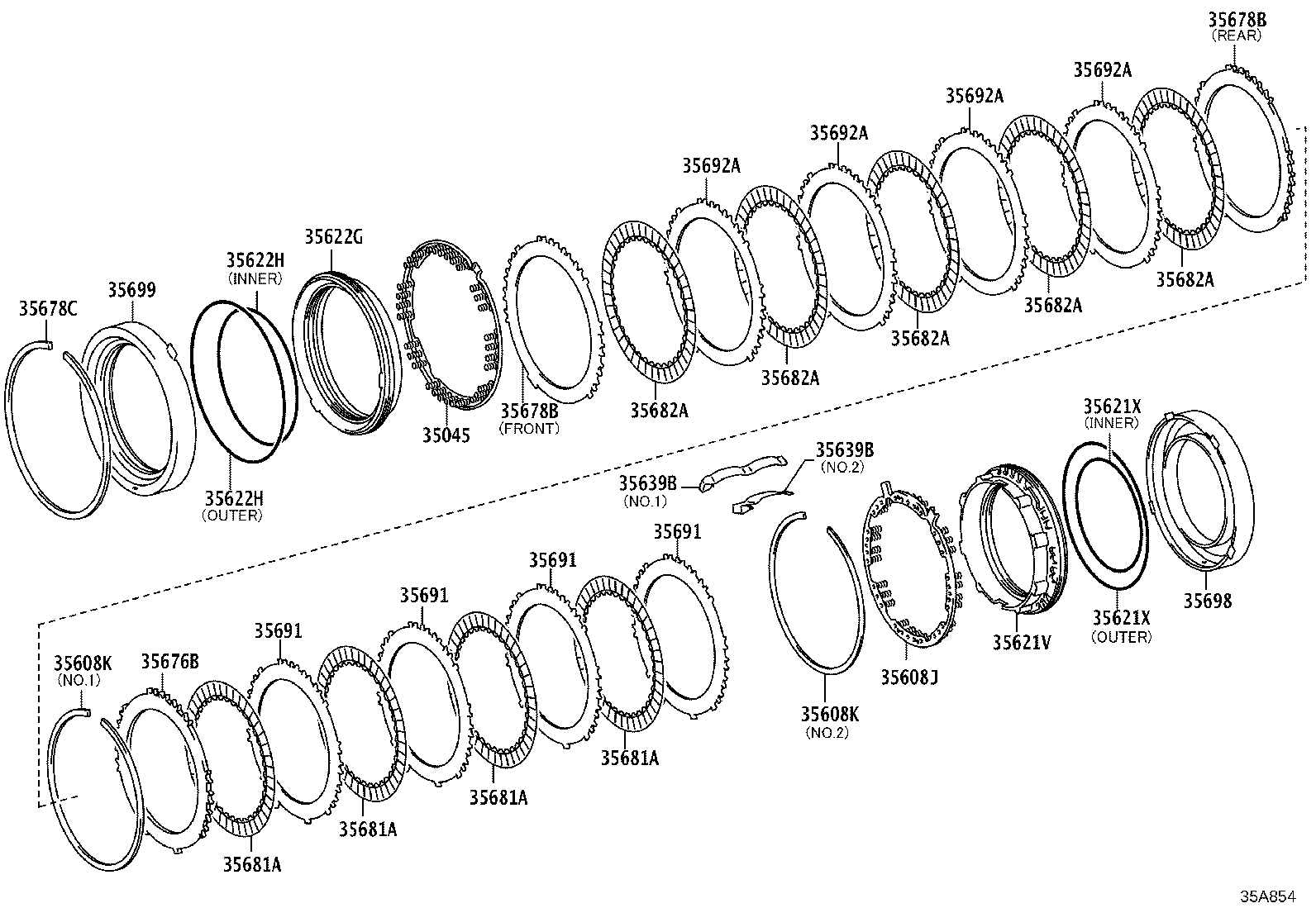

Click highlighted areas on diagram

AC60F

diagram 35045 35608J 35608K 35608K 35621V 35621X 35621X 35622G 35622H 35622H 35639B 35639B 35676B 35678B 35678B 35678C 35681A 35681A 35681A 35681A 35682A 35682A 35682A 35682A 35682A 35691 35691 35691 35691 35692A 35692A 35692A 35692A 35698 35699
Part # Description Qty Price
35045 - SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
35045-71010

GRJ300

 1
35608J - SPRING SUB-ASSY, BRAKE PISTON RETURN
35608-71010

GRJ300

 1
35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99156

GRJ300

NO.1:REFER ILLUST.

 1
90520-99157

GRJ300

NO.2:REFER ILLUST.

 1
35608K - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99156

GRJ300

NO.1:REFER ILLUST.

 1
90520-99157

GRJ300

NO.2:REFER ILLUST.

 1
35621V - PISTON, BRAKE, NO.1
35621-71010

GRJ300

 1
35621X - RING, O (FOR BRAKE PISTON NO.1)
90301-99123

GRJ300

INNER

 1
90301-99115

GRJ300

OUTER

 1
35621X - RING, O (FOR BRAKE PISTON NO.1)
90301-99123

GRJ300

INNER

 1
90301-99115

GRJ300

OUTER

 1
35622G - PISTON, BRAKE, NO.2
35622-71010

GRJ300

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99179

GRJ300

OUTER

 1
90301-99132

GRJ300

INNER

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99179

GRJ300

OUTER

 1
90301-99132

GRJ300

INNER

 1
35639B - SPRING, BRAKE PLATE STOPPER
35639-71020

GRJ300

NO.2:REFER ILLUST.

 1
35639-71010

GRJ300

NO.1:REFER ILLUST.

 1
35639B - SPRING, BRAKE PLATE STOPPER
35639-71020

GRJ300

NO.2:REFER ILLUST.

 1
35639-71010

GRJ300

NO.1:REFER ILLUST.

 1
35676B - FLANGE, BRAKE, NO.1
35676-71020

GRJ300

T=5.0

 1
35676-71010

GRJ300

T=4.9

 1
35676-71080

GRJ300

T=5.6

 1
35676-71060

GRJ300

T=5.4

 1
35676-71050

GRJ300

T=5.3

 1
35676-71070

GRJ300

T=5.5

 1
35676-71040

GRJ300

T=5.2

 1
35676-71030

GRJ300

T=5.1

 1
35676-71100

GRJ300

T=5.8

 1
35676-71090

GRJ300

T=5.7

 1
35678B - FLANGE, BRAKE, NO.2
35678-71020

GRJ300

T=2.0,FRONT

 1
35678-71030

GRJ300

T=2.1,FRONT

 1
35678-71070

GRJ300

T=2.5,FRONT

 1
35678-71050

GRJ300

T=2.3,FRONT

 1
35678-71010

GRJ300

T=3.8,REAR

 1
35678-71060

GRJ300

T=2.4,FRONT

 1
35678-71090

GRJ300

T=2.7,FRONT

 1
35678-71100

GRJ300

T=2.8,FRONT

 1
35678-71040

GRJ300

T=2.2,FRONT

 1
35678-71080

GRJ300

T=2.6,FRONT

 1
35678B - FLANGE, BRAKE, NO.2
35678-71020

GRJ300

T=2.0,FRONT

 1
35678-71030

GRJ300

T=2.1,FRONT

 1
35678-71070

GRJ300

T=2.5,FRONT

 1
35678-71050

GRJ300

T=2.3,FRONT

 1
35678-71010

GRJ300

T=3.8,REAR

 1
35678-71060

GRJ300

T=2.4,FRONT

 1
35678-71090

GRJ300

T=2.7,FRONT

 1
35678-71100

GRJ300

T=2.8,FRONT

 1
35678-71040

GRJ300

T=2.2,FRONT

 1
35678-71080

GRJ300

T=2.6,FRONT

 1
35678C - RING, SNAP (FOR BRAKE NO.2)
90520-99155

GRJ300

 1
35681A - DISC, BRAKE, NO.1
35681-71010

GRJ300

 4
35681A - DISC, BRAKE, NO.1
35681-71010

GRJ300

 4
35681A - DISC, BRAKE, NO.1
35681-71010

GRJ300

 4
35681A - DISC, BRAKE, NO.1
35681-71010

GRJ300

 4
35682A - DISC, BRAKE, NO.2
35682-71010

GRJ300

 5
35682A - DISC, BRAKE, NO.2
35682-71010

GRJ300

 5
35682A - DISC, BRAKE, NO.2
35682-71010

GRJ300

 5
35682A - DISC, BRAKE, NO.2
35682-71010

GRJ300

 5
35682A - DISC, BRAKE, NO.2
35682-71010

GRJ300

 5
35691 - PLATE, BRAKE, NO.1
35691-71010

GRJ300

 4
35691 - PLATE, BRAKE, NO.1
35691-71010

GRJ300

 4
35691 - PLATE, BRAKE, NO.1
35691-71010

GRJ300

 4
35691 - PLATE, BRAKE, NO.1
35691-71010

GRJ300

 4
35692A - PLATE, BRAKE, NO.2
35692-71010

GRJ300

 4
35692A - PLATE, BRAKE, NO.2
35692-71010

GRJ300

 4
35692A - PLATE, BRAKE, NO.2
35692-71010

GRJ300

 4
35692A - PLATE, BRAKE, NO.2
35692-71010

GRJ300

 4
35698 - CYLINDER, BRAKE, NO.1
35698-71010

GRJ300

 1
35699 - CYLINDER, BRAKE, NO.2
35699-71010

GRJ300

 1
