GRJ200L-KDMRK (2011)

Toyota Land Cruiser

Production Sep 2011 - Jan 2012
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)1GRFE

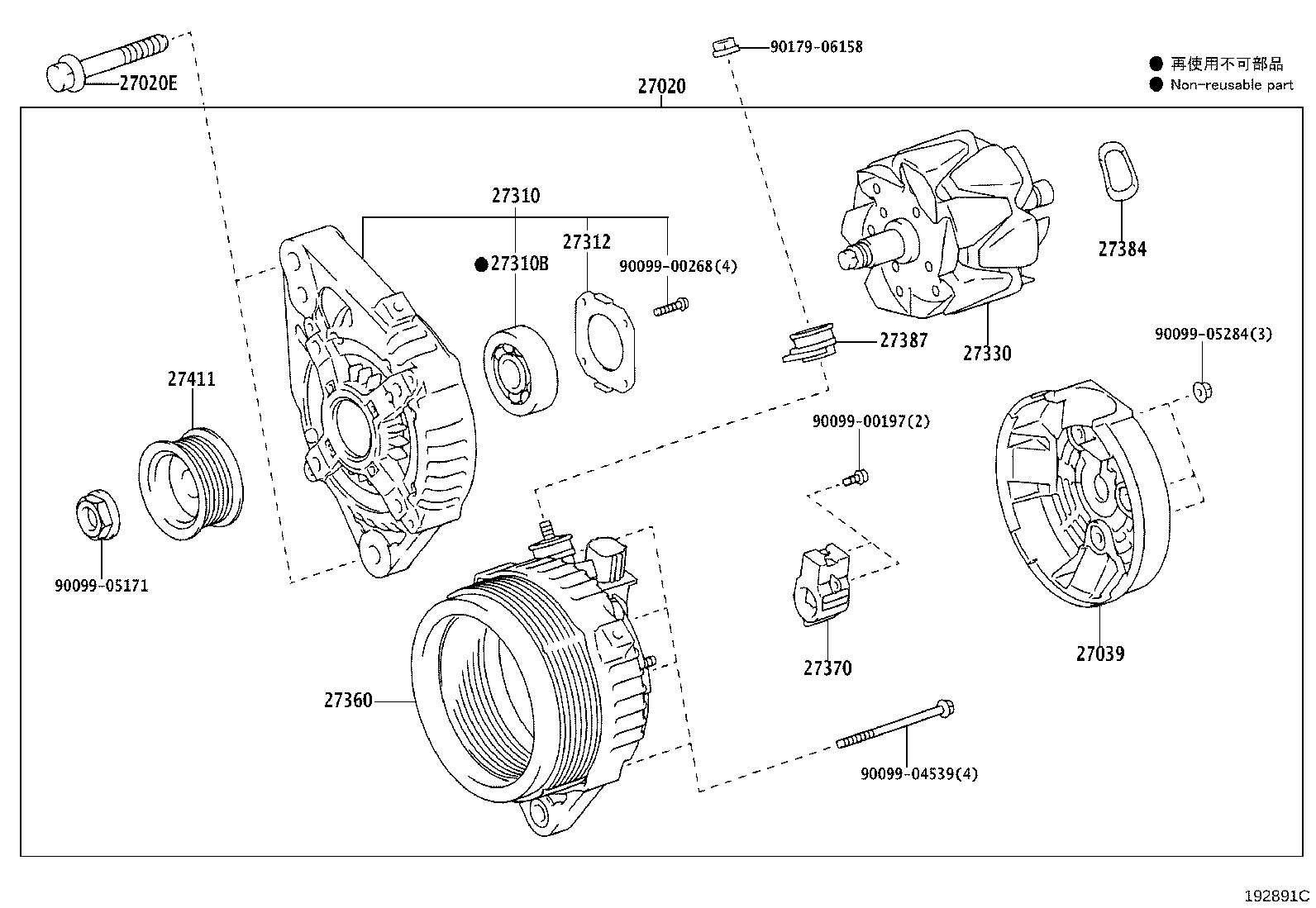

Click highlighted areas on diagram

12V 100A

diagram 27020 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387 27411 9009900197 9009900268 9009904539 9009905171 9009905284 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-31120

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

12V 100A

 1
27060-31120

1GRFE..GRJ200..K

12V 100A

 1
27020E - BOLT(FOR ALTERNATOR)
91642-81065

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 2
91642-81065

1GRFE..GRJ200..K

 2
27039 - COVER, ALTERNATOR REAR END
27039-31390

1GRFE,1VDFTV..GRJ200,VDJ200..K

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31210

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
27310-31210

1GRFE..GRJ200..K

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1GRFE,1VDFTV..GRJ200,VDJ200..K

 1
90099-10223

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,1VDFTV..UZJ200,VDJ200..G

 1
27312 - PLATE, RETAINER
27312-72100

1GRFE,1VDFTV..GRJ200,VDJ200..K

 1
27312-72100

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,1VDFTV..UZJ200,VDJ200..G

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-30070

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
27330-30070

1GRFE..GRJ200..K

 1
27360 - COIL ASSY, ALTERNATOR
27360-31320

1GRFE..GRJ200..K

 1
27360-31320

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
27370-31220

1GRFE..GRJ200..K

 1
27384 - WASHER
27384-50030

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,1VDFTV..UZJ200,VDJ200..G

 1
27384-50030

1GRFE,1VDFTV..GRJ200,VDJ200..K

 1
27387 - INSULATOR, TERMINAL
27387-20130

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,1VDFTV..UZJ200,VDJ200..G

 1
27387-20130

1GRFE,1VDFTV..GRJ200,VDJ200..K

 1
27411 - PULLEY, ALTERNATOR
27411-31210

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
27411-31210

1GRFE..GRJ200..K

 1
Common parts
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
90179-06158
