GRJ200L-KDMRK (2011)
Toyota Land Cruiser

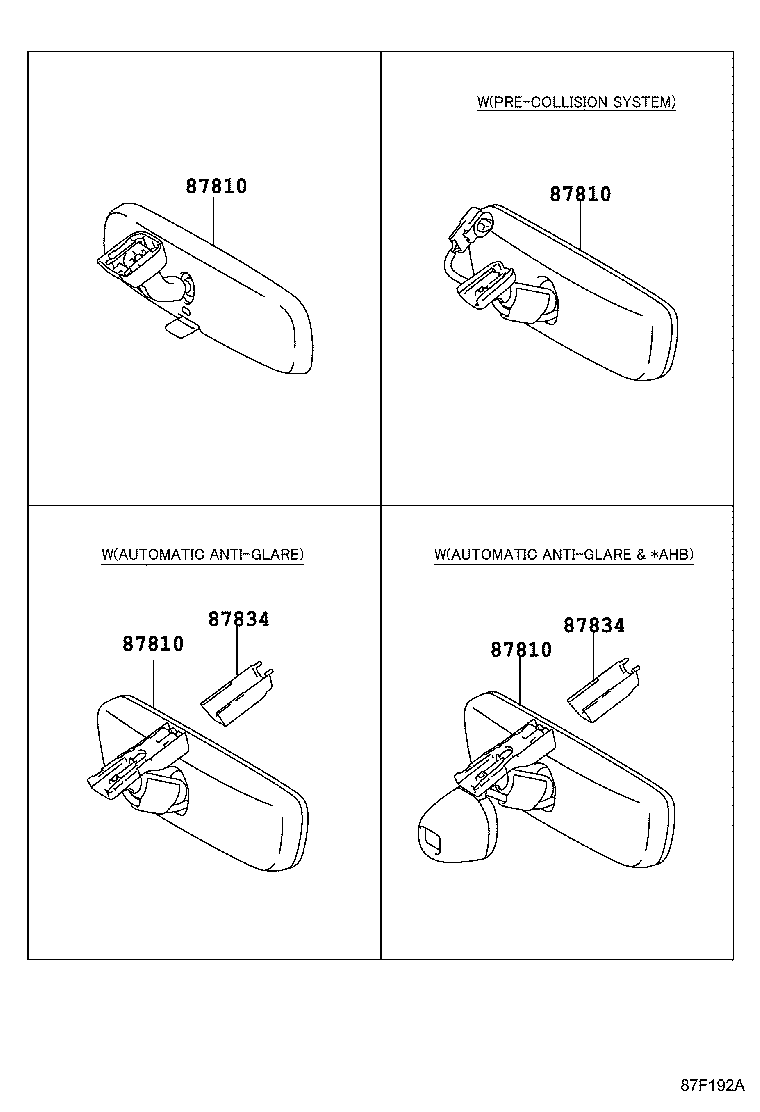

ILLUST NO. 2 OF 2(0709- )
INNER REAR VIEW MIRROR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-60191 |
GRJ200,VDJ200..K |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-60191 |
GRJ200,VDJ200..K |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-60191 |
GRJ200,VDJ200..K |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-60191 |
GRJ200,VDJ200..K |
1 | ||

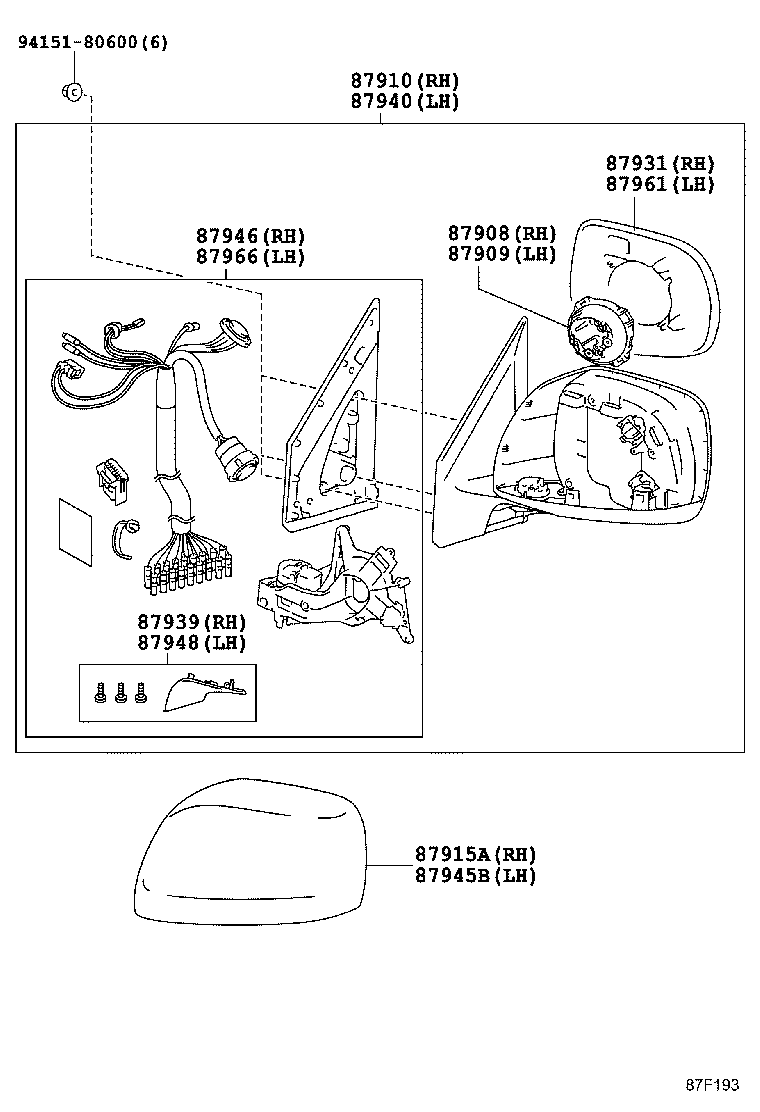

ILLUST NO. 1 OF 2(0709-1201)
OUTER REAR VIEW MIRROR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87908-60B10 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 87908-60B10 |
GRJ200,VDJ200..STD OUTSIDE REAR VIEW MIRROR-*RCM(MATERIAL:BLACK) |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87908-60B10 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 87908-60B10 |
GRJ200,VDJ200..STD OUTSIDE REAR VIEW MIRROR-*RCM(MATERIAL:BLACK) |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-60B20 |
GRJ200,UZJ200,VDJ200..LHD..GEN..G NO PAINT REQ. |
1 | ||
| 87910-60F70 |
GRJ200,VDJ200..LHD..GEN..K NO PAINT REQ. |
1 | ||
| 87910-60G00 |
GRJ200,VDJ200..LHD..GEN..K NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(MATERIAL:BLACK) |
1 | ||
| 87915A - COVER, OUTER MIRROR, RH | ||||
| 87915-60010 |
GRJ200,VDJ200..09S..G |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-60B10 |
GRJ200..LHD..05S..G;VDJ200..(ARL,GEN)..G;GRJ200,UZJ200..(08S,09S)..(ARL,GEN)..G |
1 | ||
| 87931-60B10 |
GRJ200,VDJ200..(ARL,GEN)..K |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-60F70 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 81859-60480 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-60F70 |
GRJ200,VDJ200..LHD..GEN..K NO PAINT REQ. |
1 | ||
| 87940-60B10 |
GRJ200,UZJ200,VDJ200..LHD..GEN..G NO PAINT REQ. |
1 | ||
| 87940-60G00 |
GRJ200,VDJ200..LHD..GEN..K NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(MATERIAL:BLACK) |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-60010 |
GRJ200,VDJ200..09S..G |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 81859-60490 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 87948-60F70 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-60B00 |
GRJ200..LHD..05S..G;VDJ200..(ARL,GEN)..G;GRJ200,UZJ200..(08S,09S)..(ARL,GEN)..G |
1 | ||
| 87961-60B00 |
GRJ200,VDJ200..(ARL,GEN)..K |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
