GRJ200L-KDMRK (2011)
Toyota Land Cruiser

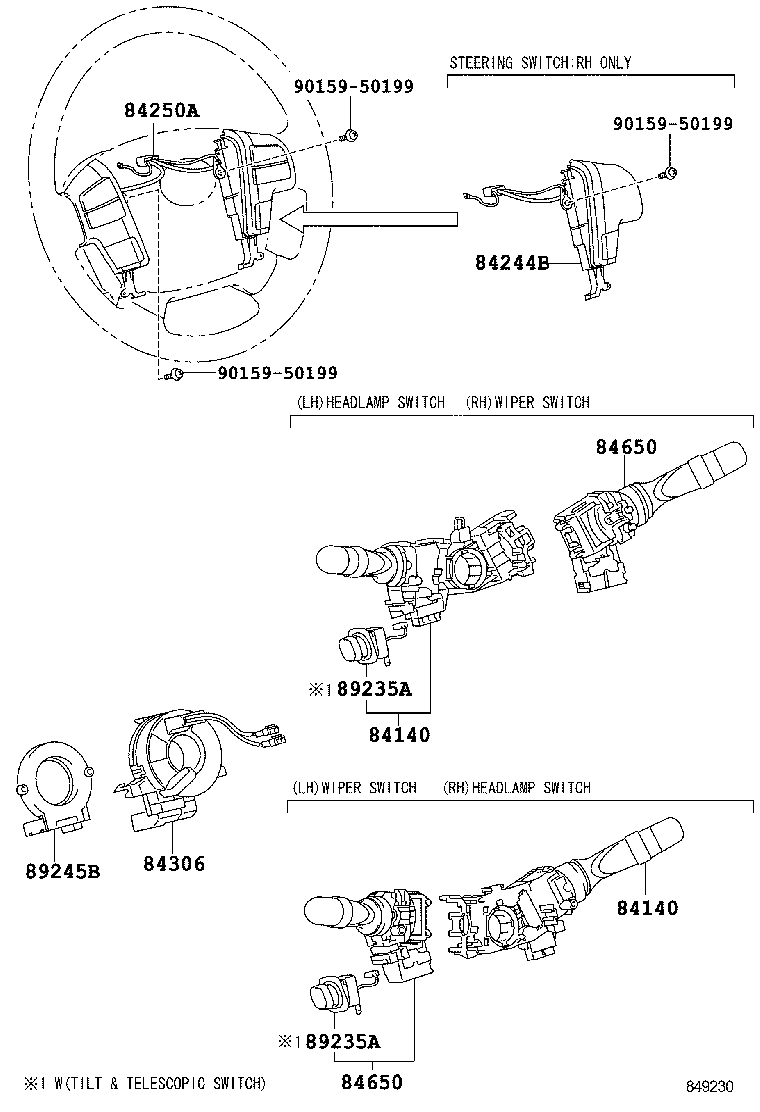

ILLUST NO. 6 OF 9(0709-1201)G
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47140 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47140 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A11 |
GRJ200,VDJ200..LHD..STD |
1 | ||
| 84652-52201 |
GRJ200,VDJ200..LHD..STD REAR WINDOW WIPER-WITH(*DSBD)&INTERMITTENT WIPER-WITH |
1 | ||
| 84652-12A30 |
GRJ200,VDJ200..LHD..STD INTERMITTENT WIPER-WITH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A11 |
GRJ200,VDJ200..LHD..STD |
1 | ||
| 84652-52201 |
GRJ200,VDJ200..LHD..STD REAR WINDOW WIPER-WITH(*DSBD)&INTERMITTENT WIPER-WITH |
1 | ||
| 84652-12A30 |
GRJ200,VDJ200..LHD..STD INTERMITTENT WIPER-WITH |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 7 OF 9(0709- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90167-40044 | ||||
| 93560-54010 | ||||
ILLUST NO. 5 OF 9(0709-1201)LHD..G
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60020 |
GRJ200,VDJ200..STD |
1 | ||
| 84223-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60280 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84332-60380 |
GRJ200,VDJ200..STD |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60170 |
GRJ200,VDJ200..K |
1 | ||
| 84725-60150 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60030 |
GRJ200,VDJ200..5F..K DIFFERENTIAL LOCK-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60100C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 84870-60100E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 84870-60100C0 |
GRJ200,VDJ200..STD OUTSIDE REAR VIEW MIRROR-*RCM(MATERIAL:BLACK),BLACK,TRIM1# |
1 | ||
| 84870B - BULB, OUTER MIRROR SWITCH | ||||
| 84999-10470 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 14V 1.12W |
1 | ||
| 84999-10470 |
GRJ200,VDJ200..STD 14V 1.12W,OUTSIDE REAR VIEW MIRROR-*RCM(MATERIAL:BLACK) |
1 | ||
| 84870C - CAP, OUTER MIRROR SWITCH BULB | ||||
| 84998-10430 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84998-10430 |
GRJ200,VDJ200..STD OUTSIDE REAR VIEW MIRROR-*RCM(MATERIAL:BLACK) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-60090 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85500-60090 |
GRJ200,VDJ200..K |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01022 |
GRJ200,VDJ200..K 14V1.4W,W(GREEN CAP) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
GRJ200,VDJ200..K |
1 | ||
| 85513-28010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-48010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85515-48010 |
GRJ200,VDJ200..K |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GRJ200,VDJ200..K |
1 | ||
| 85520-28010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-48120C0 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G BLACK |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 87190F - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-60020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G RH |
1 | ||
| 87190-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LH |
1 | ||
| 87190F - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-60020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G RH |
1 | ||
| 87190-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LH |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||

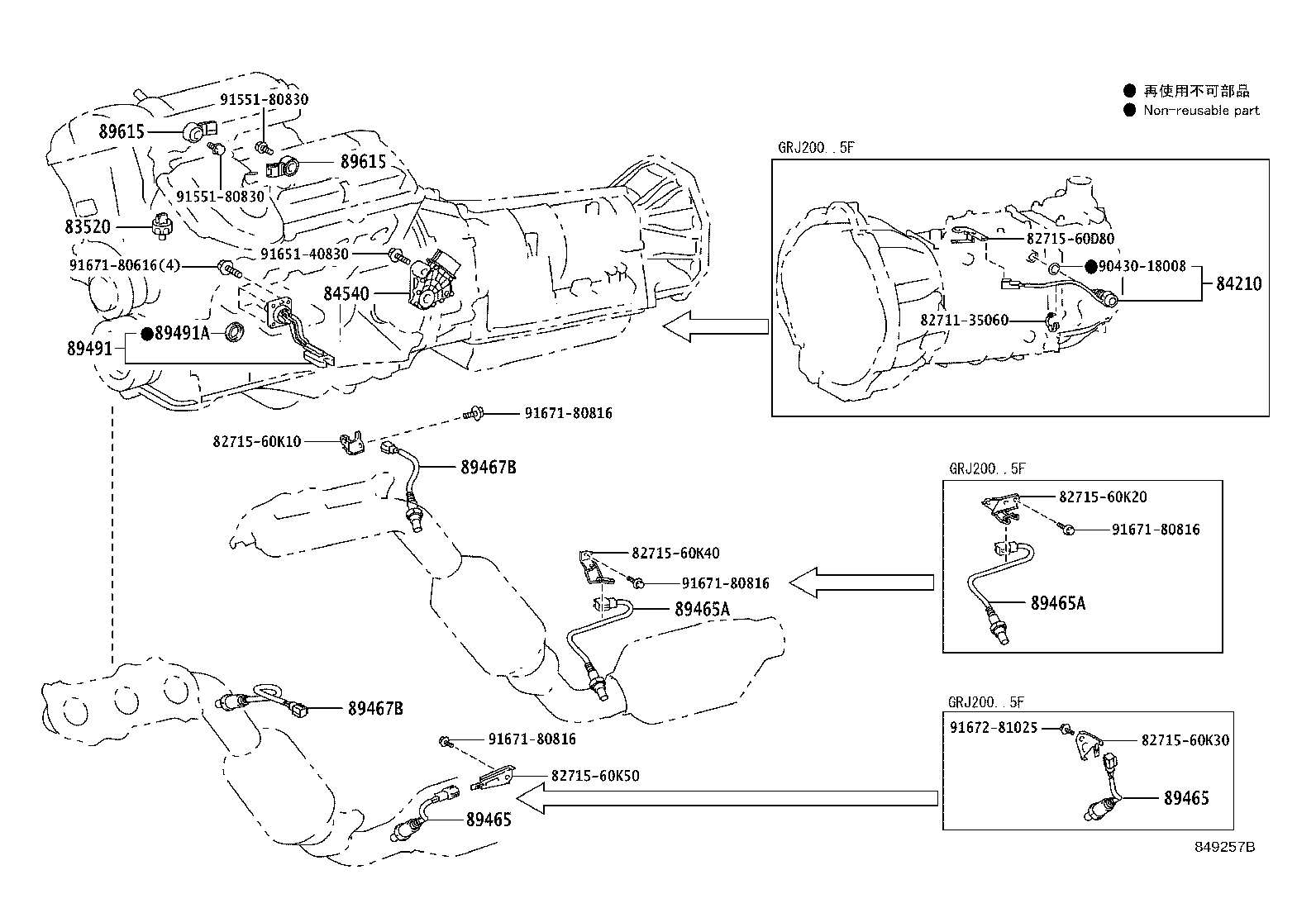

ILLUST NO. 1 OF 9(0709-1201)GRJ200
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60060 |
GRJ200..K |
1 | ||
| 83520-60060 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 84210-60030 |
GRJ200,VDJ200..5F..K |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60330 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 89465-60330 |
GRJ200..K |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60330 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 89465-60330 |
GRJ200..K |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60350 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 89465-60350 |
GRJ200..K |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60350 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 89465-60350 |
GRJ200..K |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-35110 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 89467-35110 |
GRJ200..K |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-35110 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 89467-35110 |
GRJ200..K |
2 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60090 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 89491-60090 |
GRJ200..K |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
GRJ200,VDJ200..K |
1 | ||
| 89493-60010 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 89615-20090 |
GRJ200..K |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 89615-20090 |
GRJ200..K |
2 | ||
| Common parts | ||||
| 82711-35060 | ||||
| 82715-60D80 | ||||
| 82715-60K10 | ||||
| 82715-60K20 | ||||
| 82715-60K30 | ||||
| 82715-60K40 | ||||
| 82715-60K50 | ||||
| 90430-18008 | ||||
| 91551-80830 | ||||
| 91651-40830 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91672-81025 | ||||

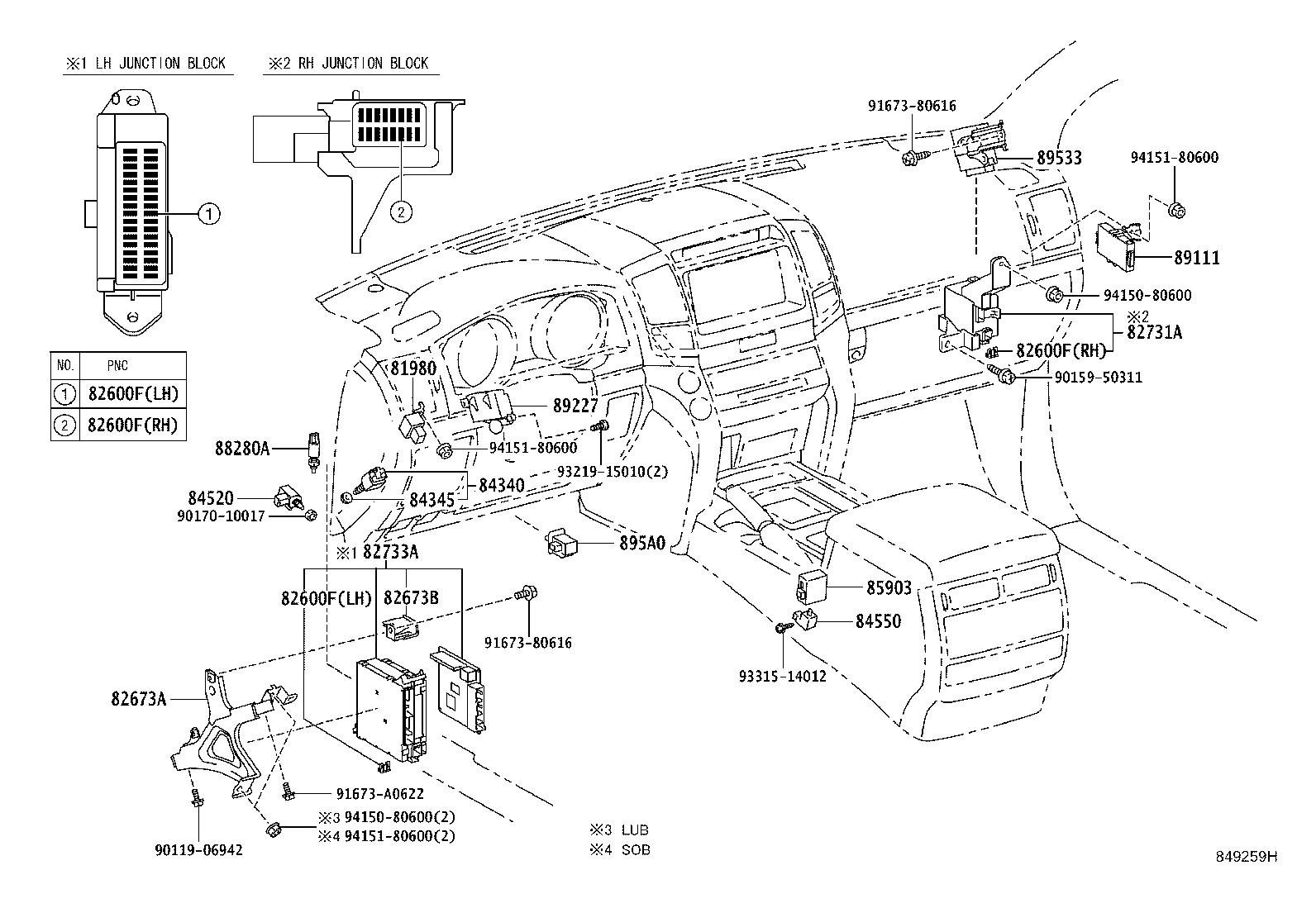

ILLUST NO. 4 OF 9(0709-1201)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60110 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 81980-60110 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09019 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09021 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09024 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 25A,MINI FUSE,LH |
1 | ||
| 90982-09019 |
GRJ200,VDJ200..K 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09020 |
GRJ200,VDJ200..K 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09021 |
GRJ200,VDJ200..K 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09023 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 90982-09025 |
GRJ200,VDJ200..K 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09024 |
GRJ200,VDJ200..K 25A,MINI FUSE,LH |
1 | ||
| 90982-09025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200,VDJ200..K 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09023 |
GRJ200,VDJ200..K 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09019 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09021 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09024 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 25A,MINI FUSE,LH |
1 | ||
| 90982-09019 |
GRJ200,VDJ200..K 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09020 |
GRJ200,VDJ200..K 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09021 |
GRJ200,VDJ200..K 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09023 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 90982-09025 |
GRJ200,VDJ200..K 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09024 |
GRJ200,VDJ200..K 25A,MINI FUSE,LH |
1 | ||
| 90982-09025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200,VDJ200..K 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09023 |
GRJ200,VDJ200..K 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09019 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09021 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09024 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 25A,MINI FUSE,LH |
1 | ||
| 90982-09019 |
GRJ200,VDJ200..K 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09020 |
GRJ200,VDJ200..K 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09021 |
GRJ200,VDJ200..K 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09023 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 90982-09025 |
GRJ200,VDJ200..K 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09024 |
GRJ200,VDJ200..K 25A,MINI FUSE,LH |
1 | ||
| 90982-09025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200,VDJ200..K 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09023 |
GRJ200,VDJ200..K 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09019 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09021 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09024 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 25A,MINI FUSE,LH |
1 | ||
| 90982-09019 |
GRJ200,VDJ200..K 5A,MINI FUSE,TAN,LH,RH |
1 | ||
| 90982-09020 |
GRJ200,VDJ200..K 7.5A,MINI FUSE,BROWN,LH,RH |
1 | ||
| 90982-09021 |
GRJ200,VDJ200..K 10A,MINI FUSE,RED,LH,RH |
1 | ||
| 90982-09023 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 90982-09025 |
GRJ200,VDJ200..K 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09024 |
GRJ200,VDJ200..K 25A,MINI FUSE,LH |
1 | ||
| 90982-09025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,MINI FUSE,GRN,LH,RH |
1 | ||
| 90982-09022 |
GRJ200,VDJ200..K 15A,MINI FUSE,BLUE,LH,RH |
1 | ||
| 90982-09023 |
GRJ200,VDJ200..K 20A,MINI FUSE,YELLOW,LH,RH |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-60040 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82673-60040 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-60060 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82673-60060 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60A04 |
GRJ200,VDJ200..LHD..5F..GEN..G ALGERIA SPEC |
1 | ||
| 82733-60A14 |
GRJ200,VDJ200..LHD..5F..GEN..G COSTA RICA SPEC |
1 | ||
| 82733-60A34 |
GRJ200..LHD..(08S,09S)..GEN..G PERU SPEC |
1 | ||
| 82733-60A44 |
VDJ200..LHD..08S..5F..GEN;GRJ200..LHD..(08S,09S)..GEN..G VIETNAM SPEC |
1 | ||
| 82733-60A54 |
GRJ200,VDJ200..LHD..5F..GEN..G |
1 | ||
| 82733-60F10 |
GRJ200,VDJ200..LHD..GEN..K ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 82733-60F20 |
GRJ200,VDJ200..LHD..GEN..K |
1 | ||
| 82733-60E80 |
GRJ200,VDJ200..LHD..GEN..K COSTA RICA SPEC |
1 | ||
| 82733-60E70 |
GRJ200,VDJ200..LHD..GEN..K COSTA RICA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 82733-60E90 |
GRJ200..LHD..GEN..K PERU SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 82733-60E50 |
GRJ200,VDJ200..LHD..GEN..K ALGERIA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| 82733-60E60 |
GRJ200,VDJ200..LHD..GEN..K ALGERIA SPEC |
1 | ||
| 82733-60F00 |
GRJ200..LHD..GEN..K PERU SPEC |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
GRJ200,VDJ200..K |
1 | ||
| 84340-69075 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GRJ200,VDJ200..K |
1 | ||
| 84345-51010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 84520-42010 |
GRJ200,VDJ200..5F..K |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 84550-16060 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G WITH(CRUISE CONTROL) |
1 | ||
| 88280-42010 |
GRJ200..K CRUISE CONTROL-WITH |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60242 |
GRJ200,VDJ200..K |
1 | ||
| 895A0 - RELAY ASSY, STOP LAMP CONTROL | ||||
| 895A0-60011 |
GRJ200,VDJ200..LHD..K |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 90159-50311 | ||||
| 90170-10017 | ||||
| 91673-80616 | ||||
| 91673-A0622 | ||||
| 93219-15010 | ||||
| 93315-14012 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
ILLUST NO. 9 OF 9(0709-1508)
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60580 |
GRJ200,VDJ200..K |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-69435 |
GRJ200..K;VDJ200..05S..GEN..K;VDJ200..(ARL,GCC)..K |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60110 |
GRJ200,VDJ200..5F..K DIFFERENTIAL LOCK-WITH |
1 | ||
| 84231D - SWITCH, COURTESY LAMP (FOR TIRE CARRIER) | ||||
| 84230-60010 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 84230-60010 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28040 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84901 - SWITCH SUB-ASSY, DOOR OPENING | ||||
| 84906-60010 |
GRJ200,VDJ200..09S..G |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90149-60079 | ||||
| 93319-A4010 | ||||
ILLUST NO. 3 OF 9(0709-1201)G
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE,3URFE..GRJ200,URJ200,UZJ200..(08S,09S)..G |
1 | ||
| 28300-28010 |
1GRFE..GRJ200..K |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE,3URFE..GRJ200,URJ200,UZJ200..(08S,09S)..G |
1 | ||
| 28300-28010 |
1GRFE..GRJ200..K |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G;2UZFE,3URFE,1VDFTV..URJ200,UZJ200,VDJ200..G |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08294 |
GRJ200,VDJ200..K 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
GRJ200,VDJ200..K 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
GRJ200,VDJ200..K 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ200,VDJ200..K 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GRJ200,VDJ200..K 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ200,VDJ200..K 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ200,VDJ200..K 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,MINI FUSE,GRN |
1 | ||
| 90982-09025 |
GRJ200,VDJ200..K 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
GRJ200,VDJ200..K 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
GRJ200,VDJ200..K 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82616-58010 |
GRJ200,VDJ200..K |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0C020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 82620-0C020 |
GRJ200..K |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82641-47020 |
GRJ200,VDJ200..K |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0C100 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82660-0C100 |
GRJ200,VDJ200..K |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
GRJ200,URJ200,UZJ200..LHD..G |
7 | ||
| 82660-0H070 |
GRJ200..LHD..K |
7 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
GRJ200,VDJ200..LHD..K |
2 | ||
| 82660-26270 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
2 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
GRJ200,VDJ200..K |
1 | ||
| 82660-42030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
6 | ||
| 82660-52010 |
GRJ200,VDJ200..LHD..K |
6 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60290 |
GRJ200..STD |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C060 |
GRJ200,VDJ200..K |
1 | ||
| 82663-0C060 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C060 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82741-60060 |
GRJ200,VDJ200..K |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82824-41010 |
GRJ200,VDJ200..K |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GRJ200,VDJ200..K |
1 | ||
| 90987-04010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 90987-02025 |
GRJ200,VDJ200..K |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 90987-02025 |
GRJ200,VDJ200..K |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GRJ200,VDJ200..K |
1 | ||
| 90987-02028 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
GRJ200,VDJ200..K ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8601 | ||||
ILLUST NO. 3 OF 9(1109-1201)K
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE,3URFE..GRJ200,URJ200,UZJ200..(08S,09S)..G |
1 | ||
| 28300-28010 |
1GRFE..GRJ200..K |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE,2UZFE,3URFE..GRJ200,URJ200,UZJ200..(08S,09S)..G |
1 | ||
| 28300-28010 |
1GRFE..GRJ200..K |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08295 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08294 |
GRJ200,VDJ200..K 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
GRJ200,VDJ200..K 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
GRJ200,VDJ200..K 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09024 |
GRJ200,VDJ200..K 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GRJ200,VDJ200..K 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GRJ200,VDJ200..K 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRJ200,VDJ200..K 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G 30A,MINI FUSE,GRN |
1 | ||
| 90982-09025 |
GRJ200,VDJ200..K 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
GRJ200,VDJ200..K 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
GRJ200,VDJ200..K 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82616-58010 |
GRJ200,VDJ200..K |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-0C020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 82620-0C020 |
GRJ200..K |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82641-47020 |
GRJ200,VDJ200..K |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0C100 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82660-0C100 |
GRJ200,VDJ200..K |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
GRJ200,URJ200,UZJ200..LHD..G |
7 | ||
| 82660-0H070 |
GRJ200..LHD..K |
7 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
GRJ200,VDJ200..LHD..K |
2 | ||
| 82660-26270 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
2 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-42030 |
GRJ200,VDJ200..K |
1 | ||
| 82660-42030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
6 | ||
| 82660-52010 |
GRJ200,VDJ200..LHD..K |
6 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60290 |
GRJ200..STD |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0C060 |
GRJ200,VDJ200..K |
1 | ||
| 82663-0C060 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0C060 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82741-60060 |
GRJ200,VDJ200..K |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82824-41010 |
GRJ200,VDJ200..K |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
GRJ200,VDJ200..K |
1 | ||
| 90987-04010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 90987-02025 |
GRJ200,VDJ200..K |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 90987-02025 |
GRJ200,VDJ200..K |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GRJ200,VDJ200..K |
1 | ||
| 90987-02028 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02027 |
GRJ200,VDJ200..STD |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
GRJ200,VDJ200..K ANTI-THEFT SYSTEM-WITH(*IM & ALARM) |
1 | ||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
| 8601 | ||||
ILLUST NO. 8 OF 9(0709-1201)
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33100 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 84820-33251 |
GRJ200,VDJ200..LHD..STD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33100 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 84820-33251 |
GRJ200,VDJ200..LHD..STD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRJ200,VDJ200..K |
2 | ||
| 84231-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
GRJ200,VDJ200..K |
2 | ||
| 84231-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 84231-53010 |
GRJ200,VDJ200..K |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 84231-53010 |
GRJ200,VDJ200..K |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84810-52030 |
GRJ200,VDJ200..STD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-33120 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84810-52030 |
GRJ200,VDJ200..STD |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 84810-52030 |
GRJ200,VDJ200..STD |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33120 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 84810-52030 |
GRJ200,VDJ200..STD |
2 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 6 OF 9(1109-1201)K ; (1201-1508)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
GRJ200,VDJ200..K |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47140 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-47140 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
GRJ200,VDJ200..K |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A11 |
GRJ200,VDJ200..LHD..STD |
1 | ||
| 84652-52201 |
GRJ200,VDJ200..LHD..STD REAR WINDOW WIPER-WITH(*DSBD)&INTERMITTENT WIPER-WITH |
1 | ||
| 84652-12A30 |
GRJ200,VDJ200..LHD..STD INTERMITTENT WIPER-WITH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A11 |
GRJ200,VDJ200..LHD..STD |
1 | ||
| 84652-52201 |
GRJ200,VDJ200..LHD..STD REAR WINDOW WIPER-WITH(*DSBD)&INTERMITTENT WIPER-WITH |
1 | ||
| 84652-12A30 |
GRJ200,VDJ200..LHD..STD INTERMITTENT WIPER-WITH |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO. 2 OF 9(0709- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06983 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
