GRJ200L-KDMRK (2011)
Toyota Land Cruiser
(0709-1201)

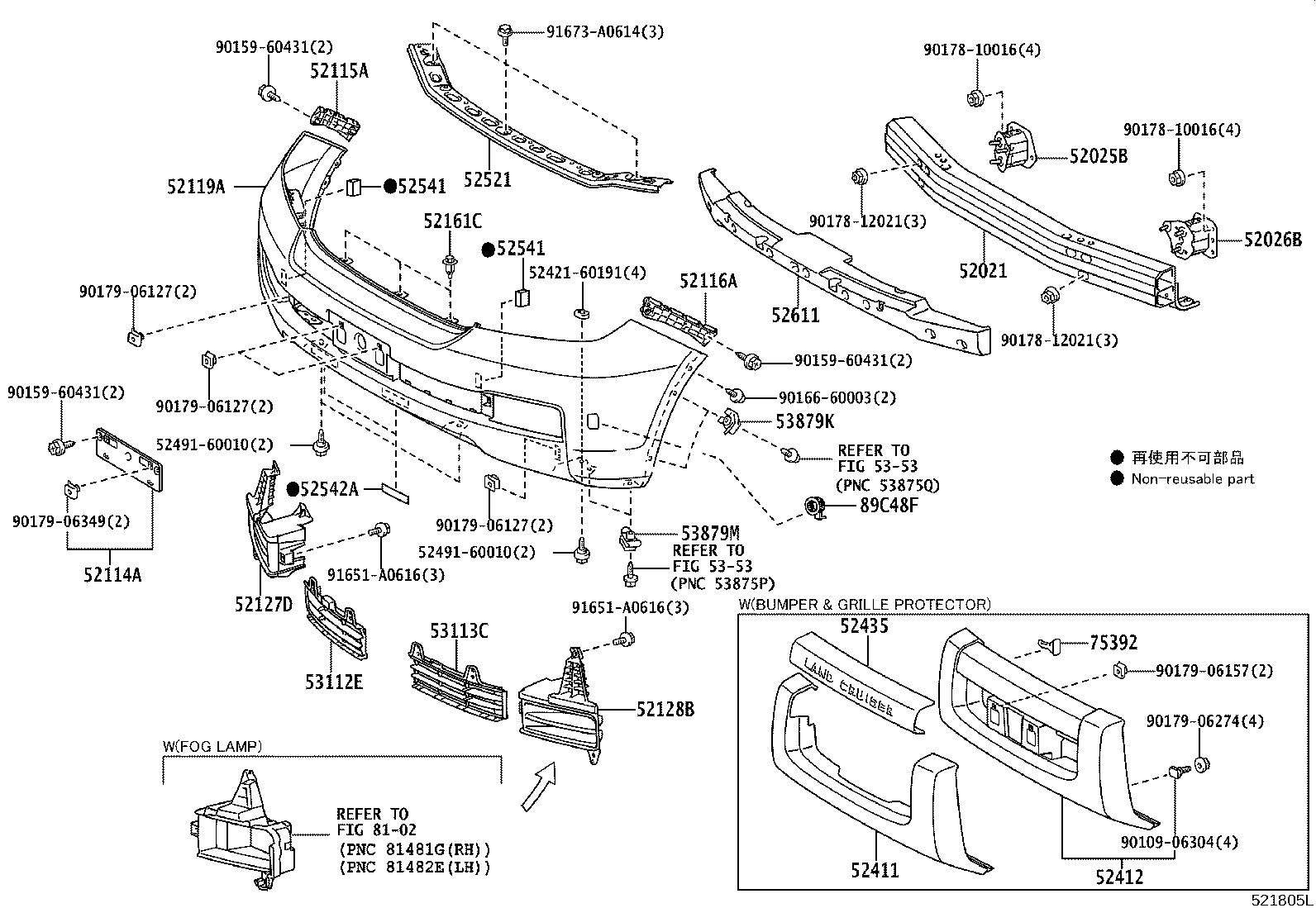

W/O(ELECTRICAL WINCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-60140 |
VDJ200..LHD..05S..G;GRJ200,UZJ200..(ARL,GEN)..G;VDJ200..(08S,09S)..(ARL,GEN)..G |
1 | ||
| 52021-60140 |
GRJ200,VDJ200..(ARL,GEN)..K |
1 | ||
| 52025B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 RH | ||||
| 52025-60030 |
GRJ200,VDJ200..K |
1 | ||
| 52025-60030 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G |
1 | ||
| 52026B - EXTENSION SUB-ASSY, FRONT BUMPER, NO.2 LH | ||||
| 52026-60030 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G |
1 | ||
| 52026-60030 |
GRJ200,VDJ200..K |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-60080 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G |
1 | ||
| 52114-60080 |
GRJ200,VDJ200..K |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60141 |
GRJ200,VDJ200..K |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60181 |
GRJ200,VDJ200..K |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-60988 |
UZJ200..GX;GRJ200,URJ200..G;VDJ200..LHD..05S..G;VDJ200..(08S,09S)..G;UZJ200..VX..(ARL,GEN) |
1 | ||
| 52119-60988 |
GRJ200,VDJ200..K PAINT REQ. |
1 | ||
| 52119-60999 |
GRJ200..LHD..K;VDJ200..GEN..K PAINT REQ.,ELECTRICAL WINCH-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-60041 |
GRJ200,VDJ200..K |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-60041 |
GRJ200,VDJ200..K |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
3 | ||
| 52161-16010 |
GRJ200,VDJ200..K |
3 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-60080 |
GRJ200,VDJ200..K |
1 | ||
| 52521-60080 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 52541-60050 |
GRJ200,VDJ200..K |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 52541-60050 |
GRJ200,VDJ200..K |
2 | ||
| 52542A - PROTECTOR, FRONT BUMPER, NO.2 | ||||
| 52542-60020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 52542-60020 |
GRJ200,VDJ200..K |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-60050 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G |
1 | ||
| 52611-60050 |
GRJ200,VDJ200..K |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-60040 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G NO PAINT REQ. |
1 | ||
| 53112-60040 |
GRJ200,VDJ200..K NO PAINT REQ. |
1 | ||
| 53112-60050 |
GRJ200..LHD..K;VDJ200..GEN..K NO PAINT REQ.,ELECTRICAL WINCH-WITH |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-60030 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G NO PAINT REQ. |
1 | ||
| 53879K - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 53879-58010 |
GRJ200,VDJ200..K |
4 | ||
| 53879M - RETAINER, FRONT FENDER LINER | ||||
| 90467-05138 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 90467-05138 |
GRJ200,VDJ200..K |
4 | ||
| Common parts | ||||
| 52421-60191 | ||||
| 52491-60010 | ||||
| 90109-06304 | ||||
| 90159-60431 | ||||
| 90166-60003 | ||||
| 90178-10016 | ||||
| 90178-12021 | ||||
| 90179-06127 | ||||
| 90179-06157 | ||||
| 90179-06274 | ||||
| 90179-06349 | ||||
| 91651-A0616 | ||||
| 91673-A0614 | ||||
| Linked diagrams | ||||
| 5353 | ||||
| 8102 | ||||
(0709-1201)

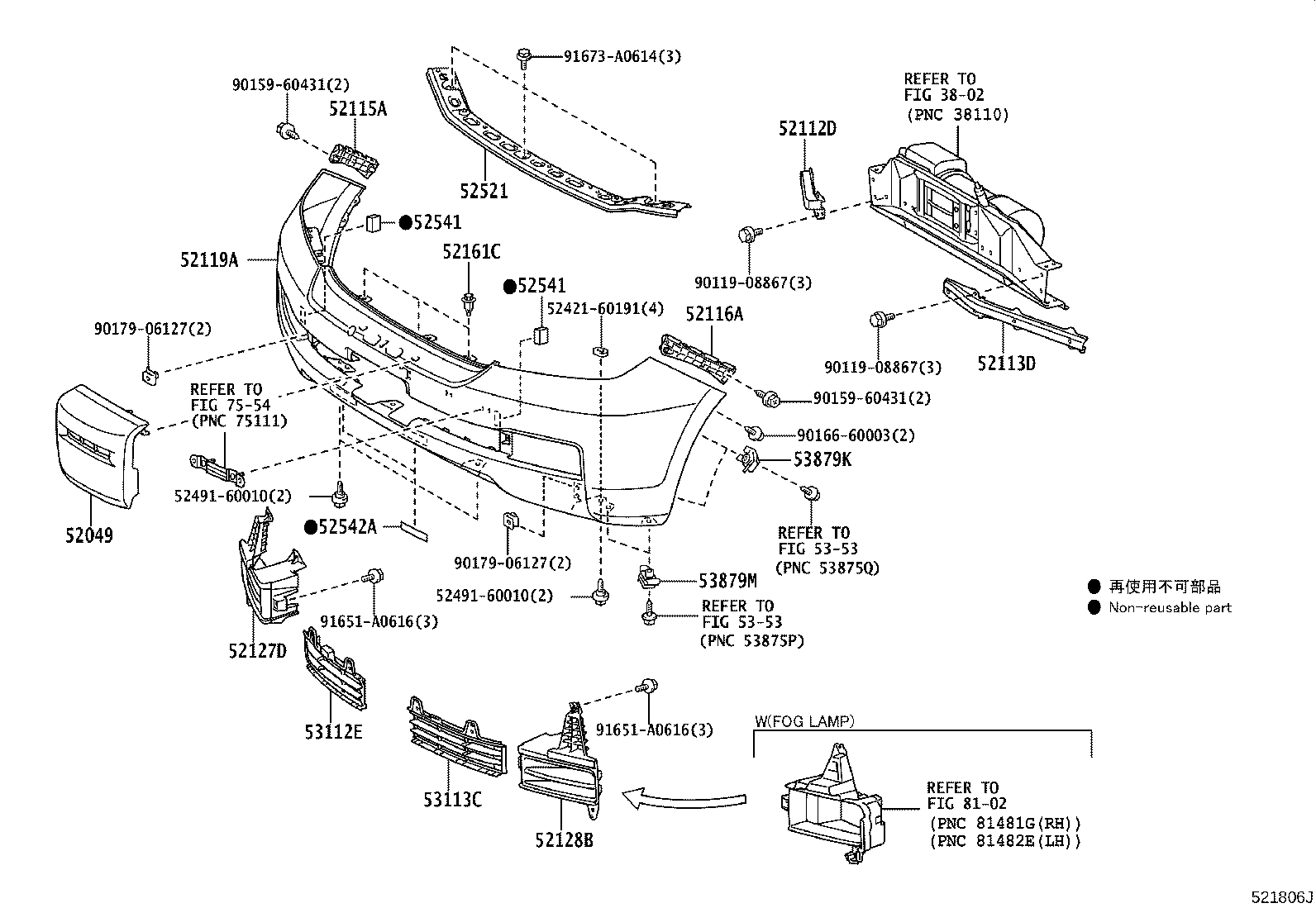

W(ELECTRICAL WINCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-60150 |
GRJ200..LHD..K;VDJ200..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-60150 |
GRJ200..LHD..K;VDJ200..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-60141 |
GRJ200,VDJ200..K |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-60181 |
GRJ200,VDJ200..K |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-60988 |
UZJ200..GX;GRJ200,URJ200..G;VDJ200..LHD..05S..G;VDJ200..(08S,09S)..G;UZJ200..VX..(ARL,GEN) |
1 | ||
| 52119-60988 |
GRJ200,VDJ200..K PAINT REQ. |
1 | ||
| 52119-60999 |
GRJ200..LHD..K;VDJ200..GEN..K PAINT REQ.,ELECTRICAL WINCH-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-60041 |
GRJ200,VDJ200..K |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-60041 |
GRJ200,VDJ200..K |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
3 | ||
| 52161-16010 |
GRJ200,VDJ200..K |
3 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-60080 |
GRJ200,VDJ200..K |
1 | ||
| 52521-60080 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 52541-60050 |
GRJ200,VDJ200..K |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 52541-60050 |
GRJ200,VDJ200..K |
2 | ||
| 52542A - PROTECTOR, FRONT BUMPER, NO.2 | ||||
| 52542-60020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 52542-60020 |
GRJ200,VDJ200..K |
2 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-60040 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G NO PAINT REQ. |
1 | ||
| 53112-60040 |
GRJ200,VDJ200..K NO PAINT REQ. |
1 | ||
| 53112-60050 |
GRJ200..LHD..K;VDJ200..GEN..K NO PAINT REQ.,ELECTRICAL WINCH-WITH |
1 | ||
| 53113C - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-60030 |
GRJ200,VDJ200..LHD..05S..G;GRJ200,URJ200,UZJ200,VDJ200..(08S,09S)..G NO PAINT REQ. |
1 | ||
| 53879K - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 53879-58010 |
GRJ200,VDJ200..K |
4 | ||
| 53879M - RETAINER, FRONT FENDER LINER | ||||
| 90467-05138 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 90467-05138 |
GRJ200,VDJ200..K |
4 | ||
| Common parts | ||||
| 52421-60191 | ||||
| 52491-60010 | ||||
| 90119-08867 | ||||
| 90159-60431 | ||||
| 90166-60003 | ||||
| 90179-06127 | ||||
| 91651-A0616 | ||||
| 91673-A0614 | ||||
| Linked diagrams | ||||
| 3802 | ||||
| 5353 | ||||
| 7554 | ||||
| 8102 | ||||
