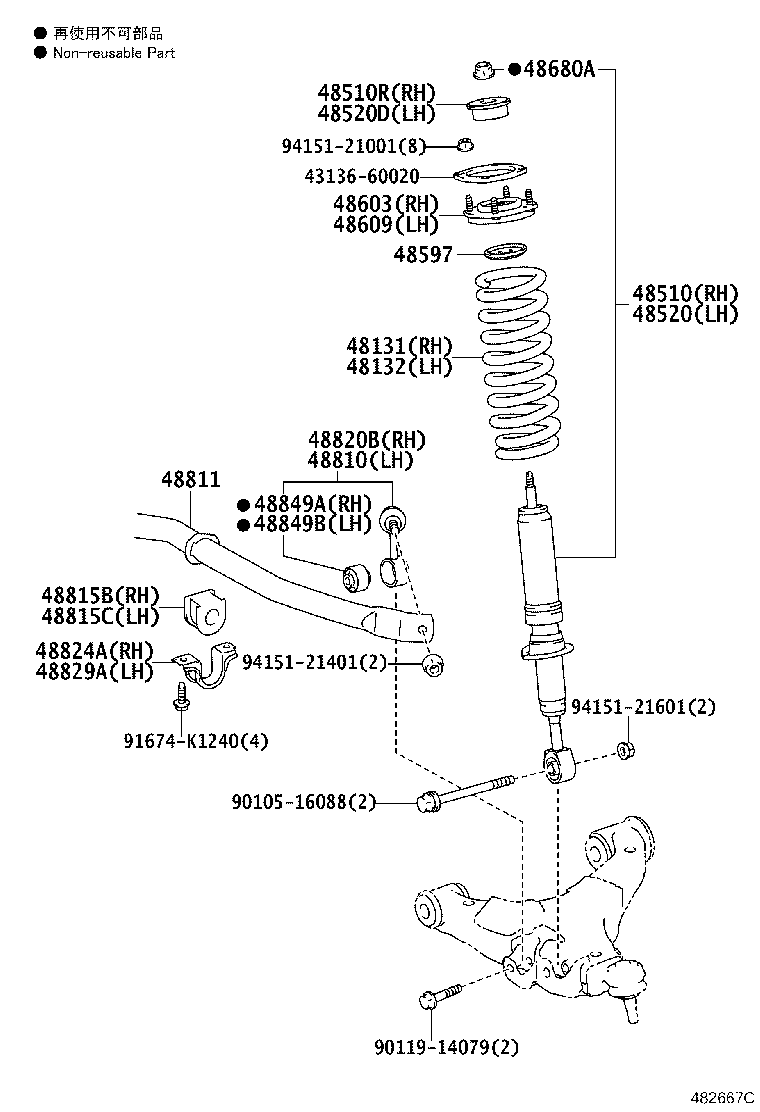

GRJ200L-KDMRK (2011)
Toyota Land Cruiser
(0709- )
W/O(AHC) & W/O(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60C90 |
GRJ200..LHD..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60C60 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..GEN..G |
1 | ||
| 48131-60C60 |
GRJ200..GEN..K |
1 | ||
| 48131-60C90 |
GRJ200..LHD..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60C60 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..GEN..G |
1 | ||
| 48131-60C90 |
GRJ200..LHD..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60C60 |
GRJ200..GEN..K |
1 | ||
| 48131-60C90 |
GRJ200..LHD..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69335 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..G MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48510-69335 |
GRJ200..K MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..K MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-01096 |
GRJ200,VDJ200..K |
1 | ||
| 90948-01096 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69335 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..G MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48510-69335 |
GRJ200..K MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..K MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-01096 |
GRJ200,VDJ200..K |
1 | ||
| 90948-01096 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60120 |
GRJ200,VDJ200..K |
2 | ||
| 48597-60120 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60070 |
GRJ200,VDJ200..K |
1 | ||
| 48609-60070 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60070 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48609-60070 |
GRJ200,VDJ200..K |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
GRJ200,VDJ200..K |
2 | ||
| 94188-01401 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60051 |
GRJ200,VDJ200..K |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60290 |
GRJ200,VDJ200..K |
1 | ||
| 48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH | ||||
| 48815-60250 |
GRJ200,VDJ200..K |
1 | ||
| 48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH | ||||
| 48815-60250 |
GRJ200,VDJ200..K |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60071 |
GRJ200,VDJ200..K |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
GRJ200,VDJ200..K |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60170 |
GRJ200,VDJ200..K |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
GRJ200,VDJ200..K |
1 | ||
| 48849B - BUSH, FRONT STABILIZER LINK, LH | ||||
| 48849-60110 |
GRJ200,VDJ200..K |
1 | ||
| Common parts | ||||
| 43136-60020 | ||||
| 90105-16088 | ||||
| 90119-14079 | ||||
| 91674-K1240 | ||||
| 94151-21001 | ||||
| 94151-21401 | ||||
| 94151-21601 | ||||

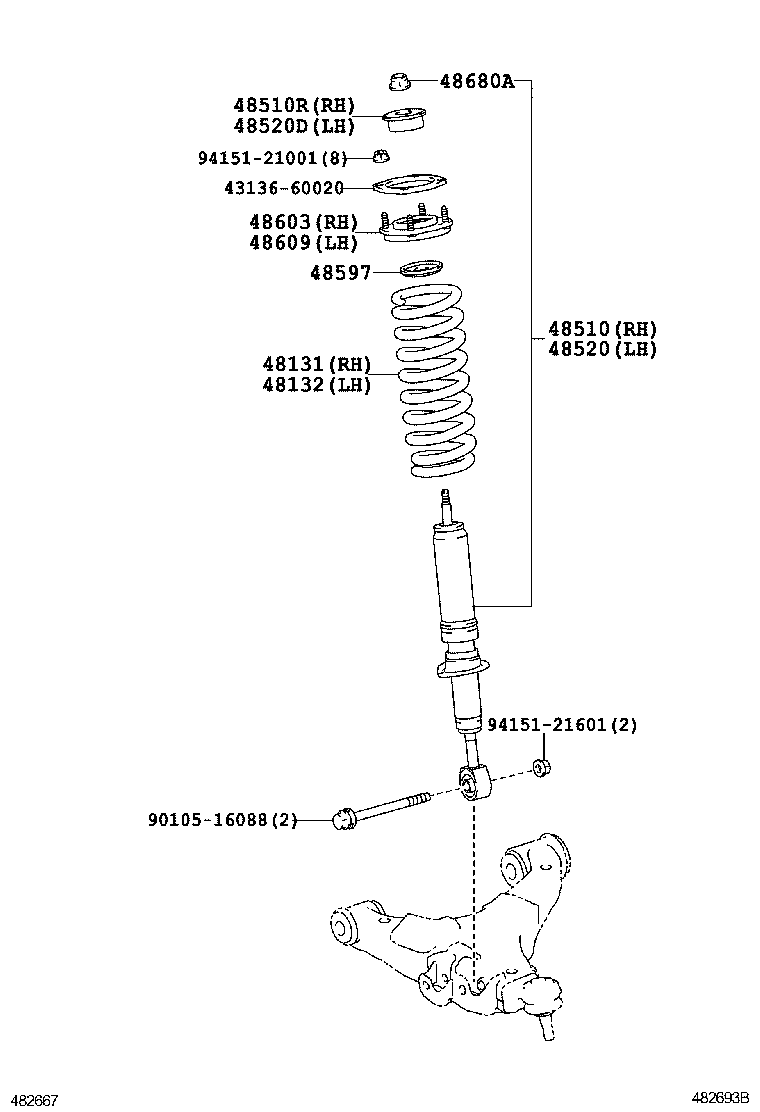

ILLUST NO. 1 OF 2(0709- )
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-60C90 |
GRJ200..LHD..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60C60 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..GEN..G |
1 | ||
| 48131-60C60 |
GRJ200..GEN..K |
1 | ||
| 48131-60C90 |
GRJ200..LHD..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-60C60 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..GEN..G |
1 | ||
| 48131-60C90 |
GRJ200..LHD..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 48131-60C60 |
GRJ200..GEN..K |
1 | ||
| 48131-60C90 |
GRJ200..LHD..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-69335 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..G MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48510-69335 |
GRJ200..K MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..K MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48510R - CUSHION, FRONT SHOCK ABSORBER, NO.1 RH | ||||
| 90948-01096 |
GRJ200,VDJ200..K |
1 | ||
| 90948-01096 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-69335 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..G MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48510-69335 |
GRJ200..K MARK 48510-60130 |
1 | ||
| 48510-69405 |
GRJ200..LHD..K MARK 48510-60180,ELECTRICAL WINCH-WITH |
1 | ||
| 48520D - CUSHION, FRONT SHOCK ABSORBER, NO.1 LH | ||||
| 90948-01096 |
GRJ200,VDJ200..K |
1 | ||
| 90948-01096 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48597 - RETAINER, SHOCK ABSORBER CUSHION | ||||
| 48597-60120 |
GRJ200,VDJ200..K |
2 | ||
| 48597-60120 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-60070 |
GRJ200,VDJ200..K |
1 | ||
| 48609-60070 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-60070 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 48609-60070 |
GRJ200,VDJ200..K |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94188-01401 |
GRJ200,VDJ200..K |
2 | ||
| 94188-01401 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| Common parts | ||||
| 43136-60020 | ||||
| 90105-16088 | ||||
| 94151-21001 | ||||
| 94151-21601 | ||||

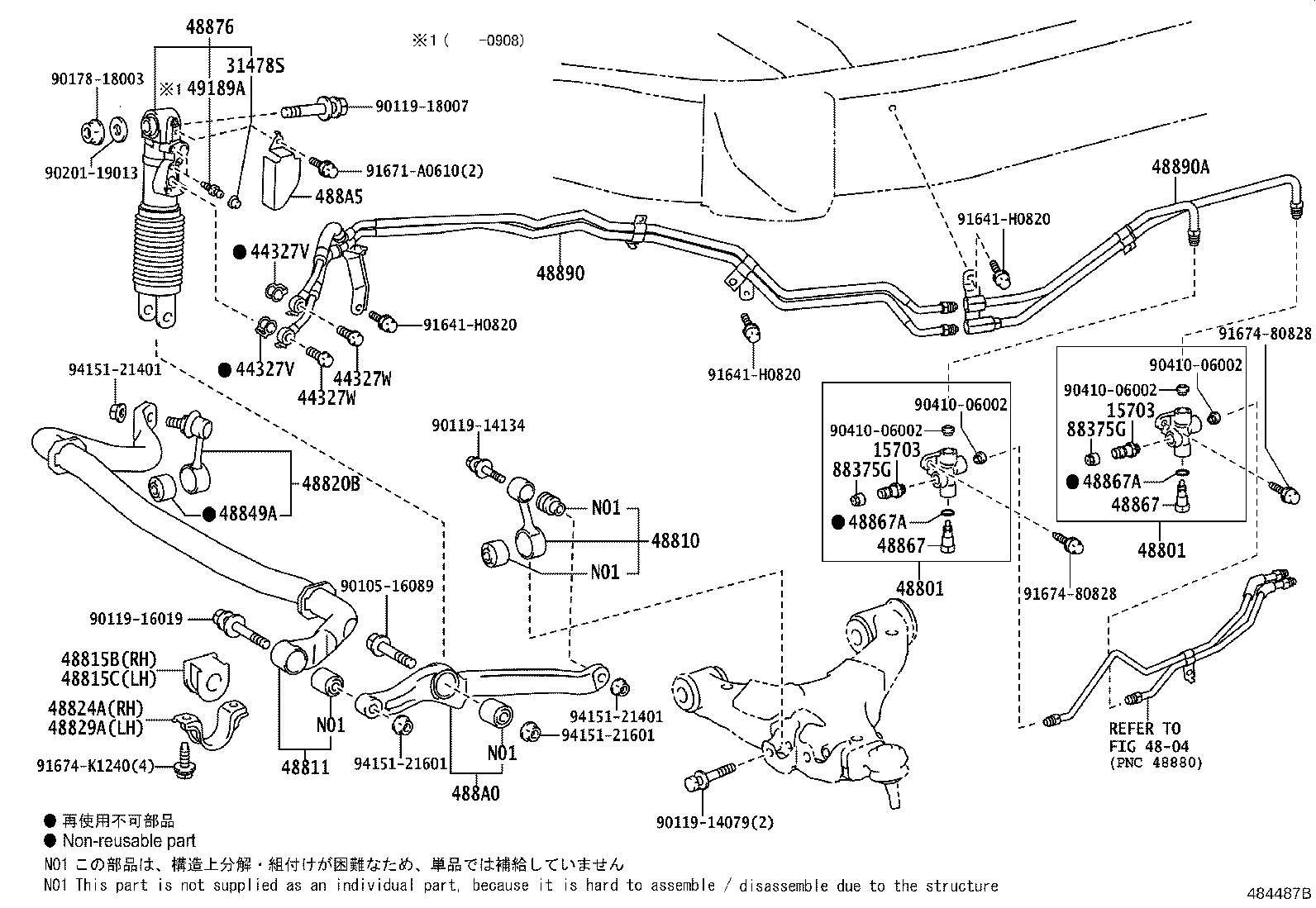

ILLUST NO. 2 OF 2(0709-1704)
KDSS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-60051 |
GRJ200,VDJ200..K |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-60290 |
GRJ200,VDJ200..K |
1 | ||
| 48815B - BUSH, FRONT STABILIZER LOWER BRACKET, RH | ||||
| 48815-60250 |
GRJ200,VDJ200..K |
1 | ||
| 48815C - BUSH, FRONT STABILIZER LOWER BRACKET, LH | ||||
| 48815-60250 |
GRJ200,VDJ200..K |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-60071 |
GRJ200,VDJ200..K |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-60170 |
GRJ200,VDJ200..K |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-60170 |
GRJ200,VDJ200..K |
1 | ||
| 48849A - BUSH, FRONT STABILIZER LINK, RH | ||||
| 48849-60110 |
GRJ200,VDJ200..K |
1 | ||
| Common parts | ||||
| 90105-16089 | ||||
| 90119-14079 | ||||
| 90119-14134 | ||||
| 90119-16019 | ||||
| 90119-18007 | ||||
| 90178-18003 | ||||
| 90201-19013 | ||||
| 90410-06002 | ||||
| 91641-H0820 | ||||
| 91671-A0610 | ||||
| 91674-80828 | ||||
| 91674-K1240 | ||||
| 94151-21401 | ||||
| 94151-21601 | ||||
| Linked diagrams | ||||
| 4804 | ||||
