GRJ200L-KCMRK (2011)

Toyota Land Cruiser

Production Sep 2011 - Jan 2012

Engine 1GRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

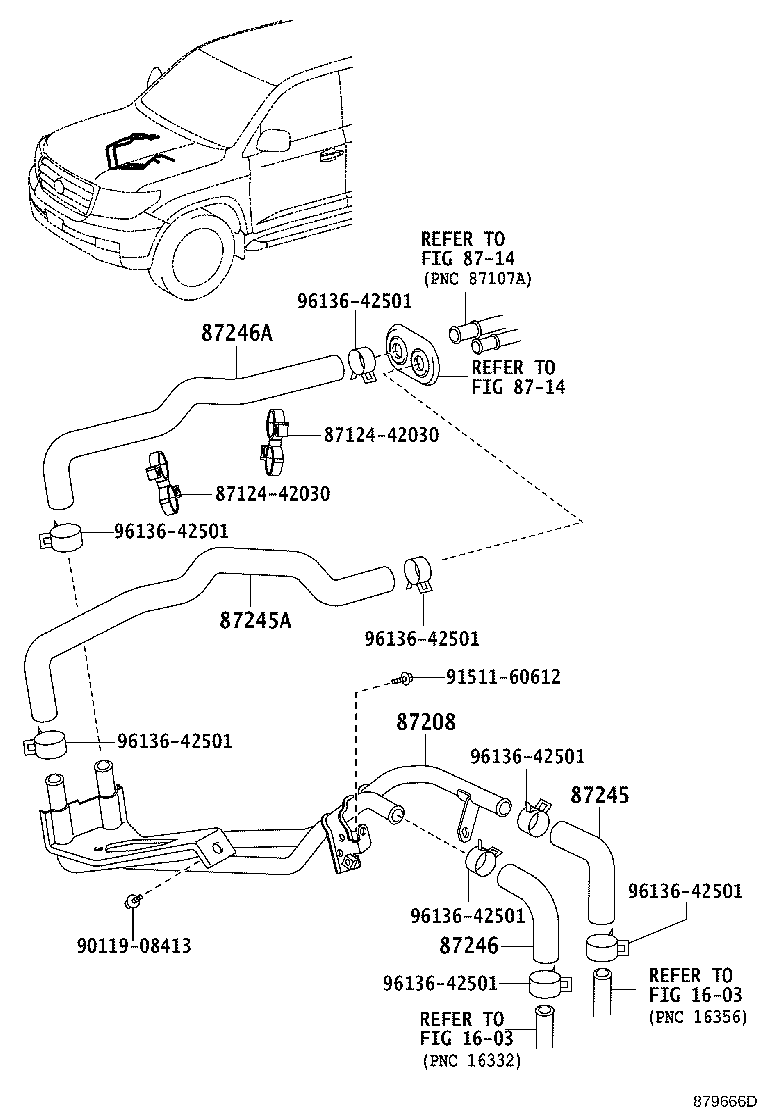

ILLUST NO. 1 OF 2(0709- )GRJ200

Click highlighted areas on diagram

FRONT,W/O(REAR HEATAER)

diagram

Part #	Description	Period	Qty	Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-60800	GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G	09/2007 - 01/2012	1
87208-60800	GRJ200..K	09/2011 - 01/2012	1
87245 - HOSE, HEATER WATER, INLET
87245-60B80	GRJ200..K	09/2011 - 01/2012	1
87245-60B80	GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G	09/2007 - 01/2012	1
87245A - HOSE, HEATER WATER, INLET A
87245-60B90	GRJ200..08S..GCC;GRJ200..RHD..08S;GRJ200..LHD..(05S,09S)..G	09/2007 - 01/2012	1
87245-60B90	GRJ200..K	09/2011 - 01/2012	1
87246 - HOSE, HEATER WATER, OUTLET
87245-60B80	GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G	09/2007 - 01/2012	1
87245-60B80	GRJ200..K	09/2011 - 01/2012	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60C00	GRJ200..08S..GCC;GRJ200..RHD..08S;GRJ200..LHD..(05S,09S)..G	09/2007 - 01/2012	1
87245-60C00	GRJ200..K	09/2011 - 01/2012	1
Common parts
87124-42030
90119-08413
91511-60612
96136-42501
Linked diagrams
1603
8714

ILLUST NO. 1 OF 2(0709-1201)GRJ200..5F..G

Click highlighted areas on diagram

FRONT,W(REAR HEATER)

diagram

Part #	Description	Period	Qty	Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-60800	GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G	09/2007 - 01/2012	1
87208-60800	GRJ200..K	09/2011 - 01/2012	1
87245 - HOSE, HEATER WATER, INLET
87245-60B80	GRJ200..K	09/2011 - 01/2012	1
87245-60B80	GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G	09/2007 - 01/2012	1
87245A - HOSE, HEATER WATER, INLET A
87245-60B90	GRJ200..08S..GCC;GRJ200..RHD..08S;GRJ200..LHD..(05S,09S)..G	09/2007 - 01/2012	1
87245-60B90	GRJ200..K	09/2011 - 01/2012	1
87246 - HOSE, HEATER WATER, OUTLET
87245-60B80	GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G	09/2007 - 01/2012	1
87245-60B80	GRJ200..K	09/2011 - 01/2012	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60C00	GRJ200..08S..GCC;GRJ200..RHD..08S;GRJ200..LHD..(05S,09S)..G	09/2007 - 01/2012	1
87245-60C00	GRJ200..K	09/2011 - 01/2012	1
Common parts
87124-42030
90119-08413
91511-60612
96136-42501
Linked diagrams
1603
8714

ILLUST NO. 2 OF 2(0709- )

Click highlighted areas on diagram

REAR

diagram

Part #	Description	Period	Qty	Price
Common parts
87124-28460
87124-28480
87124-60210
87124-60220
87124-60250
87124-60260
87124-60280
87452-60030
90159-60008
90179-06178
90179-06314
94151-80641
96134-52100
96136-42501
96136-52501
Linked diagrams
8718
