GRJ200L-KCMRK (2011)
Toyota Land Cruiser

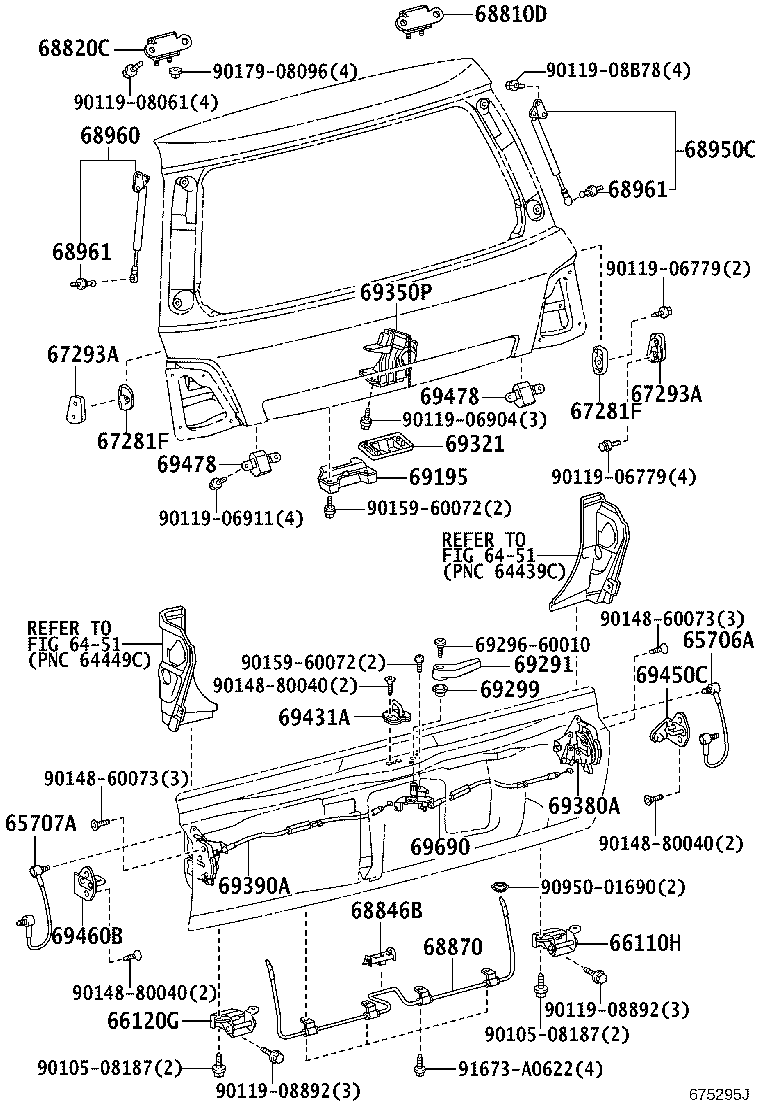

(0709-1201)G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65706A - STAY SUB-ASSY, TAIL GATE, RH | ||||
| 65706-60030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 65707A - STAY SUB-ASSY, TAIL GATE, LH | ||||
| 65706-60030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 66110H - HINGE ASSY, TAIL GATE, RH | ||||
| 66110-60030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 66120G - HINGE ASSY, TAIL GATE, LH | ||||
| 66110-60030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-60040 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-60040 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-28040 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-28040 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 68846B - GUIDE, BACK DOOR TORSION BAR | ||||
| 68846-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 68870 - BAR ASSY, BACK DOOR LOWER TORSION | ||||
| 68870-60020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-12050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-60030 |
GRJ200,VDJ200..K |
1 | ||
| 69299 - GROMMET, BACK DOOR HANDLE | ||||
| 69299-60010 |
GRJ200,VDJ200..K |
1 | ||
| 69299-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69321 - COVER, BACK DOOR LOCK | ||||
| 69321-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-60140 |
GRJ200,URJ200,UZJ200,VDJ200..G |
1 | ||
| 69380A - LOCK ASSY, TAIL GATE, LOWER RH | ||||
| 69380-60060 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69390A - LOCK ASSY, TAIL GATE, LOWER LH | ||||
| 69390-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69431A - STRIKER, REAR SWING GATE LOCK | ||||
| 69431-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69450C - STRIKER ASSY, BACK DOOR LOCK, RH | ||||
| 69450-60060 |
GRJ200,VDJ200..K |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69670-60010 |
GRJ200,VDJ200..K |
1 | ||
| Common parts | ||||
| 69296-60010 | ||||
| 90105-08187 | ||||
| 90119-06779 | ||||
| 90119-06904 | ||||
| 90119-06911 | ||||
| 90119-08061 | ||||
| 90119-08892 | ||||
| 90119-08B78 | ||||
| 90148-60073 | ||||
| 90148-80040 | ||||
| 90159-60072 | ||||
| 90179-08096 | ||||
| 90950-01690 | ||||
| 91673-A0622 | ||||
| Linked diagrams | ||||
| 6451 | ||||

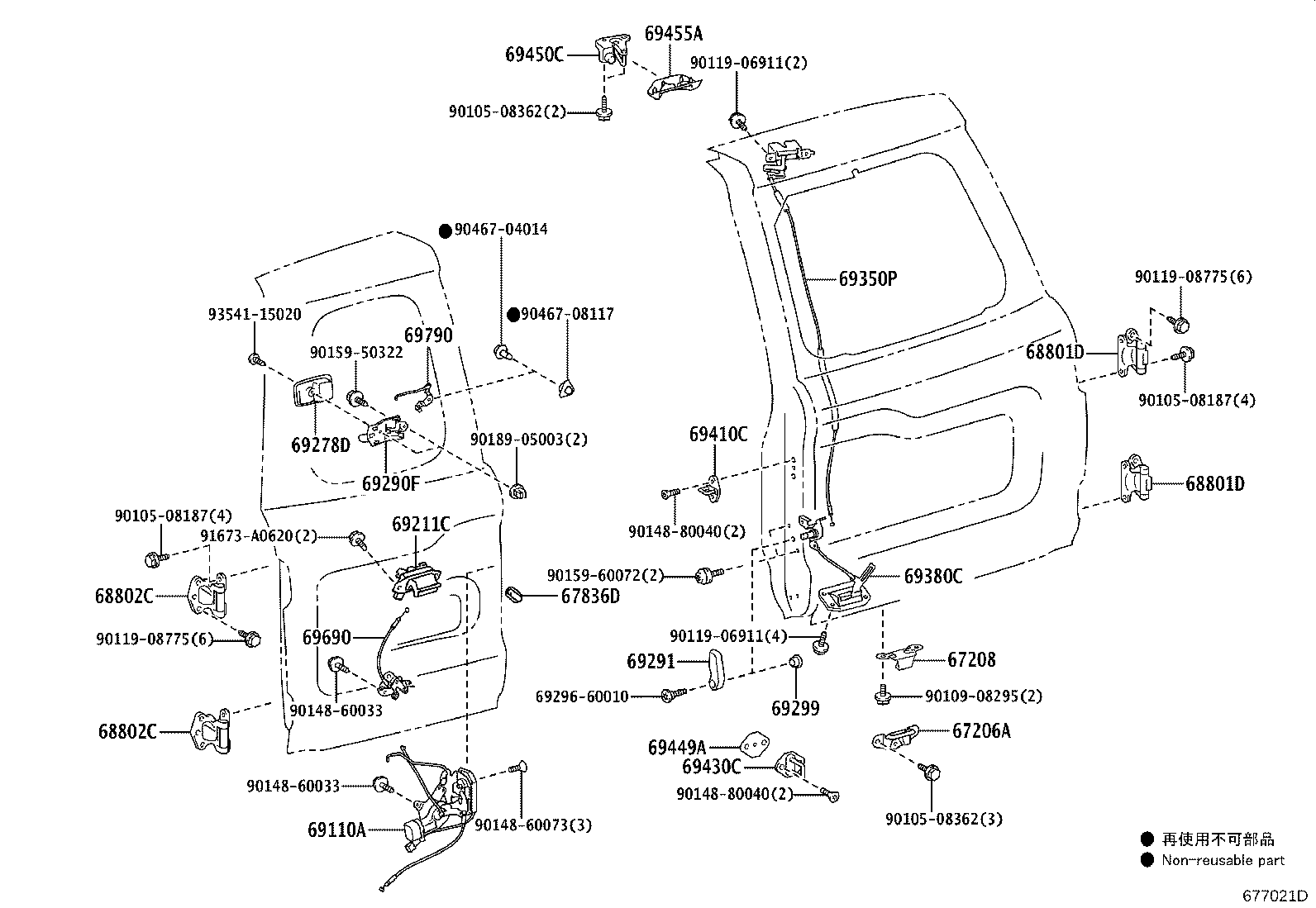

(1109- )SOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER | ||||
| 67206-60050 |
GRJ200,VDJ200..K |
1 | ||
| 67208 - STOPPER SUB-ASSY, BACK DOOR, NO.2 | ||||
| 67208-60050 |
GRJ200,VDJ200..K |
1 | ||
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-12040 |
GRJ200,VDJ200..K |
1 | ||
| 68801D - HINGE SUB-ASSY, BACK DOOR, RH | ||||
| 68801-60070 |
GRJ200,VDJ200..K |
2 | ||
| 68801D - HINGE SUB-ASSY, BACK DOOR, RH | ||||
| 68801-60070 |
GRJ200,VDJ200..K |
2 | ||
| 68802C - HINGE SUB-ASSY, BACK DOOR, LH | ||||
| 68801-60070 |
GRJ200,VDJ200..K |
2 | ||
| 68802C - HINGE SUB-ASSY, BACK DOOR, LH | ||||
| 68801-60070 |
GRJ200,VDJ200..K |
2 | ||
| 69110A - LOCK ASSY, BACK DOOR W/MOTOR | ||||
| 69110-60250 |
GRJ200,VDJ200..K |
1 | ||
| 69211C - HANDLE, BACK DOOR OUTSIDE | ||||
| 69023-13020 |
GRJ200,VDJ200..K |
1 | ||
| 69278D - BEZEL, DOOR INSIDE HANDLE, LH | ||||
| 69278-51010C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 69290F - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69290-60010C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 69291 - HANDLE ASSY, BACK DOOR INSIDE | ||||
| 69291-60030 |
GRJ200,VDJ200..K |
1 | ||
| 69299 - GROMMET, BACK DOOR HANDLE | ||||
| 69299-60010 |
GRJ200,VDJ200..K |
1 | ||
| 69299-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-60140 |
GRJ200,URJ200,UZJ200,VDJ200..G |
1 | ||
| 69380C - LOCK ASSY, BACK DOOR, LOWER | ||||
| 69380-60080 |
GRJ200,VDJ200..K |
1 | ||
| 69410C - PLATE ASSY, BACK DOOR LOCK STRIKER | ||||
| 69410-60010 |
GRJ200,VDJ200..K |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-60060 |
GRJ200,VDJ200..K |
1 | ||
| 69449A - SHIM, BACK DOOR LOCK STRIKER | ||||
| 69449-60020 |
GRJ200,VDJ200..K T=0.5 |
1 | ||
| 69449-60010 |
GRJ200,VDJ200..K T=2.0 |
1 | ||
| 69450C - STRIKER ASSY, BACK DOOR LOCK, RH | ||||
| 69450-60060 |
GRJ200,VDJ200..K |
1 | ||
| 69455A - COVER, BACK DOOR UPPER LOCK STRIKER | ||||
| 64798-60020B0 |
GRJ200,VDJ200..K LT.GRAY,TRIM1# |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 69670-60010 |
GRJ200,VDJ200..K |
1 | ||
| 69790 - CONTROL ASSY, BACK DOOR LOCK | ||||
| 69790-60110 |
GRJ200,VDJ200..K |
1 | ||
| Common parts | ||||
| 69296-60010 | ||||
| 90105-08187 | ||||
| 90105-08362 | ||||
| 90109-08295 | ||||
| 90119-06911 | ||||
| 90119-08775 | ||||
| 90148-60033 | ||||
| 90148-60073 | ||||
| 90148-80040 | ||||
| 90159-50322 | ||||
| 90159-60072 | ||||
| 90189-05003 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| 91673-A0620 | ||||
| 93541-15020 | ||||
