GRJ200L-KCMRK (2011)
Toyota Land Cruiser

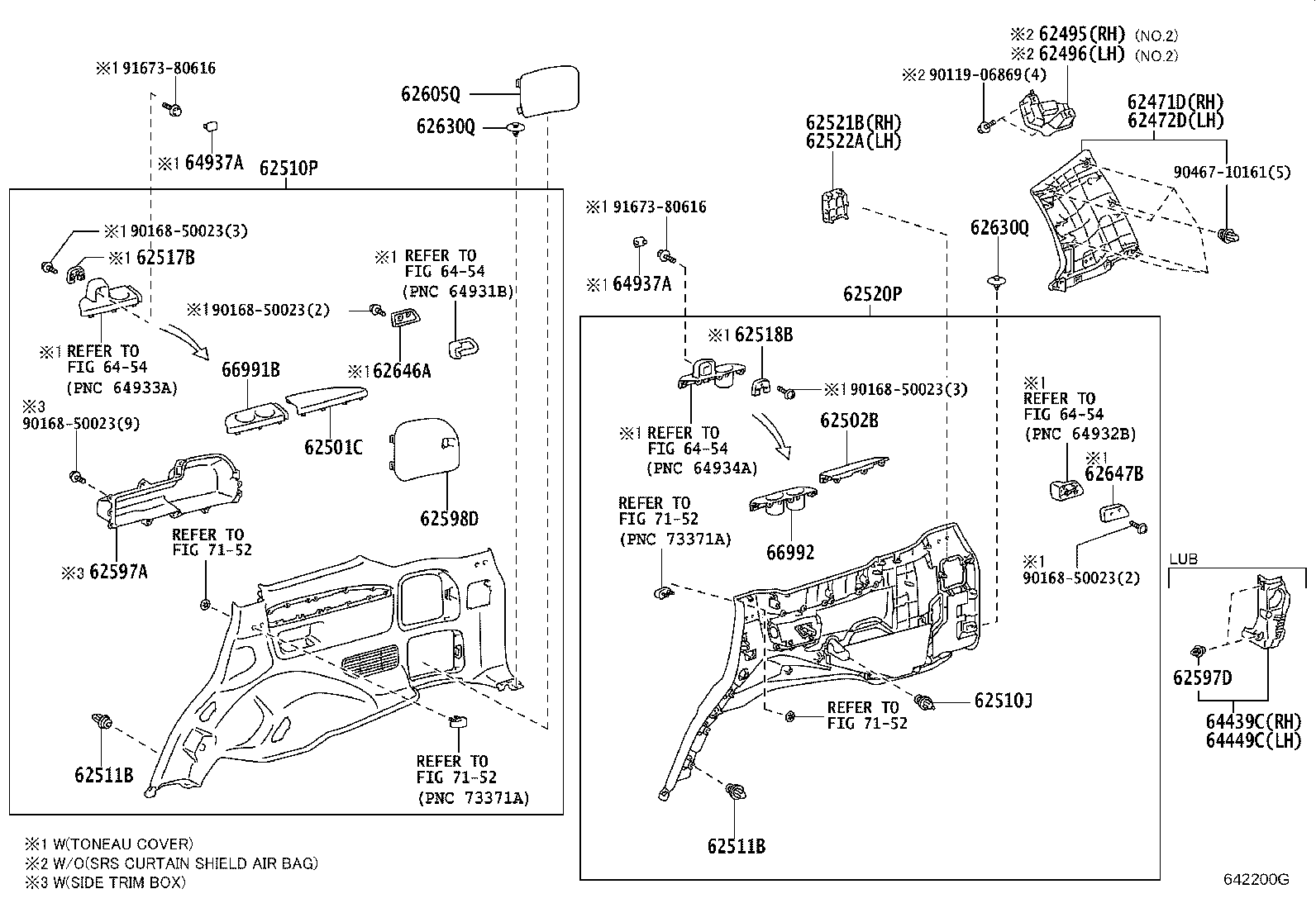

ILLUST NO. 2 OF 2(0709- )05S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62471D - GARNISH, REAR PILLAR, UPPER RH | ||||
| 62471-60510B0 |
GRJ200,VDJ200..05S..K LT.GRAY,TRIM1# |
1 | ||
| 62471-60510E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G SAND BEIGE,TRIM4# |
1 | ||
| 62471-60510B0 |
VDJ200..05S..G;GRJ200..LHD..05S..G LT.GRAY,TRIM1# |
1 | ||
| 62472D - GARNISH, REAR PILLAR, UPPER LH | ||||
| 62472-60380B0 |
VDJ200..05S..G;GRJ200..LHD..05S..G LT.GRAY,TRIM1# |
1 | ||
| 62472-60380E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G SAND BEIGE,TRIM4# |
1 | ||
| 62472-60380B0 |
GRJ200,VDJ200..05S..K LT.GRAY,TRIM1# |
1 | ||
| 62495 - SPACER, ROOF SIDE INNER GARNISH, RH | ||||
| 62495-60030 |
GRJ200,VDJ200..5F..K NO.2 |
1 | ||
| 62495-60020 |
GRJ200,VDJ200..5F..K NO.1 |
1 | ||
| 62495-60030 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.2 |
1 | ||
| 62495-60020 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.1 |
1 | ||
| 62496 - SPACER, ROOF SIDE INNER GARNISH, LH | ||||
| 62496-60020 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.1 |
1 | ||
| 62496-60020 |
GRJ200,VDJ200..5F..K NO.1 |
1 | ||
| 62496-60030 |
GRJ200,VDJ200..5F..K NO.2 |
1 | ||
| 62496-60030 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.2 |
1 | ||
| 62501C - COVER SUB-ASSY, QUARTER TRIM, RH | ||||
| 74261-60110C0 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G BLACK,TRIM1# |
1 | ||
| 74261-60110C0 |
GRJ200,VDJ200..STD BLACK,TRIM1# |
1 | ||
| 74261-60110E0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G DK. BROWN,TRIM4# |
1 | ||
| 62502B - COVER SUB-ASSY, QUARTER TRIM, LH | ||||
| 74262-60090C0 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G BLACK,TRIM1# |
1 | ||
| 74262-60090E0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G DK. BROWN,TRIM4# |
1 | ||
| 74262-60090C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-33030 |
GRJ200,VDJ200..K |
1 | ||
| 67771-33030 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-60C30C0 |
VDJ200..05S..G;GRJ200..LHD..05S..G BLACK,TRIM1# |
1 | ||
| 62510-60C30E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G DK. BROWN,TRIM4# |
1 | ||
| 62510-60C40E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
1 | ||
| 62510-60C40C0 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH,BLACK,TRIM1# |
1 | ||
| 62510-60B10C0 |
GRJ200,VDJ200..05S..K BLACK,TRIM1# |
1 | ||
| 62510-60B20C0 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH,BLACK,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
VDJ200..09S..GCC..G;VDJ200..GX..(ARL,GEN);GRJ200..LHD..(05S,09S)..G;GRJ200,UZJ200..08S..GX..(ARL,GEN) NATURAL |
21 | ||
| 90467-10161 |
GRJ200,VDJ200..K NATURAL |
21 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10161 |
VDJ200..09S..GCC..G;VDJ200..GX..(ARL,GEN);GRJ200..LHD..(05S,09S)..G;GRJ200,UZJ200..08S..GX..(ARL,GEN) NATURAL |
21 | ||
| 90467-10161 |
GRJ200,VDJ200..K NATURAL |
21 | ||
| 62517B - BASE, QUARTER TRIM, FRONT RH | ||||
| 62517-60010 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH |
1 | ||
| 62517-60010 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH |
1 | ||
| 62518B - BASE, QUARTER TRIM, FRONT LH | ||||
| 62518-60010 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH |
1 | ||
| 62518-60010 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-60D20C0 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH,BLACK,TRIM1# |
1 | ||
| 62520-60D10C0 |
GRJ200,VDJ200..05S..K BLACK,TRIM1# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62644-60030C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62644-60030E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G DK. BROWN,TRIM4# |
1 | ||
| 62644-60030C0 |
VDJ200..(05S,09S)..G;GRJ200..LHD..(05S,09S)..G BLACK,TRIM1# |
1 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62645-60020C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62645-60020E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G DK. BROWN,TRIM4# |
1 | ||
| 62645-60020C0 |
VDJ200..(05S,09S)..G;GRJ200..LHD..(05S,09S)..G BLACK,TRIM1# |
1 | ||
| 62597A - BOX, SIDE TRIM | ||||
| 62597-60020E0 |
UZJ200..VX..GCC;GRJ200..LHD..05S..G;GRJ200,UZJ200..08S..(ARL,GEN);VDJ200..(05S,08S)..(ARL,GEN)..G DK. BROWN,TRIM4# |
1 | ||
| 62597-60020C0 |
UZJ200..VX..GCC;GRJ200..LHD..05S..G;GRJ200,UZJ200..08S..(ARL,GEN);VDJ200..(05S,08S)..(ARL,GEN)..G BLACK,TRIM1# |
1 | ||
| 62597D - CLIP | ||||
| 75498-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 62598D - COVER, SIDE TRIM BOX | ||||
| 62598-60020C0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G BLACK,TRIM1# |
1 | ||
| 62598-60020E0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G DK. BROWN,TRIM4# |
1 | ||
| 62598-60020C0 |
GRJ200,VDJ200..STD BLACK,TRIM1# |
1 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-60030C0 |
VDJ200..GX..G;GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..GX..G BLACK,TRIM1# |
1 | ||
| 62605-60030C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62605-60030E0 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX;GRJ200,UZJ200..08S..GX DK. BROWN,TRIM4# |
1 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 63399-26070C0 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G BLACK,TRIM1# |
2 | ||
| 63399-26070C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
2 | ||
| 63399-26070E0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G DK. BROWN,TRIM4# |
2 | ||
| 62630Q - CLIP (FOR QUARTER TRIM) | ||||
| 63399-26070C0 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G BLACK,TRIM1# |
2 | ||
| 63399-26070C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
2 | ||
| 63399-26070E0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G DK. BROWN,TRIM4# |
2 | ||
| 62646A - BASE, QUARTER TRIM, REAR RH | ||||
| 62646-60010 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH |
1 | ||
| 62646-60010 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH |
1 | ||
| 62647B - BASE, QUARTER TRIM, REAR LH | ||||
| 62647-60010 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH |
1 | ||
| 62647-60010 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH |
1 | ||
| 64439C - COVER, LUGGAGE ROOM BOX SIDE, RH | ||||
| 64439-60011 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 64449C - COVER, LUGGAGE ROOM BOX SIDE, LH | ||||
| 64449-60011 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C0 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH,BLACK,TRIM1# |
2 | ||
| 64937-60030E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
2 | ||
| 64937-60030C0 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH,BLACK,TRIM1# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-60030C0 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH,BLACK,TRIM1# |
2 | ||
| 64937-60030E0 |
VDJ200..05S..G;GRJ200..LHD..05S..G TONNEAU COVER-WITH,DK. BROWN,TRIM4# |
2 | ||
| 64937-60030C0 |
GRJ200,VDJ200..05S..GEN..K TONNEAU COVER-WITH,BLACK,TRIM1# |
2 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-60040C0 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G BLACK,TRIM1# |
1 | ||
| 66991-60040E0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G DK. BROWN,TRIM4# |
1 | ||
| 66991-60040C0 |
GRJ200,VDJ200..STD BLACK,TRIM1# |
1 | ||
| 66992 - HOLDER, CUP, NO.2 | ||||
| 66992-60010C0 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G BLACK,TRIM1# |
1 | ||
| 66992-60010E0 |
GRJ200,UZJ200..08S;GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G DK. BROWN,TRIM4# |
1 | ||
| 66992-60010C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06869 | ||||
| 90168-50023 | ||||
| 90467-10161 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6454 | ||||
| 7152 | ||||
ILLUST NO. 1 OF 2(0709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51775 - COVER,REAR STEP | ||||
| 58372-60060C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
2 | ||
| 58372-60060C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
2 | ||
| 58372-60060E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06155 |
GRJ200,VDJ200..K |
2 | ||
| 90467-06155 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60150C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62111-60150C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 62111-60150E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60240C0 |
GRJ200,VDJ200..LHD..5F..G BLACK,TRIM1# |
1 | ||
| 62112-60240E0 |
GRJ200,VDJ200..LHD..5F..G DK. BROWN,TRIM4# |
1 | ||
| 62112-60240C0 |
GRJ200,VDJ200..LHD..K BLACK,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10167 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
4 | ||
| 90467-10167 |
GRJ200,VDJ200..K |
4 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-60140B0 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G LT.GRAY,TRIM1# |
1 | ||
| 62210-60140E0 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G SAND BEIGE,TRIM4# |
1 | ||
| 62210-60140B0 |
GRJ200,VDJ200..5F..K LT.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-60140E0 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G SAND BEIGE,TRIM4# |
1 | ||
| 62220-60140B0 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G LT.GRAY,TRIM1# |
1 | ||
| 62220-60140B0 |
GRJ200,VDJ200..5F..K LT.GRAY,TRIM1# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-60020 |
GRJ200,VDJ200..K |
2 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10161 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 90467-10161 |
GRJ200,VDJ200..K |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60141 |
GRJ200,VDJ200..K |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60141 |
GRJ200,VDJ200..K |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-60081 |
GRJ200,VDJ200..K |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-60081 |
GRJ200,VDJ200..K |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
GRJ200,VDJ200..K |
2 | ||
| 90467-10167 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-60110B0 |
VDJ200..GX..G;GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..GX..G LT.GRAY,TRIM1# |
1 | ||
| 62410-60110B0 |
GRJ200,VDJ200..K LT.GRAY,TRIM1# |
1 | ||
| 62410-60110E0 |
VDJ200..GX..G;GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..GX..G SAND BEIGE,TRIM4# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-60150 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G |
1 | ||
| 62411-60150 |
GRJ200,VDJ200..5F..K |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-60110B0 |
VDJ200..GX..G;GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..GX..G LT.GRAY,TRIM1# |
1 | ||
| 62420-60110E0 |
VDJ200..GX..G;GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..GX..G SAND BEIGE,TRIM4# |
1 | ||
| 62420-60110B0 |
GRJ200,VDJ200..K LT.GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-60150 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G |
1 | ||
| 62412-60150 |
GRJ200,VDJ200..5F..K |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60080C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 62413-60080E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 62413-60080C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
12 | ||
| 90467-10161 |
GRJ200,VDJ200..K |
12 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60080C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 62414-60080C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62414-60080E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 62421 - COVER, CENTER PILLAR GARNISH, RH | ||||
| 62421-60030C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 62421-60030E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 62421-60030C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62422 - COVER, CENTER PILLAR GARNISH, LH | ||||
| 62422-60010E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 62422-60010C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 62422-60010C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 62431C - GARNISH, ROOF SIDE RAIL, FRONT RH | ||||
| 62431-60040B0 |
GRJ200,VDJ200..K LT.GRAY,TRIM1# |
1 | ||
| 62431-60040E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 62431-60040B0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 62432C - GARNISH, ROOF SIDE RAIL, FRONT LH | ||||
| 62432-60020E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G SAND BEIGE,TRIM4# |
1 | ||
| 62432-60020B0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G LT.GRAY,TRIM1# |
1 | ||
| 62432-60020B0 |
GRJ200,VDJ200..K LT.GRAY,TRIM1# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90950-08004 |
GRJ200,VDJ200..K |
6 | ||
| 90950-08004 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
6 | ||
| 62495 - SPACER, ROOF SIDE INNER GARNISH, RH | ||||
| 62495-60030 |
GRJ200,VDJ200..5F..K NO.2 |
1 | ||
| 62495-60020 |
GRJ200,VDJ200..5F..K NO.1 |
1 | ||
| 62495-60030 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.2 |
1 | ||
| 62495-60020 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.1 |
1 | ||
| 62496 - SPACER, ROOF SIDE INNER GARNISH, LH | ||||
| 62496-60020 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.1 |
1 | ||
| 62496-60020 |
GRJ200,VDJ200..5F..K NO.1 |
1 | ||
| 62496-60030 |
GRJ200,VDJ200..5F..K NO.2 |
1 | ||
| 62496-60030 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G NO.2 |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-10188 |
UZJ200,VDJ200..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
2 | ||
| 90467-10188 |
GRJ200,VDJ200..K |
2 | ||
| 62621E - CLIP | ||||
| 90467-09206 |
GRJ200,VDJ200..K |
2 | ||
| 62638 - GARNISH, REAR QUARTER TRIM, FRONT RH | ||||
| 62638-60120B1 |
GRJ200,VDJ200..5F..K LT.GRAY,TRIM1# |
1 | ||
| 62639 - GARNISH, REAR QUARTER TRIM, FRONT LH | ||||
| 62639-60090B1 |
GRJ200,VDJ200..5F..K LT.GRAY,TRIM1# |
1 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-60030C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 67911-60030C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 67911-60030E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67911-60030E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 67911-60030C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 67911-60030C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-60161C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-60151C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-60030C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 67915-60030E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 67915-60030C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67915-60030C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 67915-60030C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 67915-60030E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-60170E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 67917-60170C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 67917-60170C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-60160E0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G DK. BROWN,TRIM4# |
1 | ||
| 67918-60160C0 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G BLACK,TRIM1# |
1 | ||
| 67918-60160C0 |
GRJ200,VDJ200..K BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06869 | ||||
| 90159-50322 | ||||
| 90189-05096 | ||||
| 90189-06227 | ||||
| 91631-B0625 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
