GRJ200L-KCMRK (2011)
Toyota Land Cruiser
ILLUST NO. 1 OF 2(0709- )
REAR UNDER FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900 - CARRIER ASSY, SPARE WHEEL | ||||
| 51900-60320 |
GRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51900-60320 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 51900-60320 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..GEN..G FUEL TANK-WITH(SUB TANK)&SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51900-60320 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51900-60320 |
GRJ200..GEN..K FUEL TANK-WITH(SUB TANK)&SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51900-60320 |
GRJ200,VDJ200..K |
1 | ||
| 51923A - GUIDE, SPARE WHELL CARRIER HANDLE | ||||
| 51923-60041 |
GRJ200..K;VDJ200..05S..GEN..K;VDJ200..(ARL,GCC)..K |
1 | ||
| 51923-60041 |
GRJ200..K;VDJ200..GCC..K;VDJ200..05S..GEN..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51923-60041 |
GRJ200..GEN..K FUEL TANK-WITH(SUB TANK)&SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51933A - STOPPER, SPARE WHEEL, NO.1 | ||||
| 51933-60200 |
GRJ200..K;VDJ200..05S..GEN..K;VDJ200..(ARL,GCC)..K |
1 | ||
| 51933-60200 |
GRJ200..K;VDJ200..GCC..K;VDJ200..05S..GEN..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51933-60200 |
GRJ200..GEN..K FUEL TANK-WITH(SUB TANK)&SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51942A - HANDLE, SPARE WHEEL CARRIER BOLT | ||||
| 51942-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 51942-60060 |
GRJ200,VDJ200..K |
1 | ||
| Common parts | ||||
| 90119-08516 | ||||
| 91641-H0820 | ||||

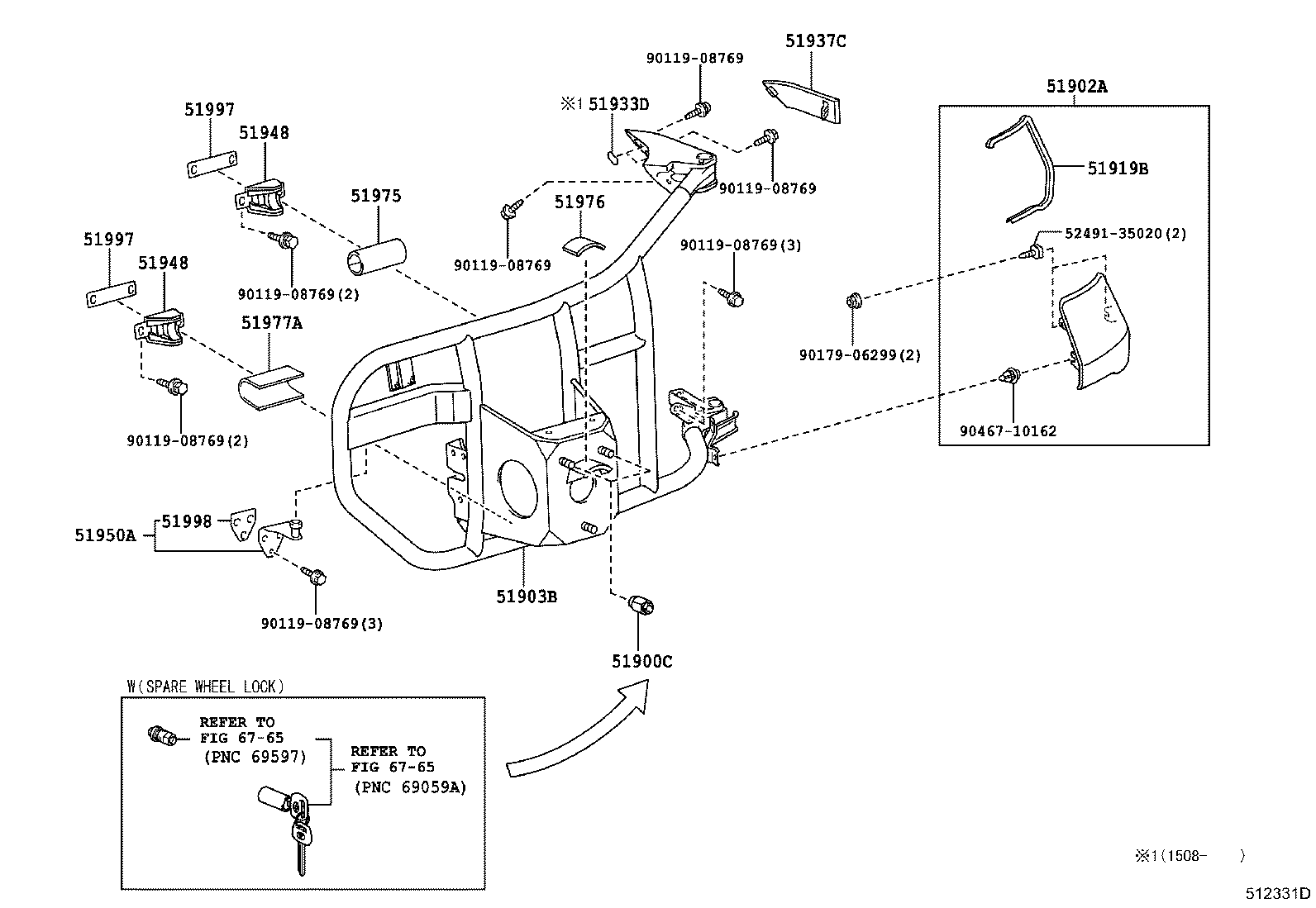

ILLUST NO. 2 OF 2(1109- )SOB
BACK DOOR FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51900C - NUT, SPARE WHEEL, HUB | ||||
| 90942-01101 |
VDJ200..5F..G;VDJ200..VX..GEN;URJ200,UZJ200..GCC;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;VDJ200..LHD..6FC..GX SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
2 | ||
| 90942-01101 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
2 | ||
| 90942-01101 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
2 | ||
| 90942-01101 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
2 | ||
| 51902A - COVER SUB-ASSY, SPARE WHEEL | ||||
| 51902-60020B0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,SILVER ME.,1F7 |
1 | ||
| 51902-60020B1 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,GRAY ME.,1G3 |
1 | ||
| 51902-60020A0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,SUPER WHITE 2,040 |
1 | ||
| 51902-60020C0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,BLACK,202 |
1 | ||
| 51902-60020C0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,BLACK,202 |
1 | ||
| 51902-60020B0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,SILVER ME.,1F7 |
1 | ||
| 51902-60020D0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,DK. RED M.M.,3Q3 |
1 | ||
| 51902-60020F0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,GOLD M.M.,5A5 |
1 | ||
| 51902-60020D0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,DK. RED M.M.,3Q3 |
1 | ||
| 51902-60020E0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,BEIGE M.M.,4R3 |
1 | ||
| 51902-60020A0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,SUPER WHITE 2,040 |
1 | ||
| 51902-60020E0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,BEIGE M.M.,4R3 |
1 | ||
| 51902-60020F0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,GOLD M.M.,5A5 |
1 | ||
| 51902-60020B1 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,GRAY ME.,1G3 |
1 | ||
| 51902-60020A0 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,SUPER WHITE 2,040 |
1 | ||
| 51902-60020A0 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME,SUPER WHITE 2,040 |
1 | ||
| 51902-60020G0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,GREEN M.M.,6V2 |
1 | ||
| 51902-60020G0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,GREEN M.M.,6V2 |
1 | ||
| 51902-60020J0 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,GRAYISH BLUE ME.,8R3 |
1 | ||
| 51902-60020B1 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,GRAY ME.,1G3 |
1 | ||
| 51902-60020J0 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME,GRAYISH BLUE ME.,8R3 |
1 | ||
| 51902-60020B0 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME,SILVER ME.,1F7 |
1 | ||
| 51902-60020B1 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME,GRAY ME.,1G3 |
1 | ||
| 51902-60020B2 |
GRJ200,VDJ200..5F..STD SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,GRAY ME.,058 |
1 | ||
| 51902-60020D0 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,DK. RED M.M.,3Q3 |
1 | ||
| 51902-60020G0 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME,GREEN M.M.,6V2 |
1 | ||
| 51902-60020C0 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,BLACK,202 |
1 | ||
| 51902-60020B0 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,SILVER ME.,1F7 |
1 | ||
| 51902-60020G0 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,GREEN M.M.,6V2 |
1 | ||
| 51902-60020E0 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME,BEIGE M.M.,4R3 |
1 | ||
| 51902-60020B2 |
VDJ200..5F..STD;GRJ200..LHD..STD SPARE WHEEL CARRIER-BACK DOOR FRAME,GRAY ME.,058 |
1 | ||
| 51902-60020D0 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME,DK. RED M.M.,3Q3 |
1 | ||
| 51902-60020E0 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME,BEIGE M.M.,4R3 |
1 | ||
| 51902-60020C0 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME,BLACK,202 |
1 | ||
| 51903B - CARRIER SUB-ASSY, SPARE WHEEL | ||||
| 51903-60160 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51903-60180 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51903-60160 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51903-60180 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51919B - SPACER, SPARE WHEEL CARRIER | ||||
| 51919-60050 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51919-60050 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51919-60050 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51919-60050 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51937C - BRACKET, SPARE WHEEL CARRIER HINGE | ||||
| 51937-60060 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51937-60060 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51937-60060 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51937-60060 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51948 - STOPPER, SPARE WHEEL CARRIER AUXILIARY | ||||
| 51905-60030 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51905-60030 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51905-60030 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
2 | ||
| 51905-60030 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
2 | ||
| 51948 - STOPPER, SPARE WHEEL CARRIER AUXILIARY | ||||
| 51905-60030 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51905-60030 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51905-60030 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
2 | ||
| 51905-60030 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
2 | ||
| 51950A - ROLLER ASSY, SPARE WHEEL CARRIER GUIDE | ||||
| 51950-60050 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51950-60050 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51975 - FILM, SPARE WHEEL CARRIER | ||||
| 51975-60010 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51975-60010 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51975-60010 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51975-60010 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51976 - FILM, SPARE WHEEL CARRIER, NO.2 | ||||
| 51976-60020 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51976-60020 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51976-60020 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51976-60020 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51977A - FILM, SPARE WHEEL CARRIER, NO.3 | ||||
| 51977-60030 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51977-60030 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51997 - PAD, SPARE WHEEL STOPPER | ||||
| 51997-60040 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51997-60040 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51997-60040 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51997-60040 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51997 - PAD, SPARE WHEEL STOPPER | ||||
| 51997-60040 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51997-60040 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 51997-60040 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51997-60040 |
VDJ200..5F..G;VDJ200..VX..GEN;GRJ200..LHD..05S..G;VDJ200..LHD..6FC..GX;GRJ200,URJ200,UZJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51998 - PAD, SPARE WHEEL BRACKET | ||||
| 51998-60050 |
GRJ200,VDJ200..5F..K SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 51998-60050 |
VDJ200..5F..K;GRJ200..LHD..K SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| Common parts | ||||
| 52491-35020 | ||||
| 90119-08769 | ||||
| 90179-06299 | ||||
| 90467-10162 | ||||
| Linked diagrams | ||||
| 6765 | ||||
