GRJ200L-GPANKV (2012)
Toyota Land Cruiser
Production
Jan 2012
-
Aug 2015
Engine
1GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )1GRFE

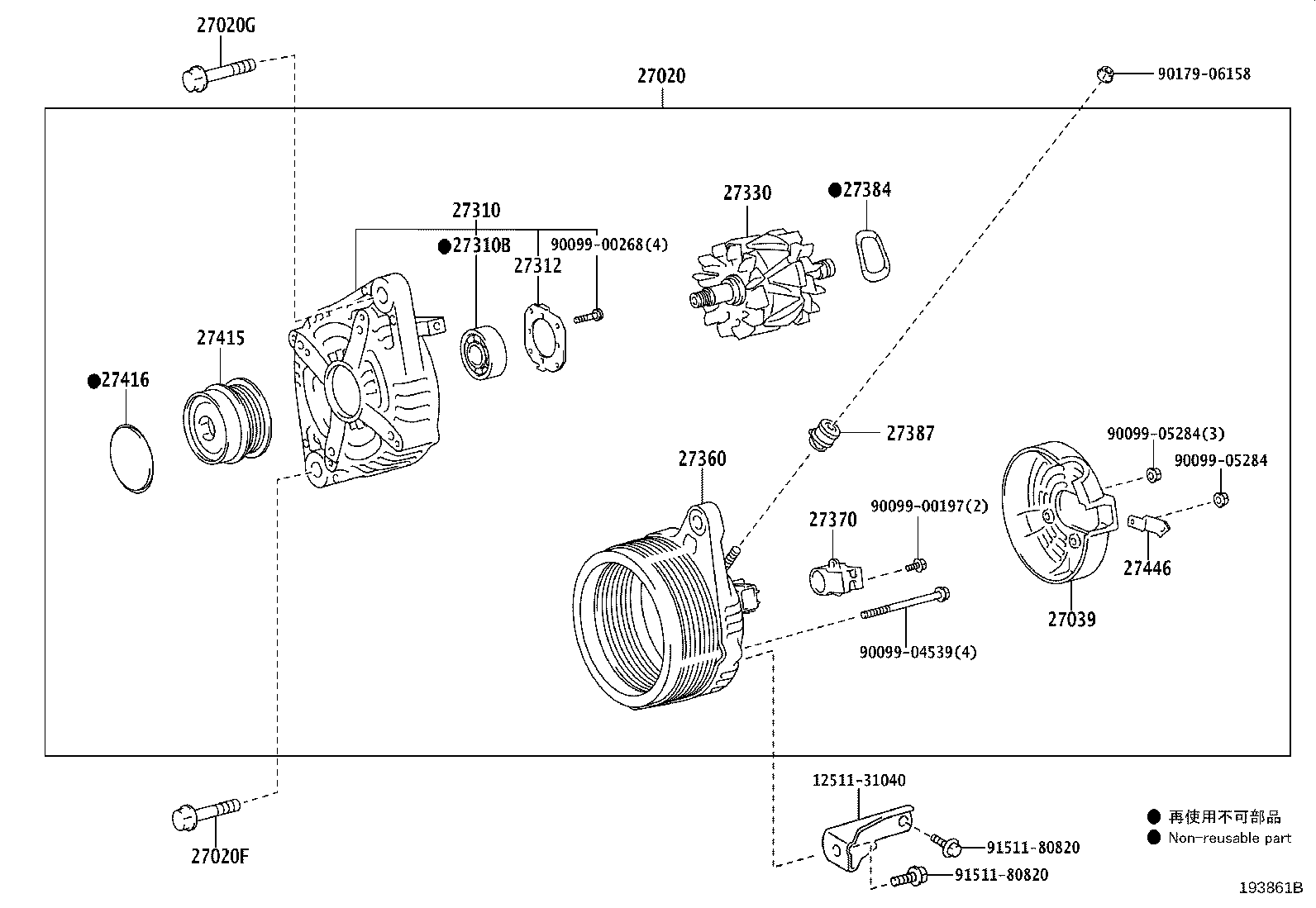

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-31220 |
1GRFE..GRJ200 12V 100A |
1 | ||
| 27060-31270 |
1GRFE..GRJ200 12V 100A |
1 | ||
| 27020F - BOLT, NO.1(FOR ALTERNATOR) | ||||
| 91552-81040 |
1GRFE..GRJ200 |
1 | ||
| 27020G - BOLT, NO.2(FOR ALTERNATOR) | ||||
| 91552-81070 |
1GRFE..GRJ200 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-31430 |
1GRFE..GRJ200 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-23130 |
1GRFE..GRJ200 |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-31430 |
1GRFE..GRJ200 |
1 | ||
| 27360-31540 |
1GRFE..GRJ200 |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0W130 |
1GRFE..GRJ200 |
1 | ||
| 27415-0W131 |
1GRFE..GRJ200 |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-0W050 |
1GRFE..GRJ200 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-31390 |
1GRFE..GRJ200 |
1 | ||
| Common parts | ||||
| 12511-31040 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-04539 | ||||
| 90099-05284 | ||||
| 90179-06158 | ||||
| 91511-80820 | ||||
