GRJ200L-GPANKV (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1201)GRJ200..GCC..K ; (1201- )GRJ200..GCC

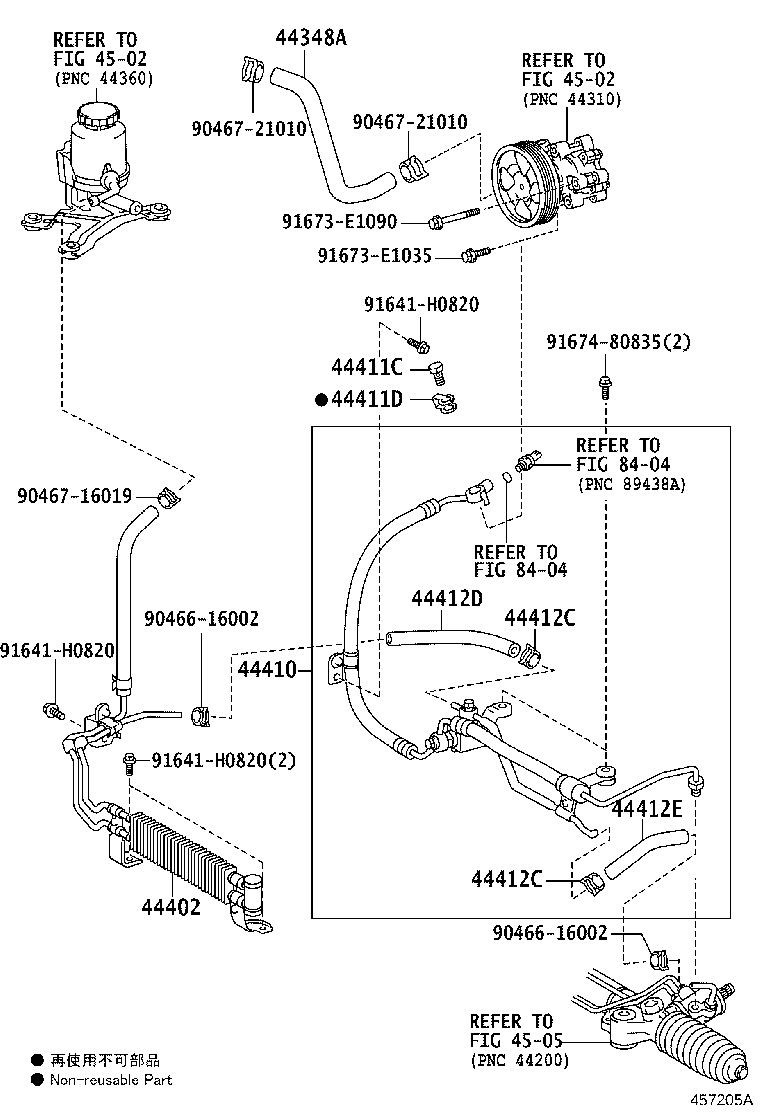

Click highlighted areas on diagram

diagram 44348A 44402 44410 44411C 44411D 4502 4502 4505 8404 8404 9046616002 9046616002 9046716019 9046721010 9046721010 91641H0820 91641H0820 91641H0820 91673E1035 91673E1090 9167480835
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60390

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G

 1
44348-60390

GRJ200..K

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-60050

GRJ200..GCC

 1
44402-60051

GRJ200..GCC..K

 1
44402-60051

GRJ200..GCC..G

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60730

GRJ200..GCC..G

 1
44410-60730

GRJ200..GCC..K

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

GRJ200,VDJ200..K

 1
90401-16034

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G

 1
44327-30040

GRJ200,VDJ200..K

 1
Common parts
90466-16002
90467-16019
90467-21010
91641-H0820
91673-E1035
91673-E1090
91674-80835
Linked diagrams
4502
4505
8404

(0709-1201)GRJ200..GCC..G

Click highlighted areas on diagram

diagram 44348A 44402 44410 44411C 44411D 44412C 44412C 44412D 44412E 4502 4502 4505 8404 8404 9046616002 9046616002 9046716019 9046721010 9046721010 91641H0820 91641H0820 91641H0820 91673E1035 91673E1090 9167480835
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-60390

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G

 1
44348-60390

GRJ200..K

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-60050

GRJ200..GCC

 1
44402-60051

GRJ200..GCC..K

 1
44402-60051

GRJ200..GCC..G

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-60730

GRJ200..GCC..G

 1
44410-60730

GRJ200..GCC..K

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16034

GRJ200,VDJ200..K

 1
90401-16034

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
44327-30040

GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G

 1
44327-30040

GRJ200,VDJ200..K

 1
44412C - CLAMP(FOR RETURN HOSE)
90466-16002

GRJ200,URJ200,UZJ200,VDJ200..LHD..G

 2
44412C - CLAMP(FOR RETURN HOSE)
90466-16002

GRJ200,URJ200,UZJ200,VDJ200..LHD..G

 2
44412D - HOSE, RETURN, NO.1
44412-60370

GRJ200,UZJ200..LHD..G

 1
44412E - HOSE, RETURN, NO.2
44412-60380

GRJ200,URJ200,UZJ200..LHD..G

 1
Common parts
90466-16002
90467-16019
90467-21010
91641-H0820
91673-E1035
91673-E1090
91674-80835
Linked diagrams
4502
4505
8404
