GRJ200L-GPANKV (2007)
Toyota Land Cruiser

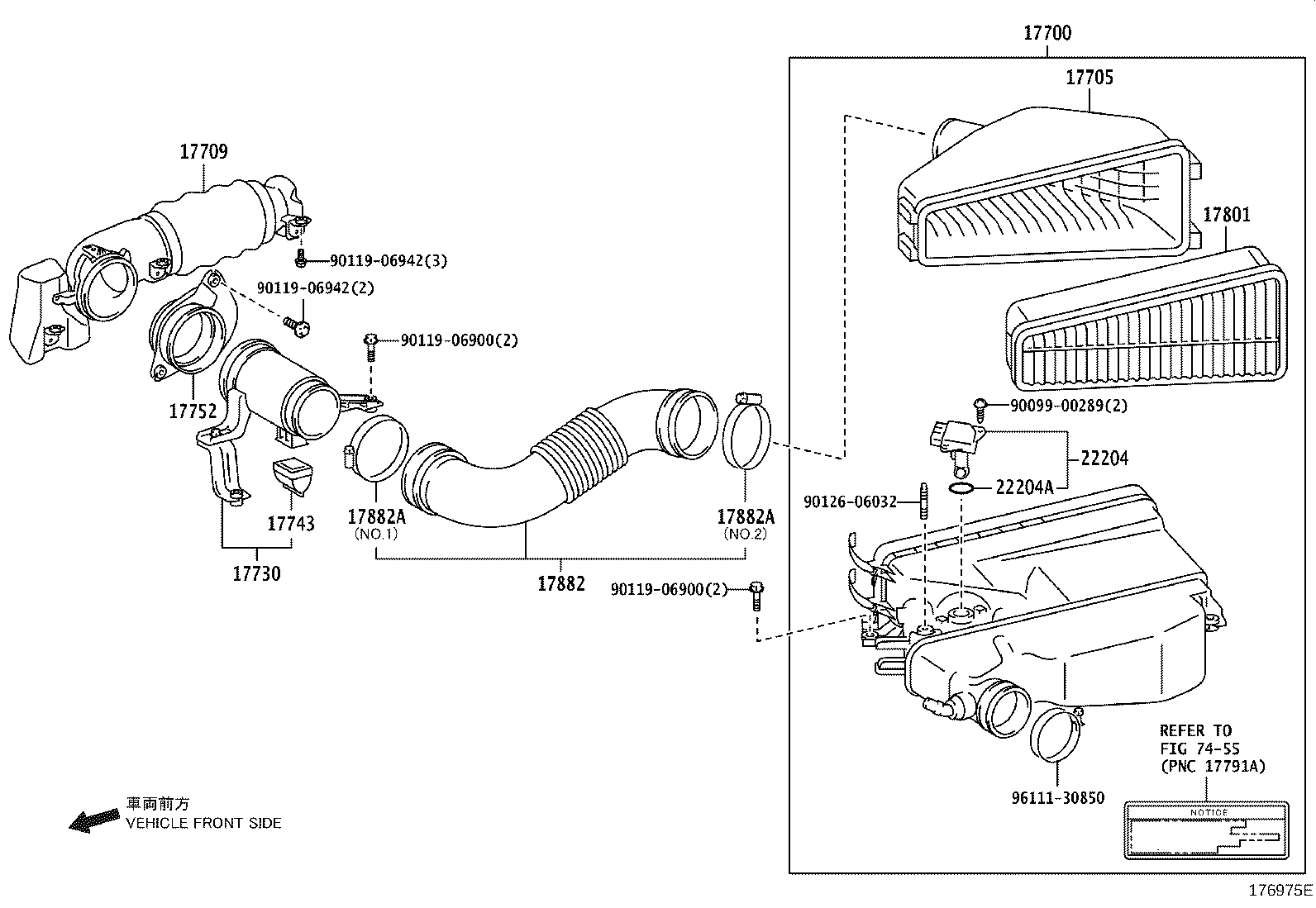

(1010-1201)1GRFE..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31541 |
1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S |
1 | ||
| 17700-31542 |
1GRFE..GRJ200..K |
1 | ||
| 17700-31542 |
1GRFE..GRJ200..G |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-31091 |
1GRFE..GRJ200..G |
1 | ||
| 17705-31090 |
1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S |
1 | ||
| 17705-31091 |
1GRFE..GRJ200..K |
1 | ||
| 17709 - INLET SUB-ASSY, AIR CLEANER | ||||
| 17709-51010 |
1GRFE..GRJ200..GCC..K |
1 | ||
| 17709-51010 |
1GRFE..GRJ200..GCC..G |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-31020 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 17730-31020 |
1GRFE..GRJ200..K |
1 | ||
| 17743 - VALVE, DUST RELIEF | ||||
| 17743-31010 |
1GRFE..GRJ200..K |
1 | ||
| 17743-50010 |
1GRFE..GRJ200 |
1 | ||
| 17743-31010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 17752 - INLET, AIR CLEANER, NO.2 | ||||
| 17752-51011 |
1GRFE..GRJ200..GCC..G |
1 | ||
| 17752-51011 |
1GRFE..GRJ200..GCC..K |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31090 |
1GRFE..GRJ200..K |
1 | ||
| 17801-31090 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31091 |
1GRFE..GRJ200..G |
1 | ||
| 17882-31090 |
1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S |
1 | ||
| 17882-31091 |
1GRFE..GRJ200..K |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-99009 |
1GRFE..GRJ200 NO.2 |
1 | ||
| 90460-96001 |
1GRFE..GRJ200 NO.1 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..K NO.2 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..K NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-99009 |
1GRFE..GRJ200 NO.2 |
1 | ||
| 90460-96001 |
1GRFE..GRJ200 NO.1 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..K NO.2 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..K NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.2 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-22010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 22204-22010 |
1GRFE..GRJ200..K |
1 | ||
| 22204A - RING, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
1GRFE..GRJ200..K |
1 | ||
| 90099-14141 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90119-06942 | ||||
| 90126-06032 | ||||
| 96111-30850 | ||||
| Linked diagrams | ||||
| 7455 | ||||

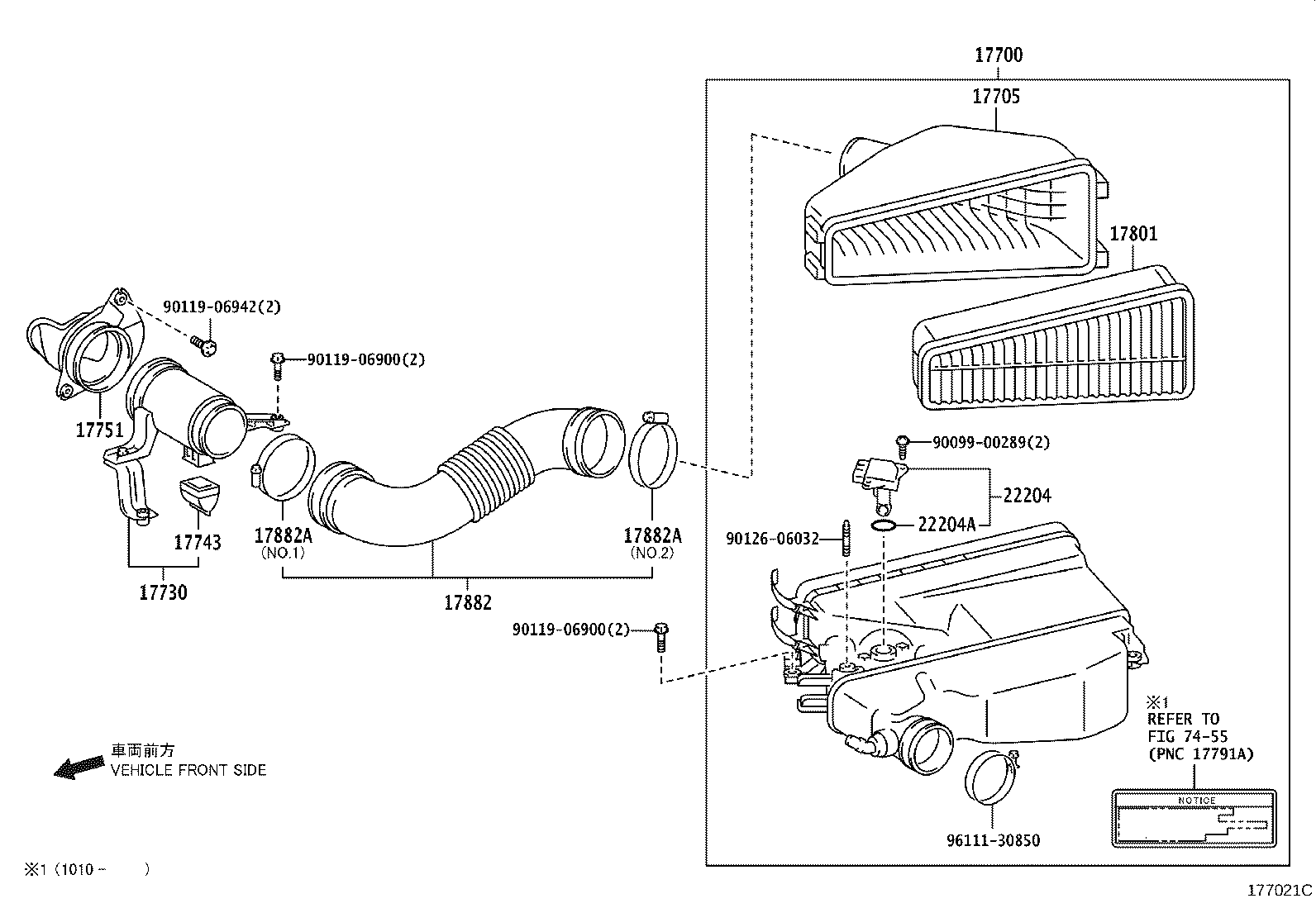

(0709-1010)1GRFE..GCC ; (0709-1201)1GRFE..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31541 |
1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S |
1 | ||
| 17700-31542 |
1GRFE..GRJ200..K |
1 | ||
| 17700-31542 |
1GRFE..GRJ200..G |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-31091 |
1GRFE..GRJ200..G |
1 | ||
| 17705-31090 |
1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S |
1 | ||
| 17705-31091 |
1GRFE..GRJ200..K |
1 | ||
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17730-31020 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 17730-31020 |
1GRFE..GRJ200..K |
1 | ||
| 17743 - VALVE, DUST RELIEF | ||||
| 17743-31010 |
1GRFE..GRJ200..K |
1 | ||
| 17743-50010 |
1GRFE..GRJ200 |
1 | ||
| 17743-31010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-38050 |
1GRFE..GRJ200..GCC |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31090 |
1GRFE..GRJ200..K |
1 | ||
| 17801-31090 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-31091 |
1GRFE..GRJ200..G |
1 | ||
| 17882-31090 |
1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S |
1 | ||
| 17882-31091 |
1GRFE..GRJ200..K |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-99009 |
1GRFE..GRJ200 NO.2 |
1 | ||
| 90460-96001 |
1GRFE..GRJ200 NO.1 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..K NO.2 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..K NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-99009 |
1GRFE..GRJ200 NO.2 |
1 | ||
| 90460-96001 |
1GRFE..GRJ200 NO.1 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..K NO.2 |
1 | ||
| 96111-10950 |
1GRFE..GRJ200..K NO.1 |
1 | ||
| 96111-11090 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G NO.2 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-22010 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| 22204-22010 |
1GRFE..GRJ200..K |
1 | ||
| 22204A - RING, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
1GRFE..GRJ200..K |
1 | ||
| 90099-14141 |
1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06900 | ||||
| 90119-06942 | ||||
| 90126-06032 | ||||
| 96111-30850 | ||||
| Linked diagrams | ||||
| 7455 | ||||
