GRJ200L-GNMNKV (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF15(0709-1301)LHD

Click highlighted areas on diagram

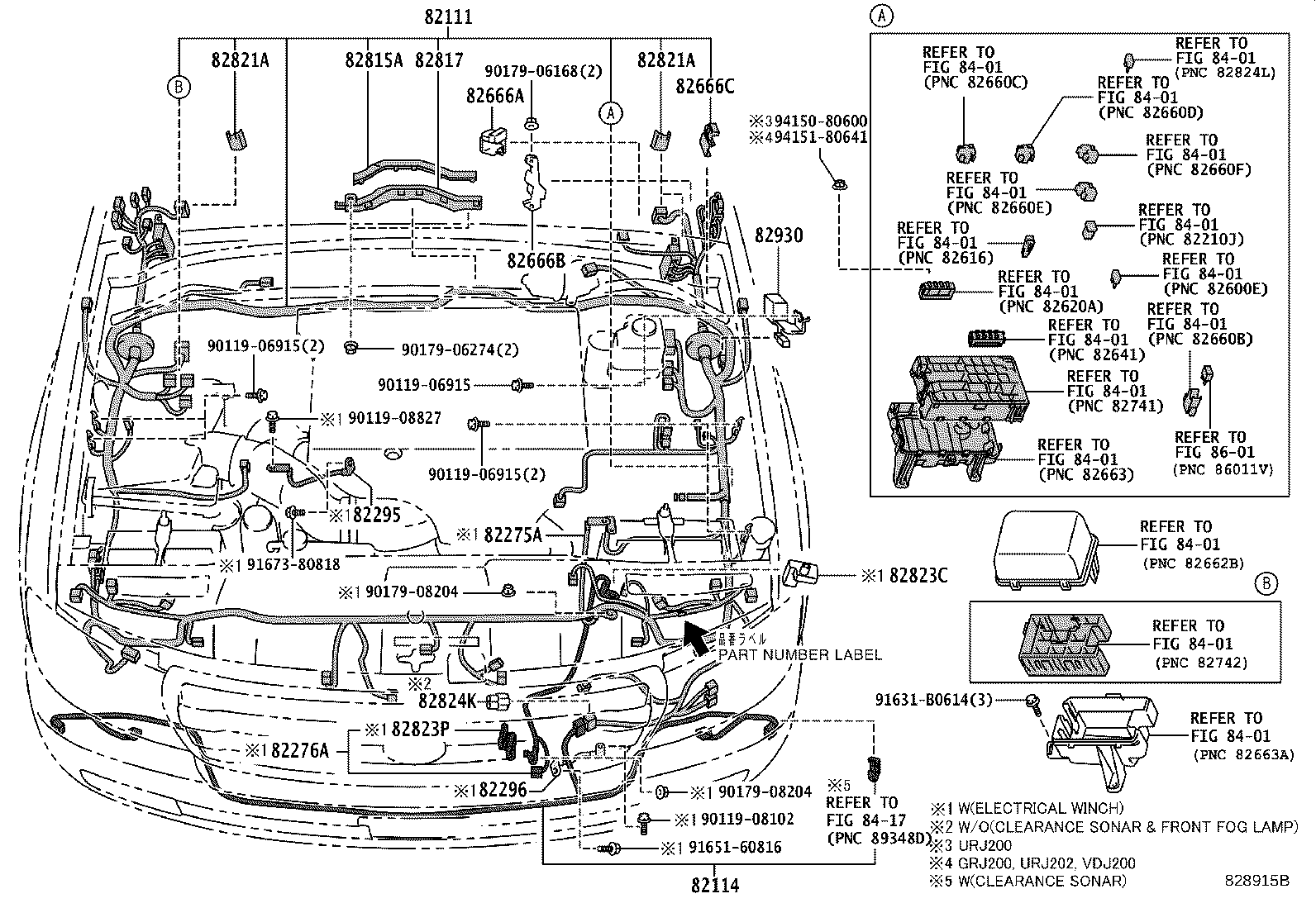

ENGINE ROOM

diagram 82111 82114 82275A 82276A 82295 82296 82664A 82666A 82666B 82666C 82668A 82669A 82815A 82817 82817A 82817A 82821A 82821A 82823C 82823P 82824K 82930 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8417 8601 9011906915 9011906915 9011906915 9011908102 9011908827 9017906168 9017906274 9017908204 9017908204 91631B0614 9165160816 9167380818 9415080600 9415180641
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-60T50

GRJ200..LUB

 1
82111-60U30

GRJ200..5F..GCC..LUB

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

 1
82111-60T52

GRJ200..LUB

 1
82111-60U32

GRJ200..08S..GCC

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

 1
82111-60T53

GRJ200..LUB

 1
82111-60U33

GRJ200..5F..GCC..LUB

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-60170

VDJ200..GX..SOB;GRJ200..08S..5FC;VDJ200..LHD..GX..GEN;GRJ200,URJ202..(5F,6FC)..GX..(ARL,GCC);VDJ200..(05S,08S)..(GX,STD)..(ARL,GCC)

FRONT FOG LAMP-WITH

 1
82114-60210

GRJ200..08S..5FC;VDJ200..LHD..5F..LUB;VDJ200..LHD..6FC..GX..GEN;GRJ200,URJ202..(5F,6FC)..GX..GCC

ELECTRICAL WINCH-WITH&FRONT FOG LAMP-WITH

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-60490

GRJ200,URJ20#,VDJ200..LHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60T10

GRJ200,URJ20#,VDJ200..LHD

 1
82930 - CONDENSER ASSY, WIRING HARNESS, NO.1
82930-60020

GRJ200,URJ20#,VDJ200

 1
Common parts
90119-06915
90119-08102
90119-08827
90179-06168
90179-06274
90179-08204
91631-B0614
91651-60816
91673-80818
94150-80600
94151-80641
Linked diagrams
8401
8417
8601

ILLUST NO. 2 OF15(1201- )GRJ200

Click highlighted areas on diagram

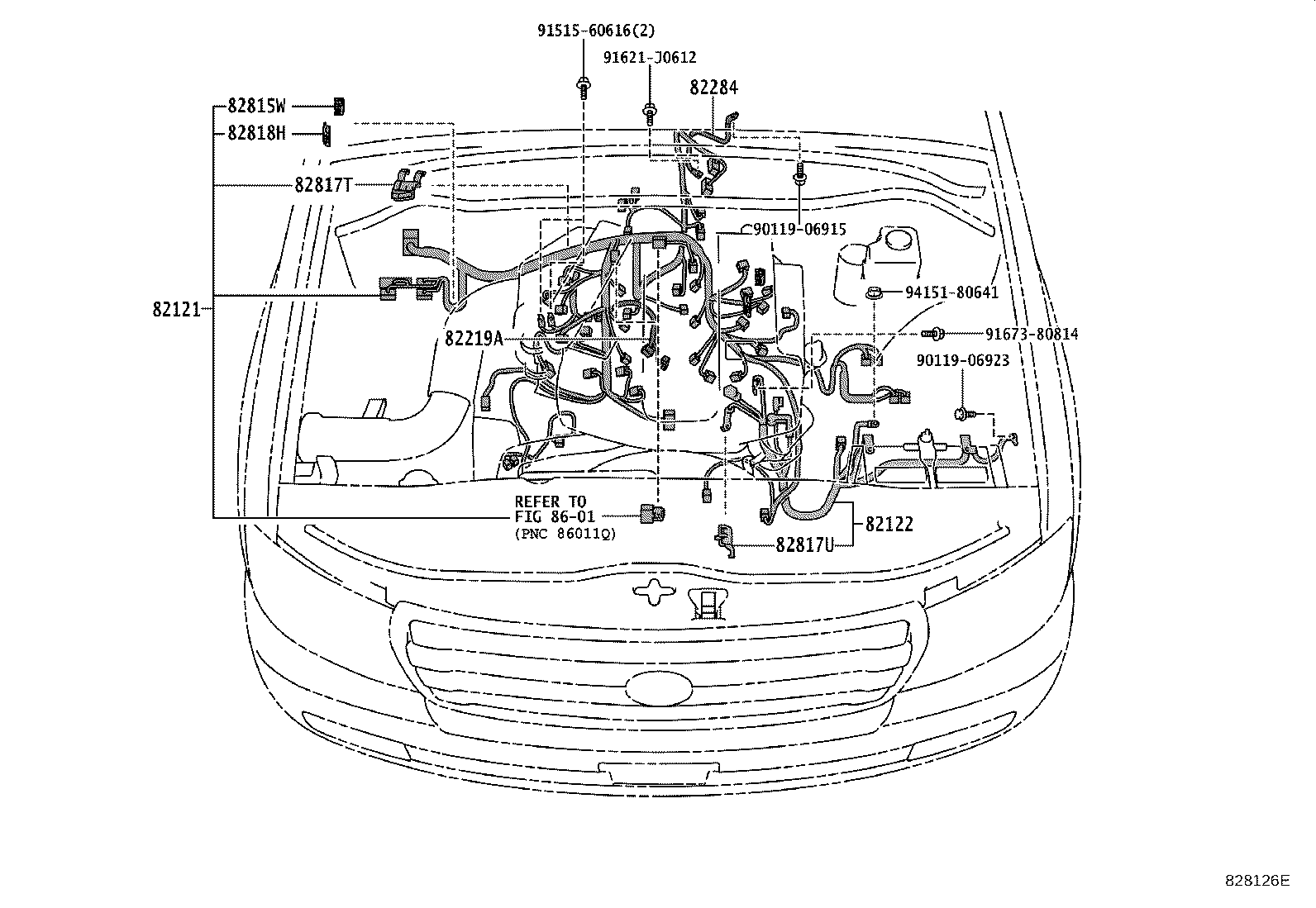

ENGINE

diagram 82121 82122 82219A 82284 82815W 82817T 82817U 82818H 8601 9011906915 9011906923 9151560616 91621J0612 9167380814 9415180641
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-60Q10

GRJ200..LHD..5F

 1
82121-60Q11

GRJ200..LHD..5F

 1
82122 - WIRE, ENGINE, NO.2
82122-60830

GRJ200

 1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-60G90

GRJ200

 1
82818H - PROTECTOR, WIRING HARNESS, NO.9
82817-60T20

GRJ200,URJ20#,VDJ200..LHD

 1
Common parts
90119-06915
90119-06923
91515-60616
91621-J0612
91673-80814
94151-80641
Linked diagrams
8601

ILLUST NO. 3 OF15(1201-1508)LHD

Click highlighted areas on diagram

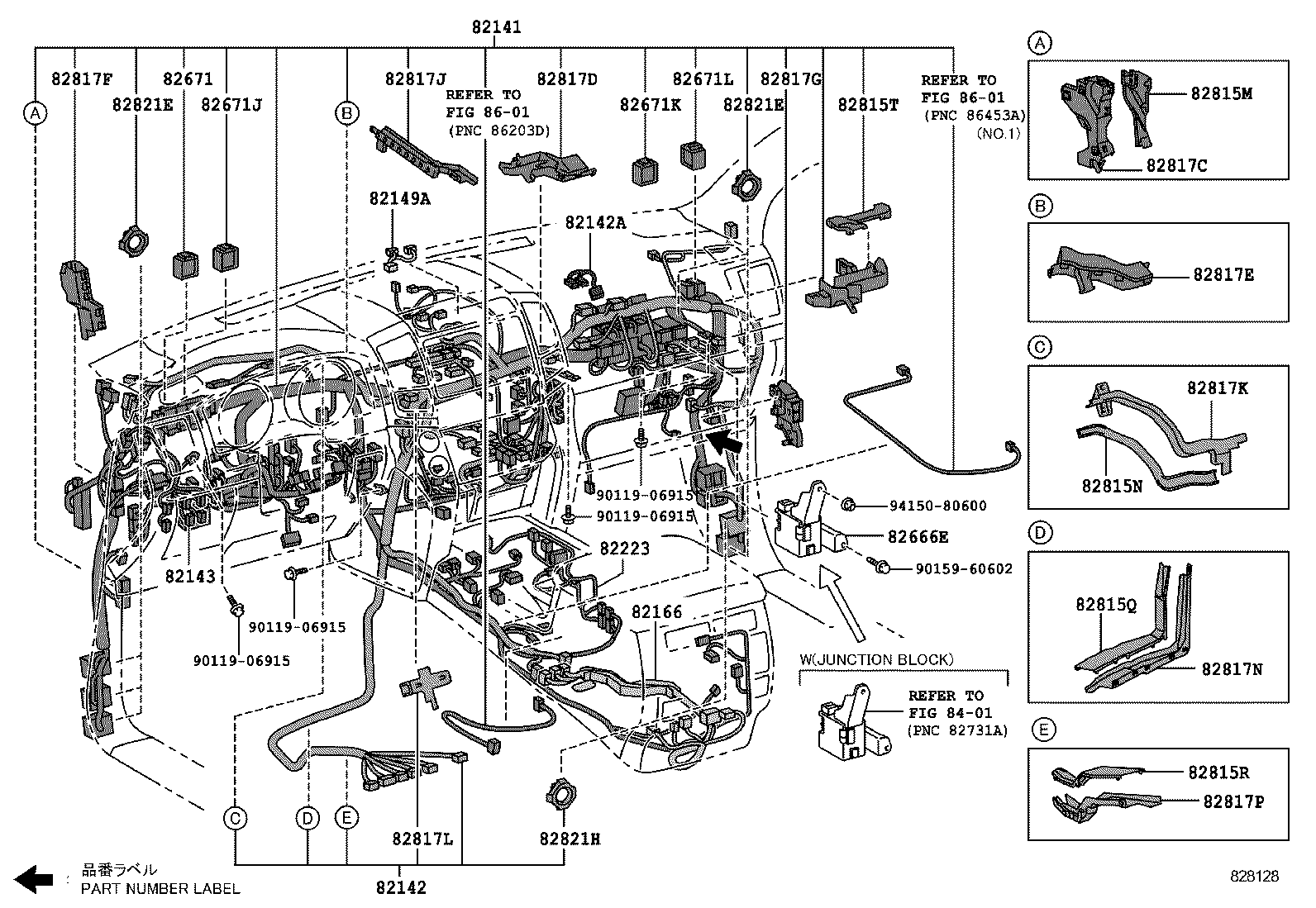

INSTRUMENT PANEL & CONSOLE BOX

diagram 82141 82142 82142A 82143 82149A 82166 82223 82666E 82671 82671J 82671K 82671L 82815M 82815N 82815Q 82815R 82815T 82817C 82817D 82817E 82817F 82817G 82817J 82817K 82817L 82817N 82817P 82821E 82821E 82821H 8401 8601 8601 9011906915 9011906915 9011906915 9011906915 9015960602 9415080600
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-60Z00

URJ202..GCC;GRJ200,VDJ200..LHD..GX..LUB

 1
82141-60Z02

GRJ200,URJ202,VDJ200..LHD..GX..LUB

 1
82141-60Z03

GRJ200,URJ202,VDJ200..LHD..GX..LUB

 1
82141-60Z04

GRJ200,URJ202,VDJ200..LHD..GX..LUB

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-60L81

GRJ200,URJ20#,VDJ200..LHD..LUB

 1
82142-60L80

GRJ200,URJ20#,VDJ200..LHD..LUB

 1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-60570

GRJ200,VDJ200..5F..GCC..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM(*CR)&SRS AIR BAG-*DRP&*CUSA&SIDE(FR)

 1
82143-60570

GRJ200..5F..LUB;VDJ200..5F..GCC..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM&SRS AIR BAG-*DRP&*CUSA&SIDE(FR)

 1
82143-60620

GRJ200,VDJ200..LHD..5F..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM

 1
82143-60540

VDJ200..GCC..LUB;GRJ200,URJ202..LHD..08S..GX

SRS AIR BAG-*DRP&*CUSA&SIDE(FR)

 1
82143-60770

GRJ200,URJ202,VDJ200..LHD..GX

 1
82143-60620

GRJ200,VDJ200..5F..GCC..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM(*CR)

 1
82143-60620

GRJ200,VDJ200..5F..GCC..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM(*CR)

 1
82143-60570

GRJ200..5F..LUB;VDJ200..5F..GCC..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM&SRS AIR BAG-*DRP&*CUSA&SIDE(FR)

 1
82143-60620

GRJ200,VDJ200..LHD..5F..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM

 1
82143-60570

GRJ200,VDJ200..5F..GCC..LUB

OUTSIDE REAR VIEW MIRROR-*ERCDM(*CR)&SRS AIR BAG-*DRP&*CUSA&SIDE(FR)

 1
82223 - WIRE, SWITCH
82223-60670

GRJ200,VDJ200..LHD..5F..LUB

 1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-60300

GRJ200,URJ20#,VDJ200..LHD

 1
Common parts
90119-06915
90159-60602
94150-80600
Linked diagrams
8401
8601

ILLUST NO. 1 OF15(1301-1508)LHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82114 82275A 82276A 82295 82296 82666A 82666B 82666C 82815A 82817 82821A 82821A 82823C 82823P 82824K 82930 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8417 8601 9011906915 9011906915 9011906915 9011908102 9011908827 9017906168 9017906274 9017908204 9017908204 91631B0614 9165160816 9167380818 9415080600 9415180641
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-60T50

GRJ200..LUB

 1
82111-60U30

GRJ200..5F..GCC..LUB

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

 1
82111-60T52

GRJ200..LUB

 1
82111-60U32

GRJ200..08S..GCC

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

 1
82111-60T53

GRJ200..LUB

 1
82111-60U33

GRJ200..5F..GCC..LUB

HEADLAMP LEVELING DEVICE-WITH(MANUAL)

 1
82114 - WIRE, ENGINE ROOM, NO.4
82114-60170

VDJ200..GX..SOB;GRJ200..08S..5FC;VDJ200..LHD..GX..GEN;GRJ200,URJ202..(5F,6FC)..GX..(ARL,GCC);VDJ200..(05S,08S)..(GX,STD)..(ARL,GCC)

FRONT FOG LAMP-WITH

 1
82114-60210

GRJ200..08S..5FC;VDJ200..LHD..5F..LUB;VDJ200..LHD..6FC..GX..GEN;GRJ200,URJ202..(5F,6FC)..GX..GCC

ELECTRICAL WINCH-WITH&FRONT FOG LAMP-WITH

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-60490

GRJ200,URJ20#,VDJ200..LHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-60T10

GRJ200,URJ20#,VDJ200..LHD

 1
82930 - CONDENSER ASSY, WIRING HARNESS, NO.1
82930-60020

GRJ200,URJ20#,VDJ200

 1
Common parts
90119-06915
90119-08102
90119-08827
90179-06168
90179-06274
90179-08204
91631-B0614
91651-60816
91673-80818
94150-80600
94151-80641
Linked diagrams
8401
8417
8601
