GRJ200L-GNANKV (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015

Engine 1GRFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1201- )1GRFE

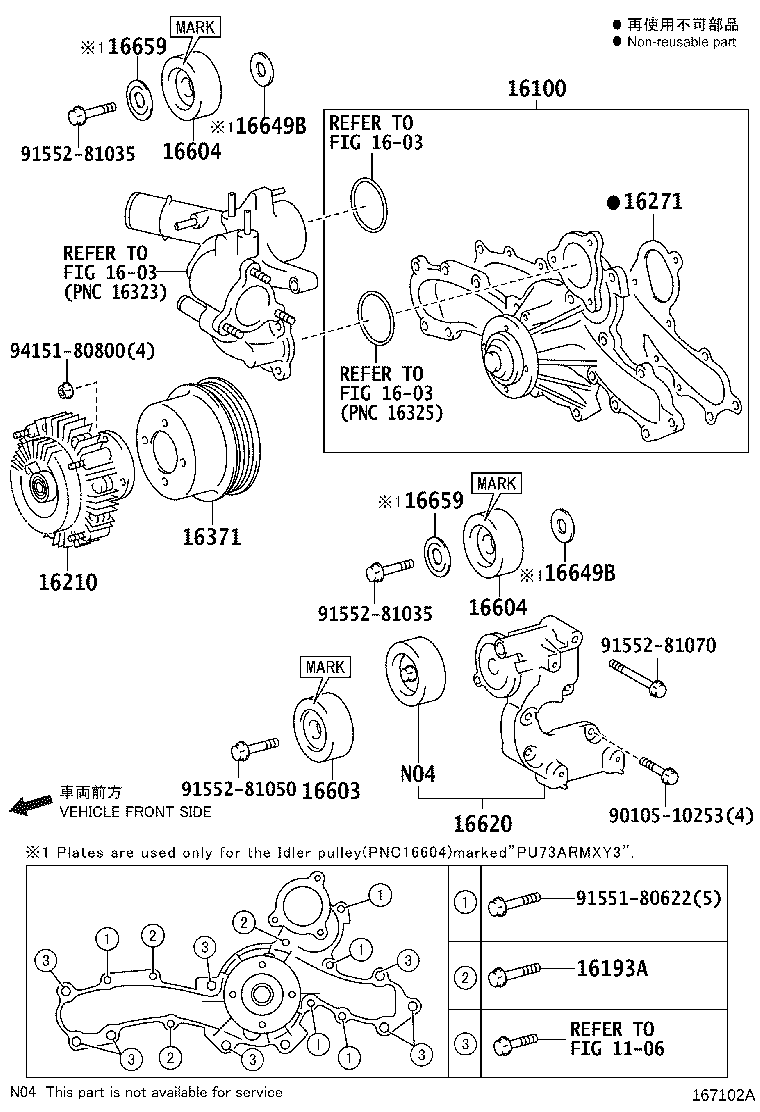

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
16100 - PUMP ASSY, ENGINE WATER
16100-39545	1GRFE..GRJ200	01/2012 - 08/2015	1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080	1GRFE..GRJ200	01/2012 - 08/2015	3
16210 - COUPLING ASSY, FLUID
16210-31040	1GRFE..GRJ200	01/2012 - 08/2015	1
16271 - GASKET, WATER PUMP
16271-31040	1GRFE..GRJ200	01/2012 - 08/2015	1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31051	1GRFE..GRJ200	01/2012 - 08/2015	1
16649B - PLATE, IDLER PULLEY COVER
16649-31020	1GRFE..GRJ200 MARK=PU107013ARMXY3	01/2012 - 08/2015	2
16649B - PLATE, IDLER PULLEY COVER
16649-31020	1GRFE..GRJ200 MARK=PU107013ARMXY3	01/2012 - 08/2015	2
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31011	1GRFE..GRJ200 MARK=PU107013ARMXY3	01/2012 - 08/2015	2
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31011	1GRFE..GRJ200 MARK=PU107013ARMXY3	01/2012 - 08/2015	2
Common parts
90105-10253
91551-80622
91552-81035
91552-81050
91552-81070
94151-80800
Linked diagrams
1106
1603
