GRJ200L-GNANKV (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )1GRFE

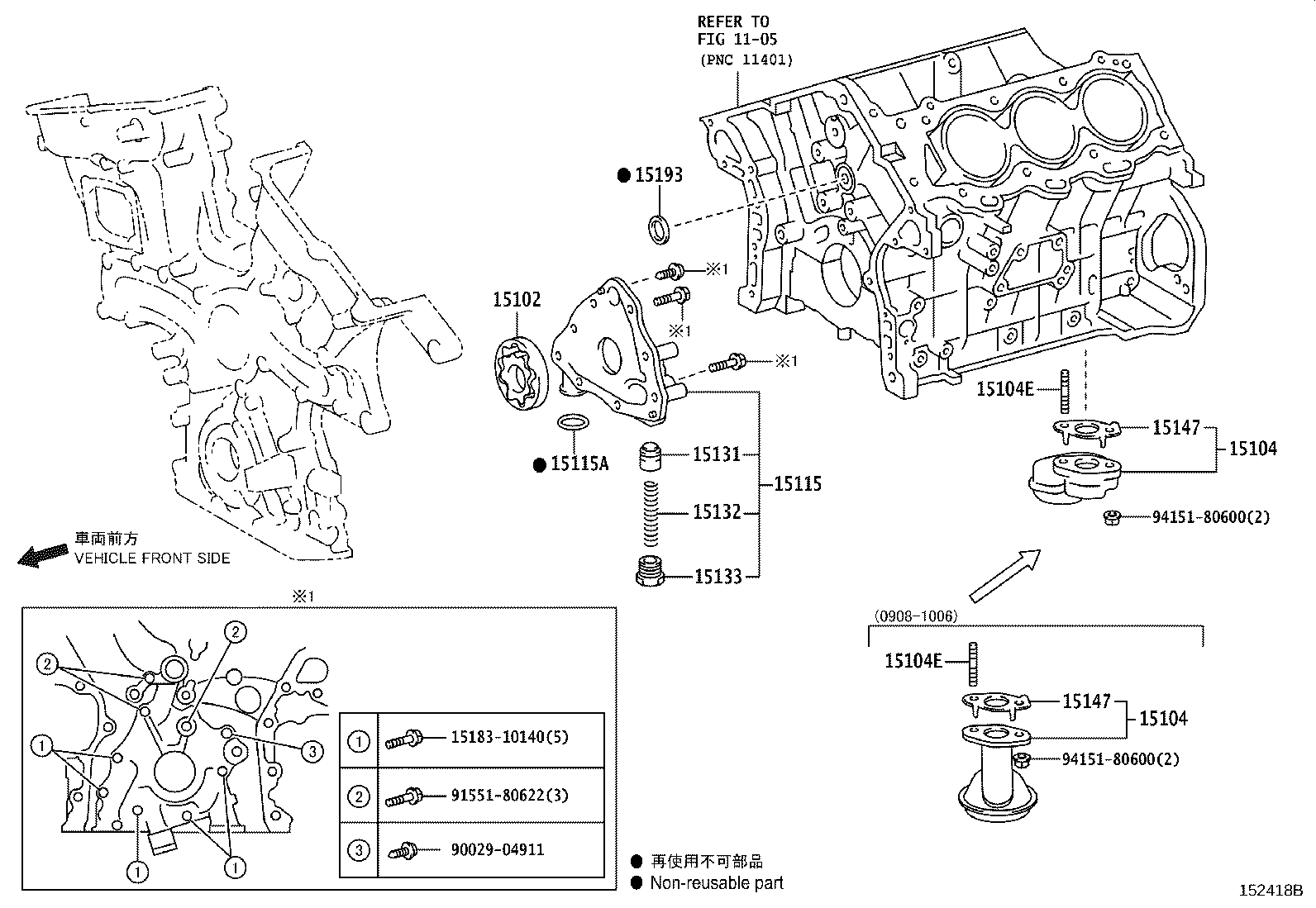

Click highlighted areas on diagram

diagram 1105 15102 15104 15104 15104E 15104E 15115 15115A 15131 15132 15133 15147 15147 1518310140 15193 9002904911 9155180622 9415180600 9415180600
Part # Description Qty Price
15102 - ROTOR SET, OIL PUMP
15103-31080

1GRFE..GRJ200

 1
15115 - COVER, OIL PUMP
15115-31080

1GRFE..GRJ200

 1
15115A - RING, O(FOR OIL PUMP COVER)
96722-24030

1GRFE..GRJ200

 1
15131 - VALVE, OIL PUMP RELIEF
15131-17010

1GRFE..GRJ200

 1
15193 - GASKET, OIL PUMP
15193-38010

1GRFE..GRJ200

 1
Common parts
15183-10140
90029-04911
91551-80622
94151-80600
Linked diagrams
1105
