GRJ200L-GNAAKV (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )LUB

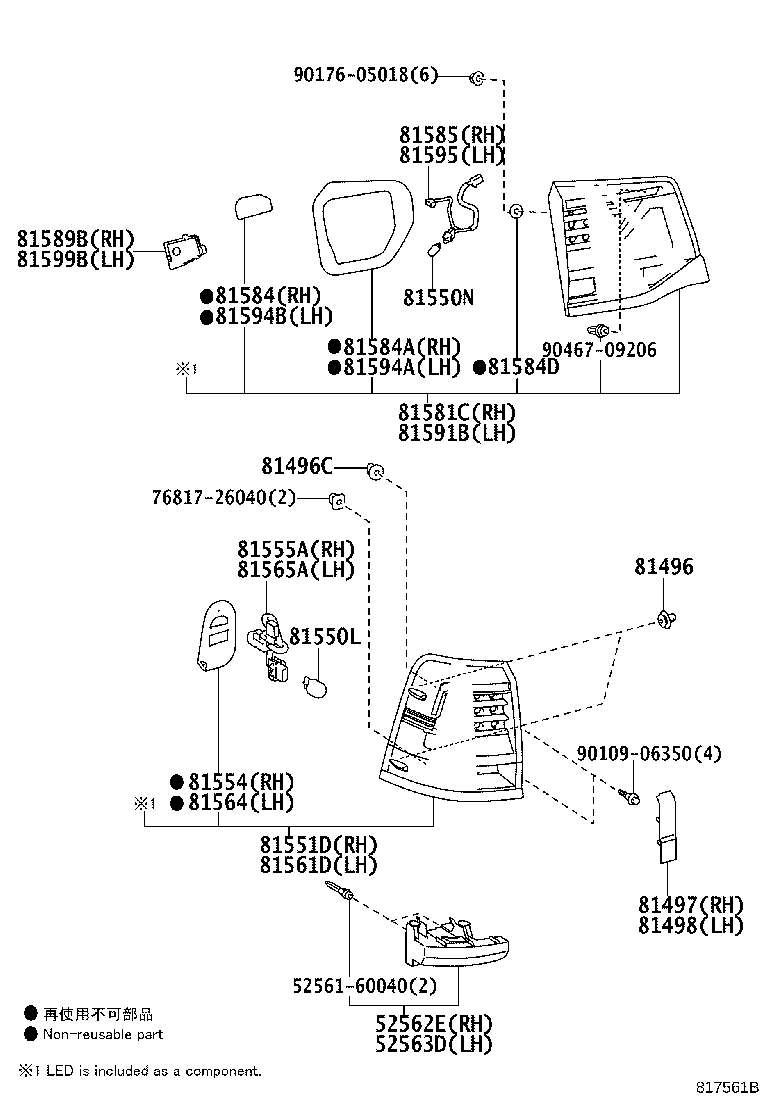

Click highlighted areas on diagram

diagram 5256160040 52562E 52563D 7681726040 81496 81496C 81497 81498 81550L 81550N 81551D 81554 81555A 81561D 81564 81565A 81581C 81584 81584A 81584D 81585 81589B 81591B 81594A 81594B 81595 81599B 9010906350 9017605018 9046709206
Part # Description Qty Price
81581C - LENS AND BODY, REAR LAMP, RH
81581-60380

VDJ200..RHD..5F..LUB;VDJ200..LHD..6FC..GXR;GRJ200,URJ20#..LHD..LUB;VDJ200..(GX,VX,VXR)..(GCC,GEN)..LUB

SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

 1
81581-60360

GRJ200,URJ20#,VDJ200..LUB

 1
81581-60370

URJ202..GEN;GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC

 1
81581-60380

VDJ200..LHD..6FC;VDJ200..RHD..GEN..LUB;GRJ200,URJ20#..LHD..08S

SPARE WHEEL CARRIER-BACK DOOR FRAME

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-60370

URJ202..GEN;GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC

 1
81591-60380

VDJ200..RHD..5F..LUB;VDJ200..LHD..6FC..GXR;GRJ200,URJ20#..LHD..LUB;VDJ200..(GX,VX,VXR)..(GCC,GEN)..LUB

SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

 1
81591-60360

GRJ200,URJ20#,VDJ200..LUB

 1
81591-60380

VDJ200..LHD..6FC;VDJ200..RHD..GEN..LUB;GRJ200,URJ20#..LHD..08S

SPARE WHEEL CARRIER-BACK DOOR FRAME

 1
Common parts
52561-60040
76817-26040
90109-06350
90176-05018
90467-09206

(1508- )LUB

Click highlighted areas on diagram

SPARE WHEEL CARRIER-BACK DOOR FRAME

diagram 5256160040 52562E 52563D 7681726040 81496 81496C 81497 81498 81550L 81550N 81551D 81554 81555A 81561D 81564 81565A 81581C 81584 81584A 81584D 81589B 81591B 81594A 81594B 81595 81599B 9010906350 9017605018 9046709206
Part # Description Qty Price
81581C - LENS AND BODY, REAR LAMP, RH
81581-60380

VDJ200..RHD..5F..LUB;VDJ200..LHD..6FC..GXR;GRJ200,URJ20#..LHD..LUB;VDJ200..(GX,VX,VXR)..(GCC,GEN)..LUB

SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

 1
81581-60360

GRJ200,URJ20#,VDJ200..LUB

 1
81581-60370

URJ202..GEN;GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC

 1
81581-60380

VDJ200..LHD..6FC;VDJ200..RHD..GEN..LUB;GRJ200,URJ20#..LHD..08S

SPARE WHEEL CARRIER-BACK DOOR FRAME

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-60370

URJ202..GEN;GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC

 1
81591-60380

VDJ200..RHD..5F..LUB;VDJ200..LHD..6FC..GXR;GRJ200,URJ20#..LHD..LUB;VDJ200..(GX,VX,VXR)..(GCC,GEN)..LUB

SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME

 1
81591-60360

GRJ200,URJ20#,VDJ200..LUB

 1
81591-60380

VDJ200..LHD..6FC;VDJ200..RHD..GEN..LUB;GRJ200,URJ20#..LHD..08S

SPARE WHEEL CARRIER-BACK DOOR FRAME

 1
Common parts
52561-60040
76817-26040
90109-06350
90176-05018
90467-09206
