GRJ200L-GNAAKV (2015)
Toyota Land Cruiser

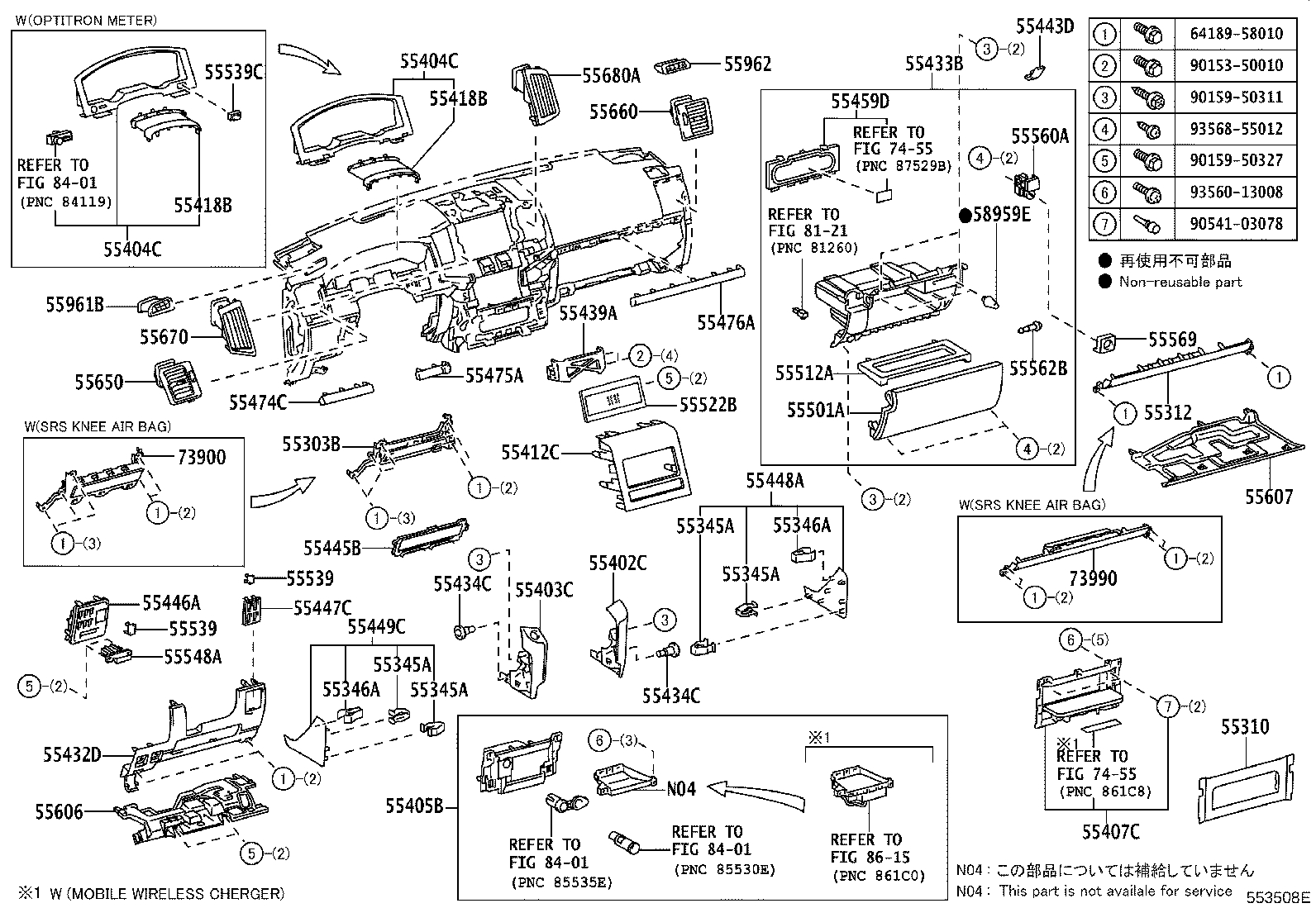

ILLUST NO. 2 OF 2(1508- )LHD..LUB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-60070C0 |
GRJ200..LHD..GX;VDJ200..GX..GCC;GRJ200..GEN..LUB;VDJ200..LHD..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 55312-60070C0 |
URJ20#..LHD;GRJ200,VDJ200..08S..GCC;VDJ200..LHD..(VX,VXR)..GEN BLACK,TRIM1#,2#,4# |
1 | ||
| 55312-60070A1 |
GRJ200..GCC;GRJ200..GEN..LUB;VDJ200..GCC..SOB;URJ20#,VDJ200..LHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60380C0 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..LHD..GXR..GEN BLACK,TRIM1# |
1 | ||
| 55404-60380E0 |
GRJ200,URJ202,VDJ200..LHD..(GX,GXR)..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55404-60380C0 |
GRJ200,URJ202,VDJ200..GXR..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55404-60381C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55404-60381E0 |
GRJ200..5FC;VDJ200..09S..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60380C0 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..LHD..GXR..GEN BLACK,TRIM1# |
1 | ||
| 55404-60380E0 |
GRJ200,URJ202,VDJ200..LHD..(GX,GXR)..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55404-60380C0 |
GRJ200,URJ202,VDJ200..GXR..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55404-60381C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55404-60381E0 |
GRJ200..5FC;VDJ200..09S..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55407C - COVER SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55407-60130 |
GRJ200,URJ202,VDJ200..LHD..GXR WIRELESS CHARGER-WITH |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-60010C0 |
GRJ200..GX;GRJ200..GEN..LUB;VDJ200..(GX,GXR)..GEN;VDJ200..GX..(ARL,GCC) BLACK,TRIM1# |
1 | ||
| 55418-60010C0 |
VDJ200..VX,VXR;URJ202..LHD..VX;URJ202..GXR,VXR;VDJ200..GXR..(ARL,GCC);GRJ200,URJ200..08S..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55418-60010E1 |
GRJ200,URJ20#,VDJ200..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55418-60020C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55418-60020E0 |
GRJ200..5FC;VDJ200..09S..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-60010C0 |
GRJ200..GX;GRJ200..GEN..LUB;VDJ200..(GX,GXR)..GEN;VDJ200..GX..(ARL,GCC) BLACK,TRIM1# |
1 | ||
| 55418-60010C0 |
VDJ200..VX,VXR;URJ202..LHD..VX;URJ202..GXR,VXR;VDJ200..GXR..(ARL,GCC);GRJ200,URJ200..08S..GCC BLACK,TRIM1#,2#,4# |
1 | ||
| 55418-60010E1 |
GRJ200,URJ20#,VDJ200..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55418-60020C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55418-60020E0 |
GRJ200..5FC;VDJ200..09S..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-60440C0 |
URJ20#..LHD;GRJ200,VDJ200..08S..GCC;VDJ200..LHD..(VX,VXR)..GEN BLACK,TRIM1#,2#,4# |
1 | ||
| 55432-60440A1 |
GRJ200,URJ20#,VDJ200..LHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55432-60440C0 |
GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..LHD..GXR..GEN BLACK,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55320-60090C0 |
URJ20#..LHD;GRJ200,VDJ200..08S..GCC;VDJ200..LHD..(VX,VXR)..GEN BLACK,TRIM1#,2#,4# |
1 | ||
| 55320-60090C0 |
GRJ200..LHD..GX;VDJ200..GX..GCC;GRJ200..GEN..LUB;VDJ200..LHD..(GX,GXR)..GEN BLACK,TRIM1# |
1 | ||
| 55320-60090A0 |
GRJ200..GCC;GRJ200..GEN..LUB;VDJ200..GCC..SOB;URJ20#,VDJ200..LHD..LUB FLAXEN,TRIM0# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55011-60100E3 |
GRJ200..5FC..GXR LIGHT BROWN,TRIM04 |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55012-60100E3 |
GRJ200..5FC..GXR LIGHT BROWN,TRIM04 |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55043-60050E3 |
GRJ200..5FC..GXR LIGHT BROWN,TRIM04 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC GCC SPEC(UAE,BAHRAIN),BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC QATAR, OMAN, BAHRAIN SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC SAUDI ARABIA SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC SYRIA, LEBANON, JORDAN SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC YEMEN SPEC,BLACK |
1 | ||
| 55539-52060C0 |
URJ202..GXR..GCC;GRJ200,URJ200,VDJ200..08S..(5F,6FC,8FC)..GCC HEADLAMP CLEANER-WITH,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC KUWAIT SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC LEBANON SPEC,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..RHD..(08S,09S)..(GX,GXR)..GEN;GRJ200,URJ202,VDJ200..LHD..(05S,08S)..(5F,6FC)..(GX,GXR)..LUB DIFFERENTIAL LOCK-WITH,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC IRAQ, LEBANON SPEC,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..GXR..GCC;VDJ200..LHD..6FC..GXR..GEN;GRJ200,URJ202..LHD..(5F,6FC)..GXR SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT),BLACK |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC GCC SPEC(UAE,BAHRAIN),BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC QATAR, OMAN, BAHRAIN SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,URJ20#,VDJ200 BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC SAUDI ARABIA SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC SYRIA, LEBANON, JORDAN SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC YEMEN SPEC,BLACK |
1 | ||
| 55539-52060C0 |
URJ202..GXR..GCC;GRJ200,URJ200,VDJ200..08S..(5F,6FC,8FC)..GCC HEADLAMP CLEANER-WITH,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC KUWAIT SPEC,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC LEBANON SPEC,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..RHD..(08S,09S)..(GX,GXR)..GEN;GRJ200,URJ202,VDJ200..LHD..(05S,08S)..(5F,6FC)..(GX,GXR)..LUB DIFFERENTIAL LOCK-WITH,BLACK |
1 | ||
| 55539-52060C0 |
GRJ200,VDJ200..(05S,08S)..5F..GCC IRAQ, LEBANON SPEC,BLACK |
1 | ||
| 55539-52060C0 |
VDJ200..GXR..GCC;VDJ200..LHD..6FC..GXR..GEN;GRJ200,URJ202..LHD..(5F,6FC)..GXR SRS AIR BAG-*DRP & *CUSA & SIDE(FRONT),BLACK |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60350C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60450C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60320C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55670-60320E0 |
GRJ200..5FC;VDJ200..09S..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60190C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55680-60190E0 |
GRJ200..5FC;VDJ200..09S..LUB ORCHID BROWN,TRIM0# |
1 | ||
| 55961B - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-60081C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-60070C0 |
GRJ200..5FC..GXR BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 64189-58010 | ||||
| 90153-50010 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90541-03078 | ||||
| 93560-13008 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8121 | ||||
| 8401 | ||||
| 8615 | ||||
