GRJ200L-GNAAKV (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )LUB

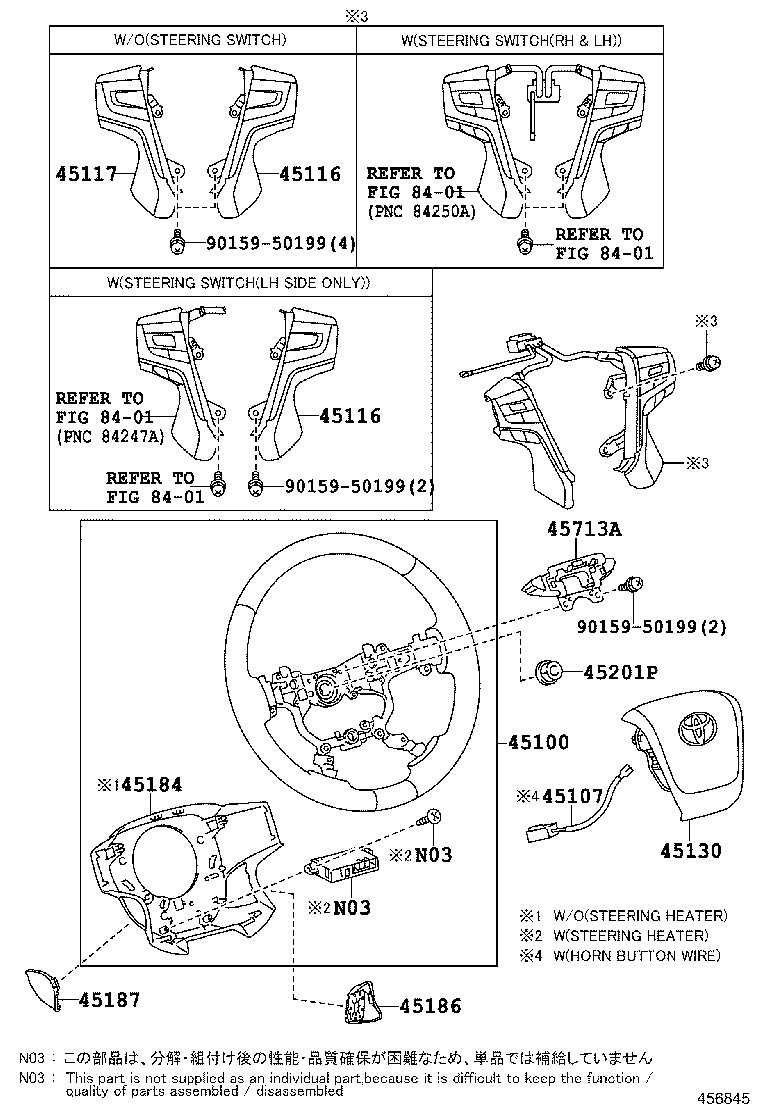

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45107 45116 45116 45117 45130 45184 45186 45187 45201P 45713A 8401 8401 8401 8401 9015950199 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60710E0

GRJ200..GX..LUB;VDJ200..09S..LUB

4-SPOKE, URETHANE,ORCHID BROWN,TRIM0#

 1
45100-60750E2

GRJ200..5FC..GXR

4-SPOKE, LEATHER,ORCHID BROWN&LIGHT BROWN,TRIM04

 1
45100-60750C2

GRJ200..5FC..GXR

4-SPOKE, LEATHER,BLACK,TRIM1#,2#,4#

 1
45100-60750C2

GRJ200,URJ202,VDJ200..(5F,6FC)..GXR..GCC

4-SPOKE, LEATHER,BLACK,TRIM1#,2#,46

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-60040E0

GRJ200..5FC;VDJ200..09S..LUB

ORCHID BROWN,TRIM0#

 1
45116-60040C0

GRJ200..5FC..GXR

BLACK,TRIM1#,2#,4#

 1
45116 - ORNAMENT, STEERING WHEEL, NO.1
45116-60040E0

GRJ200..5FC;VDJ200..09S..LUB

ORCHID BROWN,TRIM0#

 1
45116-60040C0

GRJ200..5FC..GXR

BLACK,TRIM1#,2#,4#

 1
45117 - ORNAMENT, STEERING WHEEL, NO.2
45117-60050E0

GRJ200..5FC;VDJ200..09S..LUB

STEERING SWITCH-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER,ORCHID BROWN,TRIM0#

 1
45117-60050C0

GRJ200..5FC..GXR

STEERING SWITCH-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 6SPEAKER,BLACK,TRIM1#,2#,4#

 1
45117-60050C0

GRJ200..5FC..GXR

STEERING SWITCH-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,BLACK,TRIM1#,2#,4#

 1
45117-60050E0

GRJ200..5FC;VDJ200..09S..LUB

STEERING SWITCH-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER,ORCHID BROWN,TRIM0#

 1
45117-60050E0

GRJ200..5FC..GXR;VDJ200..09S..LUB

STEERING SWITCH-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 6SPEAKER,ORCHID BROWN,TRIM0#

 1
45117-60050C0

GRJ200..5FC..GXR

STEERING SWITCH-WITHOUT&AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER,BLACK,TRIM1#,2#,4#

 1
45130 - BUTTON ASSY, HORN
45130-60580E0

GRJ200..5FC;VDJ200..09S..LUB

ORCHID BROWN,TRIM0#

 1
45130-60580C0

GRJ200..5FC..GXR

BLACK,TRIM1#,2#,4#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-30400E0

GRJ200..5FC;VDJ200..09S..LUB

ORCHID BROWN,TRIM0#

 1
45184-30400C0

GRJ200..5FC..GXR

BLACK,TRIM1#,2#,4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-30180E0

GRJ200..5FC;VDJ200..09S..LUB

CRUISE CONTROL-WITH,ORCHID BROWN,TRIM0#

 1
45186-30180C0

GRJ200..5FC..GXR

CRUISE CONTROL-WITH,BLACK,TRIM1#,2#,4#

 1
45186-58050C0

GRJ200..5FC..GXR

BLACK,TRIM1#,2#,4#

 1
45186-58050E0

GRJ200..5FC;VDJ200..09S..LUB

ORCHID BROWN,TRIM0#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-30100C0

GRJ200..5FC..GXR

BLACK,TRIM1#,2#,4#

 1
45187-30100E0

GRJ200..5FC;VDJ200..09S..LUB

ORCHID BROWN,TRIM0#

 1
Common parts
90159-50199
Linked diagrams
8401
