GRJ200L-GNAAKV (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )5FC

Click highlighted areas on diagram

A750F

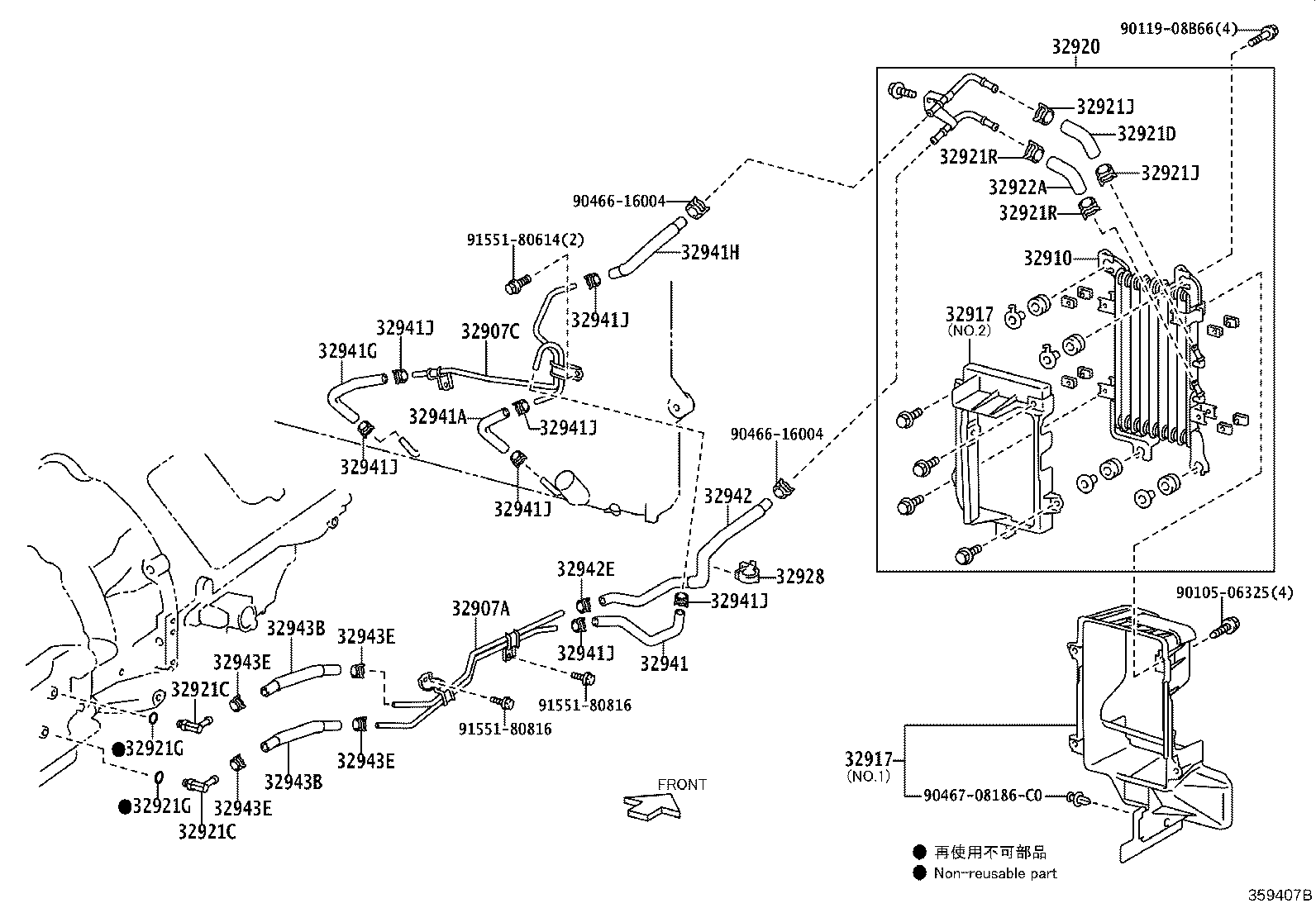

diagram 32907A 32907C 32910 32917 32917 32920 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921R 32921R 32922A 32928 32941 32941A 32941G 32941H 32941J 32941J 32941J 32941J 32941J 32941J 32941J 32942 32942E 32943B 32943B 32943E 32943E 32943E 32943E 9010506325 9011908B66 9046616004 9046616004 9046708186C0 9155180614 9155180816 9155180816
Part # Description Qty Price
32907A - TUBE, OIL COOLER
32907-60191

GRJ200..5FC

 1
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-60180

GRJ200..5FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-60320

GRJ200..5FC

 1
32941A - HOSE, OIL COOLER INLET, NO.2
32943-60420

GRJ200..5FC

 1
32941G - HOSE, OIL COOLER INLET, NO.3
32943-60400

GRJ200..5FC

 1
32941H - HOSE, OIL COOLER INLET, NO.4
32943-60430

GRJ200..5FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-60450

GRJ200..5FC

 1
32943B - HOSE, TRANSMISSION OIL COOLER
32943-60440

GRJ200..5FC

 2
32943B - HOSE, TRANSMISSION OIL COOLER
32943-60440

GRJ200..5FC

 2
Common parts
90105-06325
90119-08B66
90466-16004
90467-08186C0
91551-80614
91551-80816
