GRJ200L-GNAAKV (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )GRJ200,VDJ200..LHD..ATM

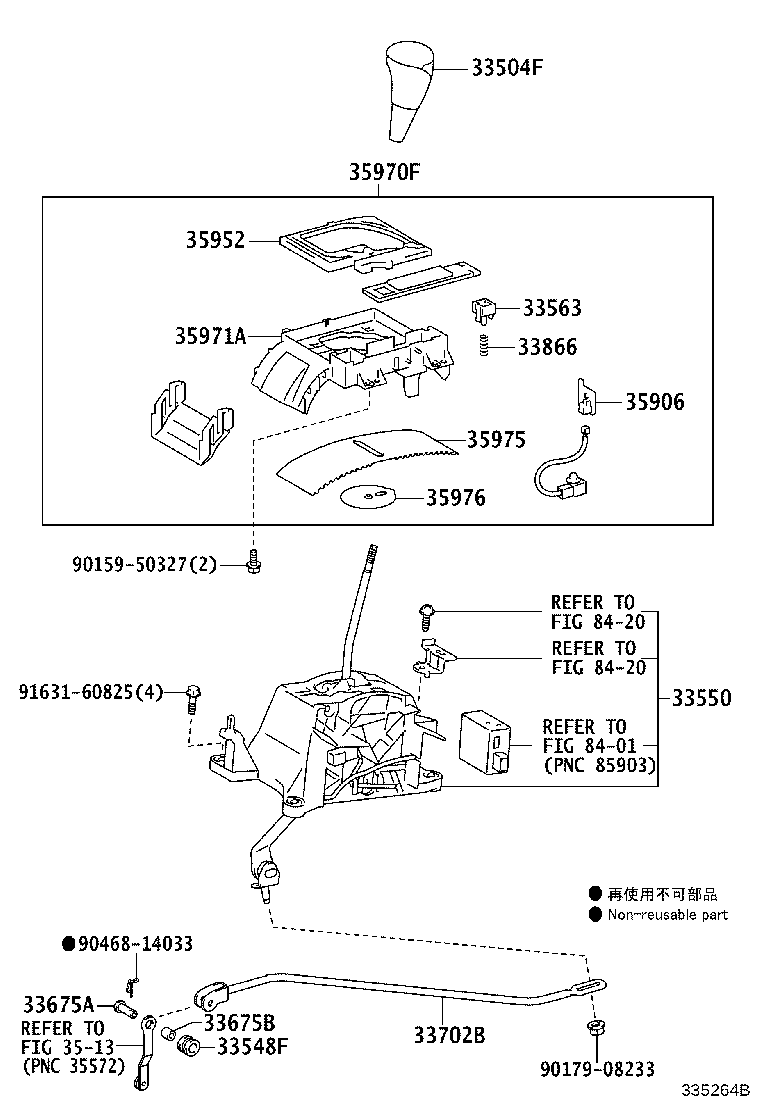

Click highlighted areas on diagram

diagram 33504F 33548F 33550 33563 33675A 33675B 33702B 33866 3513 35906 35952 35970F 35971A 35975 35976 8401 8420 8420 9015950327 9017908233 9046814033 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60440C0

GRJ200..5FC..GXR

BLACK,TRIM1#,2#,4#

 1
33504-60440E0

GRJ200..5FC;VDJ200..09S..LUB

ORCHID BROWN,TRIM0#

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-60070

GRJ200..5FC

 1
Common parts
90159-50327
90179-08233
90468-14033
91631-60825
Linked diagrams
3513
8401
8420
