GRJ200L-GNAAKV (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1608- )1GRFE..ATM..GXR

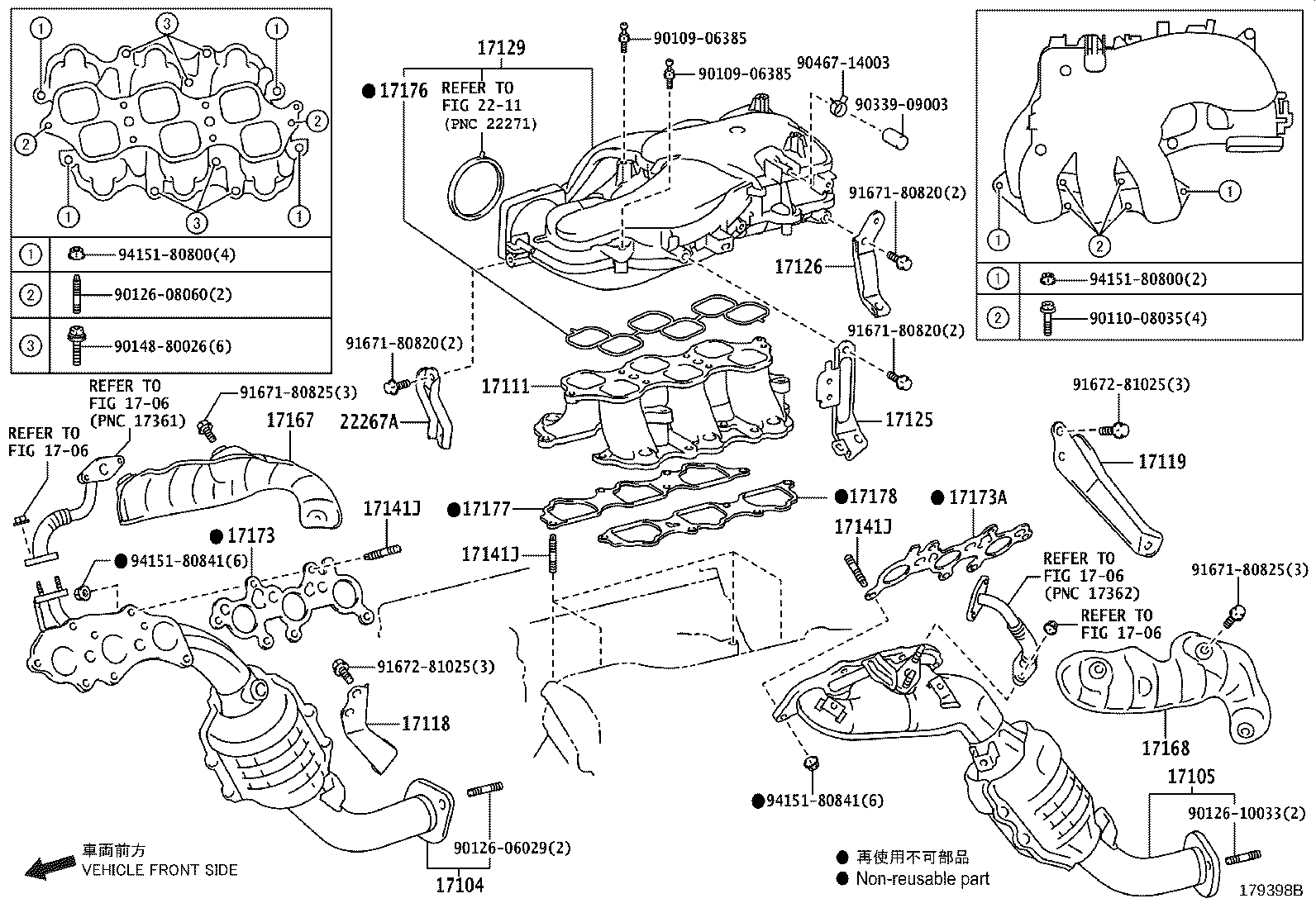

Click highlighted areas on diagram

W/AIR PUMP

diagram 1706 1706 1706 1706 17104 17105 17111 17118 17119 17125 17126 17129 17141J 17141J 17141J 17167 17168 17173 17173A 17176 17177 17178 2211 22267A 9010906385 9010906385 9011008035 9012606029 9012608060 9012610033 9014880026 9033909003 9046714003 9167180820 9167180820 9167180820 9167180825 9167180825 9167281025 9167281025 9415180800 9415180800 9415180841 9415180841
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31830

1GRFE..GRJ200..5FC..GXR

NIGERIA SPEC

 1
17140-31830

1GRFE..GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD)

 1
17140-31830

1GRFE..GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC

 1
17140-31830

1GRFE..GRJ200..5FC..GXR

NIGERIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD)

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31830

1GRFE..GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC

 1
17150-31830

1GRFE..GRJ200..5FC..GXR

NIGERIA SPEC

 1
17150-31830

1GRFE..GRJ200..5FC..GXR

NIGERIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD)

 1
17150-31830

1GRFE..GRJ200..5FC..GXR

AZERBAIJAN, GEORGIA, ARMENIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3, WITHOUT(OBD)

 1
Common parts
90109-06385
90110-08035
90126-06029
90126-08060
90126-10033
90148-80026
90339-09003
90467-14003
91671-80820
91671-80825
91672-81025
94151-80800
94151-80841
Linked diagrams
1706
2211
