GRJ200L-GMMNK (2007)
Toyota Land Cruiser

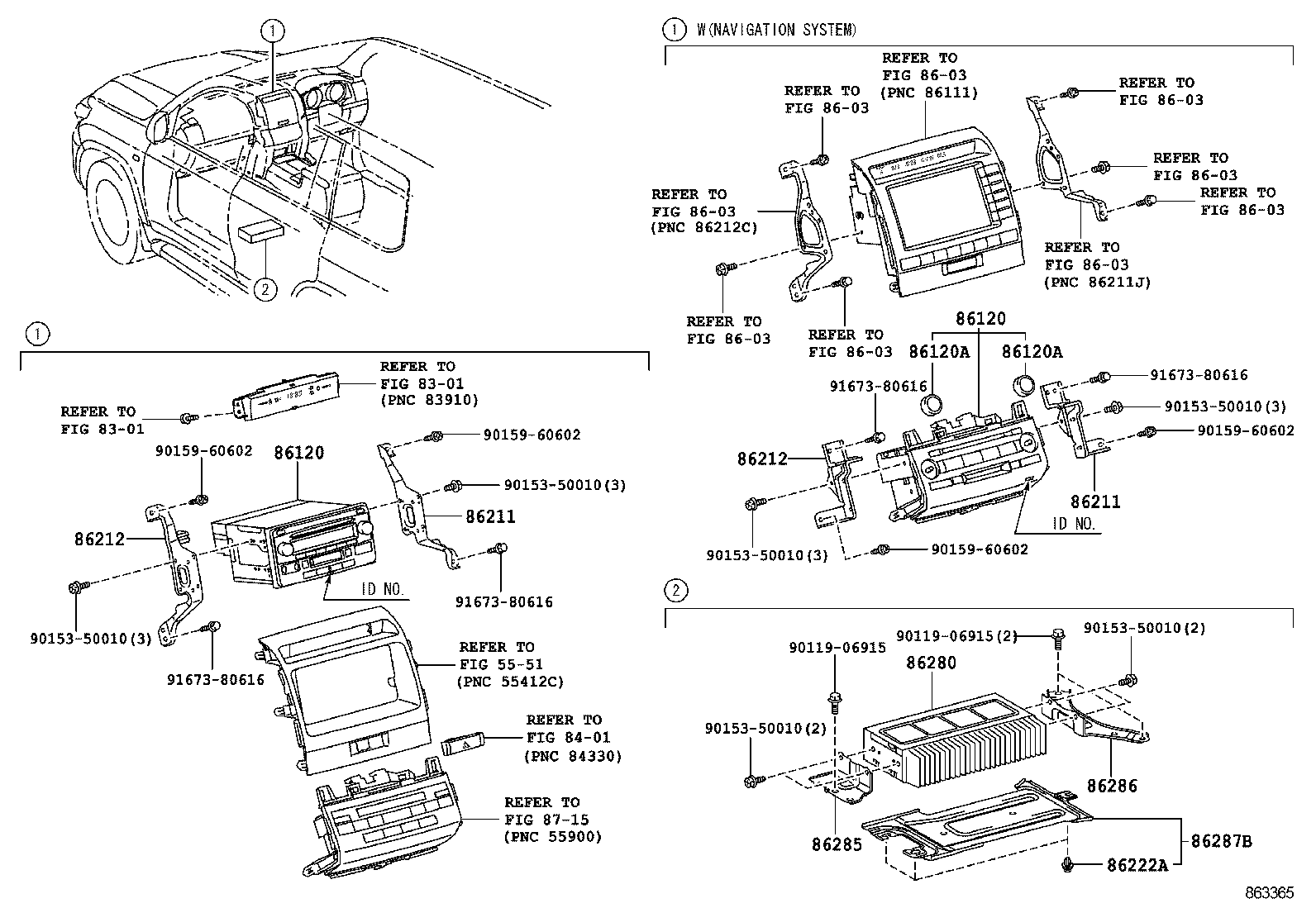

ILLUST NO. 1 OF 3(0709-1201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60A10 |
GRJ200,VDJ200..GEN..K MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A10 |
GRJ200,VDJ200..GX..GEN MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
GRJ200,VDJ200..5F..K MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..(05S,09S)..G MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86120-60A10 |
GRJ200,VDJ200..GX..GEN MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..(05S,09S)..G MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86120-60A10 |
GRJ200,VDJ200..GEN..K MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
GRJ200,VDJ200..5F..K MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60A10 |
GRJ200,VDJ200..GEN..K MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A10 |
GRJ200,VDJ200..GX..GEN MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
GRJ200,VDJ200..5F..K MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..(05S,09S)..G MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86120-60A10 |
GRJ200,VDJ200..GX..GEN MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..(05S,09S)..G MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86120-60A10 |
GRJ200,VDJ200..GEN..K MATSUSHITA, ID=57830,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 86120-60A60 |
GRJ200,VDJ200..5F..K MATSUSHITA, ID=57829,AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60230 |
UZJ200..GEN;GRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G RADIO & COVER LESS 4SPEAKER |
1 | ||
| 86211-60230 |
GRJ200,VDJ200..5F..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60230 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86211-60230 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 4SPEAKER |
1 | ||
| 86211-60230 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..LHD..(05S,09S)..G RADIO & COVER LESS 2SPEAKER |
1 | ||
| 86211-60230 |
GRJ200,VDJ200..K |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60230 |
UZJ200..GEN;GRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G RADIO & COVER LESS 4SPEAKER |
1 | ||
| 86211-60230 |
GRJ200,VDJ200..5F..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86211-60230 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86211-60230 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 4SPEAKER |
1 | ||
| 86211-60230 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..LHD..(05S,09S)..G RADIO & COVER LESS 2SPEAKER |
1 | ||
| 86211-60230 |
GRJ200,VDJ200..K |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60230 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..LHD..(05S,09S)..G RADIO & COVER LESS 2SPEAKER |
1 | ||
| 86212-60230 |
UZJ200..GEN;GRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G RADIO & COVER LESS 4SPEAKER |
1 | ||
| 86212-60230 |
GRJ200,VDJ200..K |
1 | ||
| 86212-60230 |
GRJ200,VDJ200..5F..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212-60230 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86212-60230 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 4SPEAKER |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60230 |
VDJ200..GX..GEN;GRJ200..08S..GEN;VDJ200..09S..GCC..G;GRJ200..LHD..(05S,09S)..G RADIO & COVER LESS 2SPEAKER |
1 | ||
| 86212-60230 |
UZJ200..GEN;GRJ200..LHD..05S..G;VDJ200..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G RADIO & COVER LESS 4SPEAKER |
1 | ||
| 86212-60230 |
GRJ200,VDJ200..K |
1 | ||
| 86212-60230 |
GRJ200,VDJ200..5F..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 86212-60230 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86212-60230 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 4SPEAKER |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 90159-60602 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8301 | ||||
| 8401 | ||||
| 8603 | ||||
| 8715 | ||||

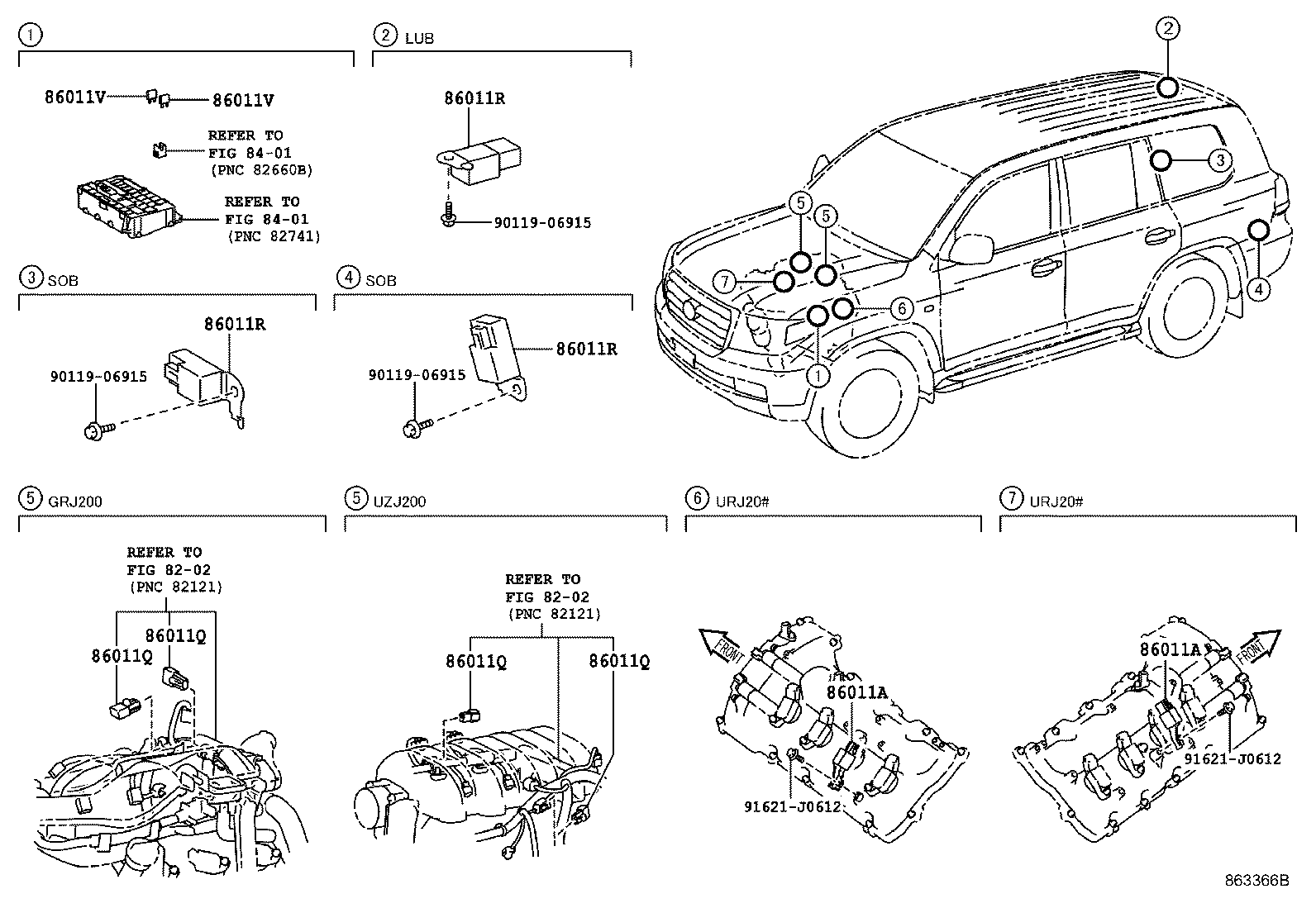

ILLUST NO. 3 OF 3(0709-1508)
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GRJ200..K |
2 | ||
| 90980-04083 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GRJ200..K |
2 | ||
| 90980-04083 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GRJ200..K |
2 | ||
| 90980-04083 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
GRJ200..K |
2 | ||
| 90980-04083 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
2 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04171 |
GRJ200,VDJ200..K |
2 | ||
| 90980-04171 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04171 |
GRJ200,VDJ200..K |
2 | ||
| 90980-04171 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04171 |
GRJ200,VDJ200..K |
2 | ||
| 90980-04171 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 90980-04161 |
GRJ200,VDJ200..K |
2 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04161 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 90980-04161 |
GRJ200,VDJ200..K |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(0907-1201)G
USB JACK & ECU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
