GRJ200L-GMMNK (2007)
Toyota Land Cruiser
ILLUST NO. 1 OF15(0709-1301)LHD

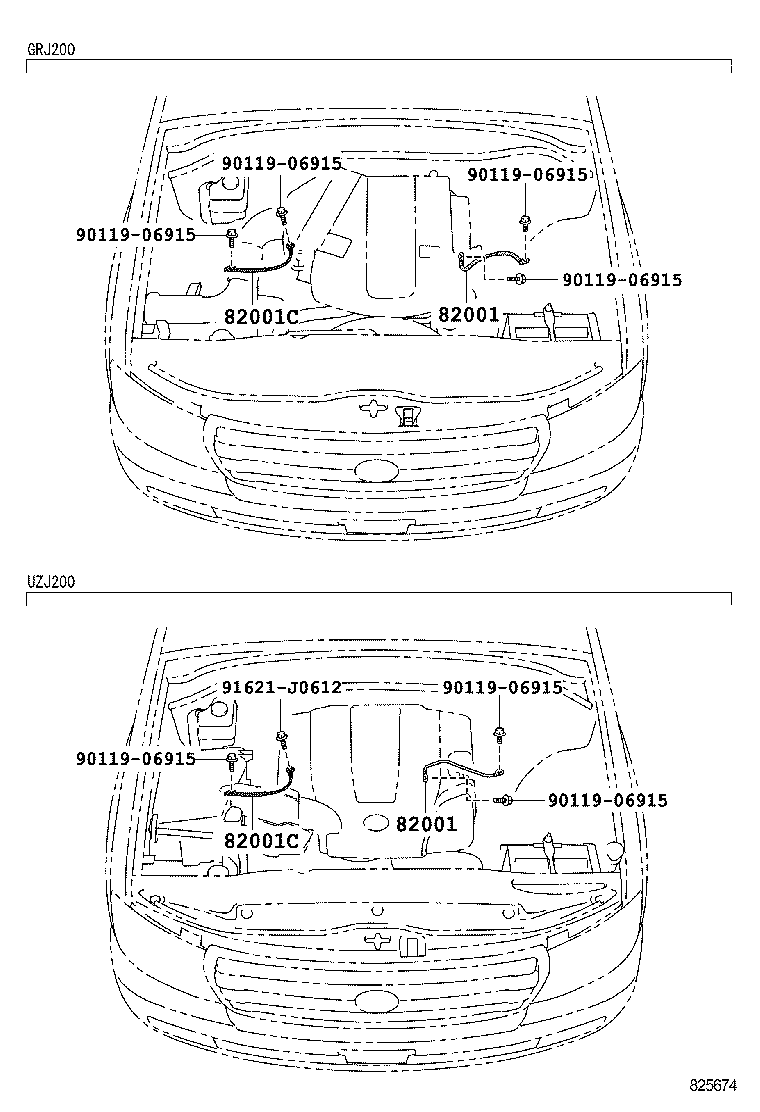

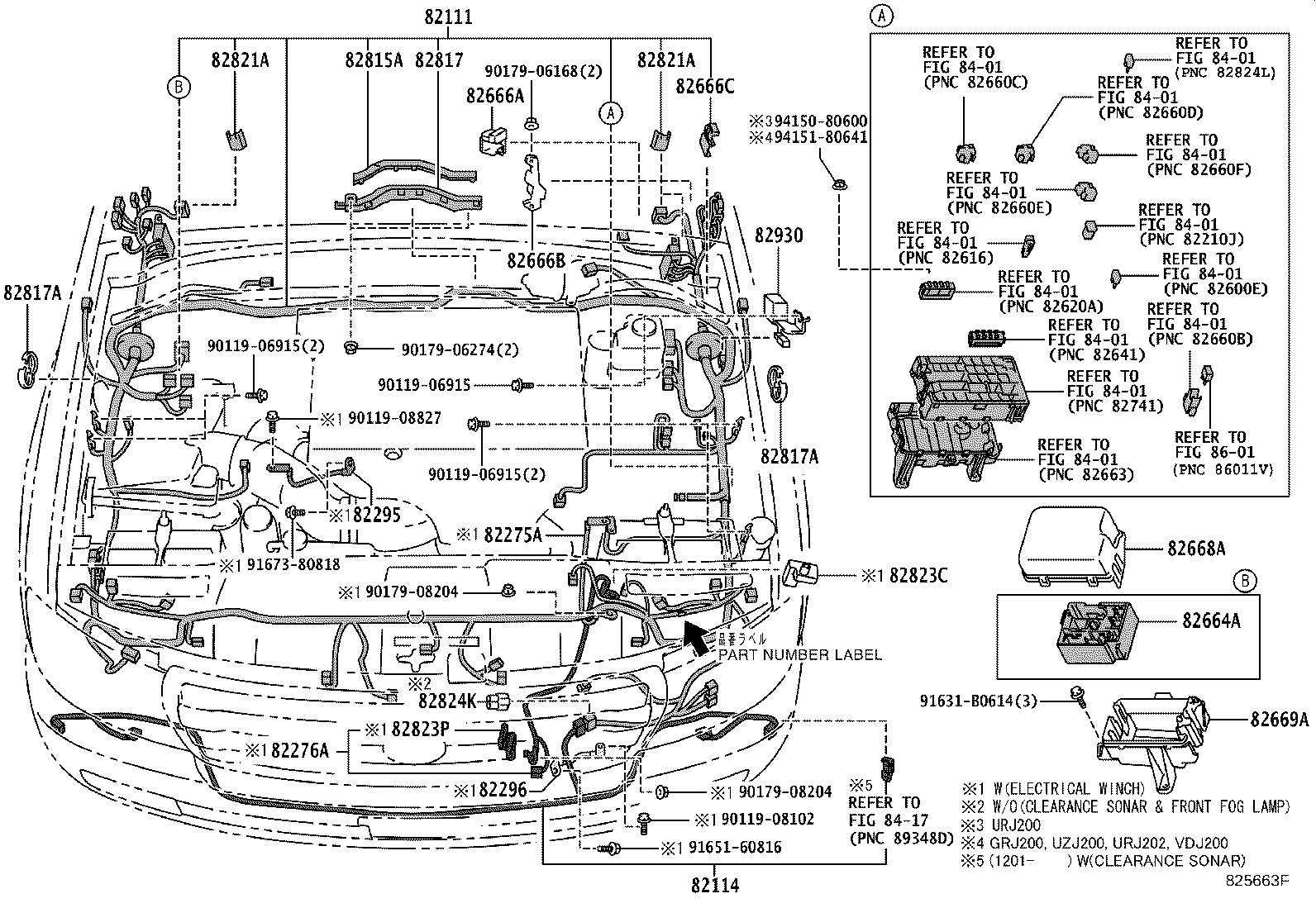

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60C10 |
GRJ200..LHD |
1 | ||
| 82111-60C11 |
GRJ200..LHD |
1 | ||
| 82111-60C12 |
GRJ200..LHD..G |
1 | ||
| 82111-60Y10 |
GRJ200..GX..K |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-60122 |
VDJ200..ARL..K;GRJ200,VDJ200..GX..K FRONT FOG LAMP-WITH |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60150 |
GRJ200..LHD..K;VDJ200..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 82275-60150 |
VDJ200..LHD..05S..G;VDJ200..08S..5F..GCC;GRJ200,UZJ200..LHD..GX..G;VDJ200..LHD..6FC..GX..GEN;VDJ200..(08S,09S)..5F..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60120 |
GRJ200..LHD..K;VDJ200..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 82276-60120 |
VDJ200..LHD..05S..G;VDJ200..08S..5F..GCC;GRJ200,UZJ200..LHD..GX..G;VDJ200..LHD..6FC..GX..GEN;VDJ200..(08S,09S)..5F..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 82295 - WIRE, WINCH EARTH | ||||
| 82295-60070 |
GRJ200..LHD..G ELECTRICAL WINCH-WITH |
1 | ||
| 82295-60070 |
GRJ200..LHD..K ELECTRICAL WINCH-WITH |
1 | ||
| 82296 - WIRE, WINCH EARTH, NO.2 | ||||
| 82296-60030 |
VDJ200..LHD..05S..G;VDJ200..08S..5F..GCC;GRJ200,UZJ200..LHD..GX..G;VDJ200..LHD..6FC..GX..GEN;VDJ200..(08S,09S)..5F..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 82296-60030 |
GRJ200..LHD..K;VDJ200..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 82664A - BLOCK, CONNECTOR HOLDER | ||||
| 82664-60020 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82664-60020 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60680 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82666-60680 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60690 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82666-60690 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60600 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82666-60600 |
GRJ200,VDJ200..K |
1 | ||
| 82668A - COVER, CONNECTOR HOLDER BLOCK, UPPER | ||||
| 82668-0C010 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82668-0C010 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82669A - COVER, CONNECTOR HOLDER BLOCK, LOWER | ||||
| 82669-60020 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82669-60020 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-60410 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82815-60410 |
GRJ200,VDJ200..K |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-60F70 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82817-60F70 |
GRJ200,VDJ200..K |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32840 |
GRJ200,VDJ200..K |
2 | ||
| 82817-32840 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32840 |
GRJ200,VDJ200..K |
2 | ||
| 82817-32840 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-60210 |
GRJ200..LHD |
3 | ||
| 82821-60210 |
GRJ200,VDJ200..LHD..K |
3 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-60210 |
GRJ200..LHD |
3 | ||
| 82821-60210 |
GRJ200,VDJ200..LHD..K |
3 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-60020 |
VDJ200..LHD..05S..G;VDJ200..08S..5F..GCC;GRJ200,UZJ200..LHD..GX..G;VDJ200..LHD..6FC..GX..GEN;VDJ200..(08S,09S)..5F..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 82823-60020 |
GRJ200..LHD..K;VDJ200..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 82823P - CAP, TERMINAL, NO.6 | ||||
| 82823-30080 |
VDJ200..LHD..05S..G;VDJ200..08S..5F..GCC;GRJ200,UZJ200..LHD..GX..G;VDJ200..LHD..6FC..GX..GEN;VDJ200..(08S,09S)..5F..GEN..G ELECTRICAL WINCH-WITH |
1 | ||
| 82823-30080 |
GRJ200..LHD..K;VDJ200..GEN..K ELECTRICAL WINCH-WITH |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-60760 |
GRJ200..LHD..G;UZJ200,VDJ200..GX..G |
1 | ||
| 82824-60760 |
VDJ200..ARL..K;GRJ200,VDJ200..GX..K |
1 | ||
| 82824-60760 |
VDJ200..ARL..K;GRJ200,VDJ200..GX..K FRONT FOG LAMP-WITH |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-60010 |
GRJ200,VDJ200..K |
1 | ||
| 82930-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08102 | ||||
| 90119-08827 | ||||
| 90179-06168 | ||||
| 90179-06274 | ||||
| 90179-08204 | ||||
| 91631-B0614 | ||||
| 91651-60816 | ||||
| 91673-80818 | ||||
| 94150-80600 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 2 OF15(0709-1201)GRJ200
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

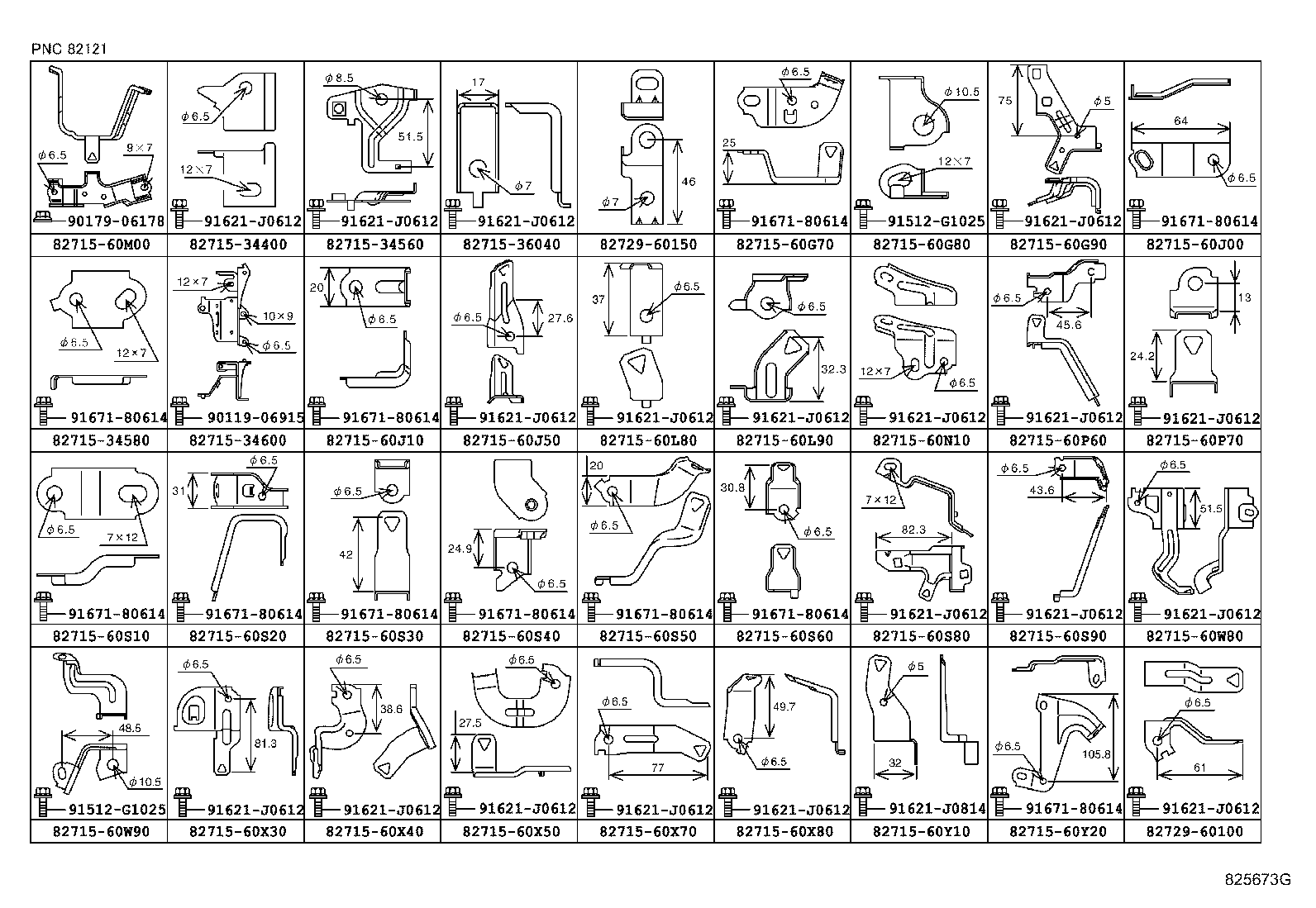

| 82121 - WIRE, ENGINE | ||||
| 82121-60C70 |
GRJ200..LHD..5F..G |
1 | ||
| 82121-60S80 |
GRJ200..LHD..K |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60530 |
GRJ200 |
1 | ||
| 82122-60540 |
GRJ200..(05S,08S)..GEN COLD SPEC |
1 | ||
| 82122-60540 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 82122-60540 |
GRJ200..K |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-35020 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 82219-35020 |
GRJ200..K |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60130 |
GRJ200..K |
1 | ||
| 82284-60130 |
GRJ200..LHD..05S..G;GRJ200,URJ200,UZJ200..(08S,09S)..G |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-60G40 |
GRJ200..LHD..G |
1 | ||
| 82817-60G40 |
GRJ200..LHD..K |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35080 |
GRJ200 |
1 | ||
| 82823-60050 |
GRJ200..(05S,08S)..GEN COLD SPEC |
1 | ||
| 82823-60050 |
GRJ200..G |
1 | ||
| 82823-60050 |
GRJ200..K |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-60040 |
GRJ200,UZJ200,VDJ200..G |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91515-60616 | ||||
| 91621-J0612 | ||||
| 91673-80814 | ||||
| 94150-80600 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8601 | ||||
ILLUST NO. 3 OF15(0709-1201)LHD

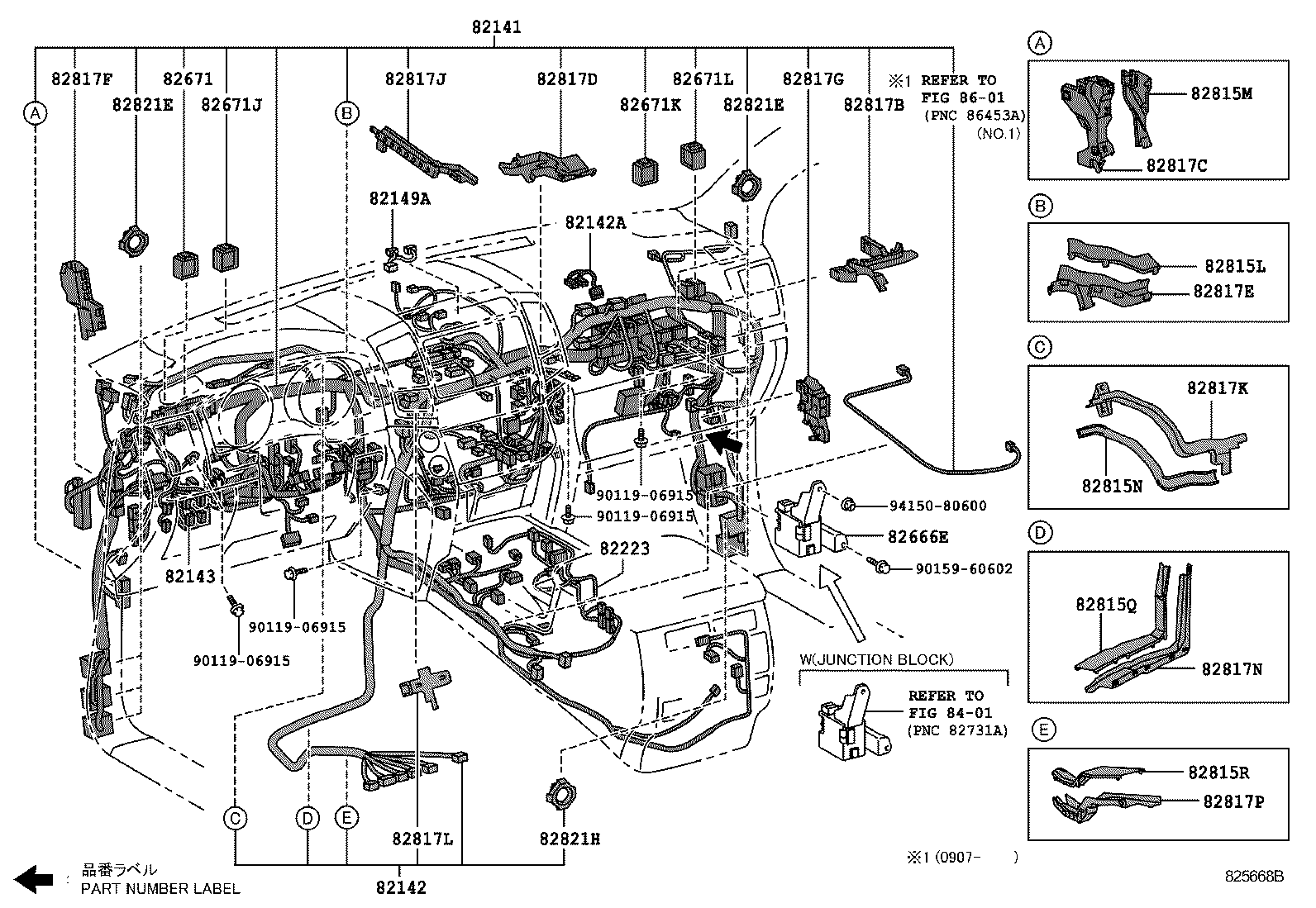

INSTRUMENT PANEL & CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60F10 |
GRJ200,UZJ200,VDJ200..LHD |
1 | ||
| 82141-60R10 |
GRJ200,URJ200,UZJ200,VDJ200..LHD |
1 | ||
| 82141-60V11 |
GRJ200..08S..GCC;GRJ200..(05S,09S)..G;UZJ200,VDJ200..LHD..G |
1 | ||
| 82141-6AE00 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60280 |
GRJ200..LHD..GEN;GRJ200..08S..GCC;VDJ200..LHD..09S..GEN;UZJ200,VDJ200..LHD..(05S,08S) |
1 | ||
| 82142-60D00 |
GRJ200..08S..GCC;GRJ200..LHD..GEN..G;VDJ200..LHD..09S..GEN..G;URJ200,UZJ200,VDJ200..LHD..(05S,08S)..G |
1 | ||
| 82142-60F80 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 2SPEAKER |
1 | ||
| 82142-60F20 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82142-60F80 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 4SPEAKER |
1 | ||
| 82142-60F80 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & BRACKET LESS & 4SPEAKER |
1 | ||
| 82142-60F80 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-RADIO LESS & 2SPEAKER |
1 | ||
| 82142-60F80 |
GRJ200,VDJ200..GX..K AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASSETTE/AM/FM 6SPEAKER |
1 | ||
| 82142-60L10 |
GRJ200,VDJ200..LHD..GEN..K AUDIO(FOR OVERSEAS MARKET)-CD CHANGER+CASETTE+AM/FM 6SPEAKER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-33120 |
VDJ200..ARL..K;GRJ200,VDJ200..GX..K |
1 | ||
| 82142-33120 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60200 |
UZJ200..GX..GCC;GRJ200..LHD..GEN |
1 | ||
| 82143-60201 |
UZJ200..GX..GCC;GRJ200..LHD..GEN |
1 | ||
| 82143-60202 |
GRJ200,UZJ200..LHD..GX..G |
1 | ||
| 82143-60530 |
GRJ200..GX..K OUTSIDE REAR VIEW MIRROR-MANUAL(MATERIAL:BLACK) |
1 | ||
| 82143-60530 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-60010 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82149-60010 |
GRJ200,VDJ200..K |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-60170 |
GRJ200,VDJ200..LHD..5F |
1 | ||
| 82223-60171 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60710 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82666-60710 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-60030 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82671-60030 |
GRJ200,VDJ200..K |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-60040 |
GRJ200,VDJ200..K |
1 | ||
| 82671-60040 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82671K - BLOCK, JUNCTION, NO.3 | ||||
| 82671-60050 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82671-60050 |
GRJ200,VDJ200..K |
1 | ||
| 82671L - BLOCK, JUNCTION, NO.4 | ||||
| 82671-60060 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82671-60060 |
GRJ200,VDJ200..K |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-60080 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-60100 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82815-60100 |
GRJ200,VDJ200..K |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-60140 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82815-60140 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-60A50 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-60A90 |
GRJ200,VDJ200..K |
1 | ||
| 82817-60A90 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-60B10 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817-60S50 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-60S40 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82817-60B30 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-60A70 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817-60A70 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-60B50 |
GRJ200,VDJ200..K |
1 | ||
| 82817-60B50 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-60A80 |
GRJ200,UZJ200,VDJ200..LHD |
1 | ||
| 82817-60A80 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82817-60A80 |
GRJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-60B90 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82817-60B90 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-60G10 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
1 | ||
| 82817-60G10 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60180 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
6 | ||
| 82821-60180 |
GRJ200,VDJ200..LHD..K |
6 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60180 |
GRJ200,URJ200,UZJ200,VDJ200..LHD..G |
6 | ||
| 82821-60180 |
GRJ200,VDJ200..LHD..K |
6 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-60180 |
GRJ200..LHD..GEN;GRJ200..08S..GCC;VDJ200..LHD..09S..GEN;UZJ200,VDJ200..LHD..(05S,08S) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60602 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

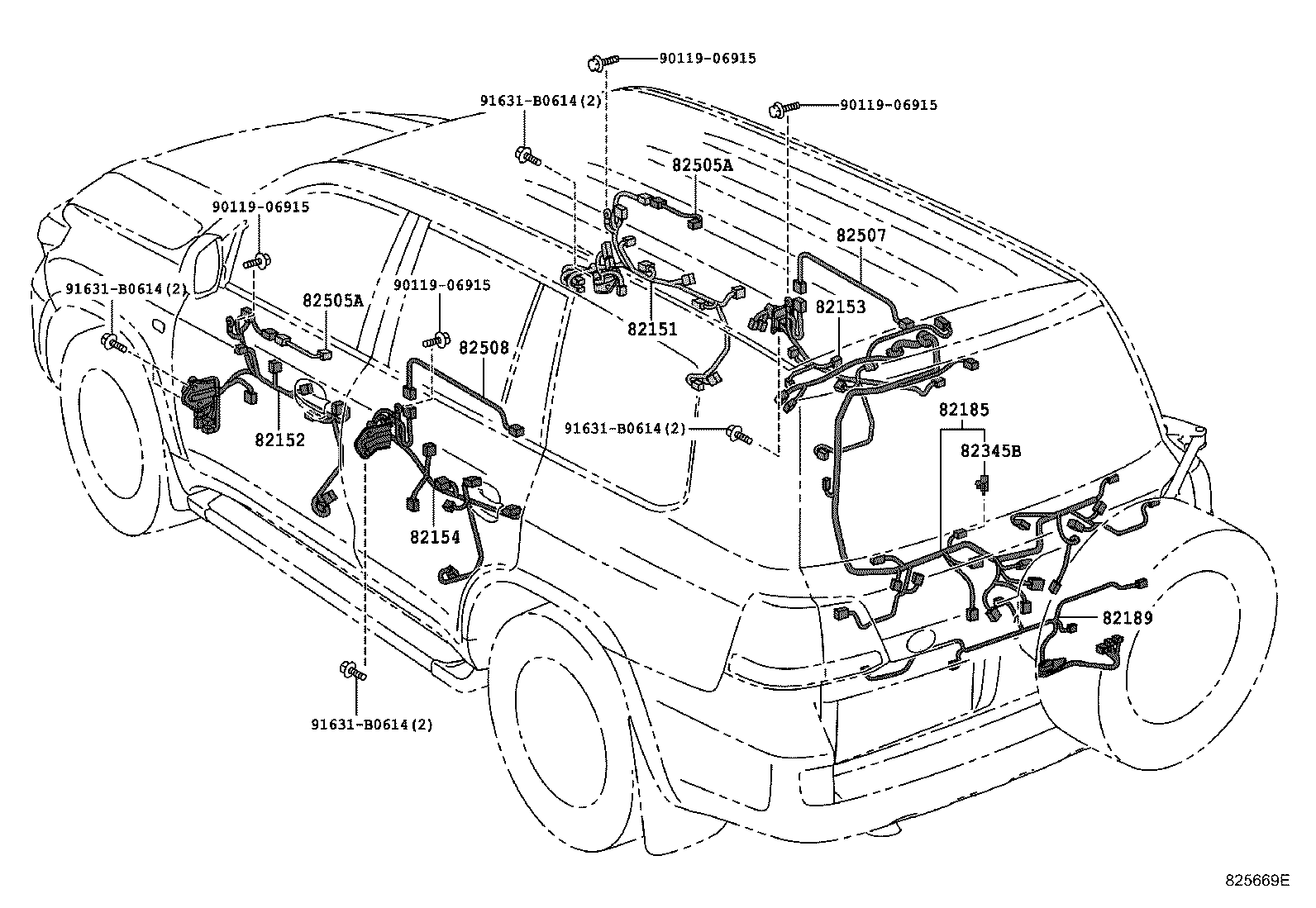

ILLUST NO. 4 OF15(0709- )LUB
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60780 |
GRJ200,UZJ200,VDJ200..LHD..GX..G |
1 | ||
| 82151-60F00 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60730 |
GRJ200,UZJ200,VDJ200..LHD..GX..G |
1 | ||
| 82152-60D90 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60230 |
GRJ200,UZJ200,VDJ200..GX |
1 | ||
| 82153-60231 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G |
1 | ||
| 82153-60420 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-60050 |
GRJ200,UZJ200,VDJ200..GX |
1 | ||
| 82154-60051 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G |
1 | ||
| 82154-60240 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60150 |
GRJ200,UZJ200,VDJ200..05S,08S |
1 | ||
| 82185-60130 |
GRJ200,UZJ200,VDJ200..(05S,08S)..(GCC,GEN) SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 82185-60130 |
GRJ200,UZJ200,VDJ200..(05S,08S)..(GCC,GEN) SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 82185-60131 |
VDJ200..VX..GEN;VDJ200..LHD..6FC..GX;VDJ200..(05S,08S)..5F..G;GRJ200,URJ200,UZJ200..(05S,08S)..(GCC,GEN)..G SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 82185-60151 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..G;GRJ200,URJ200,UZJ200..08S |
1 | ||
| 82185-60131 |
VDJ200..08S..(GCC,GEN);GRJ200,URJ200,UZJ200..LHD..(05S,08S)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-60070 |
VDJ200..5F..G;VDJ200..VX..GEN;URJ200,UZJ200..GCC;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;VDJ200..LHD..6FC..GX SPARE WHEEL CARRIER-REAR UNDER FRAME & BACK DOOR FRAME |
1 | ||
| 82189-60070 |
GRJ200,URJ200,UZJ200..LHD..G;VDJ200..(08S,09S)..(GCC,GEN)..G SPARE WHEEL CARRIER-BACK DOOR FRAME |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-B0614 | ||||

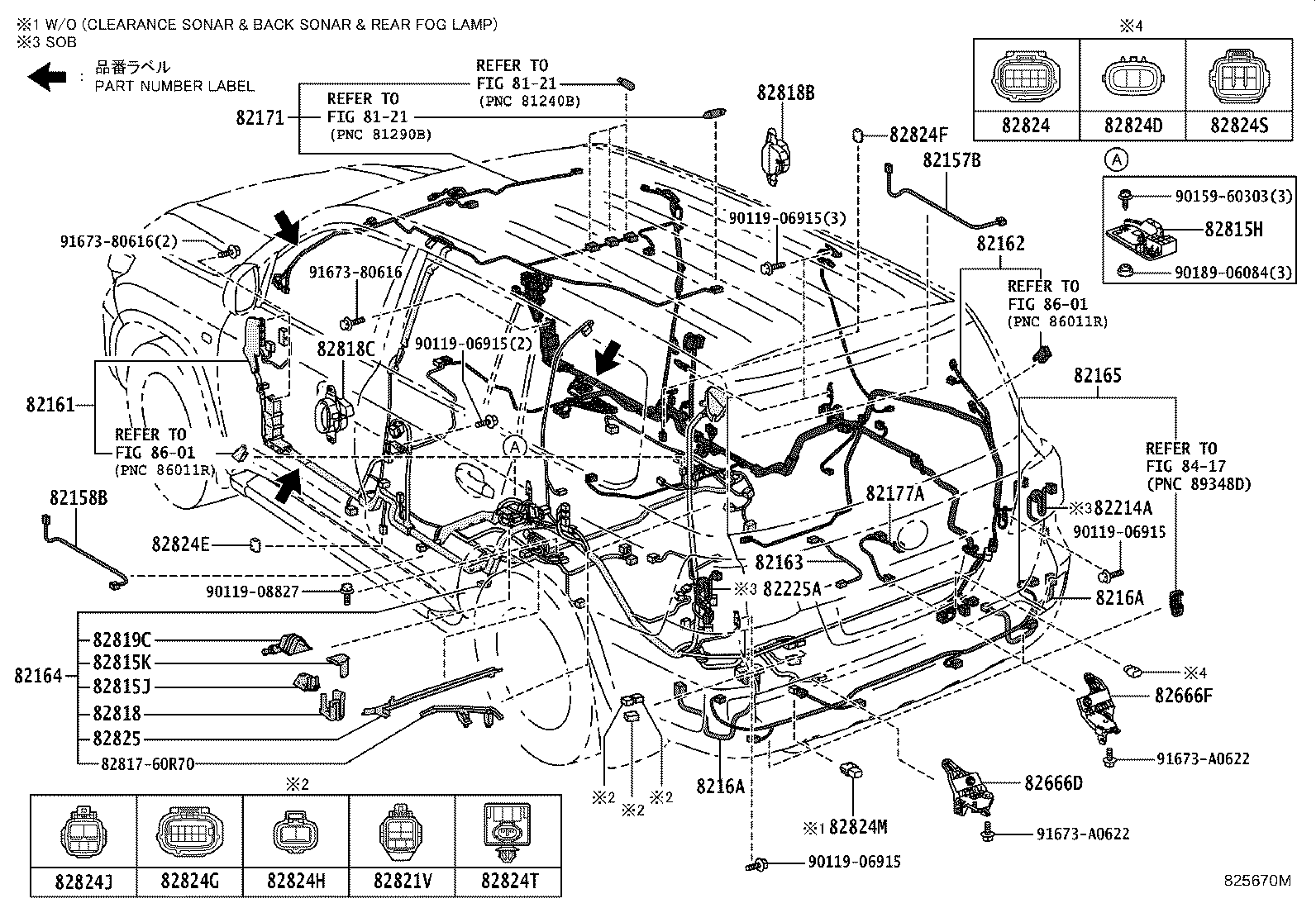

ILLUST NO. 5 OF15(0709- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-60C20 |
VDJ200..09S..GCC;VDJ200..LHD..GX..GEN;GRJ200..LHD..08S..GEN;GRJ200..LHD..(05S,09S) |
1 | ||
| 82161-60C21 |
GRJ200..05S,09S;VDJ200..09S..GCC;VDJ200..LHD..GX..GEN;GRJ200..LHD..08S..GEN |
1 | ||
| 82161-60P70 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82161-60C22 |
VDJ200..09S..GCC..G;VDJ200..LHD..GX..GEN;GRJ200..(05S,09S)..G;GRJ200..LHD..08S..GEN |
1 | ||
| 82161-60C20 |
VDJ200..09S..GCC;VDJ200..LHD..GX..GEN;GRJ200..LHD..08S..GEN;GRJ200..LHD..(05S,09S) |
1 | ||
| 82161-60C21 |
GRJ200..05S,09S;VDJ200..09S..GCC;VDJ200..LHD..GX..GEN;GRJ200..LHD..08S..GEN |
1 | ||
| 82161-60P70 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82161-60C22 |
VDJ200..09S..GCC..G;VDJ200..LHD..GX..GEN;GRJ200..(05S,09S)..G;GRJ200..LHD..08S..GEN |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60C60 |
GRJ200,UZJ200,VDJ200..LHD..GX |
1 | ||
| 82162-60C61 |
GRJ200,UZJ200,VDJ200..LHD..GX |
1 | ||
| 82162-60C62 |
GRJ200,UZJ200,VDJ200..LHD..GX..G |
1 | ||
| 82162-60U10 |
GRJ200,VDJ200..GX..K |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60410 |
GRJ200..GEN..G |
1 | ||
| 82163-60410 |
GRJ200..K;VDJ200..05S..GEN..K;VDJ200..(ARL,GCC)..K |
1 | ||
| 82163-60410 |
GRJ200..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60450 |
GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..G |
1 | ||
| 82164-60480 |
GRJ200..K DIFFERENTIAL LOCK-WITH |
1 | ||
| 82164-60450 |
GRJ200..K |
1 | ||
| 82164-60480 |
UZJ200..GEN;GRJ200..LHD..05S..G;GRJ200,UZJ200..(08S,09S)..GX..G WITH(DIFFERENTIAL LOCK) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60380 |
GRJ200,VDJ200..K |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60A80 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G |
1 | ||
| 82171-60A70 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX..(GCC,GEN);GRJ200,UZJ200..08S..GX..(GCC,GEN) SUN VISOR-WITH(MIRROR & LIGHT & SLIDE) |
1 | ||
| 82171-60M00 |
GRJ200,VDJ200..GX..K INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS&SUN VISOR-WITH(MIRROR & LIGHT & SLIDE) |
1 | ||
| 82171-60C70 |
GRJ200,VDJ200..GX..K SUN VISOR-WITH(MIRROR & LIGHT & SLIDE) |
1 | ||
| 82171-60C80 |
GRJ200,VDJ200..K |
1 | ||
| 82171-60M00 |
GRJ200,VDJ200..GX..K INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&SUN VISOR-WITH(MIRROR & LIGHT & SLIDE) |
1 | ||
| 82171-60M00 |
GRJ200,VDJ200..GX..K INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-60M00 |
GRJ200,VDJ200..GX..K INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & COMPASS |
1 | ||
| 82171-60A80 |
GRJ200..LHD..05S..G;VDJ200..GX..(GCC,GEN)..G;GRJ200,UZJ200..(08S,09S)..GX..(GCC,GEN)..G PART NUMBER LABEL=82171-60A80 |
1 | ||
| 82171-60A70 |
GRJ200..LHD..05S..G;VDJ200..(05S,08S)..GX..(GCC,GEN);GRJ200,UZJ200..08S..GX..(GCC,GEN) PART NUMBER LABEL=82171-60A70 |
1 | ||
| 82171-60M00 |
GRJ200,VDJ200..GX..K PART NUMBER LABEL=82171-60M00 |
1 | ||
| 82171-60C70 |
GRJ200,VDJ200..GX..K PART NUMBER LABEL=82171-60C70 |
1 | ||
| 82171-60C80 |
GRJ200,VDJ200..K PART NUMBER LABEL=82171-60C80 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60070 |
GRJ200,VDJ200..K |
1 | ||
| 82225A - WIRE, LAMP, NO.2 | ||||
| 82225-60020 |
GRJ200,VDJ200..K |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60720 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82666-60720 |
GRJ200,VDJ200..K |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-60570 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-60240 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82815-60240 |
GRJ200,VDJ200..K |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-60220 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82815-60220 |
GRJ200,VDJ200..K |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-60230 |
GRJ200,VDJ200..K |
1 | ||
| 82815-60230 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60D40 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82817-60D40 |
GRJ200,VDJ200..K |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-60C70 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82817-60C70 |
GRJ200,VDJ200..K |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-60C80 |
GRJ200,VDJ200..K |
1 | ||
| 82817-60C80 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82819C - GROMMET, WIRING HARNESS | ||||
| 82819-60350 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82819-60350 |
GRJ200,VDJ200..K |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-60740 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-60750 |
VDJ200..VX;UZJ200..VX..ARL;VDJ200..LHD..GX..G;GRJ200,URJ200,UZJ200..LHD..G |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-60730 |
GRJ200..GEN |
1 | ||
| 82824-60730 |
GRJ200..GEN FUEL TANK-WITH(SUB TANK) |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-60710 |
GRJ200,URJ200,UZJ200,VDJ200..G |
1 | ||
| 82824-60710 |
GRJ200..GEN..G FUEL TANK-WITH(SUB TANK) |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-60720 |
GRJ200,URJ200,UZJ200,VDJ200..G |
1 | ||
| 82824-60720 |
GRJ200..GEN..G FUEL TANK-WITH(SUB TANK) |
1 | ||
| 82824M - CONNECTOR, WIRING HARNESS | ||||
| 82824-60770 |
GRJ200,UZJ200,VDJ200..LHD..GX |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82817-60F60 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G;URJ200,UZJ200,VDJ200..G |
1 | ||
| 82817-60F60 |
GRJ200,VDJ200..K |
1 | ||
| Common parts | ||||
| 82817-60R70 | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 90159-60303 | ||||
| 90189-06084 | ||||
| 91673-80616 | ||||
| 91673-A0622 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||

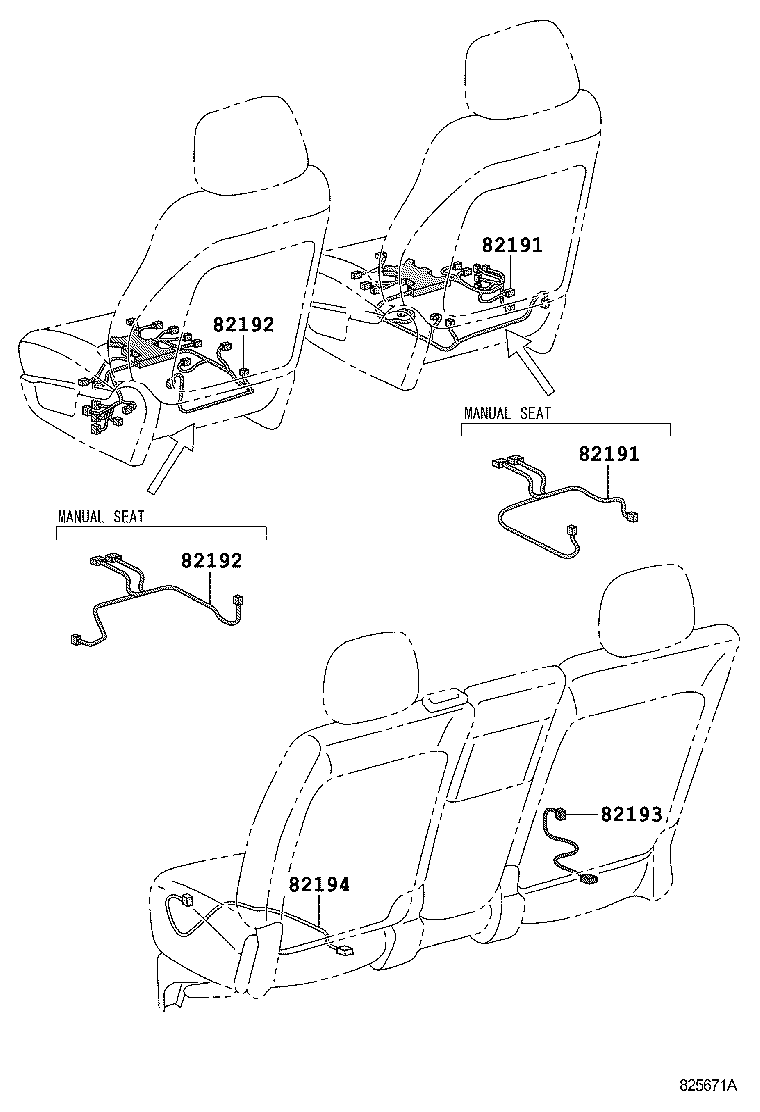

ILLUST NO. 6 OF15(0709- )
SEAT
| Part # | Description | Qty | Price |
|---|

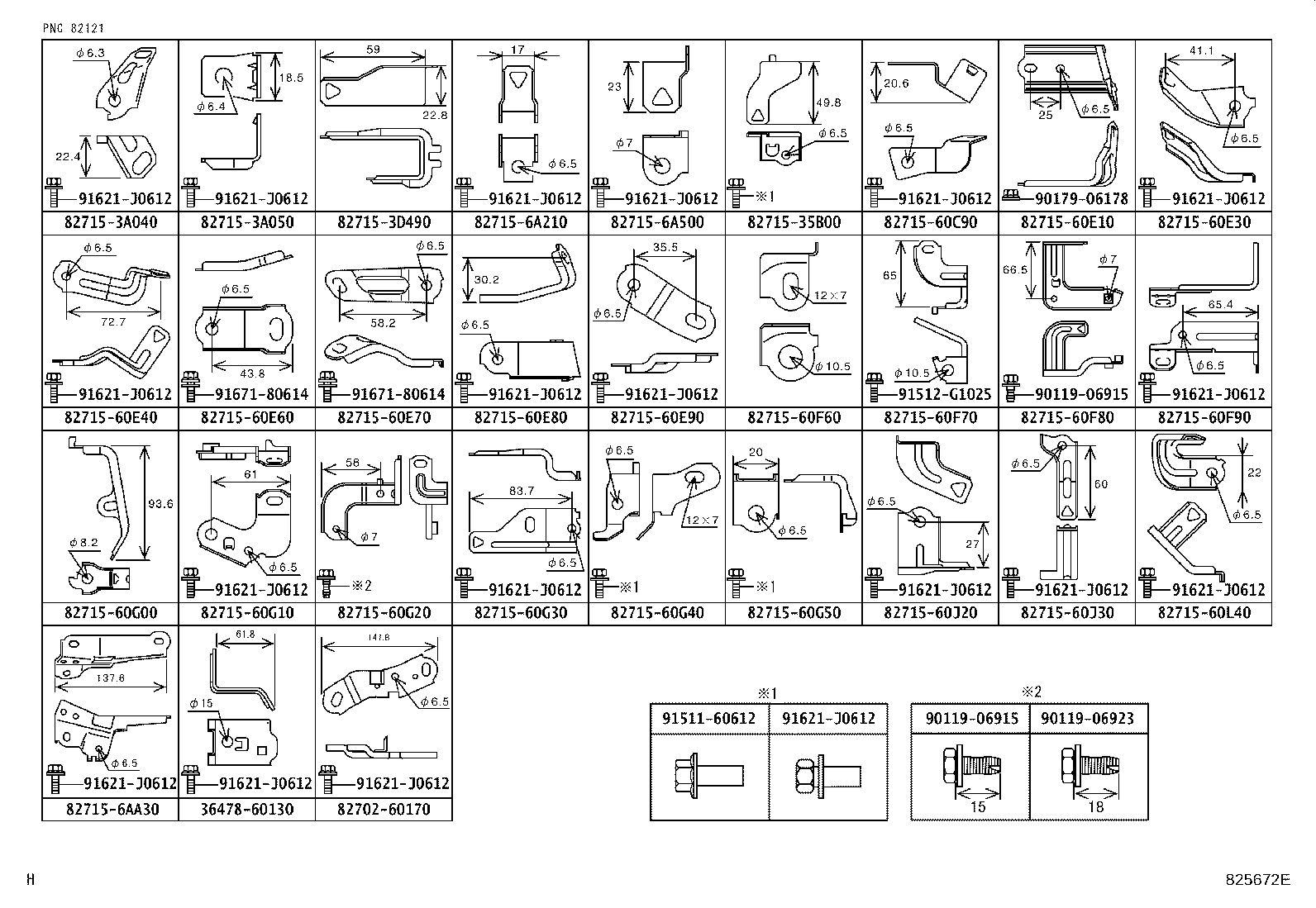

ILLUST NO. 7 OF15(0709- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 36478-60130 | ||||
| 82702-60170 | ||||
| 82715-35B00 | ||||
| 82715-3A040 | ||||
| 82715-3A050 | ||||
| 82715-3D490 | ||||
| 82715-60C90 | ||||
| 82715-60E10 | ||||
| 82715-60E30 | ||||
| 82715-60E40 | ||||
| 82715-60E60 | ||||
| 82715-60E70 | ||||
| 82715-60E80 | ||||
| 82715-60E90 | ||||
| 82715-60F60 | ||||
| 82715-60F70 | ||||
| 82715-60F80 | ||||
| 82715-60F90 | ||||
| 82715-60G00 | ||||
| 82715-60G10 | ||||
| 82715-60G20 | ||||
| 82715-60G30 | ||||
| 82715-60G40 | ||||
| 82715-60G50 | ||||
| 82715-60J20 | ||||
| 82715-60J30 | ||||
| 82715-60L40 | ||||
| 82715-6A210 | ||||
| 82715-6A500 | ||||
| 82715-6AA30 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 90179-06178 | ||||
| 91511-60612 | ||||
| 91512-G1025 | ||||
| 91621-J0612 | ||||
| 91671-80614 | ||||
ILLUST NO. 8 OF15(0709- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-34400 | ||||
| 82715-34560 | ||||
| 82715-34580 | ||||
| 82715-34600 | ||||
| 82715-36040 | ||||
| 82715-60G70 | ||||
| 82715-60G80 | ||||
| 82715-60G90 | ||||
| 82715-60J00 | ||||
| 82715-60J10 | ||||
| 82715-60J50 | ||||
| 82715-60L80 | ||||
| 82715-60L90 | ||||
| 82715-60M00 | ||||
| 82715-60N10 | ||||
| 82715-60P60 | ||||
| 82715-60P70 | ||||
| 82715-60S10 | ||||
| 82715-60S20 | ||||
| 82715-60S30 | ||||
| 82715-60S40 | ||||
| 82715-60S50 | ||||
| 82715-60S60 | ||||
| 82715-60S80 | ||||
| 82715-60S90 | ||||
| 82715-60W80 | ||||
| 82715-60W90 | ||||
| 82715-60X30 | ||||
| 82715-60X40 | ||||
| 82715-60X50 | ||||
| 82715-60X70 | ||||
| 82715-60X80 | ||||
| 82715-60Y10 | ||||
| 82715-60Y20 | ||||
| 82729-60100 | ||||
| 82729-60150 | ||||
| 90119-06915 | ||||
| 90179-06178 | ||||
| 91512-G1025 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91671-80614 | ||||
ILLUST NO.11 OF15(0709-1201)GRJ200,UZJ200..G
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07441 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07441 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..G |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07442 |
GRJ200..LHD..05S..G;GRJ200,URJ200..(08S,09S)..G |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07442 |
GRJ200..LHD..05S..G;GRJ200,URJ200..(08S,09S)..G |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91621-J0612 | ||||
ILLUST NO. 9 OF15(0709- )

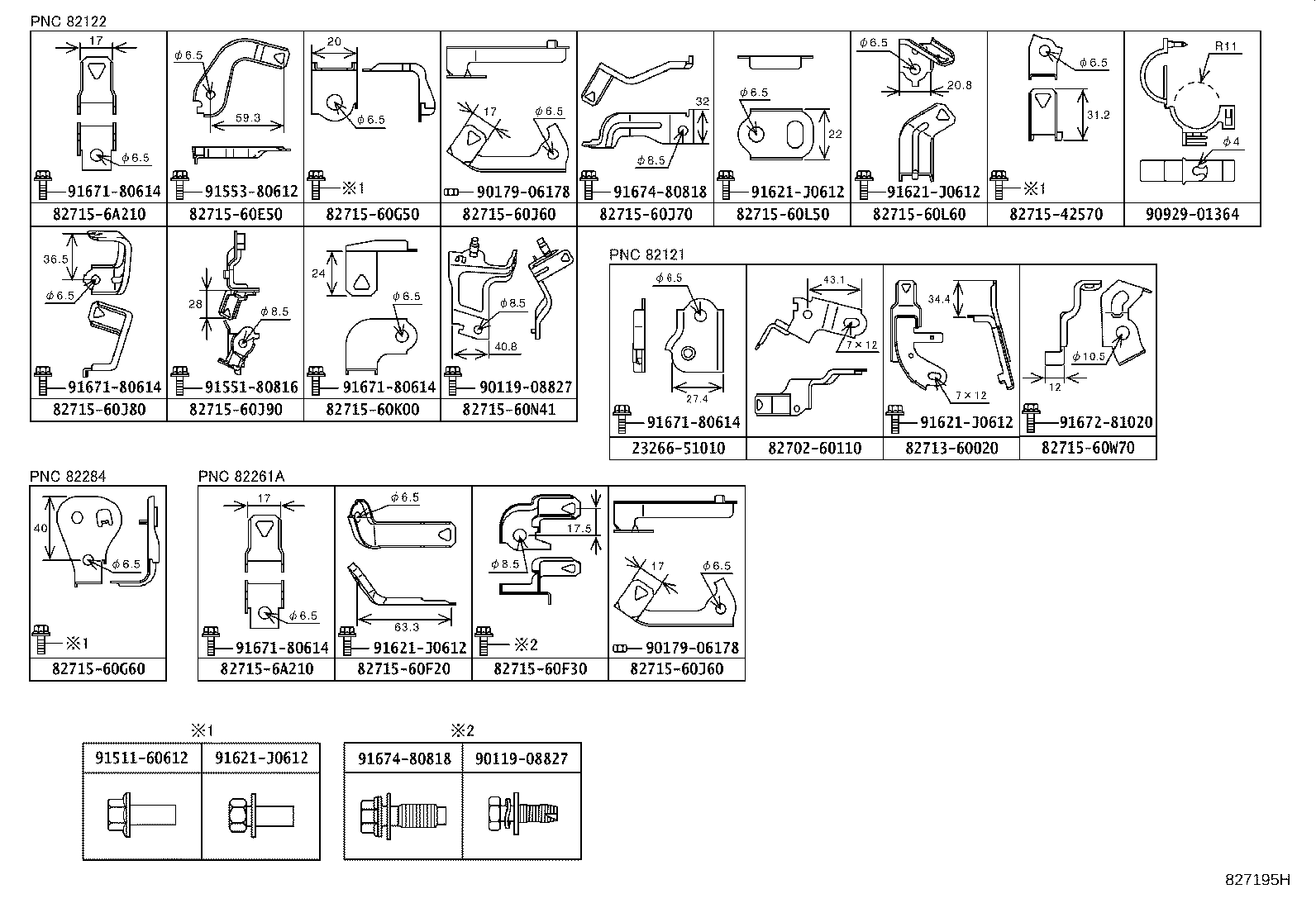

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23266-51010 | ||||
| 82702-60110 | ||||
| 82713-60020 | ||||
| 82715-42570 | ||||
| 82715-60E50 | ||||
| 82715-60F20 | ||||
| 82715-60F30 | ||||
| 82715-60G50 | ||||
| 82715-60G60 | ||||
| 82715-60J60 | ||||
| 82715-60J70 | ||||
| 82715-60J80 | ||||
| 82715-60J90 | ||||
| 82715-60K00 | ||||
| 82715-60L50 | ||||
| 82715-60L60 | ||||
| 82715-60N41 | ||||
| 82715-60W70 | ||||
| 82715-6A210 | ||||
| 90119-08827 | ||||
| 90179-06178 | ||||
| 90929-01364 | ||||
| 91511-60612 | ||||
| 91551-80816 | ||||
| 91553-80612 | ||||
| 91621-J0612 | ||||
| 91671-80614 | ||||
| 91672-81020 | ||||
| 91674-80818 | ||||
ILLUST NO.15 OF15(0709- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12367 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12686 | ||||
| 90980-12876 | ||||
| 90980-50004 | ||||

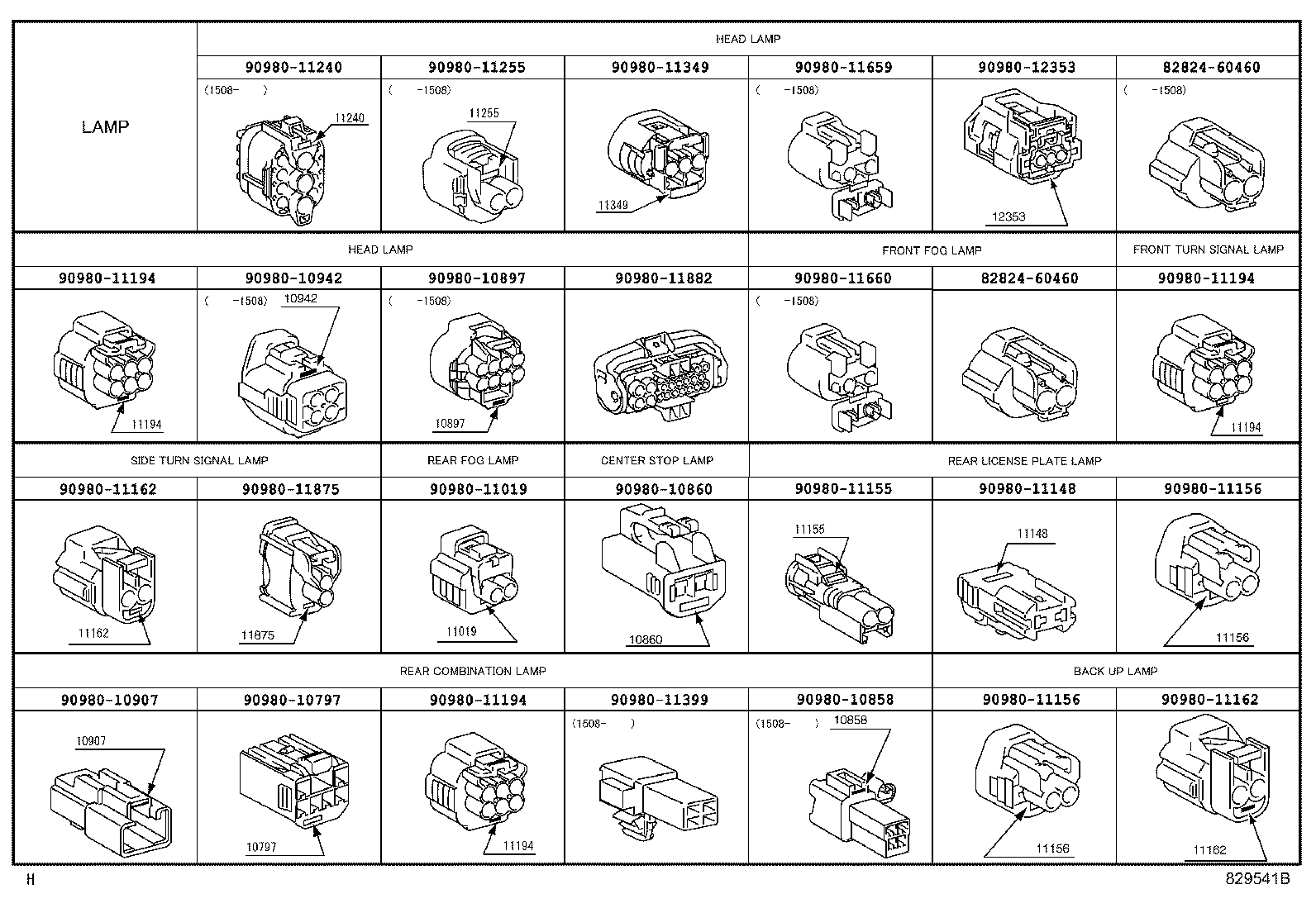

ILLUST NO.12 OF15(0709- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10797 | ||||
| 90980-10858 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10907 | ||||
| 90980-10942 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11155 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11240 | ||||
| 90980-11255 | ||||
| 90980-11349 | ||||
| 90980-11399 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-11875 | ||||
| 90980-11882 | ||||
| 90980-12353 | ||||
ILLUST NO.13 OF15(0709- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10825 | ||||
| 90980-10907 | ||||
| 90980-11070 | ||||
| 90980-11246 | ||||
| 90980-11856 | ||||
| 90980-11918 | ||||
| 90980-12225 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12352 | ||||
| 90980-12380 | ||||
| 90980-12382 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12416 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12831 | ||||

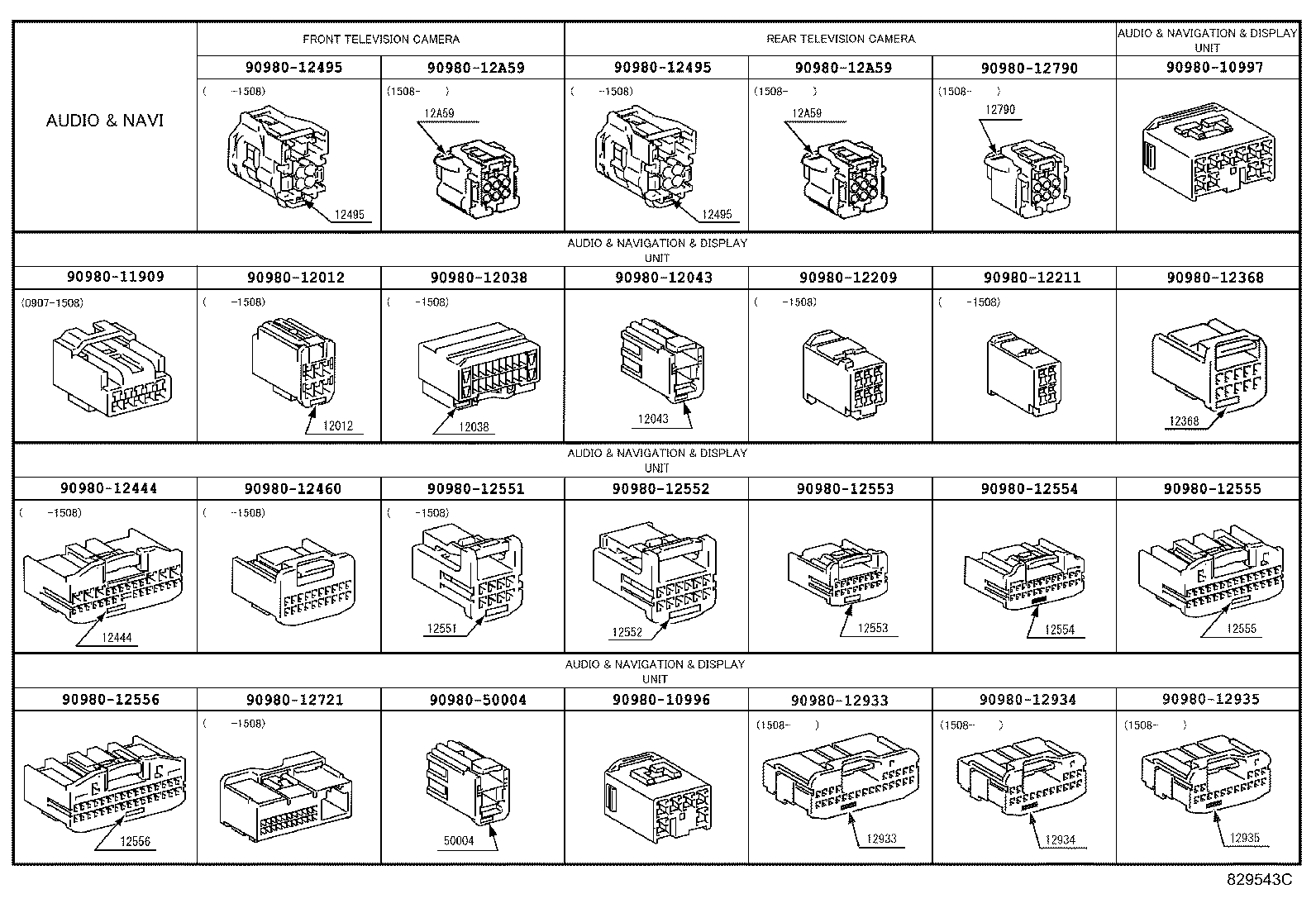

ILLUST NO.14 OF15(0709- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12043 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12368 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12721 | ||||
| 90980-12790 | ||||
| 90980-12933 | ||||
| 90980-12934 | ||||
| 90980-12935 | ||||
| 90980-12A59 | ||||
| 90980-50004 | ||||
ILLUST NO.10 OF15(0709- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 19529-51010 | ||||
| 23211-51010 | ||||
| 23265-51010 | ||||
| 82711-3F040 | ||||
| 82711-60780 | ||||
| 82712-37210 | ||||
| 82712-60500 | ||||
| 82715-34590 | ||||
| 82715-60F00 | ||||
| 82715-60F10 | ||||
| 82715-60F40 | ||||
| 82715-60F50 | ||||
| 82715-60L70 | ||||
| 82715-60S70 | ||||
| 90119-08116 | ||||
| 90119-08827 | ||||
| 90179-06178 | ||||
| 90468-10034 | ||||
| 91551-80825 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
