GRJ200L-GMMNK (2007)
Toyota Land Cruiser

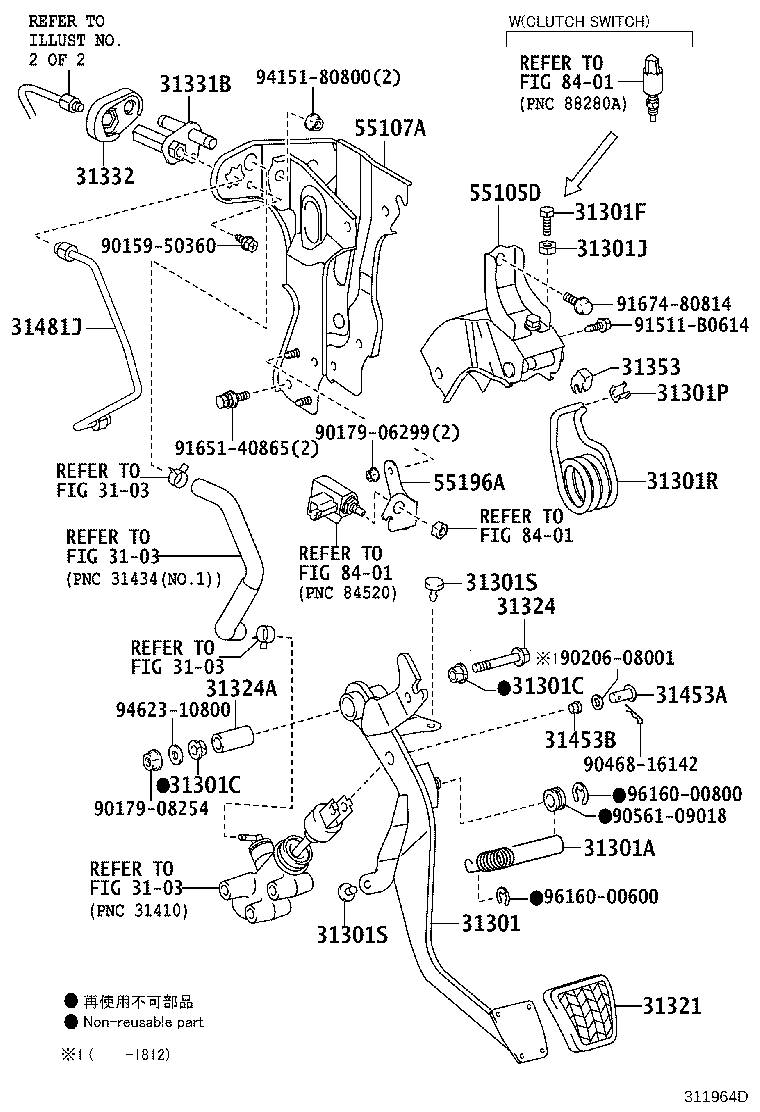

ILLUST NO. 1 OF 2(0709- )LHD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60300 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 31301-60300 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-23025 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 90507-23025 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
2 | ||
| 90386-14015 |
GRJ200,VDJ200..5F..K |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-14015 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
2 | ||
| 90386-14015 |
GRJ200,VDJ200..5F..K |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 90101-10369 |
GRJ200..K |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
GRJ200..K |
1 | ||
| 94130-61000 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 90389-06055 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03153 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 90949-03153 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GRJ200,VDJ200..LHD..K |
2 | ||
| 90541-06036 |
GRJ200,VDJ200..LHD..5F..G |
2 | ||
| 31301S - CUSHION, NO.2(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GRJ200,VDJ200..LHD..K |
2 | ||
| 90541-06036 |
GRJ200,VDJ200..LHD..5F..G |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
GRJ200,VDJ200..5F..K |
1 | ||
| 31321-52010 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90105-08261 |
GRJ200,VDJ200..5F..K |
1 | ||
| 90105-08261 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-08160 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 90387-08160 |
GRJ200,VDJ200..5F..K |
1 | ||
| 31331B - WAY, CLUTCH PEDAL SUPPORT | ||||
| 31331-60020 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 31331-60020 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31332 - GROMMET, CLUTCH PEDAL SUPPORT | ||||
| 31332-60021 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31332-60021 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31353-26010 |
GRJ200,VDJ200..5F..K |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
GRJ200,VDJ200..LHD..K L=23.5 |
1 | ||
| 90240-08006 |
GRJ200,VDJ200..LHD..5F..G L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 90386-08033 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-60A80 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 31481-60A80 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 55105D - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55105-60041 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 55105-60041 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60261 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 55107-60261 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 55196A - BRACKET, CLUTCH START SWITCH MOUNTING | ||||
| 55196-60040 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 55196-60040 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| Common parts | ||||
| 90159-50360 | ||||
| 90179-06299 | ||||
| 90179-08254 | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 90561-09018 | ||||
| 91511-B0614 | ||||
| 91651-40865 | ||||
| 91674-80814 | ||||
| 94151-80800 | ||||
| 94623-10800 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 8401 | ||||

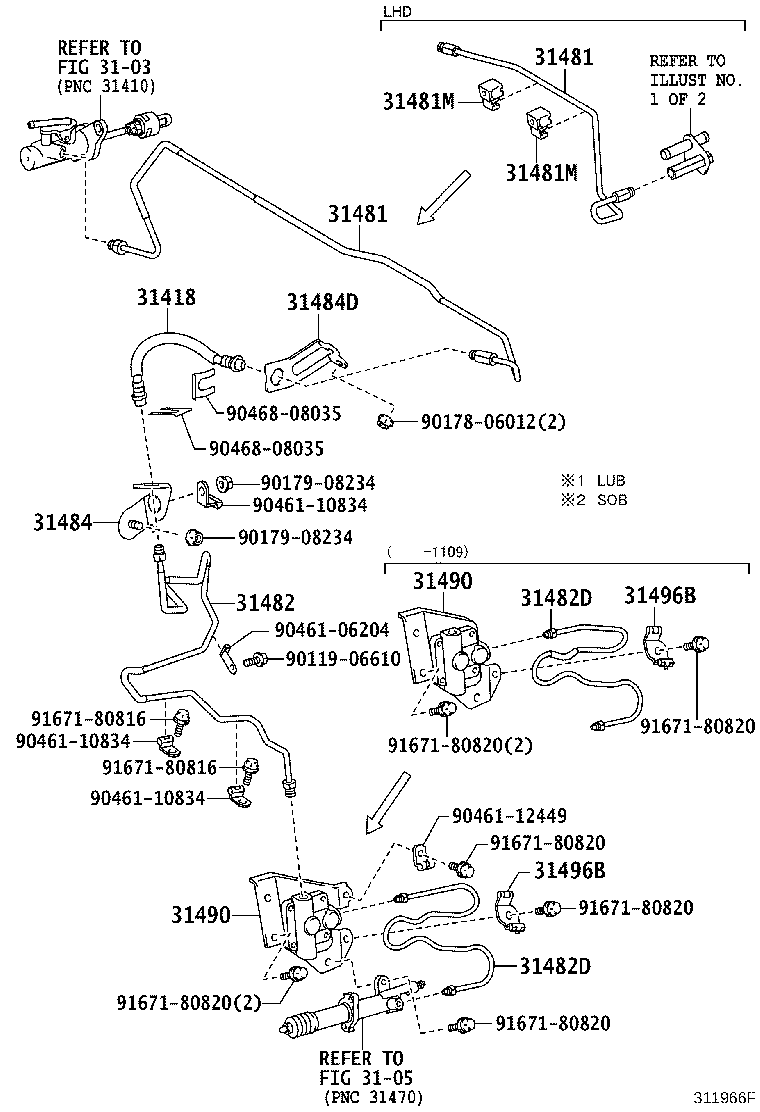

ILLUST NO. 2 OF 2(0709-1201)GRJ200..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-02F33 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 90947-02F33 |
GRJ200..K |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60A70 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 31481-60A70 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-60A70 |
GRJ200,VDJ200..LHD..5F..G |
1 | ||
| 31481-60A70 |
GRJ200,VDJ200..LHD..K |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
GRJ200,VDJ200..LHD..K |
2 | ||
| 90949-01D18 |
GRJ200,VDJ200..LHD..5F..G |
2 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D18 |
GRJ200,VDJ200..LHD..K |
2 | ||
| 90949-01D18 |
GRJ200,VDJ200..LHD..5F..G |
2 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-60200 |
GRJ200..K |
1 | ||
| 31482-60200 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-60330 |
GRJ200..K |
1 | ||
| 31482-60330 |
GRJ200,VDJ200..5F..G |
1 | ||
| 31482-60220 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-60330 |
GRJ200..K |
1 | ||
| 31482-60330 |
GRJ200,VDJ200..5F..G |
1 | ||
| 31482-60220 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60310 |
GRJ200..K |
1 | ||
| 31484-60310 |
GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-60320 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31484-60320 |
GRJ200,VDJ200..5F..K |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-60180 |
GRJ200..K |
1 | ||
| 31490-60160 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31490-60180 |
GRJ200,VDJ200..5F..G |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-60180 |
GRJ200..K |
1 | ||
| 31490-60160 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31490-60180 |
GRJ200,VDJ200..5F..G |
1 | ||
| 31496B - CLAMP, CLUTCH TUBE | ||||
| 31496-60030 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31496-60030 |
GRJ200,VDJ200..5F..K |
1 | ||
| 31496B - CLAMP, CLUTCH TUBE | ||||
| 31496-60030 |
VDJ200..5F..G;GRJ200..LHD..05S..G;GRJ200..(08S,09S)..5F..G |
1 | ||
| 31496-60030 |
GRJ200,VDJ200..5F..K |
1 | ||
| Common parts | ||||
| 90119-06610 | ||||
| 90178-06012 | ||||
| 90179-08234 | ||||
| 90461-06204 | ||||
| 90461-10834 | ||||
| 90461-12449 | ||||
| 90468-08035 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
