GRJ200L-GMMNK (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1GRFE

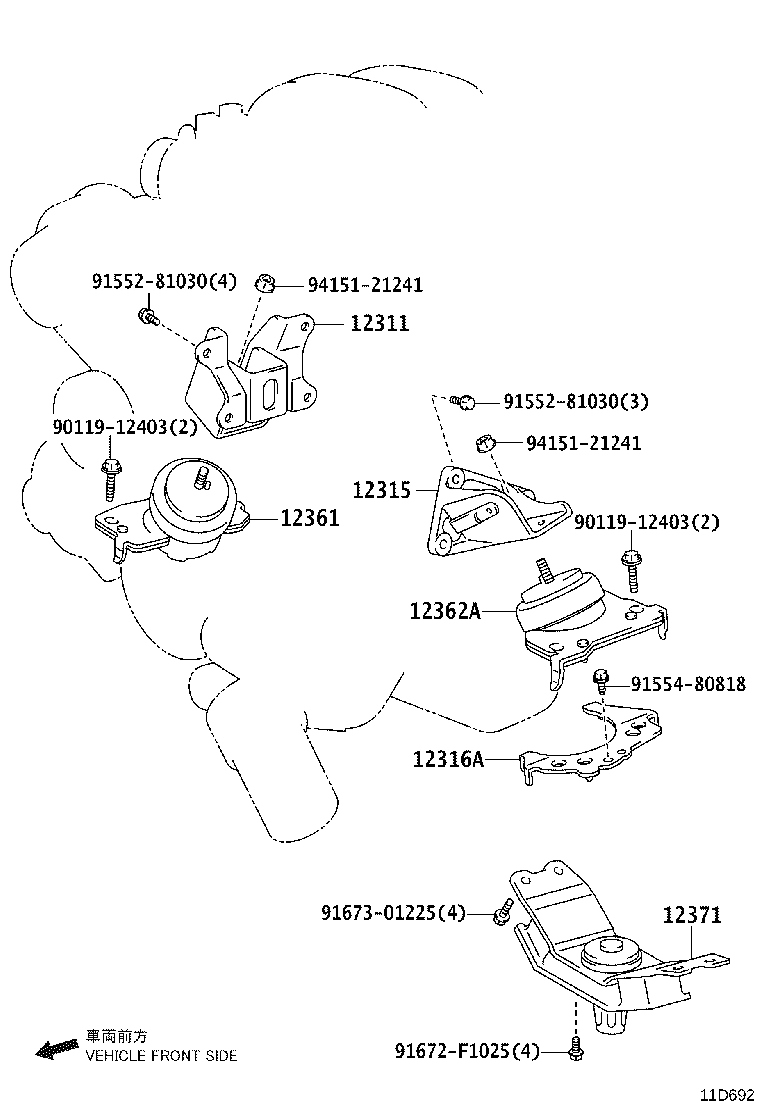

Click highlighted areas on diagram

diagram 12311 12315 12316A 12361 12362A 12371 9011912403 9011912403 9155281030 9155281030 9155480818 91672F1025 9167301225 9415121241 9415121241
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31091

1GRFE..GRJ200..K

 1
12311-31091

1GRFE..GRJ200..G

 1
12311-31090

1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31120

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
12315-31120

1GRFE..GRJ200..K

 1
12316A - BRACKET, ENGINE MOUNTING, FR NO.2 LH
12316-31010

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31240

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-31070

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31180

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..5F..G

 1
Common parts
90119-12403
91552-81030
91554-80818
91672-F1025
91673-01225
94151-21241
