GRJ200L-GMMNK (2007)

Toyota Land Cruiser

Production Sep 2007 - Jan 2012
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709-1201)1GRFE

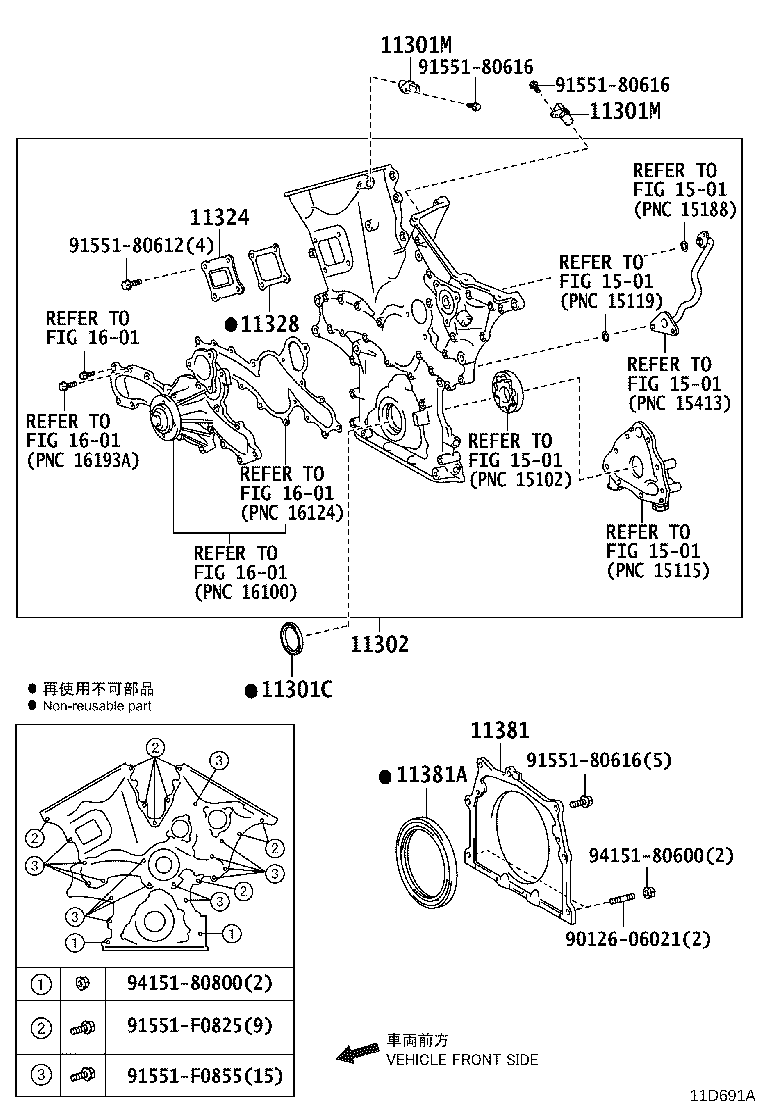

Click highlighted areas on diagram

diagram 11301C 11301M 11301M 11302 11324 11328 11381 11381A 1501 1501 1501 1501 1501 1601 1601 1601 1601 9012606021 9155180612 9155180616 9155180616 9155180616 91551F0825 91551F0855 9415180600 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42048

1GRFE..GRJ200..K

 1
90311-42048

1GRFE..GRJ200..G

 1
90311-42045

1GRFE..GRJ200..08S,09S;1GRFE..GRJ200..LHD..05S

 1
90311-42037

1GRFE..GRJ200

 1
11301M - SENSOR, CAM POSITION
90919-05060

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 2
90919-05060

1GRFE..GRJ200..K

 2
11301M - SENSOR, CAM POSITION
90919-05060

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 2
90919-05060

1GRFE..GRJ200..K

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31013

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
11310-31013

1GRFE..GRJ200..K

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
11324-31020

1GRFE..GRJ200..K

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
11328-31030

1GRFE..GRJ200..K

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31010

1GRFE..GRJ200..K

 1
11381-31010

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
11381A - SEAL, ENGINE REAR OIL
90311-99010

1GRFE..GRJ200..LHD..05S..G;1GRFE..GRJ200..(08S,09S)..G

 1
90311-99010

1GRFE..GRJ200..K

 1
Common parts
90126-06021
91551-80612
91551-80616
91551-F0825
91551-F0855
94151-80600
94151-80800
Linked diagrams
1501
1601
