GRJ200L-GDMRKV (2012)

Toyota Land Cruiser

Production Jan 2012 - Aug 2015
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

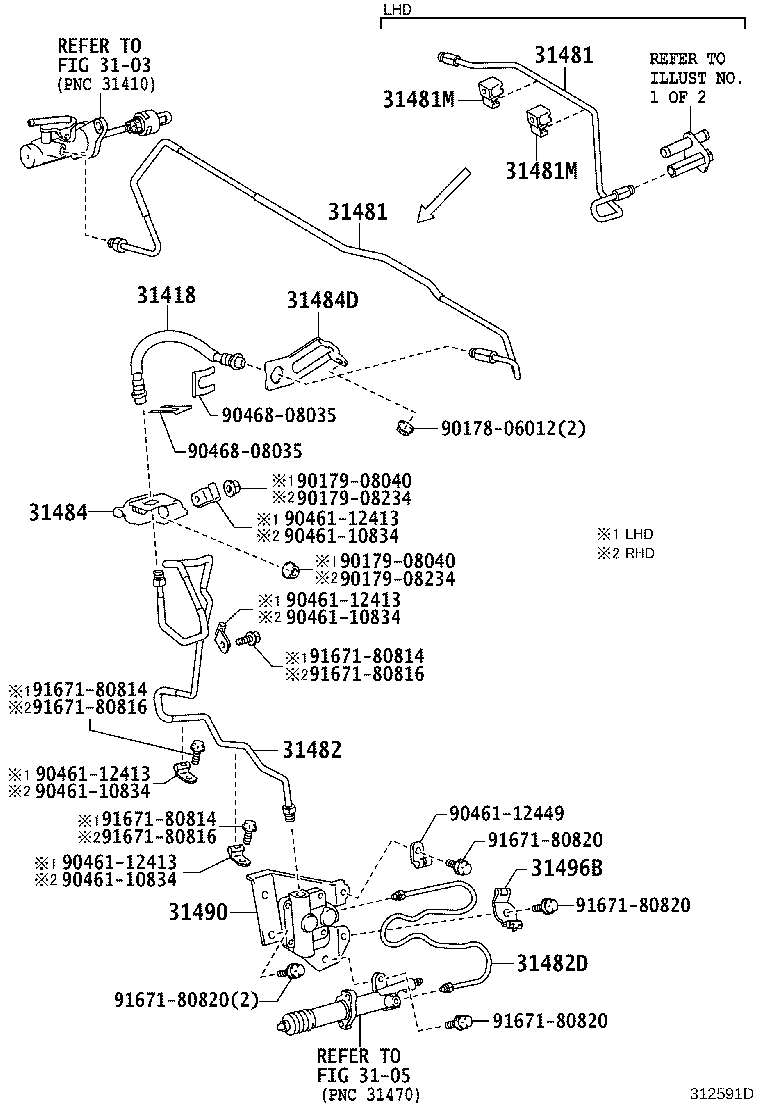

ILLUST NO. 2 OF 2(1201- )GRJ200..5F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481 31481M 31481M 31482 31482D 31484 31484D 31490 31496B 9017806012 9017908040 9017908040 9017908234 9017908234 9046110834 9046110834 9046110834 9046110834 9046112413 9046112413 9046112413 9046112413 9046112449 9046808035 9046808035 9167180814 9167180814 9167180814 9167180816 9167180816 9167180816 9167180820 9167180820 9167180820 9167180820
Part # Description Qty Price
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-60310

GRJ200..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-60440

GRJ200..5F

 1
Common parts
90178-06012
90179-08040
90179-08234
90461-10834
90461-12413
90461-12449
90468-08035
91671-80814
91671-80816
91671-80820
Linked diagrams
3103
3105
