GRJ200L-GDMRKV (2012)
Toyota Land Cruiser

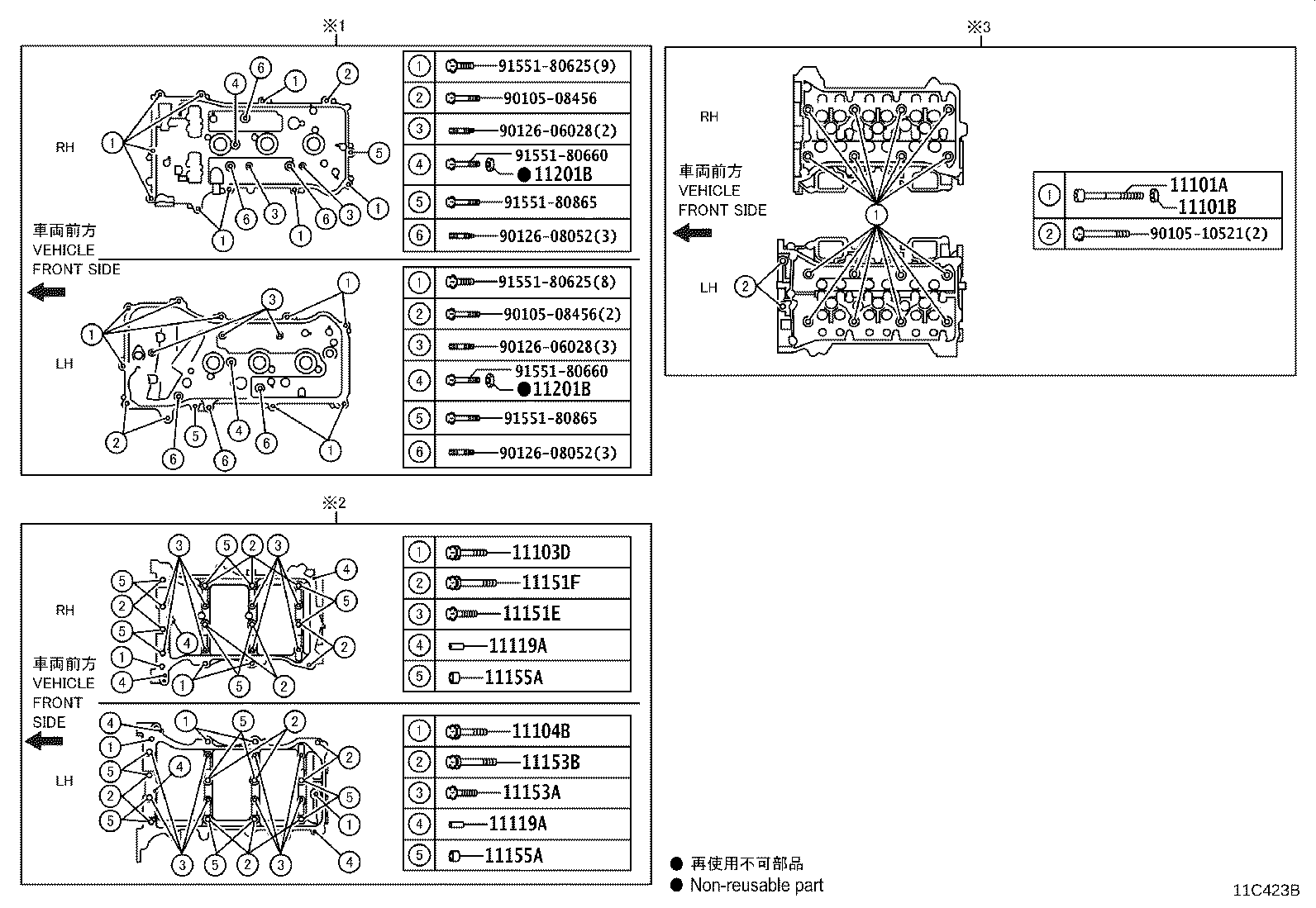

ILLUST NO. 2 OF 2(1201- )1GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11103D - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) | ||||
| 90105-08465 |
1GRFE..GRJ200 |
3 | ||
| 11104B - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) | ||||
| 90105-08465 |
1GRFE..GRJ200 |
4 | ||
| 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-07009 |
1GRFE..GRJ200 |
8 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 90105-08464 |
1GRFE..GRJ200 |
9 | ||
| 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07009 |
1GRFE..GRJ200 |
8 | ||
| 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 90105-08464 |
1GRFE..GRJ200 |
9 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1GRFE..GRJ200 |
20 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
1GRFE..GRJ200 |
20 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06013 |
1GRFE..GRJ200 |
2 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06013 |
1GRFE..GRJ200 |
2 | ||
| Common parts | ||||
| 90105-08456 | ||||
| 90105-10521 | ||||
| 90126-06028 | ||||
| 90126-08052 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91551-80865 | ||||

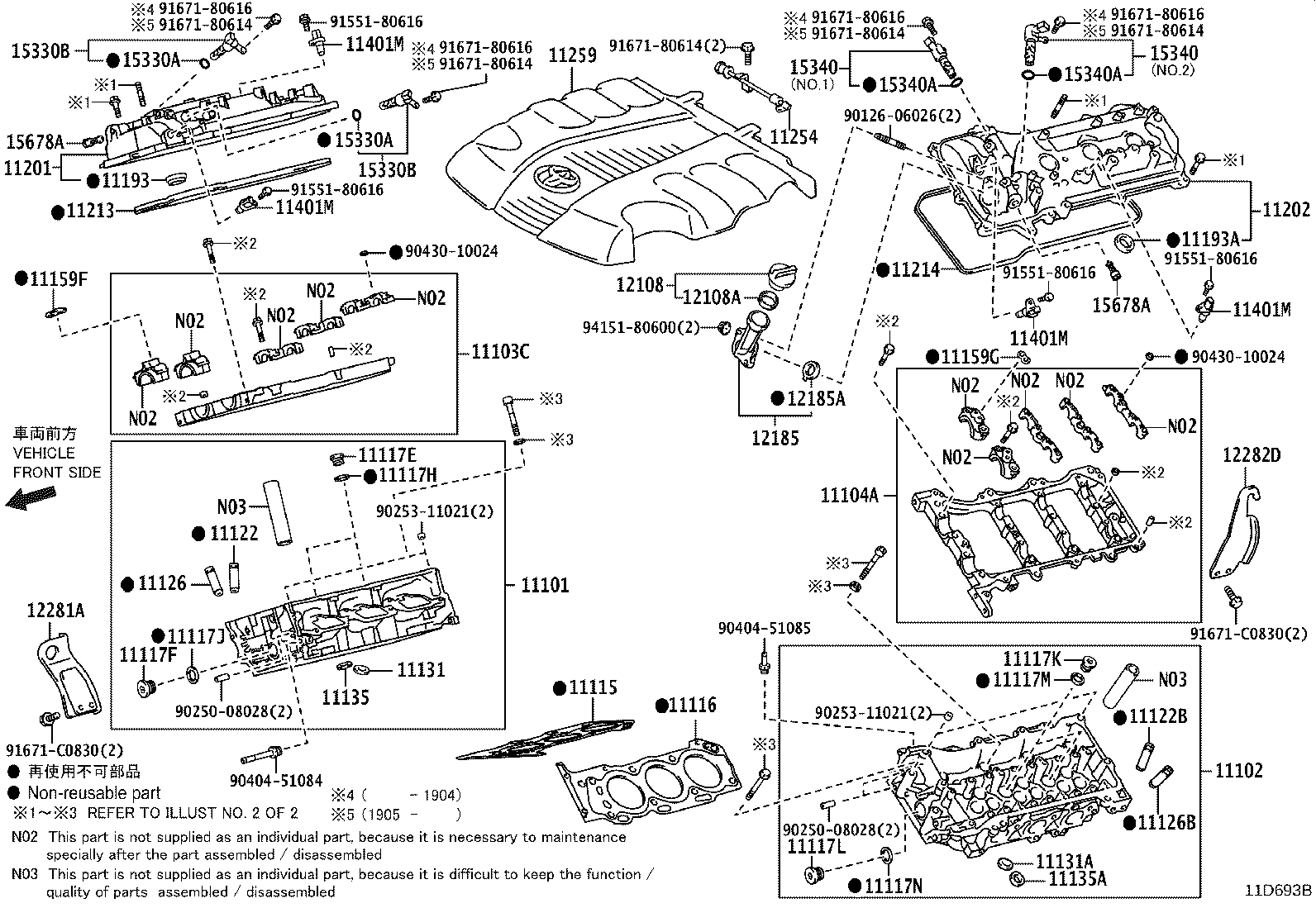

ILLUST NO. 1 OF 2(1201- )1GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39746 |
1GRFE..GRJ200 |
1 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-39226 |
1GRFE..GRJ200 |
1 | ||
| 11103C - HOUSING SUB-ASSY, CAMSHAFT, RH | ||||
| 11103-31032 |
1GRFE..GRJ200 |
1 | ||
| 11104A - HOUSING SUB-ASSY, CAMSHAFT, LH | ||||
| 11104-31043 |
1GRFE..GRJ200 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31090 |
1GRFE..GRJ200 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-31070 |
1GRFE..GRJ200 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20012 |
1GRFE..GRJ200 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
1GRFE..GRJ200 |
2 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-20012 |
1GRFE..GRJ200 |
2 | ||
| 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||||
| 90341-27006 |
1GRFE..GRJ200 |
1 | ||
| 11117M - GASKET(FOR WATER HOLE NO.2) | ||||
| 90430-20004 |
1GRFE..GRJ200 |
2 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-27005 |
1GRFE..GRJ200 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-31050 |
1GRFE..GRJ200 O/S 0.05 |
6 | ||
| 11122-31050 |
1GRFE..GRJ200 STD |
6 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11123-31050 |
1GRFE..GRJ200 O/S 0.05 |
6 | ||
| 11122-31050 |
1GRFE..GRJ200 STD |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-31030 |
1GRFE..GRJ200 STD |
6 | ||
| 11127-31030 |
1GRFE..GRJ200 O/S 0.05 |
6 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11126-31030 |
1GRFE..GRJ200 STD |
6 | ||
| 11127-31030 |
1GRFE..GRJ200 O/S 0.05 |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-31050 |
1GRFE..GRJ200 O/S 0.03 |
6 | ||
| 11131-31050 |
1GRFE..GRJ200 STD |
6 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-31050 |
1GRFE..GRJ200 STD |
6 | ||
| 11132-31050 |
1GRFE..GRJ200 O/S 0.03 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-31080 |
1GRFE..GRJ200 STD |
6 | ||
| 11136-31080 |
1GRFE..GRJ200 O/S 0.03 |
6 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-31080 |
1GRFE..GRJ200 STD |
6 | ||
| 11136-31080 |
1GRFE..GRJ200 O/S 0.03 |
6 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-31010 |
1GRFE..GRJ200 |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31010 |
1GRFE..GRJ200 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-70010 |
1GRFE..GRJ200 |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-70010 |
1GRFE..GRJ200 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-31260 |
1GRFE..GRJ200 |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-31040 |
1GRFE..GRJ200 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31050 |
1GRFE..GRJ200 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-31030 |
1GRFE..GRJ200 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-31030 |
1GRFE..GRJ200 |
1 | ||
| 11259 - COVER, V-BANK | ||||
| 11259-31210 |
1GRFE..GRJ200 |
1 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
1GRFE..GRJ200 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
1GRFE..GRJ200 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
1GRFE..GRJ200 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
1GRFE..GRJ200 |
4 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
1GRFE..GRJ200 |
1 | ||
| 12180-28010 |
1GRFE..GRJ200 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37004 |
1GRFE..GRJ200 |
1 | ||
| 90430-35001 |
1GRFE..GRJ200 |
1 | ||
| 12185 - HOUSING, OIL FILLER CAP | ||||
| 12190-31010 |
1GRFE..GRJ200 |
1 | ||
| 12185A - GASKET, OIL FILLER CAP HOUSING | ||||
| 12196-38010 |
1GRFE..GRJ200 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-31110 |
1GRFE..GRJ200 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-31140 |
1GRFE..GRJ200 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1GRFE..GRJ200 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1GRFE..GRJ200 |
2 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-38010 |
1GRFE..GRJ200 |
2 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-38010 |
1GRFE..GRJ200 |
2 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15340-31030 |
1GRFE..GRJ200 NO.2 |
1 | ||
| 15330-38010 |
1GRFE..GRJ200 NO.1 |
1 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15340-31030 |
1GRFE..GRJ200 NO.2 |
1 | ||
| 15330-38010 |
1GRFE..GRJ200 NO.1 |
1 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1GRFE..GRJ200 |
2 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1GRFE..GRJ200 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-46020 |
1GRFE..GRJ200 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-46020 |
1GRFE..GRJ200 |
2 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 90250-08028 | ||||
| 90253-11021 | ||||
| 90404-51084 | ||||
| 90404-51085 | ||||
| 90430-10024 | ||||
| 91551-80616 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-C0830 | ||||
| 94151-80600 | ||||
