GRJ200L-GDMNK (2015)

Toyota Land Cruiser

Production Aug 2015 - Jul 2017
Engine 1GRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )GRJ200..5F

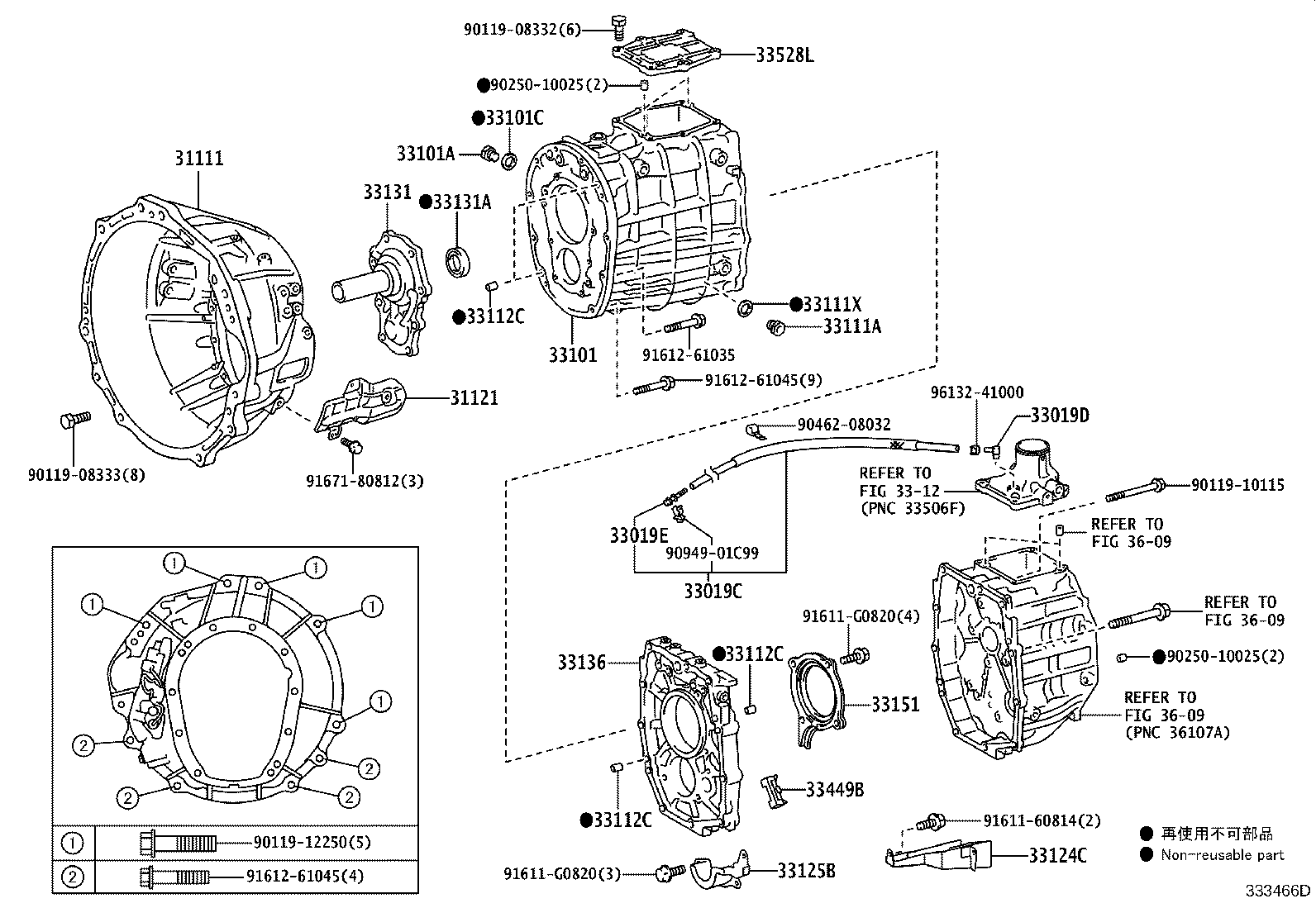

Click highlighted areas on diagram

H150

diagram 31111 31121 33019C 33019D 33019E 33101 33101A 33101C 33111A 33111X 33112C 33112C 33112C 3312 33124C 33125B 33131 33131A 33136 33151 33449B 33528L 3609 3609 3609 9011908332 9011908333 9011910115 9011912250 9025010025 9025010025 9046208032 9094901C99 9161160814 91611G0820 91611G0820 9161261035 9161261045 9161261045 9167180812 9613241000
Part # Description Qty Price
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-60020

GRJ200,VDJ200..5F

 1
Common parts
90119-08332
90119-08333
90119-10115
90119-12250
90250-10025
90462-08032
90949-01C99
91611-60814
91611-G0820
91612-61035
91612-61045
91671-80812
96132-41000
Linked diagrams
3312
3609
