FZJ80R-GNPEKQ (1992)

Toyota Land Cruiser

Production Aug 1992 - Jan 1998
Engine 1FZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

Click highlighted areas on diagram

FUEL SUB TANK

diagram 58279A 77017 77017B 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77023 77031 77031B 77100 77100A 77100B 77100D 77133 77134 77201 77201 77206 77206A 77206A 77213 77222A 77269 77271C 77271C 77290 77291 77293A 77305A 77308A 77366 77391 77606 77611 77611 77611A 77701V 8401 9011906621 9011908701 9011910153 9011910539 9011910539 9011910556 9011910556 9015940155 9046065002 9046106174 9046112296 9046400239 9046720134 91626B0818 9165140614 9165140614 9165160814 9165160814 9165160820 9165160820 9165160820 9165160820 9166540616 9338315014 93383A6014 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100
Part # Description Qty Price
Common parts
90119-06621
90119-08701
90119-10153
90119-10539
90119-10556
90159-40155
90460-65002
90461-06174
90461-12296
90464-00239
90467-20134
91626-B0818
91651-40614
91651-60814
91651-60820
91665-40616
93383-15014
93383-A6014
96132-41100
Linked diagrams
8401

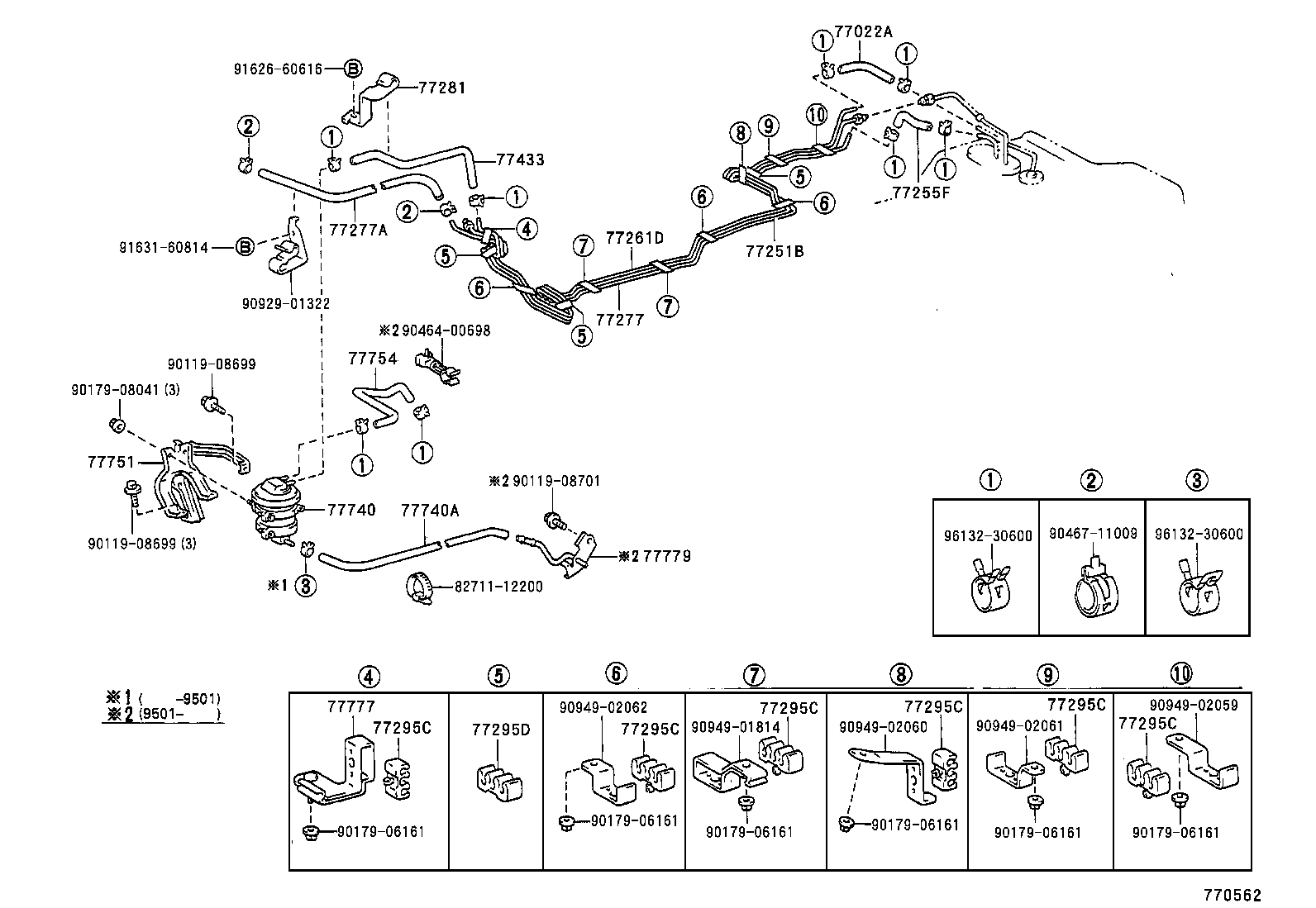

ILLUST NO. 3 OF 3(9208- )ARL,GCC..EFI ; (9709- )GEN..EFI

Click highlighted areas on diagram

GEN..EFI(VWNEZUELA SPEC)

diagram 77022A 77251B 77255F 77261D 77277 77277A 77281 77295C 77295C 77295C 77295C 77295C 77295C 77295D 77433 77740 77740A 77751 77754 77777 77779 8271112200 9011908699 9011908699 9011908701 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017908041 9046400698 9046711009 9092901322 9094901814 9094902059 9094902060 9094902061 9094902062 9162660616 9163160814 9613230600 9613230600
Part # Description Qty Price
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030

FJ80,FZJ80..ARL,GCC

*H,L=240

 1
95333-06030

FZJ80..ARL,GCC;FZJ80..STD..GEN..EFI;FZJ80..5F..VX..GEN..EFI

*H,L=240

 1
77251B - TUBE, FUEL MAIN
77251-60530

FZJ80..EFI

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06030

FJ80,FZJ80

*H,L=220

 1
95333-06030

FZJ80

*H,L=220

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-60250

FZJ80..STD..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-60490

FZJ80..EFI

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-66030

FZJ80..EFI

 1
23273-66031

FZJ80..EFI

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-60040

FZJ80..STD..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295D - GROMMET, FUEL TUBE
77295-60160

FZJ80..EFI

 3
77433 - HOSE, FUEL MAIN, NO.1
77433-60090

FZJ80..(ARL,GCC)..EFI

W(SUB TANK)

 1
77279-60020

FZJ80..STD..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77740 - CANISTER ASSY, CHARCOAL
77740-60340

FZJ80..(ARL,GCC)..EFI

 1
77740-60320

FZJ80..(ARL,GCC)..EFI

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-12268

FZJ80..ARL,GCC

 1
77795-60020

FZJ80..ARL,GCC;FZJ80..STD..EFI;FZJ80..5F..VX..GEN..EFI

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60220

FZJ80..ARL,GCC;FZJ80..STD..EFI;FZJ80..5F..VX..GEN..EFI

 1
77751-60220

FZJ80..(ARL,GCC)..EFI

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-60180

FZJ80..STD..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77754-60160

FZJ80..(ARL,GCC)..EFI

 1
77777 - BRACKET, FUEL TUBE CLAMP
77777-60070

FZJ80..EFI

 1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-60010

FZJ80..ARL,GCC

 1
Common parts
82711-12200
90119-08699
90119-08701
90179-06161
90179-08041
90464-00698
90467-11009
90929-01322
90949-01814
90949-02059
90949-02060
90949-02061
90949-02062
91626-60616
91631-60814
96132-30600

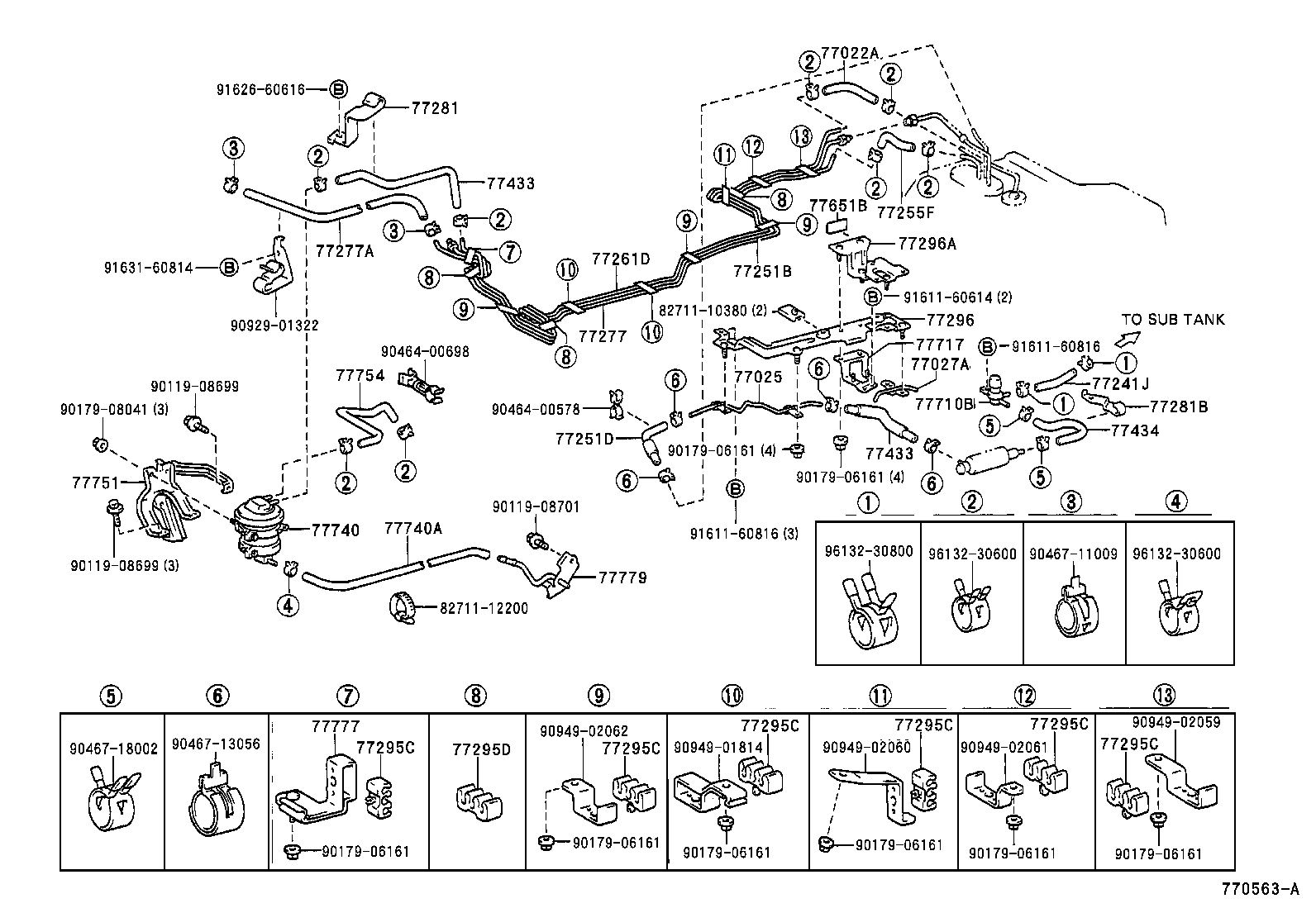

ILLUST NO. 3 OF 3(9208- )ARL,GCC..EFI

Click highlighted areas on diagram

W(SUB-TANK)

diagram 77022A 77025 77027A 77241J 77251B 77251D 77255F 77261D 77277 77277A 77281 77281B 77295C 77295C 77295C 77295C 77295C 77295C 77295D 77296 77296A 77433 77433 77434 77651B 77710B 77717 77740 77740A 77751 77754 77777 77779 8271110380 8271112200 9011908699 9011908699 9011908701 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017908041 9046400578 9046400698 9046711009 9046713056 9046718002 9092901322 9094901814 9094902059 9094902060 9094902061 9094902062 9161160614 9161160816 9161160816 9162660616 9163160814 9613230600 9613230600 9613230800
Part # Description Qty Price
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06030

FJ80,FZJ80..ARL,GCC

*H,L=240

 1
95333-06030

FZJ80..ARL,GCC;FZJ80..STD..GEN..EFI;FZJ80..5F..VX..GEN..EFI

*H,L=240

 1
77251B - TUBE, FUEL MAIN
77251-60530

FZJ80..EFI

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06030

FJ80,FZJ80

*H,L=220

 1
95333-06030

FZJ80

*H,L=220

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-60250

FZJ80..STD..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-60490

FZJ80..EFI

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-66030

FZJ80..EFI

 1
23273-66031

FZJ80..EFI

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-60040

FZJ80..STD..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295C - GROMMET, FUEL TUBE
77295-60150

FZJ80..EFI

 9
77295D - GROMMET, FUEL TUBE
77295-60160

FZJ80..EFI

 3
77433 - HOSE, FUEL MAIN, NO.1
77433-60090

FZJ80..(ARL,GCC)..EFI

W(SUB TANK)

 1
77279-60020

FZJ80..STD..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77433 - HOSE, FUEL MAIN, NO.1
77433-60090

FZJ80..(ARL,GCC)..EFI

W(SUB TANK)

 1
77279-60020

FZJ80..STD..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77740 - CANISTER ASSY, CHARCOAL
77740-60340

FZJ80..(ARL,GCC)..EFI

 1
77740-60320

FZJ80..(ARL,GCC)..EFI

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-12268

FZJ80..ARL,GCC

 1
77795-60020

FZJ80..ARL,GCC;FZJ80..STD..EFI;FZJ80..5F..VX..GEN..EFI

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60220

FZJ80..ARL,GCC;FZJ80..STD..EFI;FZJ80..5F..VX..GEN..EFI

 1
77751-60220

FZJ80..(ARL,GCC)..EFI

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-60180

FZJ80..STD..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80..5F..VX..GEN..EFI

 1
77754-60160

FZJ80..(ARL,GCC)..EFI

 1
77777 - BRACKET, FUEL TUBE CLAMP
77777-60070

FZJ80..EFI

 1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-60010

FZJ80..ARL,GCC

 1
Common parts
82711-10380
82711-12200
90119-08699
90119-08701
90179-06161
90179-08041
90464-00578
90464-00698
90467-11009
90467-13056
90467-18002
90929-01322
90949-01814
90949-02059
90949-02060
90949-02061
90949-02062
91611-60614
91611-60816
91626-60616
91631-60814
96132-30600
96132-30800
