8718 - HEATING & AIR CONDITIONING - COOLER PIPING

FZJ80R-GNMNKQ (1992)

Toyota Land Cruiser

Production Aug 1992 - Jan 1998

Engine 1FZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

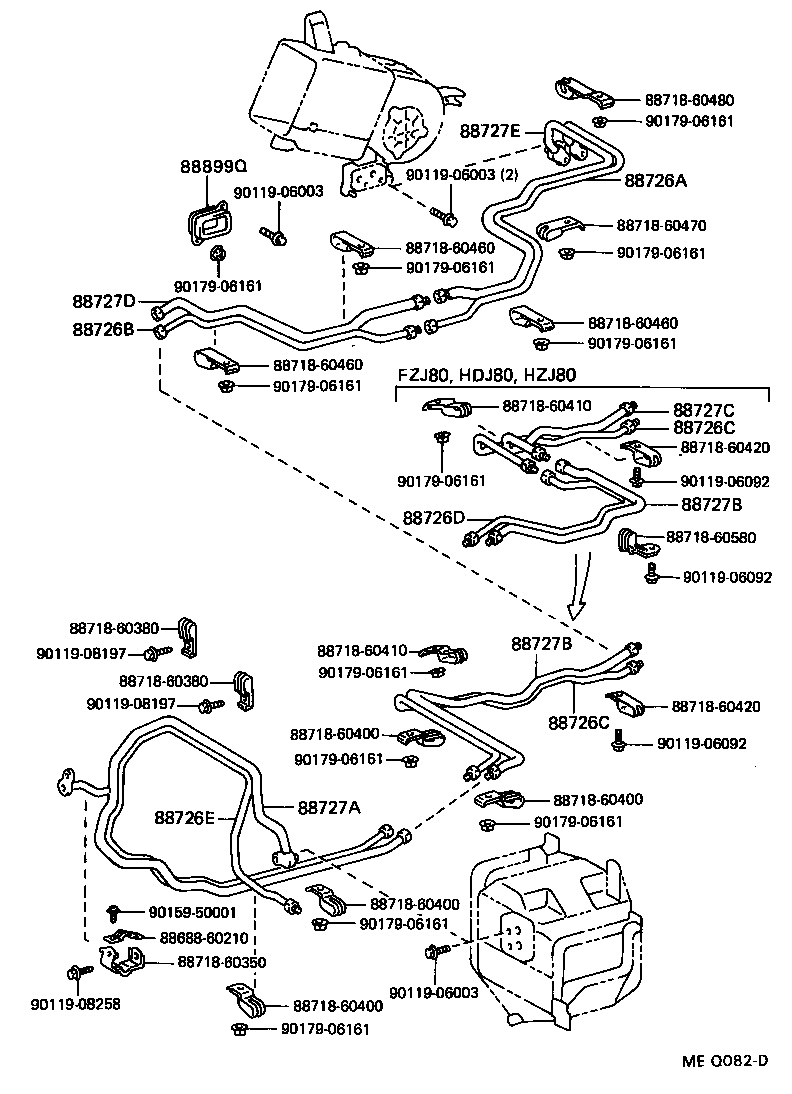

ILLUST NO. 3 OF 4(9001-9501)RHD..GX,VX

Click highlighted areas on diagram

REAR PIPING

Part #	Description	Period	Qty
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60451	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-6A470	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A460	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88716-60440	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88716-6A540	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88716-6A540	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-60370	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88716-6A530	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88716-60370	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88726E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A091	FZJ80..RHD..LUB	09/1992 - 05/1993	1
88716-6A090	FZJ80..RHD..LUB	08/1992 - 09/1992	1
88716-6A510	FZJ80..RHD..LUB	05/1993 - 01/1995	1
88716-6A511	FZJ80..RHD..LUB	01/1995 - 01/1998	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60770	FZJ80..RHD..LUB	05/1993 - 01/1995	1
88717-60771	FZJ80..RHD..LUB	01/1995 - 01/1998	1
88717-60530	FZJ80..RHD..LUB	08/1992 - 05/1993	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-60140	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88717-60140	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88717-60780	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-60140	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88717-60140	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88717-60780	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-60160	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88717-60790	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88717-60160	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-60210	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88717-60710	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88727E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-60720	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88717-60221	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88899Q - PLATE, COVER
88899-60060	FZJ80,HDJ80,HZJ80..ARL MAKER OPTION	08/1992 - 05/1993	1
88899-60050	FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION	01/1995 - 01/1998	1
88899-60050	FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION	08/1992 - 05/1993	1
88899-60050	HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION	05/1993 - 01/1995	1
88899-60060	HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION	05/1993 - 01/1995	1
88899-60060	FZJ80,HDJ80,HZJ80..ARL MAKER OPTION	01/1995 - 01/1998	1
Common parts
88688-60210
88718-60350
88718-60380
88718-60400
88718-60410
88718-60420
88718-60460
88718-60470
88718-60480
88718-60580
90119-06003
90119-06092
90119-08197
90119-08258
90159-50001
90179-06161

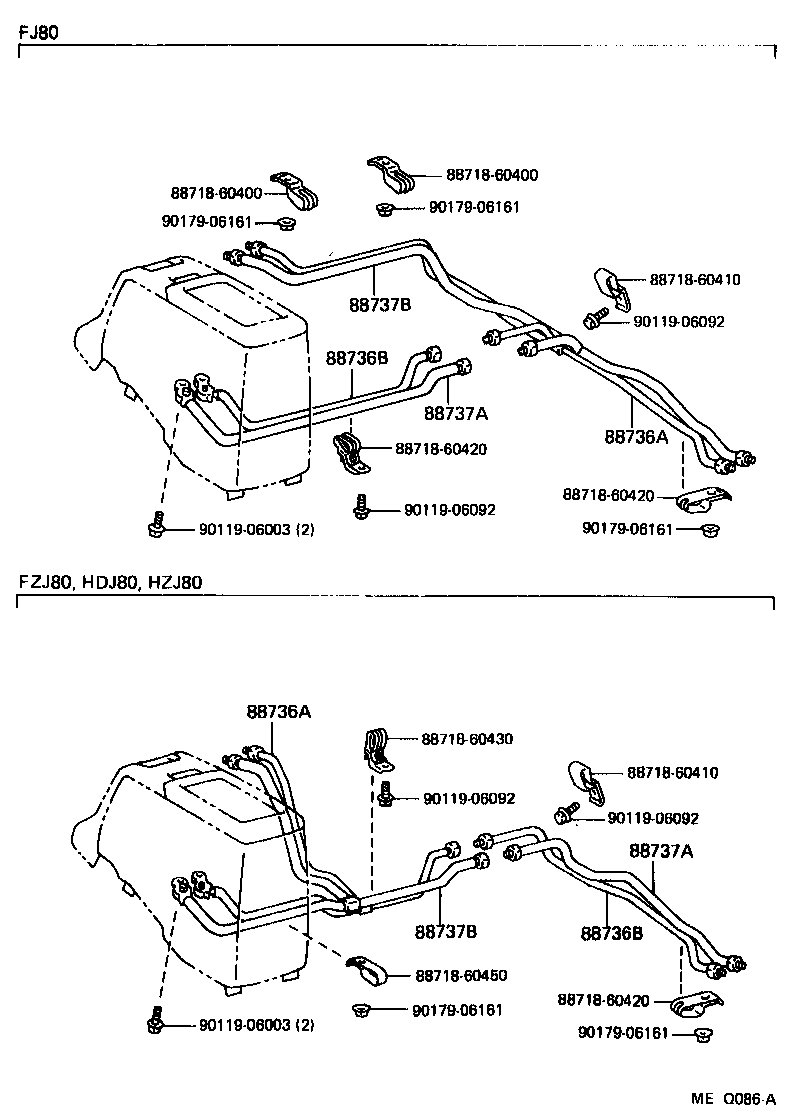

ILLUST NO. 4 OF 4(9001-9501)GX,VX

Click highlighted areas on diagram

COOL BOX

Part #	Description	Period	Qty
88736A - TUBE, LIQUID, A(FOR COOL BOX)
88716-6A550	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88716-6A070	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88736A - TUBE, LIQUID, A(FOR COOL BOX)
88716-6A550	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88716-6A070	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88736B - TUBE, LIQUID, B(FOR COOL BOX)
88716-6A540	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-60380	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88736B - TUBE, LIQUID, B(FOR COOL BOX)
88716-6A540	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-60380	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88737A - TUBE, SUCTION, A(FOR COOL BOX)
88717-60150	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88717-60790	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88717-60160	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88737A - TUBE, SUCTION, A(FOR COOL BOX)
88717-60150	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88717-60790	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88717-60160	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88737B - TUBE, SUCTION, B(FOR COOL BOX)
88717-60810	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88717-60510	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88737B - TUBE, SUCTION, B(FOR COOL BOX)
88717-60810	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88717-60510	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
Common parts
88718-60400
88718-60410
88718-60420
88718-60430
88718-60450
90119-06003
90119-06092
90179-06161

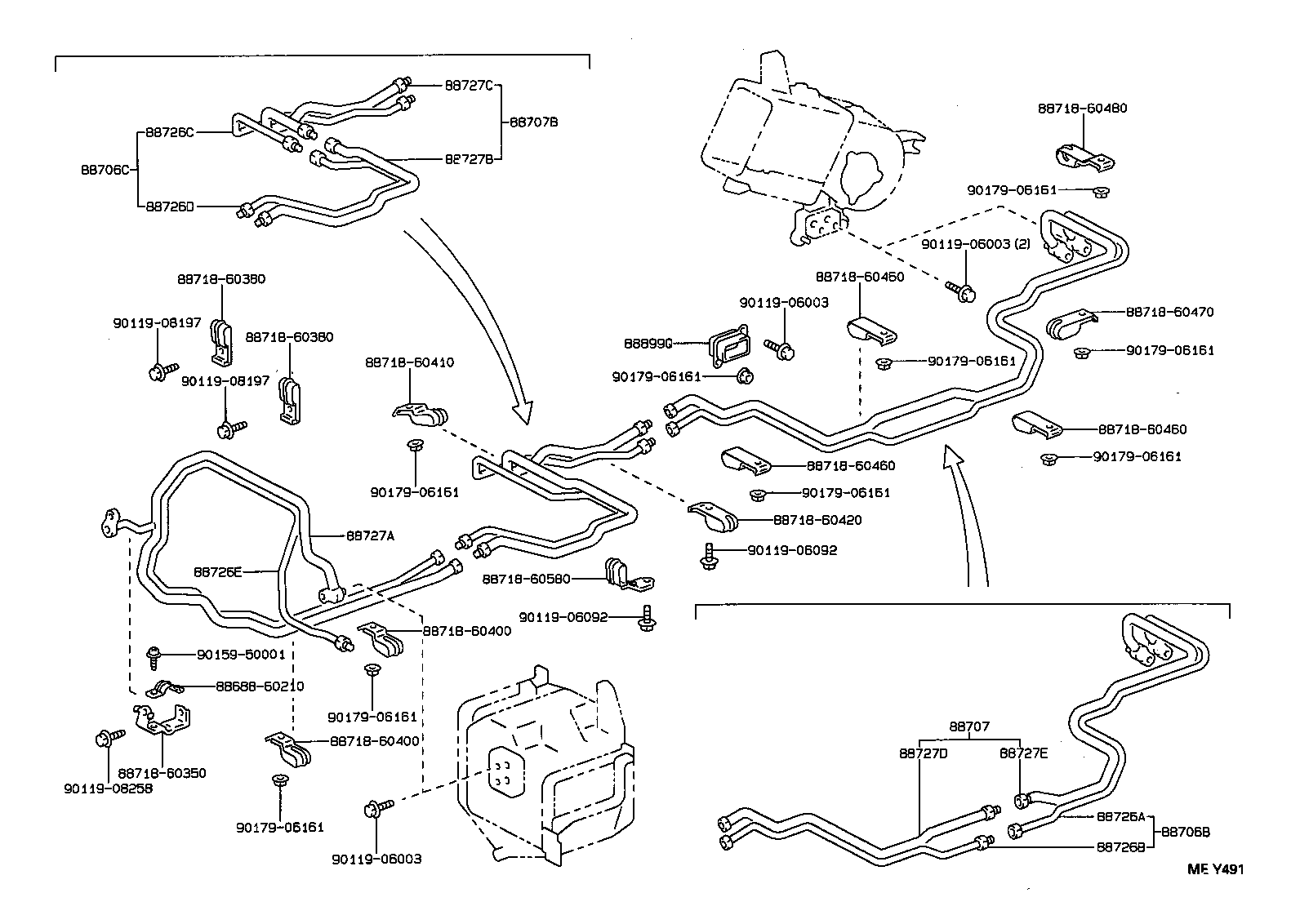

ILLUST NO. 3 OF 4(9501- )RHD..GX,VX

Click highlighted areas on diagram

REAR PIPING

Part #	Description	Period	Qty
88706B - TUBE SUB-ASSY, LIQUID, B
88706-60110	FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	01/1995 - 01/1998	1
88706C - TUBE SUB-ASSY, LIQUID, C
88706-60120	FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	01/1995 - 01/1998	1
88707 - PIPE SUB-ASSY, SUCTION
88707-60070	FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	01/1995 - 01/1998	1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-60080	FZJ80..4FC..GEN;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	01/1995 - 01/1998	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60451	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-6A470	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A460	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88716-60440	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88716-6A540	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-60370	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88716-6A530	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88716-60370	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88726E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-6A091	FZJ80..RHD..LUB	09/1992 - 05/1993	1
88716-6A090	FZJ80..RHD..LUB	08/1992 - 09/1992	1
88716-6A510	FZJ80..RHD..LUB	05/1993 - 01/1995	1
88716-6A511	FZJ80..RHD..LUB	01/1995 - 01/1998	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60770	FZJ80..RHD..LUB	05/1993 - 01/1995	1
88717-60771	FZJ80..RHD..LUB	01/1995 - 01/1998	1
88717-60530	FZJ80..RHD..LUB	08/1992 - 05/1993	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-60140	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88717-60140	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88717-60780	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-60160	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88717-60790	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88717-60160	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-60210	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88717-60710	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88727E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-60720	FZJ80..4FC..GEN;FZJ80..(GX,VX)..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..(GX,VX)..(CBR,DSL,TD2,TD4)	05/1993 - 01/1998	1
88717-60221	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88899Q - PLATE, COVER
88899-60060	FZJ80,HDJ80,HZJ80..ARL MAKER OPTION	08/1992 - 05/1993	1
88899-60050	FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION	01/1995 - 01/1998	1
88899-60050	FZJ80,HDJ80,HZJ80..LUB..ARL DEALER OPTION	08/1992 - 05/1993	1
88899-60050	HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION	05/1993 - 01/1995	1
88899-60060	HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION	05/1993 - 01/1995	1
88899-60060	FZJ80,HDJ80,HZJ80..ARL MAKER OPTION	01/1995 - 01/1998	1
Common parts
88688-60210
88718-60350
88718-60380
88718-60400
88718-60410
88718-60420
88718-60460
88718-60470
88718-60480
88718-60580
90119-06003
90119-06092
90119-08197
90119-08258
90159-50001
90179-06161

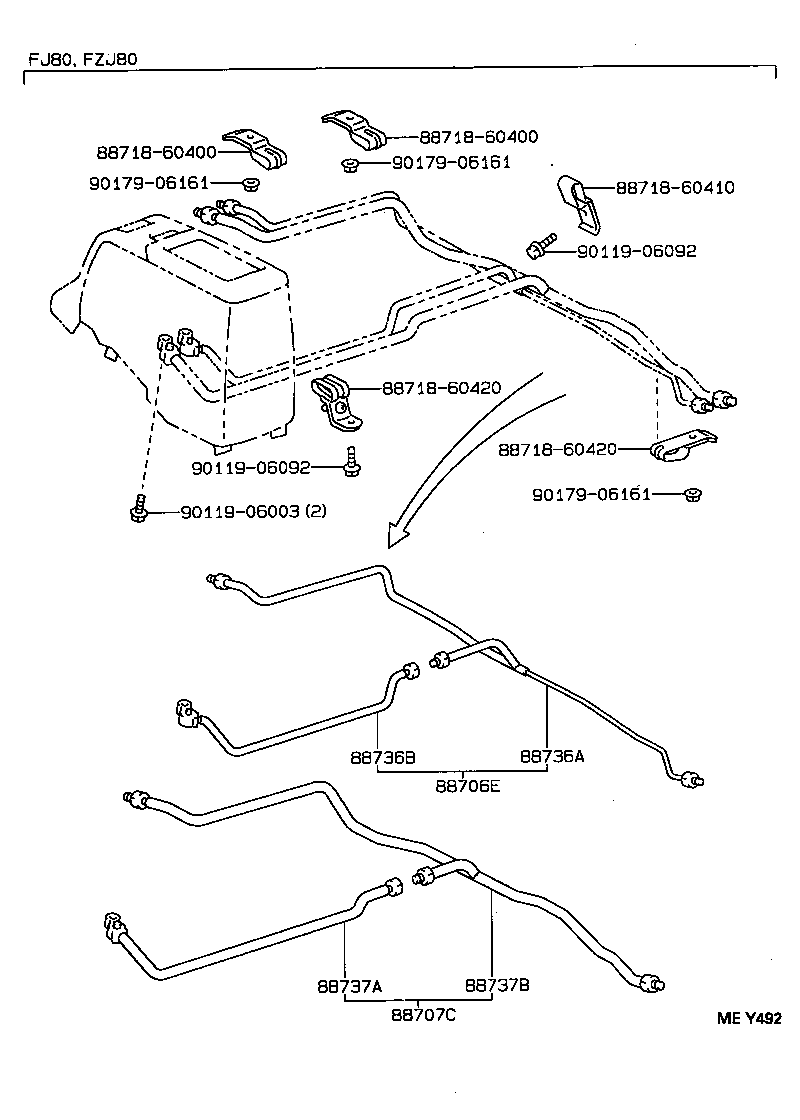

ILLUST NO. 4 OF 4(9501- )GX,VX

Click highlighted areas on diagram

COOL BOX

Part #	Description	Period	Qty
88706E - TUBE SUB-ASSY, LIQUID, E
88706-60130	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	01/1995 - 01/1998	1
88707C - TUBE SUB-ASSY, SUCTION, C
88707-60090	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	01/1995 - 01/1998	1
88736A - TUBE, LIQUID, A(FOR COOL BOX)
88716-6A550	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88716-6A070	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88736B - TUBE, LIQUID, B(FOR COOL BOX)
88716-6A540	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88716-60390	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88716-60380	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88737A - TUBE, SUCTION, A(FOR COOL BOX)
88717-60150	FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 08/1992	1
88717-60790	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88717-60160	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
88737B - TUBE, SUCTION, B(FOR COOL BOX)
88717-60810	HDJ80..LUB;FZJ80..GX,VX;HZJ80..5F..(GX,VX)	05/1993 - 01/1998	1
88717-60510	FZJ80,HDJ80,HZJ80..GX,VX	08/1992 - 05/1993	1
Common parts
88718-60400
88718-60410
88718-60420
90119-06003
90119-06092
90179-06161
