FZJ80R-GNMEU (1992)
Toyota Land Cruiser

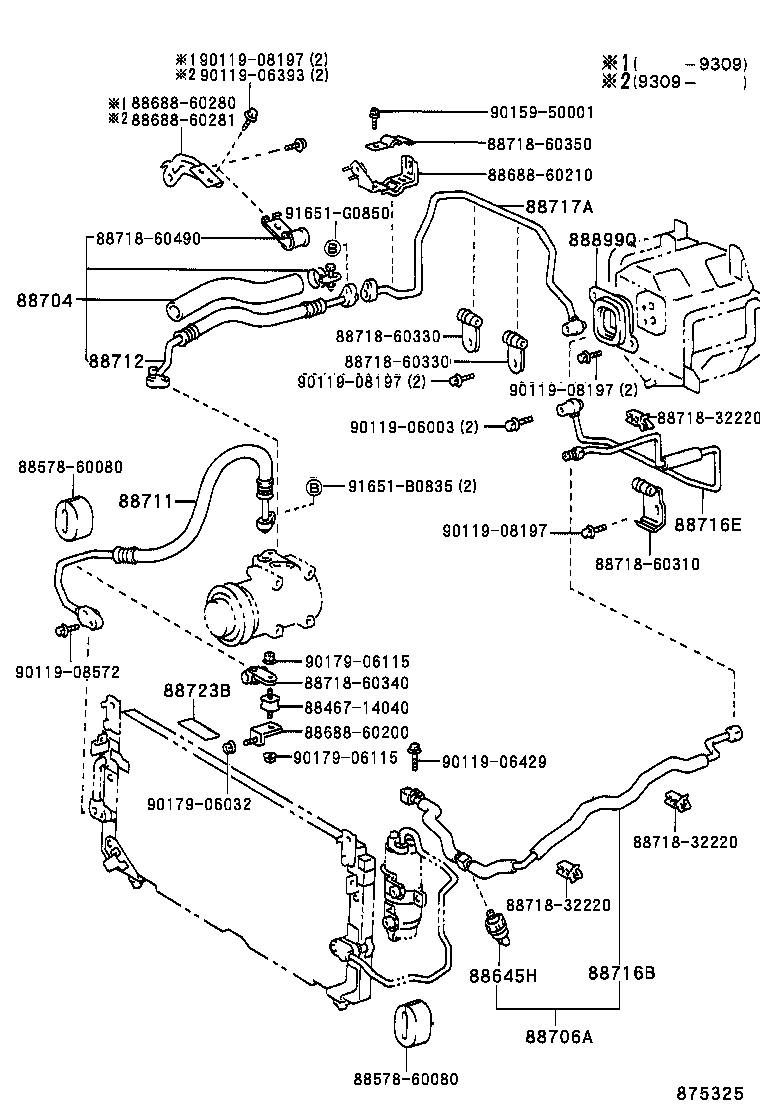

ILLUST NO. 2 OF 4(9201- )FZJ80..RHD
FRONT PIPING---SINGLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60020 |
FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN |
1 | ||
| 88645-60030 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX) |
1 | ||
| 88645-60020 |
FZJ80..GX,VX;HDJ80,HZJ80..RHD;FZJ80..RHD..STD..CBR |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60030 |
FZJ80 |
1 | ||
| 88704-60030 |
FZJ80 |
1 | ||
| 88704-60050 |
FZJ80 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60060 |
FZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88706-60060 |
FJ80..EFI;FZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60240 |
FZJ80 |
1 | ||
| 88711-60240 |
FZJ80 |
1 | ||
| 88711-60360 |
FZJ80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60430 |
FZJ80 |
1 | ||
| 88712-60430 |
FZJ80..GCC,GEN;FZJ80..LUB..ARL |
1 | ||
| 88712-60590 |
FZJ80 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60310 |
FZJ80..GX..(GCC,GEN);FZJ80..VX..(ARL,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60310 |
FZJ80..GX;FJ80..VX..EFI;FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FJ80,HDJ80..RHD..VX;FZJ80,HZJ80..RHD..(GX,VX)..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-6A410 |
FZJ80..RHD..LUB NO.1 |
1 | ||
| 88716-6A410 |
FZJ80..GX,STD;FZJ80..RHD..VX..CBR;FZJ80..VX..(ARL,GCC) |
1 | ||
| 88726-60230 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60010 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60010 |
FZJ80,HZJ80..RHD..(GX,VX)..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60220 |
FZJ80,HZJ80..RHD..(GX,VX)..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88726-60240 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60090 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..GEN |
1 | ||
| 88717-60670 |
FZJ80,HZJ80..RHD..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2) |
1 | ||
| 88717-60090 |
FZJ80,HZJ80..RHD..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-30030 |
FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN;FZJ80,HZJ80..GX..(GCC,GEN);FJ80,HDJ80,HZJ80..LUB..VX..(DSL,EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88723-26010 |
FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..GEN;HZJ80..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-30040 |
FZJ80..(GX,VX)..GEN;FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
HDJ80..GX;FZJ80..4FC..GX;FZJ80,HDJ80..VX..GEN..(EFI,TD2);FZJ80,HZJ80..5F..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-30030 |
FZJ80,HZJ80..GX..(GCC,GEN);FZJ80,HDJ80,HZJ80..VX..(ARL,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88723-20040 |
HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC);FZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 88723-30040 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88688-60210 | ||||
| 88688-60280 | ||||
| 88688-60281 | ||||
| 88718-32220 | ||||
| 88718-60310 | ||||
| 88718-60330 | ||||
| 88718-60340 | ||||
| 88718-60350 | ||||
| 88718-60490 | ||||
| 90119-06003 | ||||
| 90119-06393 | ||||
| 90119-06429 | ||||
| 90119-08197 | ||||
| 90119-08572 | ||||
| 90159-50001 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-B0835 | ||||
| 91651-G0850 | ||||

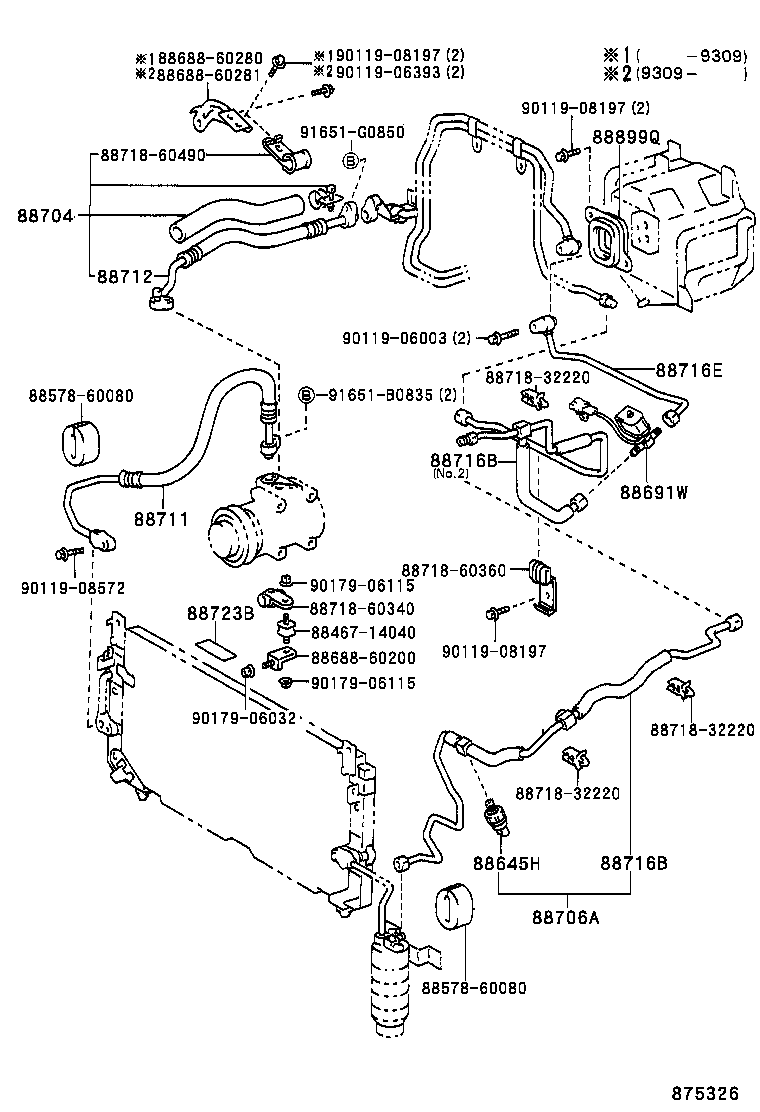

ILLUST NO. 2 OF 4(9201- )FZJ80..RHD
FRONT PIPING---DUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60020 |
FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN |
1 | ||
| 88645-60030 |
FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX) |
1 | ||
| 88645-60020 |
FZJ80..GX,VX;HDJ80,HZJ80..RHD;FZJ80..RHD..STD..CBR |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-60050 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88690-60190 |
FZJ80..4FC..SOB;FZJ80..5F..(GX,VX);HDJ80,HZJ80..GX,VX;FZJ80..4FC..LUB..VX..GCC;FZJ80..4FC..(GX,VX)..(ARL,GEN) |
1 | ||
| 88690-60050 |
HDJ80..RHD;FZJ80,HZJ80..GX,VX |
1 | ||
| 88690-60050 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60030 |
FZJ80 |
1 | ||
| 88704-60030 |
FZJ80 |
1 | ||
| 88704-60050 |
FZJ80 |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-60060 |
FZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88706-60060 |
FJ80..EFI;FZJ80..GX,VX DUAL AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60240 |
FZJ80 |
1 | ||
| 88711-60240 |
FZJ80 |
1 | ||
| 88711-60360 |
FZJ80 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60430 |
FZJ80 |
1 | ||
| 88712-60430 |
FZJ80..GCC,GEN;FZJ80..LUB..ARL |
1 | ||
| 88712-60590 |
FZJ80 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60310 |
FZJ80..GX..(GCC,GEN);FZJ80..VX..(ARL,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60310 |
FZJ80..GX;FJ80..VX..EFI;FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FJ80,HDJ80..RHD..VX;FZJ80,HZJ80..RHD..(GX,VX)..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-6A410 |
FZJ80..RHD..LUB NO.1 |
1 | ||
| 88716-6A410 |
FZJ80..GX,STD;FZJ80..RHD..VX..CBR;FZJ80..VX..(ARL,GCC) |
1 | ||
| 88726-60230 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60310 |
FZJ80..GX..(GCC,GEN);FZJ80..VX..(ARL,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-60310 |
FZJ80..GX;FJ80..VX..EFI;FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60030 |
FJ80,HDJ80..RHD..VX;FZJ80,HZJ80..RHD..(GX,VX)..GEN DUAL AIR CONDITIONER,NO.2 |
1 | ||
| 88716-6A410 |
FZJ80..RHD..LUB NO.1 |
1 | ||
| 88716-6A410 |
FZJ80..GX,STD;FZJ80..RHD..VX..CBR;FZJ80..VX..(ARL,GCC) |
1 | ||
| 88726-60230 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88726-60010 |
FJ80,HDJ80..RHD..VX;FJ80,FZJ80,HZJ80..RHD..(GX,VX)..GEN SINGLE AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80..RHD..LUB;FJ80,HDJ80,HZJ80..RHD..(GX,VX)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88726-60010 |
FZJ80,HZJ80..RHD..(GX,VX)..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88726-60040 |
FZJ80,HDJ80,HZJ80..RHD..(GX,VX) DUAL AIR CONDITIONER |
1 | ||
| 88726-60220 |
FZJ80,HZJ80..RHD..(GX,VX)..GEN;FZJ80,HDJ80..RHD..VX..(EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88726-60240 |
FZJ80..VX..ARL;FZJ80,HDJ80,HZJ80..RHD..(GX,VX)..(CBR,DSL,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-30030 |
FJ80..GX..GCC;FZJ80..VX..GEN;FJ80..(GX,VX)..GEN;FZJ80,HZJ80..GX..(GCC,GEN);FJ80,HDJ80,HZJ80..LUB..VX..(DSL,EFI,TD2) SINGLE AIR CONDITIONER |
1 | ||
| 88723-26010 |
FJ80,HDJ80..GX..(EFI,TD2);FZJ80,HDJ80..(GX,VX)..GEN;HZJ80..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-30040 |
FZJ80..(GX,VX)..GEN;FJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN)..(DSL,EFI,TD2) DUAL AIR CONDITIONER |
1 | ||
| 88723-26010 |
HDJ80..GX;FZJ80..4FC..GX;FZJ80,HDJ80..VX..GEN..(EFI,TD2);FZJ80,HZJ80..5F..(GX,VX)..(ARL,GEN) W(DUEL *AIC & COOL BOX) |
1 | ||
| 88723-30030 |
FZJ80,HZJ80..GX..(GCC,GEN);FZJ80,HDJ80,HZJ80..VX..(ARL,GEN) SINGLE AIR CONDITIONER |
1 | ||
| 88723-20040 |
HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC);FZJ80..(GX,STD)..(GCC,GEN) |
1 | ||
| 88723-30040 |
FZJ80,HDJ80,HZJ80..(GX,VX)..(ARL,GEN) DUAL AIR CONDITIONER |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88578-60080 | ||||
| 88688-60200 | ||||
| 88688-60280 | ||||
| 88688-60281 | ||||
| 88718-32220 | ||||
| 88718-60340 | ||||
| 88718-60360 | ||||
| 88718-60490 | ||||
| 90119-06003 | ||||
| 90119-06393 | ||||
| 90119-08197 | ||||
| 90119-08572 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91651-B0835 | ||||
| 91651-G0850 | ||||
ILLUST NO. 3 OF 4(9001-9501)RHD..GX,VX
REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-60451 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60451 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-60440 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60440 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-60370 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60370 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88726E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-6A090 |
FZJ80..RHD..LUB |
1 | ||
| 88716-6A091 |
FZJ80..RHD..LUB |
1 | ||
| 88716-6A090 |
FZJ80..RHD..LUB |
1 | ||
| 88716-6A510 |
FZJ80..RHD..LUB |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-60530 |
FZJ80..RHD..LUB |
1 | ||
| 88717-60770 |
FZJ80..RHD..LUB |
1 | ||
| 88717-60530 |
FZJ80..RHD..LUB |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60140 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88727D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-60210 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60210 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88727E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-60221 |
FZJ80..GX,VX;FJ80,HDJ80,HZJ80..(GX,VX)..(DSL,EFI,TD2) |
1 | ||
| 88717-60221 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-60050 |
FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 88899-60050 |
HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION |
1 | ||
| 88899-60050 |
FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 88899-60060 |
HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION |
1 | ||
| Common parts | ||||
| 88688-60210 | ||||
| 88718-60350 | ||||
| 88718-60380 | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 88718-60460 | ||||
| 88718-60470 | ||||
| 88718-60480 | ||||
| 88718-60580 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90119-08197 | ||||
| 90119-08258 | ||||
| 90159-50001 | ||||
| 90179-06161 | ||||
ILLUST NO. 4 OF 4(9001-9501)GX,VX
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-6A070 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-6A070 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60380 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88736B - TUBE, LIQUID, B(FOR COOL BOX) | ||||
| 88716-60390 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88716-60380 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-60150 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737A - TUBE, SUCTION, A(FOR COOL BOX) | ||||
| 88717-60150 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88717-60160 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-60510 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 88737B - TUBE, SUCTION, B(FOR COOL BOX) | ||||
| 88717-60510 |
FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| Common parts | ||||
| 88718-60400 | ||||
| 88718-60410 | ||||
| 88718-60420 | ||||
| 88718-60430 | ||||
| 88718-60450 | ||||
| 90119-06003 | ||||
| 90119-06092 | ||||
| 90179-06161 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
