FZJ80L-GNMRK (1997)
Toyota Land Cruiser

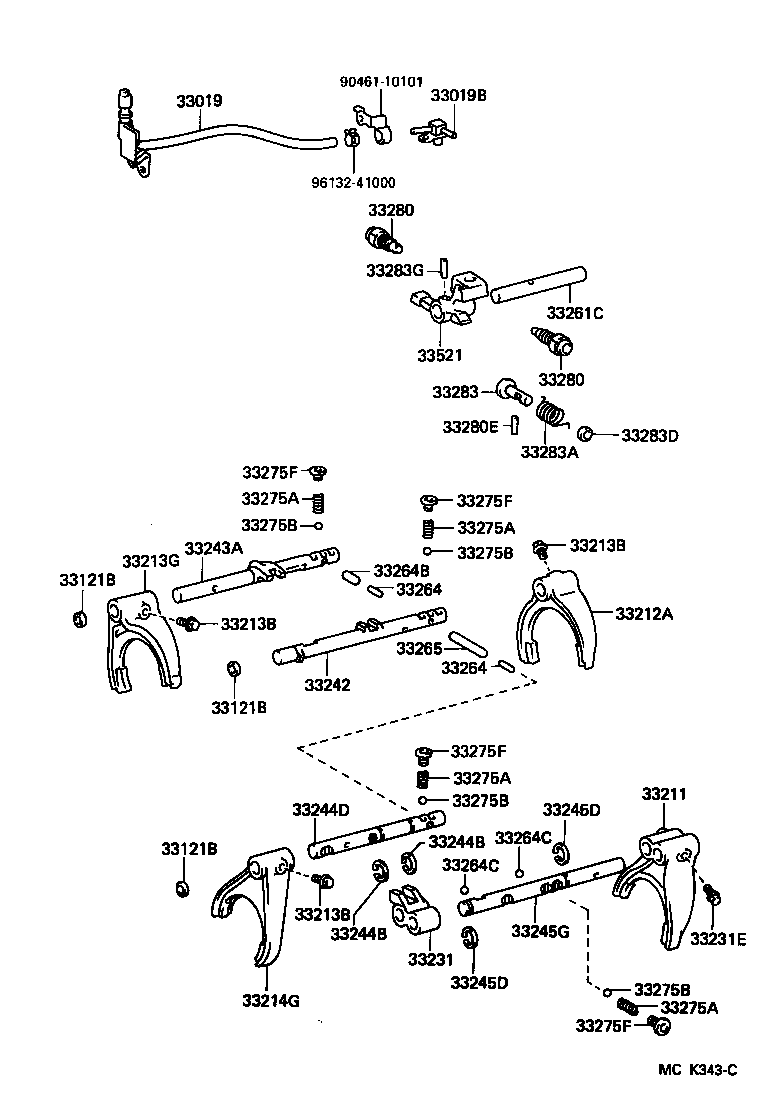

(9801- )5F
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
3 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-60040 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33215-37021 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60040 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-60060 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-60040 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33230-60010 |
FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33230-60011 |
FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-60030 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33231-60020 |
FJ80,FZJ80,HDJ80,HZJ80..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33231E - BOLT(FOR REVERSE SHIFT HEAD) | ||||
| 90105-07001 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-60040 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33242-60070 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-60110 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33243-60080 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-60030 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-60040 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33245-60070 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-60060 |
FZJ80,HDJ80..5F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=15.45 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=15.45 |
2 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
FJ80,FZJ80,HDJ80,HZJ80..MTM L=13.6,OD=9.5 |
1 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10024 |
FJ80,FZJ80,HDJ80,HZJ80..MTM L=56.95,OD=9.53 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60030 |
FJ80,FZJ80,HDJ80,HZJ80..MTM LH |
1 | ||
| 33280-60031 |
FZJ80,HDJ80,HZJ80..5F LH |
1 | ||
| 33280-60020 |
FJ80,FZJ80,HDJ80,HZJ80..MTM RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60030 |
FJ80,FZJ80,HDJ80,HZJ80..MTM LH |
1 | ||
| 33280-60031 |
FZJ80,HDJ80,HZJ80..5F LH |
1 | ||
| 33280-60020 |
FJ80,FZJ80,HDJ80,HZJ80..MTM RH |
1 | ||
| 33280E - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-60030 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90508-10064 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 96411-41200 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-60070 |
FJ80,FZJ80,HDJ80,HZJ80..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33521-60130 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90461-10101 | ||||
| 96132-41000 | ||||

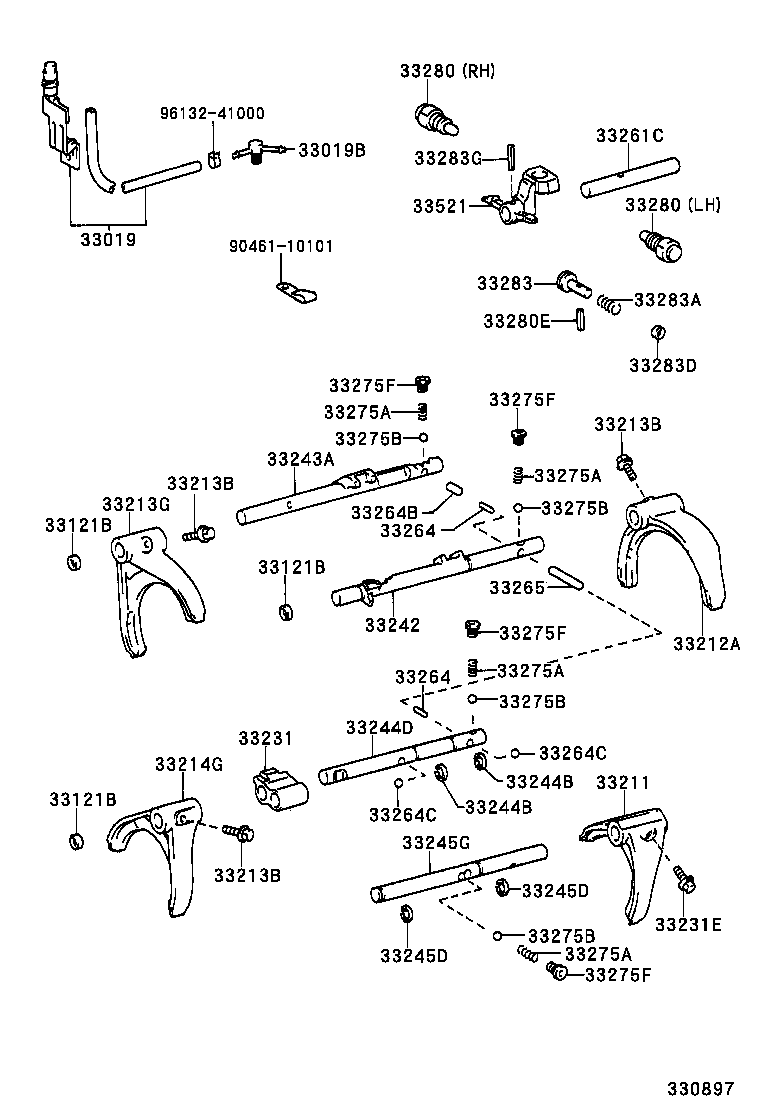

(9001-9909)5F
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
3 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 96411-41800 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
3 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-60040 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33215-37021 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-60040 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-08211 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-60060 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-60040 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33230-60010 |
FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33230-60011 |
FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-60030 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33231-60020 |
FJ80,FZJ80,HDJ80,HZJ80..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33231E - BOLT(FOR REVERSE SHIFT HEAD) | ||||
| 90105-07001 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-60040 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33242-60070 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-60110 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33243-60080 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-16003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-60030 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33245D - RING, SHAFT SNAP (FOR 3RD & 4TH SHIFT FORK SHAFT) | ||||
| 90520-14003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-60040 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33245-60070 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-60060 |
FZJ80,HDJ80..5F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=15.45 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-10023 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=15.45 |
2 | ||
| 33264B - ROLLER, NO.1 (FOR SHIFT INTER LOCK ) | ||||
| 90361-10003 |
FJ80,FZJ80,HDJ80,HZJ80..MTM L=13.6,OD=9.5 |
1 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33264C - BALL (FOR SHIFT INTER LOCK) | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-10024 |
FJ80,FZJ80,HDJ80,HZJ80..MTM L=56.95,OD=9.53 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14124 |
FJ80,FZJ80,HDJ80,HZJ80..5F L=26.3 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12008 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
4 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60030 |
FJ80,FZJ80,HDJ80,HZJ80..MTM LH |
1 | ||
| 33280-60031 |
FZJ80,HDJ80,HZJ80..5F LH |
1 | ||
| 33280-60020 |
FJ80,FZJ80,HDJ80,HZJ80..MTM RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-60030 |
FJ80,FZJ80,HDJ80,HZJ80..MTM LH |
1 | ||
| 33280-60031 |
FZJ80,HDJ80,HZJ80..5F LH |
1 | ||
| 33280-60020 |
FJ80,FZJ80,HDJ80,HZJ80..MTM RH |
1 | ||
| 33280E - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-04015 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-60030 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90508-10064 |
FJ80,FZJ80,HDJ80,HZJ80..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 96411-41200 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05016 |
FJ80,FZJ80,HDJ80,HZJ80..MTM |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-60070 |
FJ80,FZJ80,HDJ80,HZJ80..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 33521-60130 |
FZJ80,HDJ80,HZJ80..5F TYPE B:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90461-10101 | ||||
| 96132-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
