FZJ80L-GNMNU (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

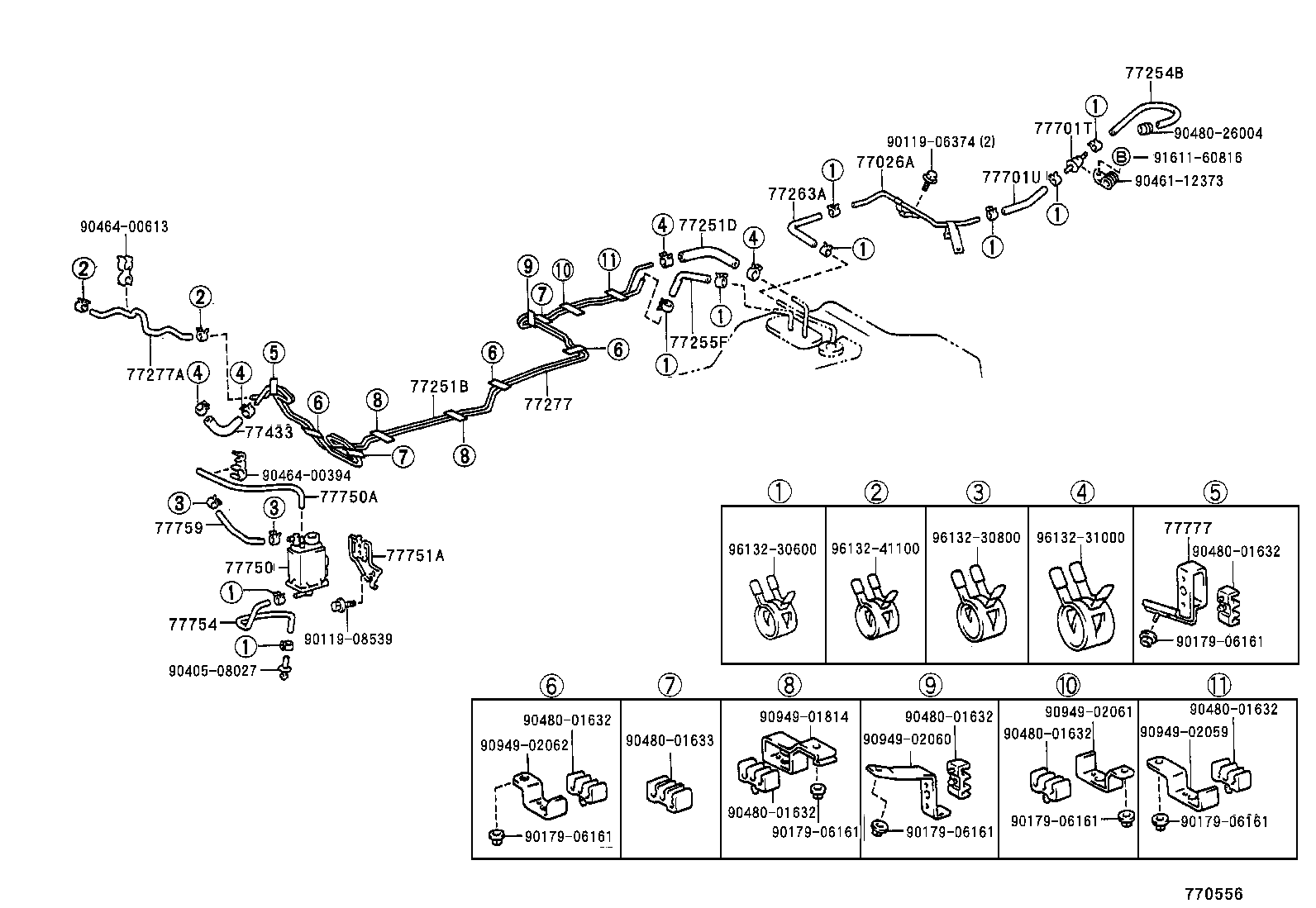

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

Click highlighted areas on diagram

FUEL SUB TANK

diagram 58279A 77017 77017B 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77022A 77023 77023 77031 77031B 77100 77100A 77100B 77100D 77133 77134 77201 77201 77206 77206A 77206A 77213 77222A 77269 77271C 77271C 77290 77291 77293A 77305A 77308A 77366 77391 77606 77611 77611 77611A 77701V 8401 9011906621 9011908701 9011910153 9011910539 9011910539 9011910556 9011910556 9015940155 9046065002 9046106174 9046112296 9046400239 9046720134 91626B0818 9165140614 9165140614 9165160814 9165160814 9165160820 9165160820 9165160820 9165160820 9166540616 9338315014 93383A6014 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100 9613241100
Part # Description Qty Price
Common parts
90119-06621
90119-08701
90119-10153
90119-10539
90119-10556
90159-40155
90460-65002
90461-06174
90461-12296
90464-00239
90467-20134
91626-B0818
91651-40614
91651-60814
91651-60820
91665-40616
93383-15014
93383-A6014
96132-41100
Linked diagrams
8401

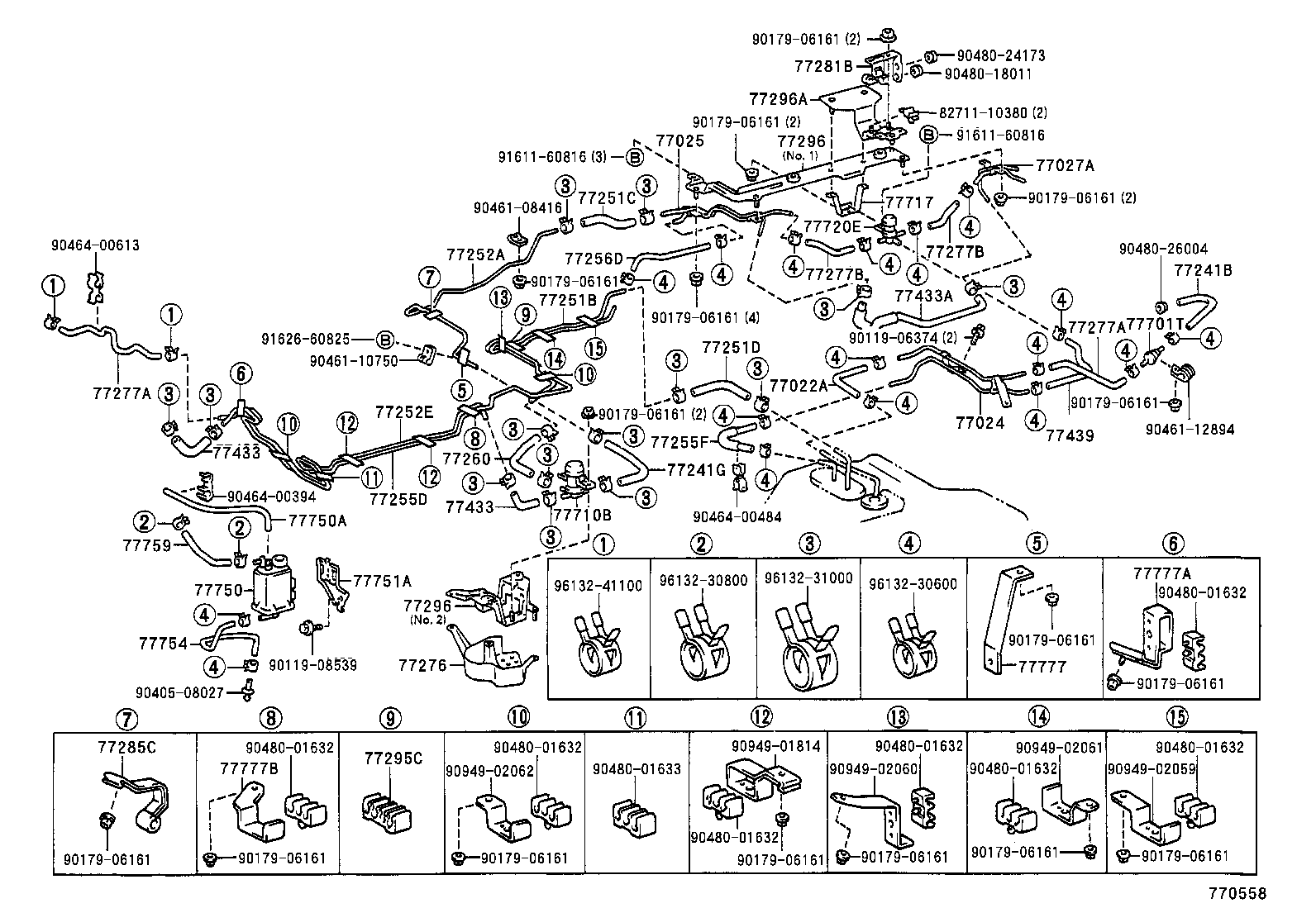

ILLUST NO. 3 OF 3(9201- )GEN..CBR

Click highlighted areas on diagram

diagram 77026A 77251B 77251D 77254B 77255F 77263A 77277 77277A 77433 77701T 77701U 77750 77750A 77751A 77754 77759 77777 9011906374 9011908539 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9040508027 9046112373 9046400394 9046400613 9048001632 9048001632 9048001632 9048001632 9048001632 9048001632 9048001633 9048026004 9094901814 9094902059 9094902060 9094902061 9094902062 9161160816 9613230600 9613230800 9613231000 9613241100
Part # Description Qty Price
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-60060

FZJ80..GEN;HDJ80,HZJ80

 1
77026-60060

HDJ80,HZJ80;FJ80,FZJ80..GEN

 1
77251B - TUBE, FUEL MAIN
77251-60510

FZJ80

 1
77251-60520

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-10030

FZJ80

*H,L=240

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
90445-12244

FZJ80..GEN;HDJ80,HZJ80

L=600

 1
90445-12244

HDJ80,HZJ80;FJ80,FZJ80..GEN

L=600

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77250-60120

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

L=220,W(SUB TANK)

 1
95333-06030

FJ80,FZJ80

*H,L=220

 1
95333-06030

FZJ80

*H,L=220

 1
77263A - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
95333-06020

HDJ80,HZJ80;FJ80,FZJ80..GEN

 1
95333-06020

FZJ80..GEN;HDJ80,HZJ80

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-60470

FZJ80

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
23273-66020

FZJ80

 1
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
77433 - HOSE, FUEL MAIN, NO.1
77419-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK)

 1
77433-60050

FZJ80

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069

HDJ80,HZJ80;FJ80,FZJ80..GEN

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06020

FZJ80..GEN;HDJ80,HZJ80

*H,L=160

 1
95333-06020

HDJ80,HZJ80;FJ80,FZJ80..GEN

*H,L=160

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60220

FZJ80

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95414-40233

FZJ80

 1
77751A - BRACKET, CHARCOAL CANISTER BASE
77751-60200

FZJ80

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-60140

FZJ80

 1
77759 - HOSE, CHARCOAL CANISTER
77759-60110

FZJ80

 1
77777 - BRACKET, FUEL TUBE CLAMP
77777-60020

FZJ80

 1
77777-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
Common parts
90119-06374
90119-08539
90179-06161
90405-08027
90461-12373
90464-00394
90464-00613
90480-01632
90480-01633
90480-26004
90949-01814
90949-02059
90949-02060
90949-02061
90949-02062
91611-60816
96132-30600
96132-30800
96132-31000
96132-41100

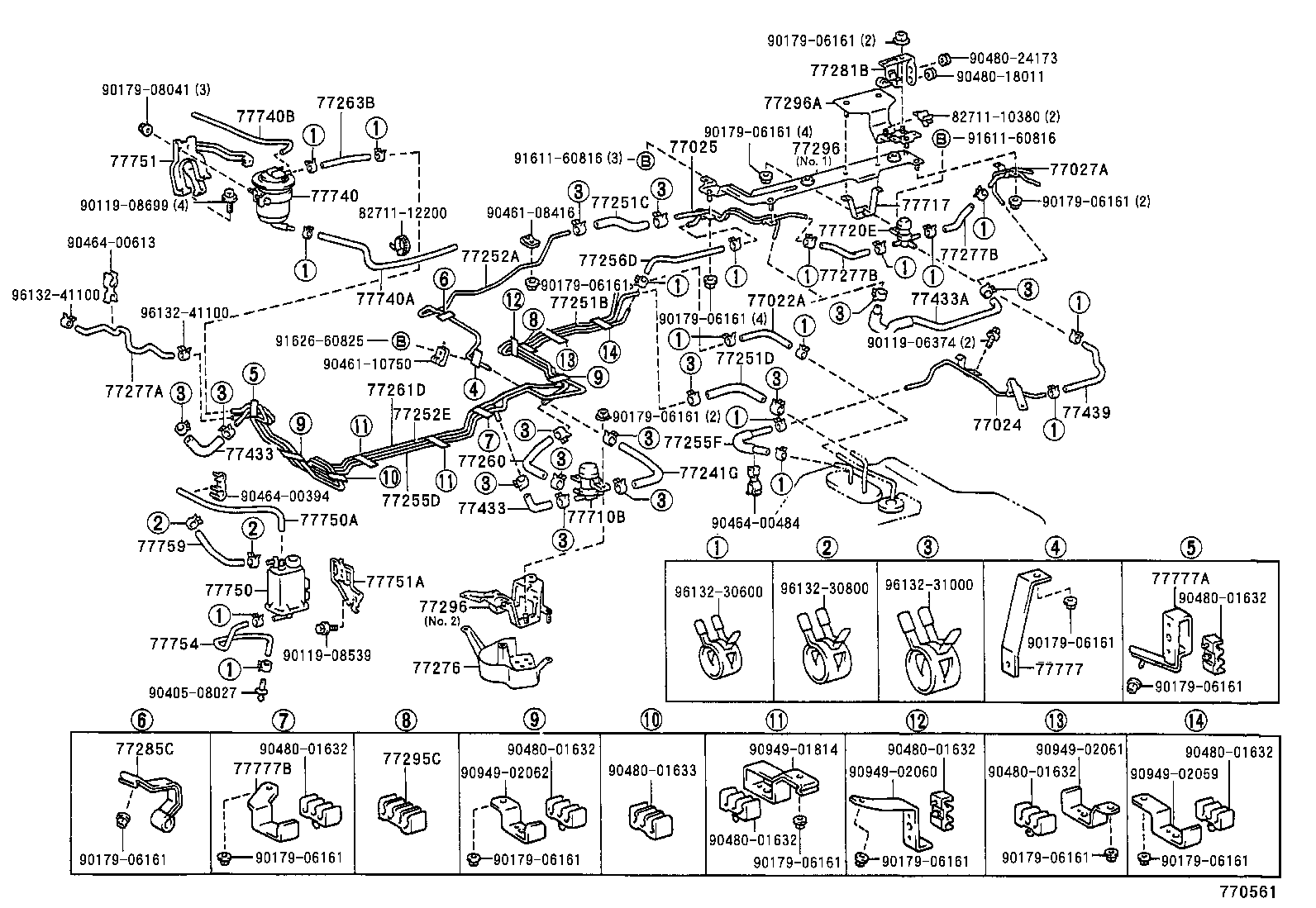

ILLUST NO. 3 OF 3(9201- )GEN..CBR

Click highlighted areas on diagram

W(SUB-TANK)

diagram 77022A 77024 77025 77027A 77241B 77241G 77251B 77251C 77251D 77252A 77252E 77255D 77255F 77256D 77260 77276 77277A 77277A 77277B 77277B 77281B 77285C 77295C 77296 77296 77296A 77433 77433 77433A 77439 77701T 77710B 77717 77720E 77750 77750A 77751A 77754 77759 77777 77777A 77777B 8271110380 9011906374 9011908539 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9040508027 9046108416 9046110750 9046112894 9046400394 9046400484 9046400613 9048001632 9048001632 9048001632 9048001632 9048001632 9048001632 9048001632 9048001633 9048018011 9048024173 9048026004 9094901814 9094902059 9094902060 9094902061 9094902062 9161160816 9161160816 9162660825 9613230600 9613230800 9613231000 9613241100
Part # Description Qty Price
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06020

FJ80..GEN;HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=130

 1
95333-06020

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=130

 1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-60080

FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

 1
77024-60080

FZJ80..LHD..SOB..STD..GEN;FZJ80..LHD..(GX,VX)..GEN..CBR

 1
77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR
77025-60070

HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77025-60070

HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77027A - TUBE SUB-ASSY, FUEL MAIN & RETURN, NO.3
77027-60050

HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77027-60050

HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95333-06060

FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=440

 1
77241G - HOSE, FUEL, NO.6
77434-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77434-60040

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77251B - TUBE, FUEL MAIN
77251-60510

FZJ80

 1
77251-60520

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-10020

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

L=200

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-10030

FZJ80

*H,L=240

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-60370

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77252E - TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)
77252-60361

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77252-60360

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77255D - TUBE, FUEL RETURN
77255-60481

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77255-60480

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77250-60120

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

L=220,W(SUB TANK)

 1
95333-06030

FJ80,FZJ80

*H,L=220

 1
95333-06030

FZJ80

*H,L=220

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
95333-06030

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77260 - HOSE ASSY, FUEL MAIN
77433-60060

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77276 - PROTECTOR, FUEL HOSE
77276-60060

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77276-60060

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
23273-66020

FZJ80

 1
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
23273-66020

FZJ80

 1
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06020

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

*H,L=190

 1
95333-06020

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

*H,L=130

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06020

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

*H,L=190

 1
95333-06020

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

*H,L=130

 1
77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN)
77281-60030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77281-60030

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)
77285-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77295C - GROMMET, FUEL TUBE
77295-60130

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77295-60130

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77296 - PLATE, FUEL TUBE GROMMET SUPPORT
77296-60091

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.1

 1
77296-60100

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.2

 1
77296 - PLATE, FUEL TUBE GROMMET SUPPORT
77296-60091

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.1

 1
77296-60100

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.2

 1
77296A - PLATE, FUEL TUBE SUPPORT, NO.2
77297-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
77433 - HOSE, FUEL MAIN, NO.1
77419-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK)

 1
77433-60050

FZJ80

 1
77433 - HOSE, FUEL MAIN, NO.1
77419-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK)

 1
77433-60050

FZJ80

 1
77433A - HOSE, FUEL MAIN, NO.1 (FOR REAR FUEL MAIN)
77433-60070

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77439 - HOSE, FUEL RETURN
77439-60030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77439-60030

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069

HDJ80,HZJ80;FJ80,FZJ80..GEN

 1
77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN
77710-60070

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77710-60070

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77717 - BRACKET, FUEL SOLENOID VALVE RETURN
77717-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
77717-60010

HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN
77720-60020

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
77720-60020

HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60220

FZJ80

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95414-40233

FZJ80

 1
77751A - BRACKET, CHARCOAL CANISTER BASE
77751-60200

FZJ80

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-60140

FZJ80

 1
77759 - HOSE, CHARCOAL CANISTER
77759-60110

FZJ80

 1
77777 - BRACKET, FUEL TUBE CLAMP
77777-60020

FZJ80

 1
77777-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
77777A - BRACKET, FUEL TUBE CLAMP (FOR FRONT FUEL MAIN)
77777-60020

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77777B - BRACKET, FUEL TUBE CLAMP (FOR FRONT FUEL MAIN)
77777-60030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
Common parts
82711-10380
90119-06374
90119-08539
90179-06161
90405-08027
90461-08416
90461-10750
90461-12894
90464-00394
90464-00484
90464-00613
90480-01632
90480-01633
90480-18011
90480-24173
90480-26004
90949-01814
90949-02059
90949-02060
90949-02061
90949-02062
91611-60816
91626-60825
96132-30600
96132-30800
96132-31000
96132-41100

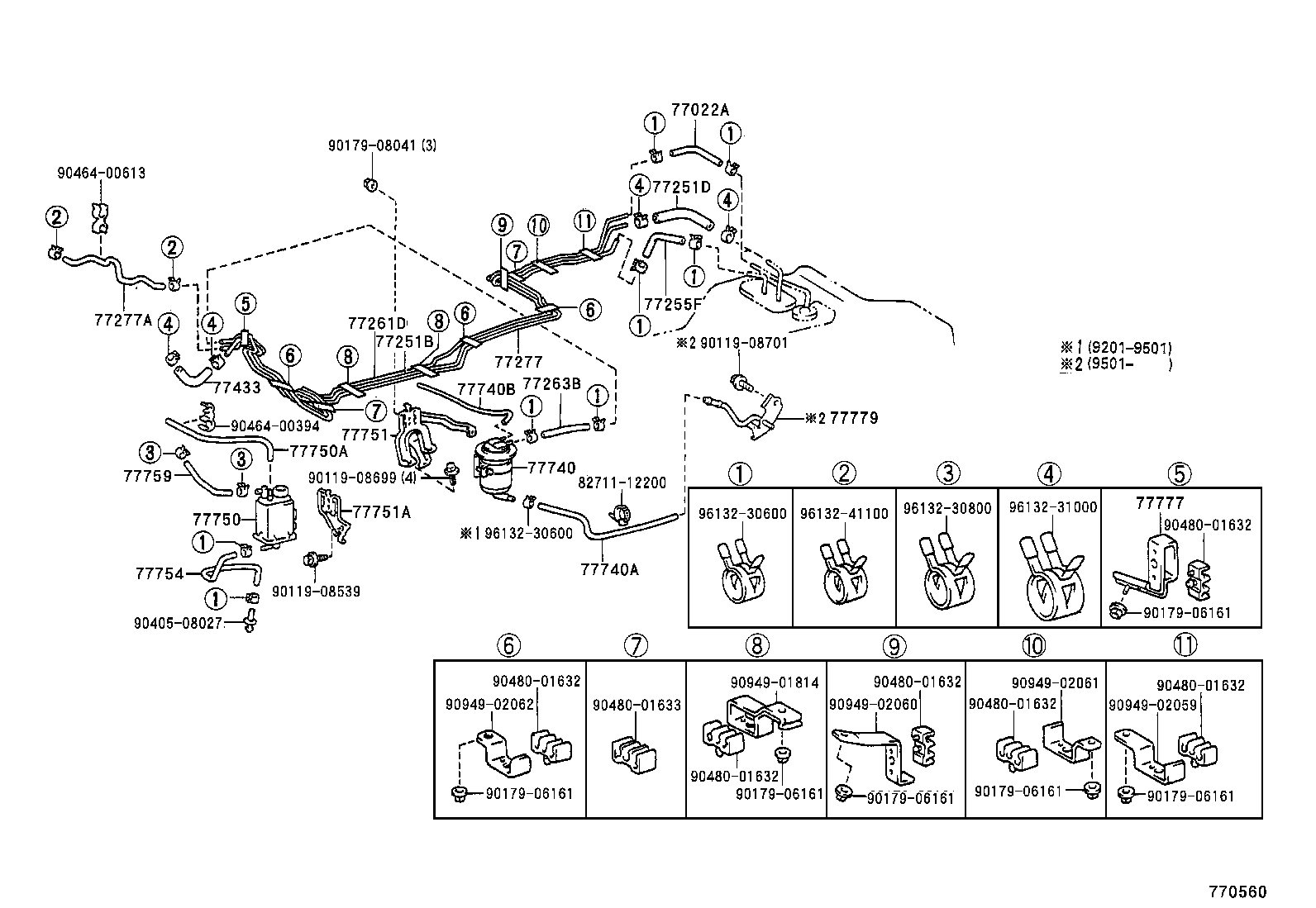

ILLUST NO. 3 OF 3(9201- )GCC..CBR ; (9501- )GEN..CBR

Click highlighted areas on diagram

GEN..CBR(CHINESE SPEC)

diagram 77022A 77251B 77251D 77255F 77261D 77263B 77277 77277A 77433 77740 77740A 77740B 77750 77750A 77751 77751A 77754 77759 77777 77779 8271112200 9011908539 9011908699 9011908701 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017908041 9040508027 9046400394 9046400613 9048001632 9048001632 9048001632 9048001632 9048001632 9048001632 9048001633 9094901814 9094902059 9094902060 9094902061 9094902062 9613230600 9613230600 9613230800 9613231000 9613241100
Part # Description Qty Price
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06020

FJ80..GEN;HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=130

 1
95333-06020

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=130

 1
77251B - TUBE, FUEL MAIN
77251-60510

FZJ80

 1
77251-60520

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-10030

FZJ80

*H,L=240

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77250-60120

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

L=220,W(SUB TANK)

 1
95333-06030

FJ80,FZJ80

*H,L=220

 1
95333-06030

FZJ80

*H,L=220

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-60470

FZJ80

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
23273-66020

FZJ80

 1
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
77433 - HOSE, FUEL MAIN, NO.1
77419-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK)

 1
77433-60050

FZJ80

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60220

FZJ80

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95414-40233

FZJ80

 1
77751A - BRACKET, CHARCOAL CANISTER BASE
77751-60200

FZJ80

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-60140

FZJ80

 1
77759 - HOSE, CHARCOAL CANISTER
77759-60110

FZJ80

 1
77777 - BRACKET, FUEL TUBE CLAMP
77777-60020

FZJ80

 1
77777-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
Common parts
82711-12200
90119-08539
90119-08699
90119-08701
90179-06161
90179-08041
90405-08027
90464-00394
90464-00613
90480-01632
90480-01633
90949-01814
90949-02059
90949-02060
90949-02061
90949-02062
96132-30600
96132-30800
96132-31000
96132-41100

ILLUST NO. 3 OF 3(9201- )GCC..CBR ; (9510- )GEN..CBR

Click highlighted areas on diagram

W(SUB-TANK) GEN..CBR(CHINESE SPEC)

diagram 77022A 77024 77025 77027A 77241G 77251B 77251C 77251D 77252A 77252E 77255D 77255F 77256D 77260 77261D 77263B 77276 77277A 77277B 77277B 77281B 77285C 77295C 77296 77296 77296A 77433 77433 77433A 77439 77710B 77717 77720E 77740 77740A 77740B 77750 77750A 77751 77751A 77754 77759 77777 77777A 77777B 8271110380 8271112200 9011906374 9011908539 9011908699 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017908041 9040508027 9046108416 9046110750 9046400394 9046400484 9046400613 9048001632 9048001632 9048001632 9048001632 9048001632 9048001632 9048001632 9048001633 9048018011 9048024173 9094901814 9094902059 9094902060 9094902061 9094902062 9161160816 9161160816 9162660825 9613230600 9613230800 9613231000 9613241100 9613241100
Part # Description Qty Price
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-06020

FJ80..GEN;HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=130

 1
95333-06020

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=130

 1
77024 - TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-60080

FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

 1
77024-60080

FZJ80..LHD..SOB..STD..GEN;FZJ80..LHD..(GX,VX)..GEN..CBR

 1
77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR
77025-60070

HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77025-60070

HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77027A - TUBE SUB-ASSY, FUEL MAIN & RETURN, NO.3
77027-60050

HZJ80;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77027-60050

HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77241G - HOSE, FUEL, NO.6
77434-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77434-60040

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77251B - TUBE, FUEL MAIN
77251-60510

FZJ80

 1
77251-60520

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
95333-10020

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

L=200

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-10030

FZJ80

*H,L=240

 1
77252A - TUBE, FUEL MAIN, NO.2
77252-60370

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77252E - TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)
77252-60361

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77252-60360

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77255D - TUBE, FUEL RETURN
77255-60481

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77255-60480

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77250-60120

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

L=220,W(SUB TANK)

 1
95333-06030

FJ80,FZJ80

*H,L=220

 1
95333-06030

FZJ80

*H,L=220

 1
77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)
95333-06030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
95333-06030

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77260 - HOSE ASSY, FUEL MAIN
77433-60060

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77276 - PROTECTOR, FUEL HOSE
77276-60060

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77276-60060

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
23273-66020

FZJ80

 1
95333-06030

HDJ80,HZJ80;FZJ80..LHD..(GX,VX)..GEN;FZJ80..LHD..SOB..STD..GEN

*H,L=260,W(SUB TANK)

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06020

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

*H,L=190

 1
95333-06020

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

*H,L=130

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95333-06020

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

*H,L=190

 1
95333-06020

FJ80..CBR;FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

*H,L=130

 1
77281B - CLAMP, FUEL HOSE(FOR REAR FUEL MAIN)
77281-60030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77281-60030

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)
77285-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77295C - GROMMET, FUEL TUBE
77295-60130

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77295-60130

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77296 - PLATE, FUEL TUBE GROMMET SUPPORT
77296-60091

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.1

 1
77296-60100

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.2

 1
77296 - PLATE, FUEL TUBE GROMMET SUPPORT
77296-60091

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.1

 1
77296-60100

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK),NO.2

 1
77296A - PLATE, FUEL TUBE SUPPORT, NO.2
77297-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
77433 - HOSE, FUEL MAIN, NO.1
77419-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK)

 1
77433-60050

FZJ80

 1
77433 - HOSE, FUEL MAIN, NO.1
77419-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(SUB TANK)

 1
77433-60050

FZJ80

 1
77433A - HOSE, FUEL MAIN, NO.1 (FOR REAR FUEL MAIN)
77433-60070

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77439 - HOSE, FUEL RETURN
77439-60030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77439-60030

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN
77710-60070

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77710-60070

FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77717 - BRACKET, FUEL SOLENOID VALVE RETURN
77717-60010

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
77717-60010

HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN
77720-60020

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..CBR,DSL,TD2

 1
77720-60020

HDJ80,HZJ80;FZJ80..LHD..SOB..STD;FZJ80..LHD..(GX,VX)..CBR

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60220

FZJ80

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95414-40233

FZJ80

 1
77751A - BRACKET, CHARCOAL CANISTER BASE
77751-60200

FZJ80

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-60140

FZJ80

 1
77759 - HOSE, CHARCOAL CANISTER
77759-60110

FZJ80

 1
77777 - BRACKET, FUEL TUBE CLAMP
77777-60020

FZJ80

 1
77777-60040

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

W(FUEL SUB-TANK)

 1
77777A - BRACKET, FUEL TUBE CLAMP (FOR FRONT FUEL MAIN)
77777-60020

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
77777B - BRACKET, FUEL TUBE CLAMP (FOR FRONT FUEL MAIN)
77777-60030

FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD

 1
Common parts
82711-10380
82711-12200
90119-06374
90119-08539
90119-08699
90179-06161
90179-08041
90405-08027
90461-08416
90461-10750
90464-00394
90464-00484
90464-00613
90480-01632
90480-01633
90480-18011
90480-24173
90949-01814
90949-02059
90949-02060
90949-02061
90949-02062
91611-60816
91626-60825
96132-30600
96132-30800
96132-31000
96132-41100
