FZJ80L-GNMEU (1992)
Toyota Land Cruiser
(9201-9801)FZJ70 ; (9201-9801)FZJ75..ARL ; (9201-9801)FZJ73,75..CBR ; (9801-0701)FZ

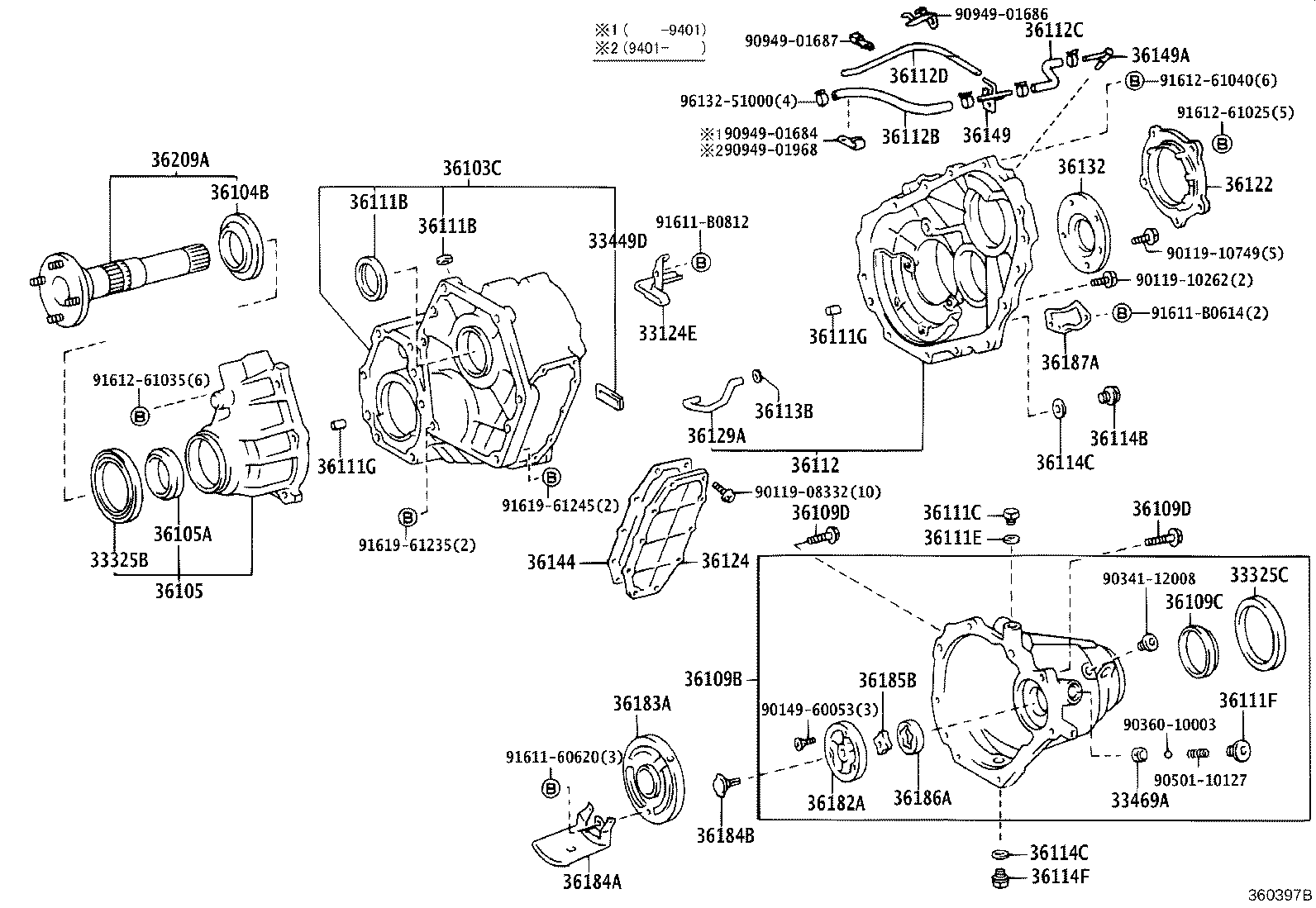

W(ELECTRIC CONTROL TRANSFER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10262 | ||||
| 90149-60053 | ||||
| 90253-11001 | ||||
| 90360-10003 | ||||
| 90501-10127 | ||||
| 90949-01685 | ||||
| 90949-01686 | ||||
| 90949-01687 | ||||
| 91611-60814 | ||||
| 91611-61025 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-51000 | ||||
(9001-9801)

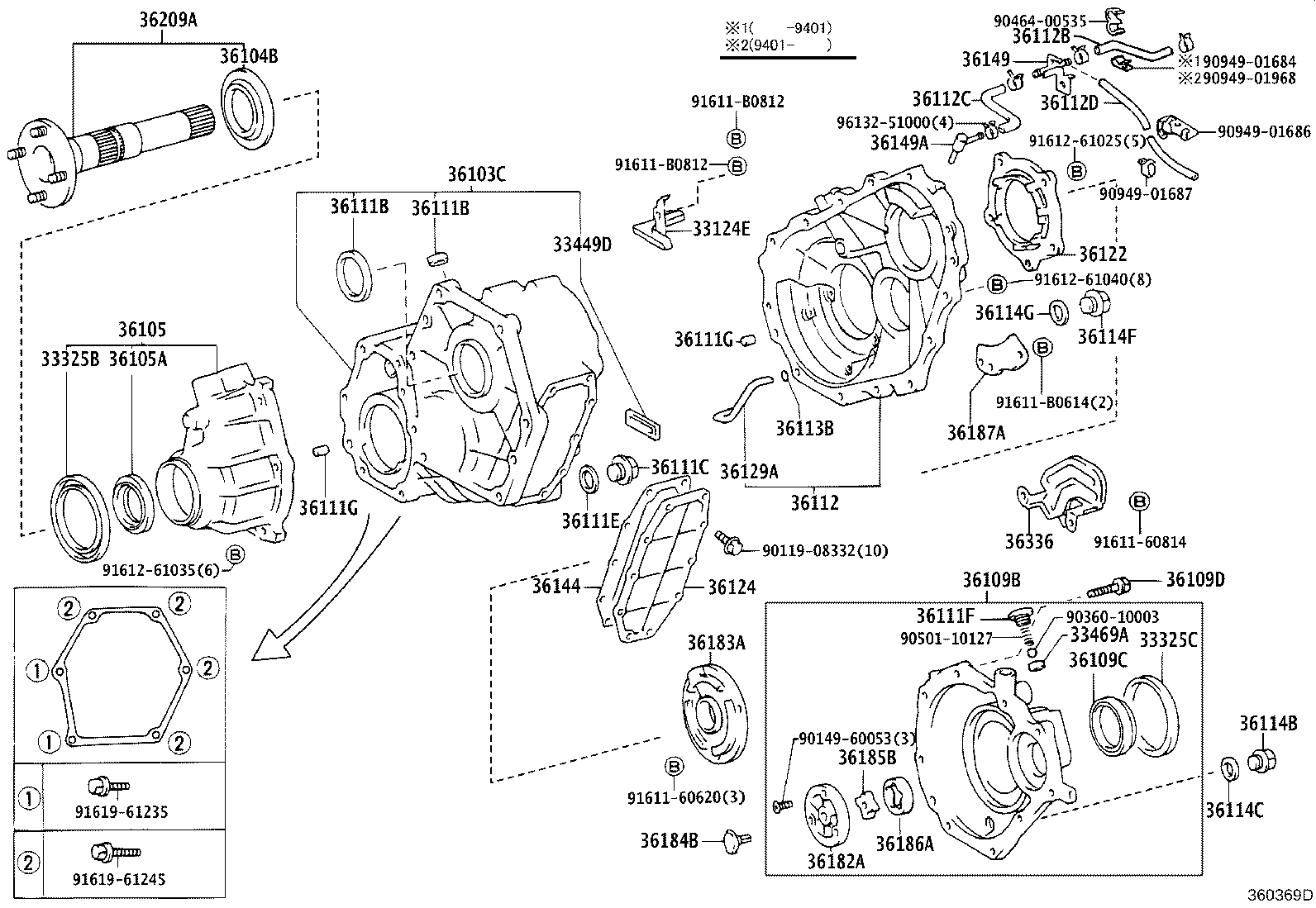

PART TIME 4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124B - PIPE, OIL RECEIVER(FOR TRANSFER REAR CASE) | ||||
| 33124-60040 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 33124-60040 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33124-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33309 - FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION | ||||
| 33309-60090 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 33309-60090 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 33309-60090 |
FZJ80..5F;FZJ80..4FC..GX;HZJ80..STD..ARL;FZJ80..LHD..4FC..VX;HDJ80,HZJ80..GCC,GEN |
1 | ||
| 33309A - DEFLECTOR, DUST | ||||
| 33325-60060 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-60070 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33449-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33469-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60230 |
HDJ80;FJ80,HZJ80..4FC;FJ80,HZJ80..5F..GX..ARL;FJ80,FZJ80,HZJ80..5F..VX..GEN |
1 | ||
| 36103-60240 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(*ELC & PTO) |
1 | ||
| 36103-60240 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(*ELC & PTO) |
1 | ||
| 36103-60230 |
HDJ80;HZJ80..4FC;HZJ80..GX..ARL;FZJ80..GX..EFI;FZJ80..4FC..VX..GCC;FZJ80,HZJ80..VX..(ARL,GEN) |
1 | ||
| 36103-60240 |
FZJ80..LHD..4FC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;FZJ80..5F..VX..GEN..EFI;HZJ80..5F..(GX,VX)..(GCC,GEN);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2) W(*ELC & PTO) |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90311-50014 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36109-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36109-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36109-60020 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10390 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90310-16001 |
FJ80,FZJ80,HDJ80,HZJ80 LEVER SIDE |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90311-48016 |
FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 LEVER SIDE |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90310-16001 |
FJ80,FZJ80,HDJ80,HZJ80 LEVER SIDE |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90311-48016 |
FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 LEVER SIDE |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ80,HDJ80,HZJ80..5F..GX..ARL..(DSL,EFI,TD4);FZJ80,HDJ80,HZJ80..LHD..5F..VX..GEN..(CBR,DSL,TD2) |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ80,HDJ80,HZJ80..5F..GX..ARL..(DSL,EFI,TD4);FZJ80,HDJ80,HZJ80..LHD..5F..VX..GEN..(CBR,DSL,TD2) |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18039 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36104-60020 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36104-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36104-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-11028 |
HDJ80..5F;FJ80,HZJ80..5F..GX..ARL;FJ80,FZJ80,HZJ80..5F..VX..GEN |
1 | ||
| 90447-11028 |
HZJ80..GX..ARL;FZJ80,HZJ80..5F..VX..GEN;FZJ80,HDJ80..5F..LUB..(EFI,TD2) |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-07012 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90301-07012 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18006 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90430-18008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18057 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90430-18008 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36122-36010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60030 |
HZJ80..5F;FZJ80,HDJ80..LHD;FZJ80,HDJ80..ARL;HDJ80..RHD..5F..TD2 |
1 | ||
| 36124-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36124-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60020 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36129-60030 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36129-60020 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36129-60020 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36144-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36144-60030 |
HZJ80..5F;FZJ80,HDJ80..LHD;FZJ80,HDJ80..ARL;HDJ80..RHD..5F..TD2 |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182-60011 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36184-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36185-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36186-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36187-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36209-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36209-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36209-60020 |
FZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90149-60053 | ||||
| 90360-10003 | ||||
| 90501-10127 | ||||
| 90949-01685 | ||||
| 91611-60814 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-51000 | ||||
(9001-9801)

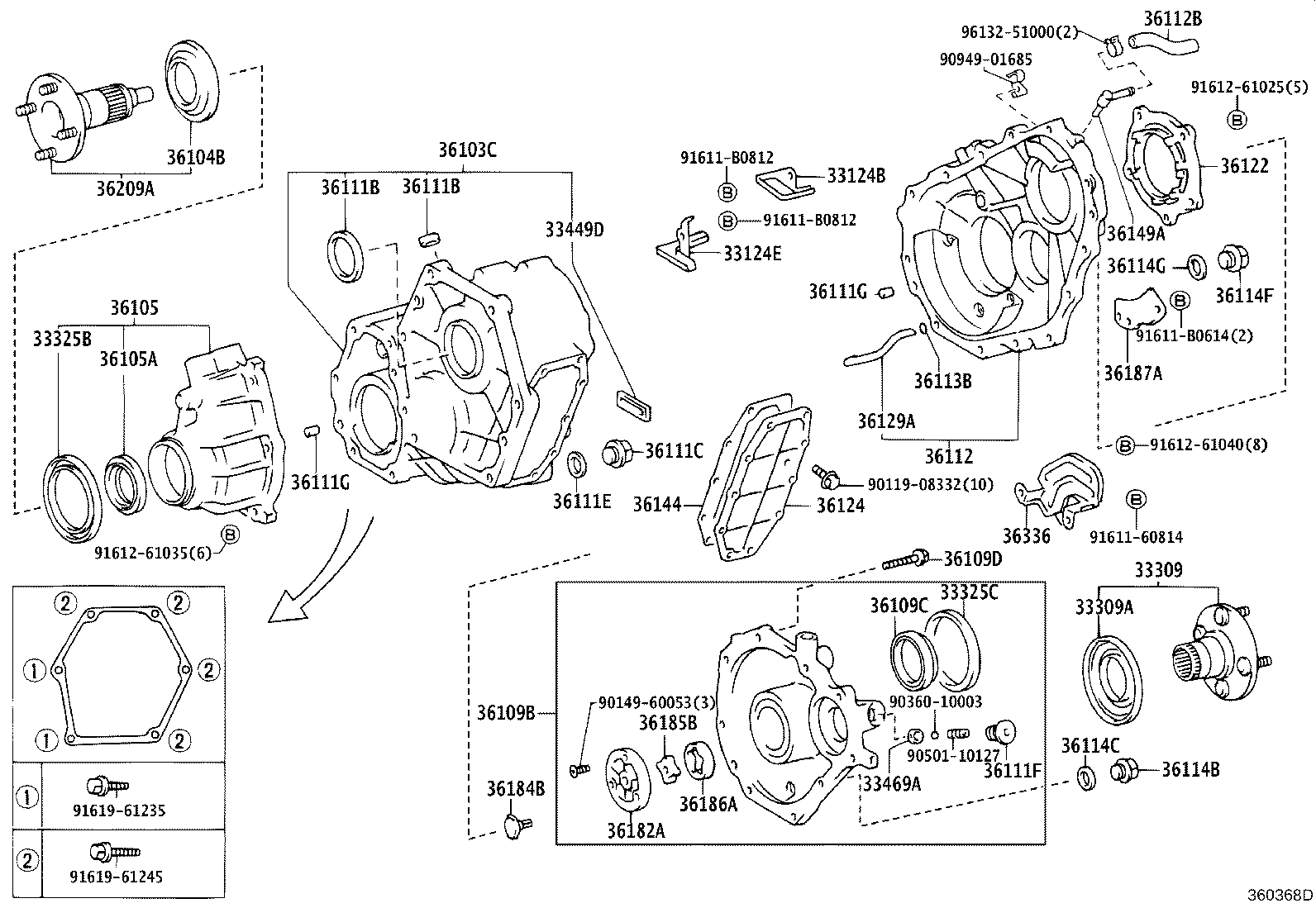

FULL TIME 4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33124-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-60070 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33449-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33469-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60230 |
HDJ80;FJ80,HZJ80..4FC;FJ80,HZJ80..5F..GX..ARL;FJ80,FZJ80,HZJ80..5F..VX..GEN |
1 | ||
| 36103-60240 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(*ELC & PTO) |
1 | ||
| 36103-60240 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(*ELC & PTO) |
1 | ||
| 36103-60230 |
HDJ80;HZJ80..4FC;HZJ80..GX..ARL;FZJ80..GX..EFI;FZJ80..4FC..VX..GCC;FZJ80,HZJ80..VX..(ARL,GEN) |
1 | ||
| 36103-60240 |
FZJ80..LHD..4FC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;FZJ80..5F..VX..GEN..EFI;HZJ80..5F..(GX,VX)..(GCC,GEN);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2) W(*ELC & PTO) |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90311-50014 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36109-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36109-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36109-60020 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10390 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90310-16001 |
FJ80,FZJ80,HDJ80,HZJ80 LEVER SIDE |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90311-48016 |
FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 LEVER SIDE |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90310-16001 |
FJ80,FZJ80,HDJ80,HZJ80 LEVER SIDE |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90311-48016 |
FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 LEVER SIDE |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ80,HDJ80,HZJ80..5F..GX..ARL..(DSL,EFI,TD4);FZJ80,HDJ80,HZJ80..LHD..5F..VX..GEN..(CBR,DSL,TD2) |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ80,HDJ80,HZJ80..5F..GX..ARL..(DSL,EFI,TD4);FZJ80,HDJ80,HZJ80..LHD..5F..VX..GEN..(CBR,DSL,TD2) |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18039 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36104-60020 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36104-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36104-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-11028 |
HDJ80..5F;FJ80,HZJ80..5F..GX..ARL;FJ80,FZJ80,HZJ80..5F..VX..GEN |
1 | ||
| 90447-11028 |
HZJ80..GX..ARL;FZJ80,HZJ80..5F..VX..GEN;FZJ80,HDJ80..5F..LUB..(EFI,TD2) |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11108 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 90445-11134 |
HZJ80..RHD;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 90445-11108 |
HZJ80..RHD;FZJ80..STD..EFI;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-08277 |
HZJ80..RHD;FZJ80..STD..ARL;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 90445-08277 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-07012 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90301-07012 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18006 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90430-18008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18057 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90430-18008 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36122-36010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60030 |
HZJ80..5F;FZJ80,HDJ80..LHD;FZJ80,HDJ80..ARL;HDJ80..RHD..5F..TD2 |
1 | ||
| 36124-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36124-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60020 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36129-60030 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36129-60020 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36129-60020 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36144-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36144-60030 |
HZJ80..5F;FZJ80,HDJ80..LHD;FZJ80,HDJ80..ARL;HDJ80..RHD..5F..TD2 |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60010 |
HZJ80..RHD;FZJ80..4FC..STD;FZJ80..STD..ARL;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 36149-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182-60011 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36183A - PLATE, TRANSFER OIL PUMP | ||||
| 36183-60012 |
FZJ80..4FC..GEN;HDJ80..LHD..LUB;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD4) |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36184-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36185-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36186-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36187-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36209-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36209-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36209-60020 |
FZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90149-60053 | ||||
| 90360-10003 | ||||
| 90464-00535 | ||||
| 90501-10127 | ||||
| 90949-01684 | ||||
| 90949-01686 | ||||
| 90949-01687 | ||||
| 90949-01968 | ||||
| 91611-60620 | ||||
| 91611-60814 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-51000 | ||||
(9001-9801)
FULL TIME 4WD & *VCD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33124-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60050 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-60070 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60070 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33449-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 33469-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60240 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(*ELC & PTO) |
1 | ||
| 36103-60230 |
HDJ80;FJ80,HZJ80..4FC;FJ80,HZJ80..5F..GX..ARL;FJ80,FZJ80,HZJ80..5F..VX..GEN |
1 | ||
| 36103-60240 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..(GX,VX)..(GCC,GEN) W(*ELC & PTO) |
1 | ||
| 36103-60230 |
HDJ80;HZJ80..4FC;HZJ80..GX..ARL;FZJ80..GX..EFI;FZJ80..4FC..VX..GCC;FZJ80,HZJ80..VX..(ARL,GEN) |
1 | ||
| 36103-60240 |
FZJ80..LHD..4FC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;FZJ80..5F..VX..GEN..EFI;HZJ80..5F..(GX,VX)..(GCC,GEN);FZJ80,HDJ80..LHD..(GX,VX)..(CBR,TD2) W(*ELC & PTO) |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 33325-60040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90311-50014 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36109-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36109-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36109-60020 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10390 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10390 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FJ80,FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 90119-10390 |
FZJ80,HDJ80,HZJ80 *10-1.25PX35-30 |
4 | ||
| 90119-10180 |
FZJ80,HDJ80,HZJ80 *10-1.25PX75-30 |
5 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90310-16001 |
FJ80,FZJ80,HDJ80,HZJ80 LEVER SIDE |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90311-48016 |
FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 LEVER SIDE |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90310-16001 |
FJ80,FZJ80,HDJ80,HZJ80 LEVER SIDE |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90311-48016 |
FZJ80,HDJ80,HZJ80 SHAFT SIDE |
1 | ||
| 90310-16001 |
FZJ80..GX..GEN..EFI;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4 LEVER SIDE |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ80,HDJ80,HZJ80..5F..GX..ARL..(DSL,EFI,TD4);FZJ80,HDJ80,HZJ80..LHD..5F..VX..GEN..(CBR,DSL,TD2) |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ80,HDJ80,HZJ80..5F..GX..ARL..(DSL,EFI,TD4);FZJ80,HDJ80,HZJ80..LHD..5F..VX..GEN..(CBR,DSL,TD2) |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18039 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FJ80,FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 90250-12002 |
FZJ80,HDJ80,HZJ80 L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36104-60020 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36104-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36104-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90447-11028 |
HDJ80..5F;FJ80,HZJ80..5F..GX..ARL;FJ80,FZJ80,HZJ80..5F..VX..GEN |
1 | ||
| 90447-11028 |
HZJ80..GX..ARL;FZJ80,HZJ80..5F..VX..GEN;FZJ80,HDJ80..5F..LUB..(EFI,TD2) |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11108 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 90445-11134 |
HZJ80..RHD;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 90445-11108 |
HZJ80..RHD;FZJ80..STD..EFI;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-08277 |
HZJ80..RHD;FZJ80..STD..ARL;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 90445-08277 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-07012 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90301-07012 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18006 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90430-18008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90430-18008 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 90341-18057 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36122-36010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36124 - COVER, TRANSFER POWER TAKE-OFF | ||||
| 36124-60030 |
HZJ80..5F;FZJ80,HDJ80..LHD;FZJ80,HDJ80..ARL;HDJ80..RHD..5F..TD2 |
1 | ||
| 36124-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36124-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60020 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36129-60030 |
FZJ80..GCC..EFI;FZJ80..4FC..GEN;HDJ80..LHD..LUB;HDJ80..RHD..5F..TD2;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| 36129-60020 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36129-60020 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36144 - GASKET, TRANSFER POWER TAKE-OFF COVER | ||||
| 36144-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36144-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36144-60030 |
HZJ80..5F;FZJ80,HDJ80..LHD;FZJ80,HDJ80..ARL;HDJ80..RHD..5F..TD2 |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60010 |
HZJ80..RHD;FZJ80..4FC..STD;FZJ80..STD..ARL;FZJ80,HDJ80..GX,VX;HZJ80..LHD..(GX,VX) |
1 | ||
| 36149-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60020 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182-60011 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36182-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36183A - PLATE, TRANSFER OIL PUMP | ||||
| 36183-60012 |
FZJ80..4FC..GEN;HDJ80..LHD..LUB;HZJ80..5F..(GX,VX);HDJ80..RHD..5F..TD2;FZJ80..(ARL,GCC)..EFI;FZJ80,HDJ80..(GX,VX)..(CBR,TD4) |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36184-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36185-60030 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36186-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60010 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| 36187-60010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60010 |
FJ80,HZJ80..STD..ARL;FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36209-60010 |
FZJ80,HZJ80..STD..ARL;FZJ80,HDJ80,HZJ80..GCC,GEN |
1 | ||
| 36209-60010 |
FZJ80..LHD..4FC;HDJ80..RHD..5F..TD2;FZJ80,HDJ80,HZJ80..LHD..LUB..VX..GEN..(CBR,DSL,TD2) W(*ELC & PTO) |
1 | ||
| 36209-60020 |
FZJ80..LHD..GX..EFI;FZJ80..4FC..VX..GEN;FZJ80..LHD..(GX,VX)..CBR;HZJ80..5F..(GX,VX)..(GCC,GEN) W(*CDL & PTO) |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10262 | ||||
| 90119-10749 | ||||
| 90149-60053 | ||||
| 90341-12008 | ||||
| 90360-10003 | ||||
| 90501-10127 | ||||
| 90949-01684 | ||||
| 90949-01686 | ||||
| 90949-01687 | ||||
| 90949-01968 | ||||
| 91611-60620 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-51000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
