FZJ80L-GNMEKV (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9909)

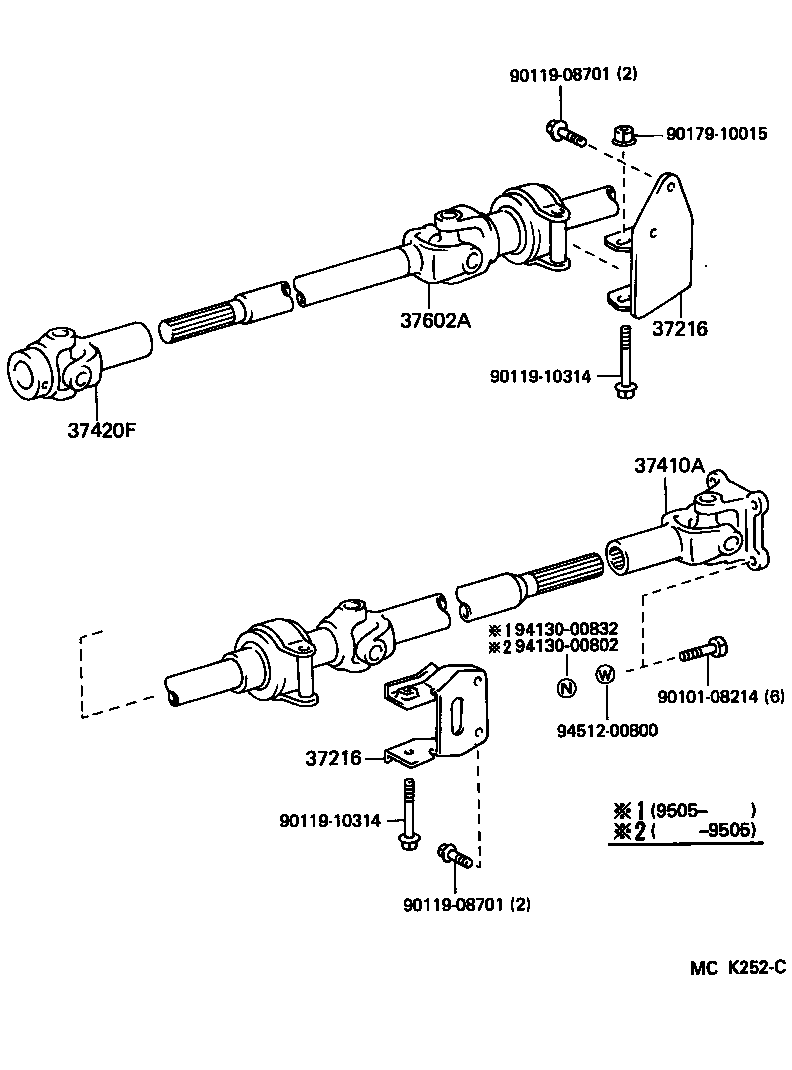

Click highlighted areas on diagram

diagram 37216 37216 37410A 37420F 37602A 9010108214 9011908701 9011908701 9011910314 9011910314 9017910015 9413000802 9413000832 9451200800
Part # Description Qty Price
37216 - BRACKET, PILLOW BLOCK
37216-60180

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

FR

 1
37216-60170

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

RR

 1
37216 - BRACKET, PILLOW BLOCK
37216-60180

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

FR

 1
37216-60170

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

RR

 1
37410A - JOINT ASSY, UNIVERSAL, W/YOKE (FOR WINCH)
37410-60090

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
37420F - JOINT ASSY, UNIVERSAL, W/FLANGE YOKE
37420-60040

FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN

 1
37602A - SHAFT SUB-ASSY, W/YOKE DRIVE, FRONT
37602-60180

FJ80,FZJ80,HDJ80,HZJ80..MTM..(GCC,GEN)

 1
Common parts
90101-08214
90119-08701
90119-10314
90179-10015
94130-00802
94130-00832
94512-00800
