FZJ80L-GNMEK (1997)

Toyota Land Cruiser

Production Nov 1997 - Dec 2006
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907- )FZJ80

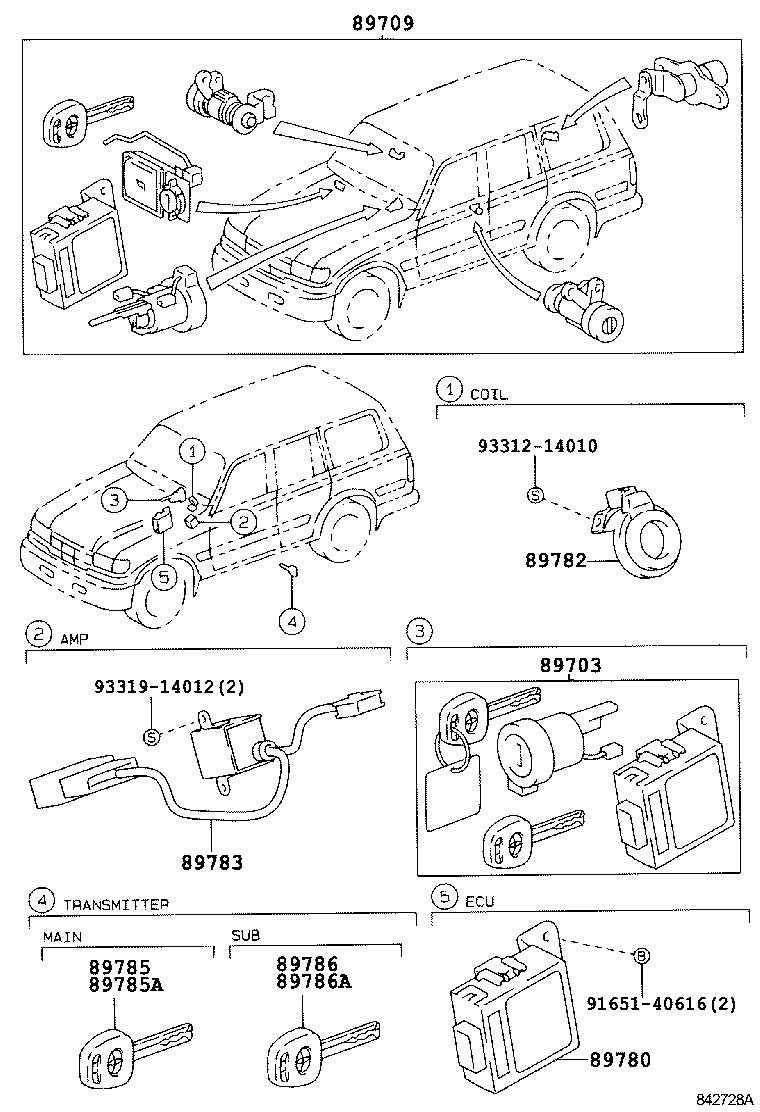

Click highlighted areas on diagram

diagram 89703 89709 89780 89782 89783 89785 89785A 89786 89786A 9165140616 9331214010 9331914012
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-60010

FZJ80..EFI

 1
89709 - COMPUTER SET, TRANSPONDER KEY
89709-60020

FZJ80..EFI

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-60010

FZJ80..EFI

 1
89782 - COIL, TRANSPONDER KEY
89782-60010

FZJ80..EFI

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-60010

FZJ80..EFI

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60030

FZJ80..EFI

 1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-60020

FZJ80..EFI

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60030

FZJ80..EFI

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-60020

FZJ80..EFI

 1
Common parts
91651-40616
93312-14010
93319-14012
