8718 - HEATING & AIR CONDITIONING - COOLER PIPING

FZJ80L-GCMRUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998

Engine 1FZF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

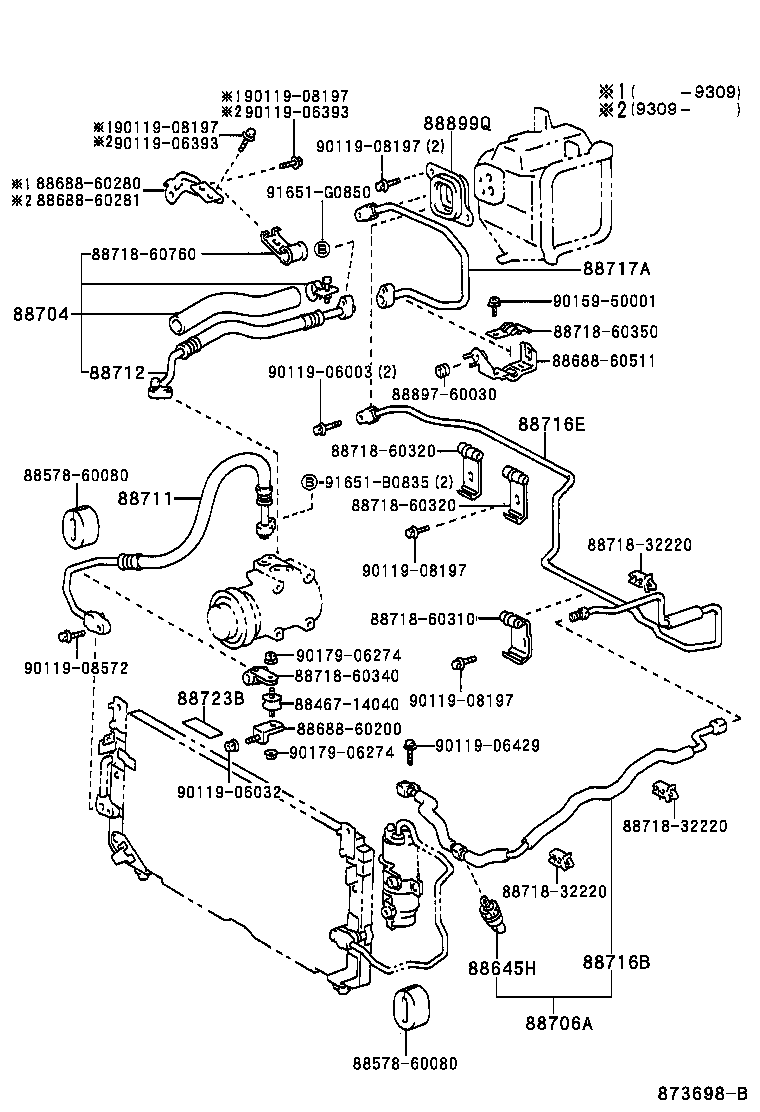

ILLUST NO. 2 OF 4(9201- )FZJ80..LHD

Click highlighted areas on diagram

FRONT PIPING---SINGLE

Part #	Description	Period	Qty
88645H - SWITCH, PRESSURE NO.1
88645-60020	FZJ80,HDJ80,HZJ80..LHD LIQUID	08/1992 - 12/1992	1
88645-60020	FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN	01/1992 - 08/1992	1
88645-60010	FZJ80..LHD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION	08/1992 - 12/1992	1
88645-60030	FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX)	05/1993 - 12/2999	1
88645-60020	FZJ80..LHD;HDJ80..LHD..5F;HZJ80..LHD..SOB;HZJ80..LHD..GX..GEN LIQUID	12/1992 - 05/1993	1
88645-60010	FZJ80..LHD;HDJ80..RHD;HZJ80..GX,VX;HDJ80..LHD..5F;HZJ80..LHD..STD SUCTION	12/1992 - 05/1993	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60030	FZJ80	08/1992 - 05/1993	1
88704-60030	FZJ80	01/1992 - 08/1992	1
88704-60050	FZJ80	05/1993 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60240	FZJ80	01/1992 - 08/1992	1
88711-60240	FZJ80	08/1992 - 05/1993	1
88711-60360	FZJ80	05/1993 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60430	FZJ80	01/1992 - 08/1992	1
88712-60430	FZJ80..GCC,GEN;FZJ80..LUB..ARL	08/1992 - 05/1993	1
88712-60590	FZJ80	05/1993 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60310	FJ80,FZJ80..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC	01/1990 - 08/1992	1
88716-60310	FZJ80..STD..GEN;FZJ80..(STD,VX)..GCC	08/1992 - 05/1993	1
88716-6A410	FZJ80..5F;HDJ80..LHD;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GCC;HZJ80..5F..(GCC,GEN);FZJ80..4FC..(GX,STD)	11/1997 - 12/2999	1
88716-6A410	FZJ80..GX,STD;FZJ80..RHD..VX..CBR;FZJ80..VX..(ARL,GCC)	05/1993 - 01/1995	1
88716-6A410	HDJ80..LHD;FZJ80..GX,STD;FZJ80..VX..GCC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN)	01/1995 - 11/1997	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60020	FJ80,FZJ80..(STD,VX)..GCC;FJ80,FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	01/1990 - 08/1992	1
88726-60140	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	08/1992 - 12/1992	1
88726-60140	HDJ80..LHD..5F;FZJ80..LHD..STD..GEN;FZJ80..(STD,VX)..GCC;HZJ80..LHD..SOB..(STD,VX)	12/1992 - 05/1993	1
88726-60250	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	05/1993 - 01/1995	1
88726-60411	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;FZJ80..5F..VX..GEN..EFI;FZJ80..LUB..GX..GCC..EFI;HZJ80..LHD..SOB..(STD,VX)	01/1995 - 01/1998	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60690	FZJ80..LHD;HZJ80..LHD..(GX,STD)	05/1993 - 01/1998	1
88717-60230	FZJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
88717-60230	FZJ80..LHD;HDJ80..LHD..5F;HZJ80..LHD..SOB;HZJ80..LHD..GX..GEN	12/1992 - 05/1993	1
88717-60230	FZJ80,HDJ80,HZJ80..LHD	08/1992 - 12/1992	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-30030	FZJ80..STD..GEN;FJ80..LHD..4F..STD;FJ80..RHD..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)..(GCC,GEN)	01/1990 - 08/1992	1
88723-30030	FZJ80..STD..GEN;FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)..(GCC,GEN)	08/1992 - 05/1993	1
88723-20040	HDJ80,HZJ80;FZJ80..GX,STD;FZJ80..VX..(ARL,GCC)	01/1995 - 11/1997	1
88723-20040	HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC);FZJ80..(GX,STD)..(GCC,GEN)	05/1993 - 01/1995	1
88723-20040	FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,STD);FZJ80..4FC..VX..(ARL,GCC)	11/1997 - 12/2999	1
88899Q - PLATE, COVER
88899-60050	FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN	01/1990 - 08/1992	1
88899-60050	HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION	05/1993 - 01/1995	1
88899-60050	FZJ80,HDJ80,HZJ80..GCC,GEN	08/1992 - 05/1993	1
88899-60050	FZJ80,HDJ80,HZJ80..GCC,GEN	01/1995 - 12/2999	1
88899-60060	HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION	05/1993 - 01/1995	1
Common parts
88467-14040
88578-60080
88688-60200
88688-60280
88688-60281
88688-60511
88718-32220
88718-60310
88718-60320
88718-60340
88718-60350
88718-60760
88897-60030
90119-06003
90119-06032
90119-06393
90119-06429
90119-08197
90119-08572
90159-50001
90179-06274
91651-B0835
91651-G0850

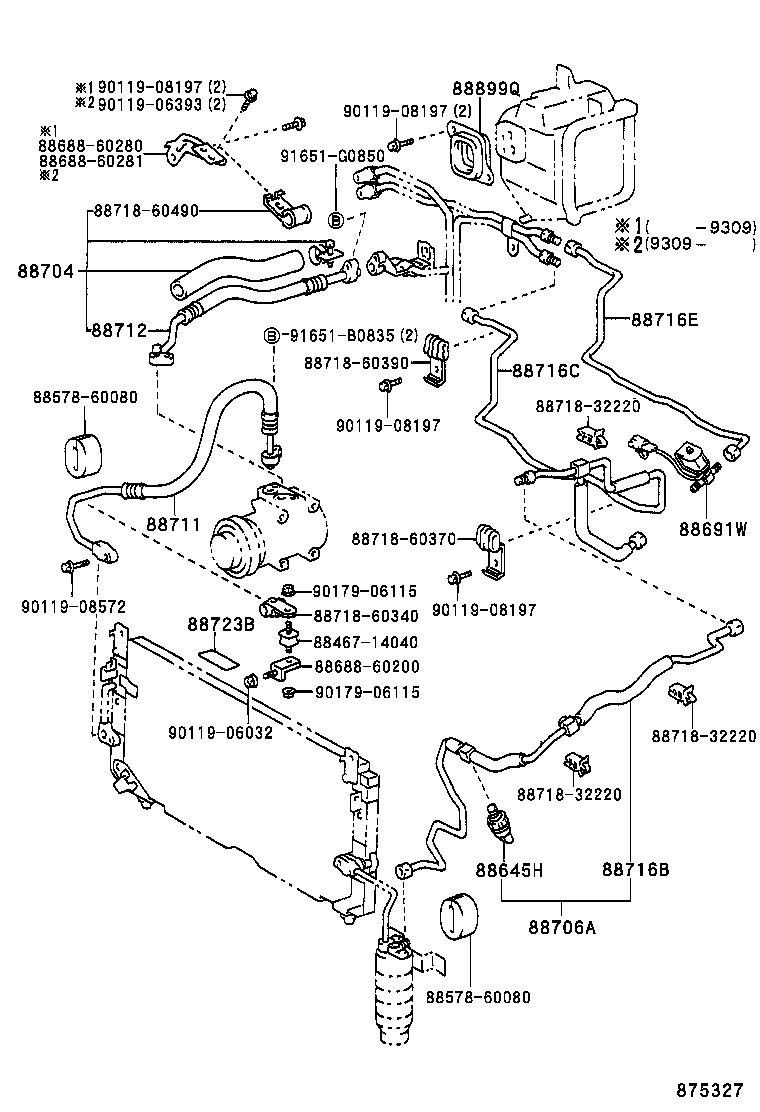

ILLUST NO. 2 OF 4(9201-9501)FZJ80..LHD

Click highlighted areas on diagram

FRONT PIPING---DUAL

Part #	Description	Period	Qty
88645H - SWITCH, PRESSURE NO.1
88645-60020	FZJ80,HDJ80,HZJ80..LHD LIQUID	08/1992 - 12/1992	1
88645-60020	FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN	01/1992 - 08/1992	1
88645-60010	FZJ80..LHD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION	08/1992 - 12/1992	1
88645-60030	FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX)	05/1993 - 12/2999	1
88645-60020	FZJ80..LHD;HDJ80..LHD..5F;HZJ80..LHD..SOB;HZJ80..LHD..GX..GEN LIQUID	12/1992 - 05/1993	1
88645-60010	FZJ80..LHD;HDJ80..RHD;HZJ80..GX,VX;HDJ80..LHD..5F;HZJ80..LHD..STD SUCTION	12/1992 - 05/1993	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60030	FZJ80	08/1992 - 05/1993	1
88704-60030	FZJ80	01/1992 - 08/1992	1
88704-60050	FZJ80	05/1993 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60240	FZJ80	01/1992 - 08/1992	1
88711-60240	FZJ80	08/1992 - 05/1993	1
88711-60360	FZJ80	05/1993 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60430	FZJ80	01/1992 - 08/1992	1
88712-60430	FZJ80..GCC,GEN;FZJ80..LUB..ARL	08/1992 - 05/1993	1
88712-60590	FZJ80	05/1993 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60310	FJ80,FZJ80..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC	01/1990 - 08/1992	1
88716-60310	FZJ80..STD..GEN;FZJ80..(STD,VX)..GCC	08/1992 - 05/1993	1
88716-6A410	FZJ80..5F;HDJ80..LHD;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GCC;HZJ80..5F..(GCC,GEN);FZJ80..4FC..(GX,STD)	11/1997 - 12/2999	1
88716-6A410	FZJ80..GX,STD;FZJ80..RHD..VX..CBR;FZJ80..VX..(ARL,GCC)	05/1993 - 01/1995	1
88716-6A410	HDJ80..LHD;FZJ80..GX,STD;FZJ80..VX..GCC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN)	01/1995 - 11/1997	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60020	FJ80,FZJ80..(STD,VX)..GCC;FJ80,FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	01/1990 - 08/1992	1
88726-60140	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	08/1992 - 12/1992	1
88726-60140	HDJ80..LHD..5F;FZJ80..LHD..STD..GEN;FZJ80..(STD,VX)..GCC;HZJ80..LHD..SOB..(STD,VX)	12/1992 - 05/1993	1
88726-60250	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	05/1993 - 01/1995	1
88726-60411	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;FZJ80..5F..VX..GEN..EFI;FZJ80..LUB..GX..GCC..EFI;HZJ80..LHD..SOB..(STD,VX)	01/1995 - 01/1998	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-30030	FZJ80..STD..GEN;FJ80..LHD..4F..STD;FJ80..RHD..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)..(GCC,GEN)	01/1990 - 08/1992	1
88723-30030	FZJ80..STD..GEN;FZJ80..(STD,VX)..GCC;HZJ80..SOB..(STD,VX)..(GCC,GEN)	08/1992 - 05/1993	1
88723-20040	HDJ80,HZJ80;FZJ80..GX,STD;FZJ80..VX..(ARL,GCC)	01/1995 - 11/1997	1
88723-20040	HDJ80;HZJ80..GCC,GEN;FZJ80..RHD..VX..CBR;FZJ80,HZJ80..GX..ARL;FZJ80..VX..(ARL,GCC);FZJ80..(GX,STD)..(GCC,GEN)	05/1993 - 01/1995	1
88723-20040	FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,STD);FZJ80..4FC..VX..(ARL,GCC)	11/1997 - 12/2999	1
88899Q - PLATE, COVER
88899-60050	FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN	01/1990 - 08/1992	1
88899-60050	HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION	05/1993 - 01/1995	1
88899-60050	FZJ80,HDJ80,HZJ80..GCC,GEN	08/1992 - 05/1993	1
88899-60050	FZJ80,HDJ80,HZJ80..GCC,GEN	01/1995 - 12/2999	1
88899-60060	HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION	05/1993 - 01/1995	1
Common parts
88467-14040
88578-60080
88688-60200
88688-60280
88688-60281
88718-32220
88718-60340
88718-60370
88718-60390
88718-60490
90119-06032
90119-06393
90119-08197
90119-08572
90179-06115
91651-B0835
91651-G0850

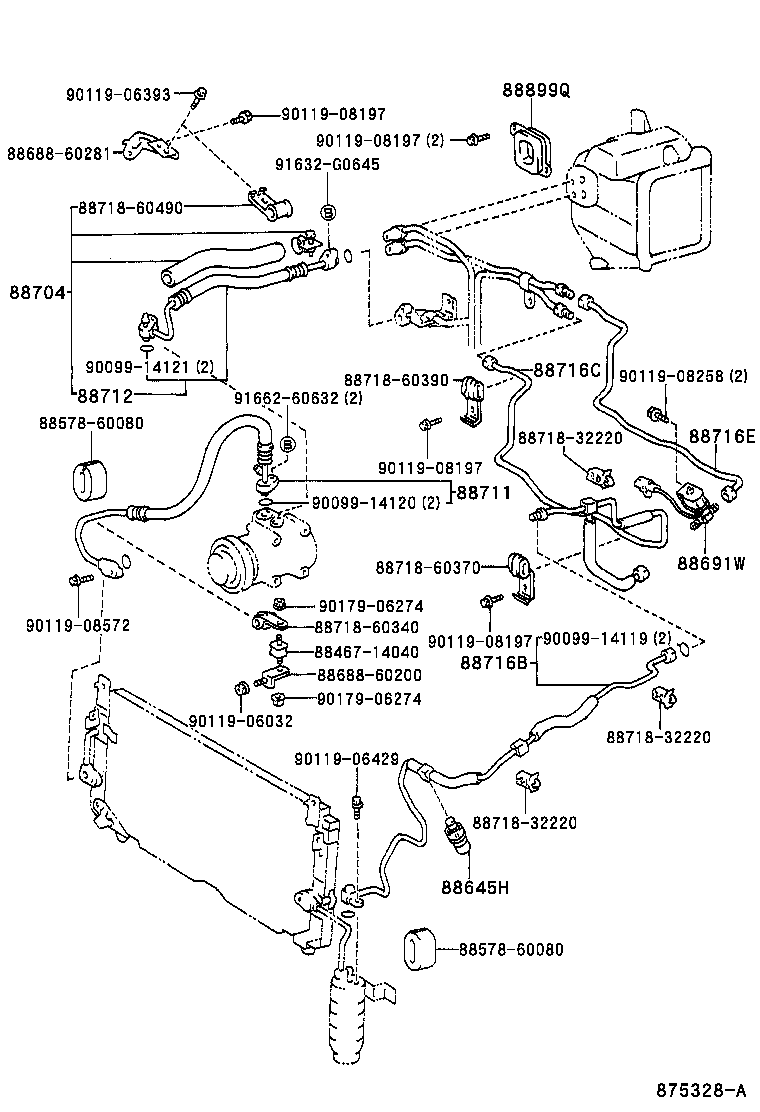

ILLUST NO. 2 OF 4(9501- )FZJ80..LHD

Click highlighted areas on diagram

FRONT PIPING---DUAL

Part #	Description	Period	Qty
88645H - SWITCH, PRESSURE NO.1
88645-60020	FZJ80,HDJ80,HZJ80..LHD LIQUID	08/1992 - 12/1992	1
88645-60020	FZJ80;FJ80..EFI;HDJ80..RHD..VX;HZJ80..RHD..GEN	01/1992 - 08/1992	1
88645-60010	FZJ80..LHD;HZJ80..LHD..STD;HDJ80,HZJ80..GX,VX SUCTION	08/1992 - 12/1992	1
88645-60030	FZJ80..5F;HDJ80,HZJ80;FZJ80..4FC..(GX,VX)	05/1993 - 12/2999	1
88645-60020	FZJ80..LHD;HDJ80..LHD..5F;HZJ80..LHD..SOB;HZJ80..LHD..GX..GEN LIQUID	12/1992 - 05/1993	1
88645-60010	FZJ80..LHD;HDJ80..RHD;HZJ80..GX,VX;HDJ80..LHD..5F;HZJ80..LHD..STD SUCTION	12/1992 - 05/1993	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60030	FZJ80	08/1992 - 05/1993	1
88704-60030	FZJ80	01/1992 - 08/1992	1
88704-60050	FZJ80	05/1993 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60240	FZJ80	01/1992 - 08/1992	1
88711-60240	FZJ80	08/1992 - 05/1993	1
88711-60360	FZJ80	05/1993 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60430	FZJ80	01/1992 - 08/1992	1
88712-60430	FZJ80..GCC,GEN;FZJ80..LUB..ARL	08/1992 - 05/1993	1
88712-60590	FZJ80	05/1993 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60310	FJ80,FZJ80..STD..GEN;FJ80,FZJ80..(STD,VX)..GCC	01/1990 - 08/1992	1
88716-60310	FZJ80..STD..GEN;FZJ80..(STD,VX)..GCC	08/1992 - 05/1993	1
88716-6A410	FZJ80..5F;HDJ80..LHD;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;FZJ80..4FC..VX..GCC;HZJ80..5F..(GCC,GEN);FZJ80..4FC..(GX,STD)	11/1997 - 12/2999	1
88716-6A410	FZJ80..GX,STD;FZJ80..RHD..VX..CBR;FZJ80..VX..(ARL,GCC)	05/1993 - 01/1995	1
88716-6A410	HDJ80..LHD;FZJ80..GX,STD;FZJ80..VX..GCC;HZJ80..STD..ARL;HDJ80..RHD..5F..TD2;HZJ80..5F..(GCC,GEN)	01/1995 - 11/1997	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60020	FJ80,FZJ80..(STD,VX)..GCC;FJ80,FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	01/1990 - 08/1992	1
88726-60140	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	08/1992 - 12/1992	1
88726-60140	HDJ80..LHD..5F;FZJ80..LHD..STD..GEN;FZJ80..(STD,VX)..GCC;HZJ80..LHD..SOB..(STD,VX)	12/1992 - 05/1993	1
88726-60250	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;HZJ80..LHD..SOB..(STD,VX)	05/1993 - 01/1995	1
88726-60411	FZJ80..(STD,VX)..GCC;FZJ80..LHD..STD..GEN;FZJ80..5F..VX..GEN..EFI;FZJ80..LUB..GX..GCC..EFI;HZJ80..LHD..SOB..(STD,VX)	01/1995 - 01/1998	1
88899Q - PLATE, COVER
88899-60050	FJ80,FZJ80,HDJ80,HZJ80..GCC,GEN	01/1990 - 08/1992	1
88899-60050	HDJ80;FZJ80,HZJ80..GCC,GEN;FZJ80,HZJ80..LUB..ARL DEALER OPTION	05/1993 - 01/1995	1
88899-60050	FZJ80,HDJ80,HZJ80..GCC,GEN	08/1992 - 05/1993	1
88899-60050	FZJ80,HDJ80,HZJ80..GCC,GEN	01/1995 - 12/2999	1
88899-60060	HDJ80;FZJ80,HZJ80..GX,STD;FZJ80,HZJ80..VX..(ARL,GEN) MAKER OPTION	05/1993 - 01/1995	1
Common parts
88467-14040
88578-60080
88688-60200
88688-60281
88718-32220
88718-60340
88718-60370
88718-60390
88718-60490
90099-14119
90099-14120
90099-14121
90119-06032
90119-06393
90119-06429
90119-08197
90119-08258
90119-08572
90179-06274
91632-G0645
91662-60632
