Toyota Land cruiser FZJ80 WIRING & CLAMP

FZJ80L-GCMRUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998

Engine 1FZF

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(9001-0701)

Click highlighted areas on diagram

COWL & INSTRUMENT PANEL WIRE

Part #	Description	Period	Qty	Price
Common parts
64777-90A00
90119-06390
91651-60614
Linked diagrams
8401

ILLUST NO. 1 OF 8(9201- )FZJ80

Click highlighted areas on diagram

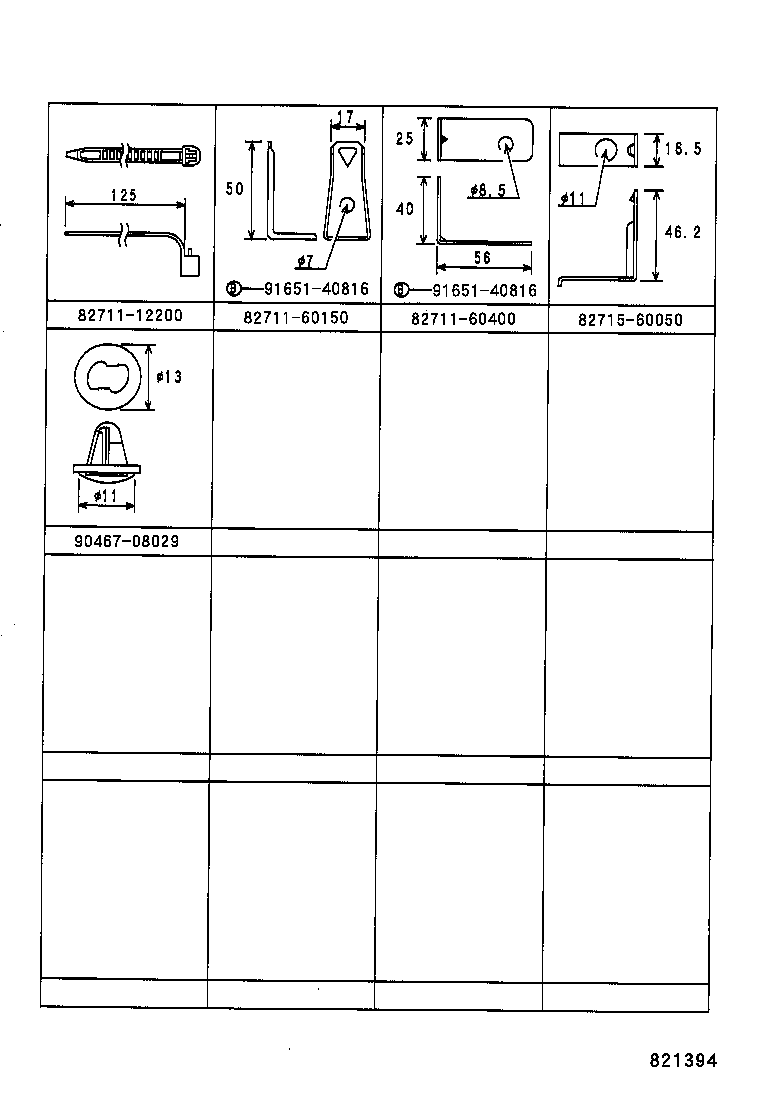

E/G ROOM WIRE CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-12200
82711-60150
82711-60400
82715-60050
90467-08029
91651-40816

ILLUST NO. 2 OF 8(9201-9208)FZJ80..LHD ; (9208- )LHD..CBR

Click highlighted areas on diagram

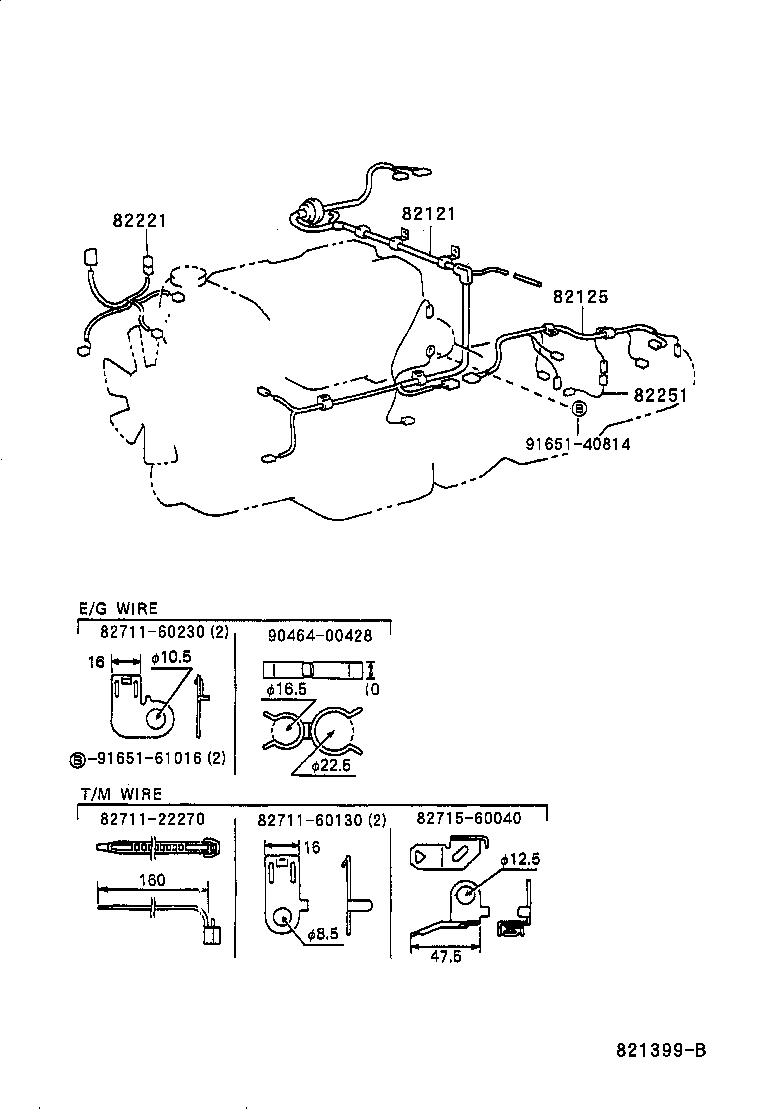

E/G WIRE & T/M WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-60291	FZJ80..VX..GCC..CBR;FZJ80..LHD..(GX,STD)..CBR	08/1992 - 01/1995	1
82121-60290	FZJ80..VX..GCC;FZJ80..LHD..(GX,STD)	01/1992 - 08/1992	1
82125 - WIRE, TRANSMISSION
82125-60022	FZJ80..GCC	01/1992 - 08/1992	1
82125-60023	FZJ80..5F..GCC	08/1992 - 01/1998	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-60020	FZJ80	01/1996 - 12/2999	1
82221-60010	FZJ80	01/1992 - 08/1992	1
82221-60010	FZJ80	08/1992 - 01/1996	1
82251 - WIRE, SPEED SENSOR
82251-60040	FZJ80..(GX,STD)..EFI;FZJ80..VX..(ARL,GCC)..EFI;FZJ80,HDJ80,HZJ80..CBR,DSL,TD2,TD4	08/1992 - 12/2999	1
Common parts
82711-22270
82711-60130
82711-60230
82715-60040
90464-00428
91651-40814
91651-61016

ILLUST NO. 3 OF 8(9001-9501)LHD

Click highlighted areas on diagram

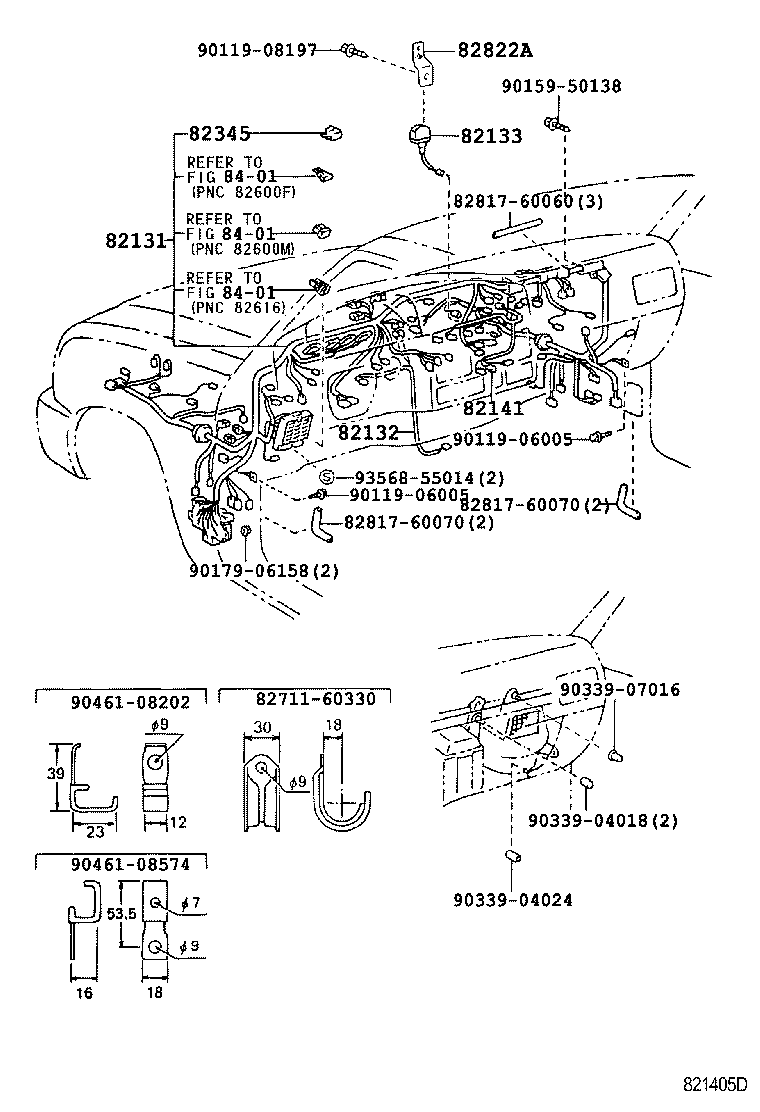

COWL & INSTRUMENT WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-6A250	FZJ80..(GX,STD)..GCC	01/1992 - 08/1992	1
82131-6A260	FZJ80..STD..GCC W(DIFFERENTIAL LOCK) OR W(RWD) OR W(SUB FUEL TANK)---EXCE(DUAL MANUAL AIC)	01/1992 - 08/1992	1
82131-6A251	FZJ80..(GX,STD)..GCC	08/1992 - 08/1993	1
82131-6A261	FZJ80..STD..GCC W(DIFFERENTIAL LOCK) OR W(RWD) OR W(SUB FUEL TANK)---EXCE(DUAL MANUAL AIC)	08/1992 - 08/1993	1
82131-6A263	FZJ80..LHD..(GX,STD)..CBR	01/1995 - 06/1995	1
82131-6A262	FZJ80..LHD..(GX,STD)..CBR	08/1993 - 01/1995	1
82131-6A264	FZJ80..LHD..(GX,STD)..CBR	06/1995 - 08/1996	1
82131-6B830	FZJ80..(GX,STD)..GCC..CBR *80	08/1996 - 01/1998	1
82141 - WIRE, INSTRUMENT PANEL
82141-60120	FJ80,FZJ80,HZJ80..LHD..STD W(REAR WINDOW DEFOGGER)---EXCE(SUB FUEL TANK)	01/1990 - 08/1992	1
82141-60110	FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD)	01/1990 - 08/1992	1
82141-60130	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD W(SUB FUEL TANK)	01/1990 - 08/1992	1
82141-60111	FZJ80,HZJ80..LHD..5F..(GX,STD)	08/1992 - 01/1995	1
82141-60121	FZJ80,HZJ80..LHD..STD W(REAR WINDOW DEFOGGER)---EXCE(SUB FUEL TANK)	08/1992 - 01/1995	1
82141-60122	FZJ80,HDJ80,HZJ80..LHD	01/1995 - 05/1996	1
82141-60123	FZJ80,HDJ80,HZJ80..LHD	05/1996 - 12/2999	1
Common parts
82711-60330
82817-60060
82817-60070
90119-06005
90179-06158
90339-04018
90339-04024
90339-07016
90461-08202
93568-55014
Linked diagrams
8401

ILLUST NO. 3 OF 8(9501- )LHD

Click highlighted areas on diagram

COWL & INSTRUMENT WIRE

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-6A250	FZJ80..(GX,STD)..GCC	01/1992 - 08/1992	1
82131-6A260	FZJ80..STD..GCC W(DIFFERENTIAL LOCK) OR W(RWD) OR W(SUB FUEL TANK)---EXCE(DUAL MANUAL AIC)	01/1992 - 08/1992	1
82131-6A251	FZJ80..(GX,STD)..GCC	08/1992 - 08/1993	1
82131-6A261	FZJ80..STD..GCC W(DIFFERENTIAL LOCK) OR W(RWD) OR W(SUB FUEL TANK)---EXCE(DUAL MANUAL AIC)	08/1992 - 08/1993	1
82131-6A263	FZJ80..LHD..(GX,STD)..CBR	01/1995 - 06/1995	1
82131-6A262	FZJ80..LHD..(GX,STD)..CBR	08/1993 - 01/1995	1
82131-6A264	FZJ80..LHD..(GX,STD)..CBR	06/1995 - 08/1996	1
82131-6B830	FZJ80..(GX,STD)..GCC..CBR *80	08/1996 - 01/1998	1
82133 - WIRE, COWL, NO.3
82133-60040	FZJ80..(GX,STD)..GCC..CBR	08/1996 - 01/1998	1
82141 - WIRE, INSTRUMENT PANEL
82141-60120	FJ80,FZJ80,HZJ80..LHD..STD W(REAR WINDOW DEFOGGER)---EXCE(SUB FUEL TANK)	01/1990 - 08/1992	1
82141-60110	FJ80,FZJ80,HZJ80..LHD..MTM..(GX,STD)	01/1990 - 08/1992	1
82141-60130	FZJ80..LHD..(GX,VX);FZJ80..LHD..SOB..STD;FJ80,HDJ80,HZJ80..LHD W(SUB FUEL TANK)	01/1990 - 08/1992	1
82141-60111	FZJ80,HZJ80..LHD..5F..(GX,STD)	08/1992 - 01/1995	1
82141-60121	FZJ80,HZJ80..LHD..STD W(REAR WINDOW DEFOGGER)---EXCE(SUB FUEL TANK)	08/1992 - 01/1995	1
82141-60122	FZJ80,HDJ80,HZJ80..LHD	01/1995 - 05/1996	1
82141-60123	FZJ80,HDJ80,HZJ80..LHD	05/1996 - 12/2999	1
82345 - DIODE
82345-20060	FZJ80..CBR;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,STD)..GEN NO.2	08/1992 - 12/2999	3
82822A - BRACKET, CONNECTOR BLOCK
82822-60010	FZJ80..(GX,STD)..GCC..CBR	08/1996 - 01/1998	1
Common parts
82711-60330
82817-60060
82817-60070
90119-06005
90119-08197
90159-50138
90179-06158
90339-04018
90339-04024
90339-07016
90461-08202
90461-08574
93568-55014
Linked diagrams
8401

ILLUST NO. 8 OF 8(9208- )

Click highlighted areas on diagram

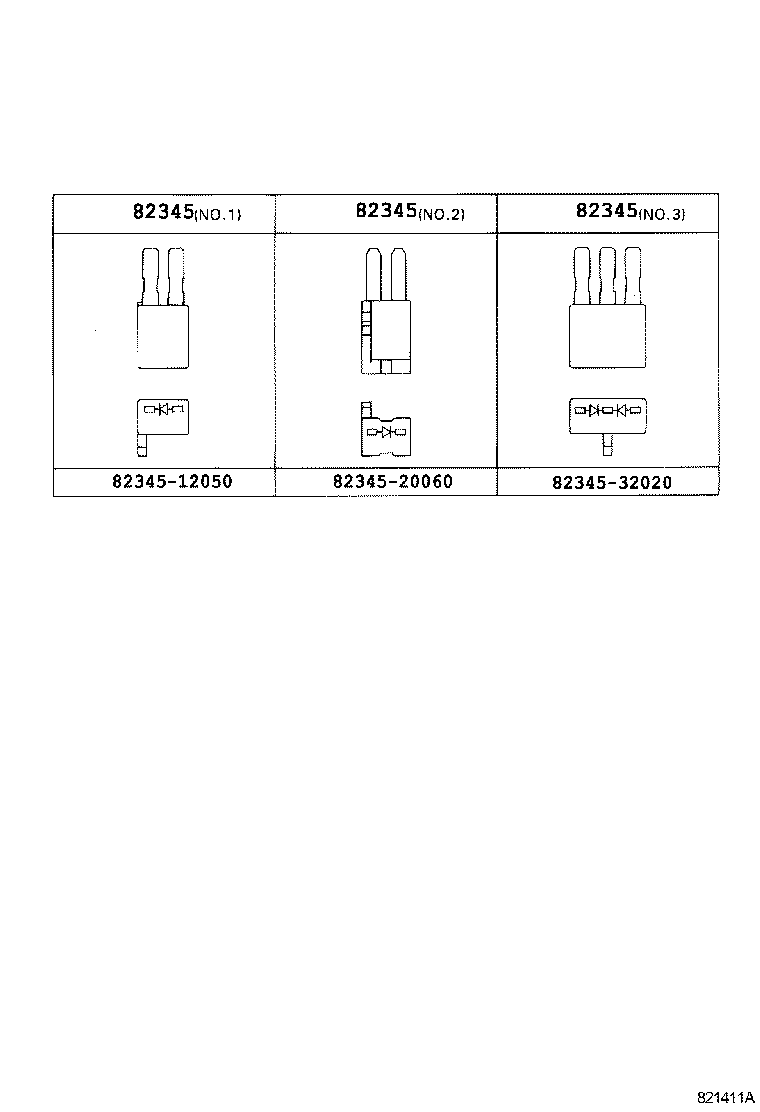

DIODE

Part #	Description	Period	Qty
82345 - DIODE
82345-20060	FZJ80..CBR;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,STD)..GEN NO.2	08/1992 - 12/2999	3
82345 - DIODE
82345-20060	FZJ80..CBR;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,STD)..GEN NO.2	08/1992 - 12/2999	3
82345 - DIODE
82345-20060	FZJ80..CBR;FZJ80..(ARL,GCC)..EFI;FZJ80..4FC..(GX,STD)..GEN NO.2	08/1992 - 12/2999	3
