FZJ80L-GCMRUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )LHD..CBR

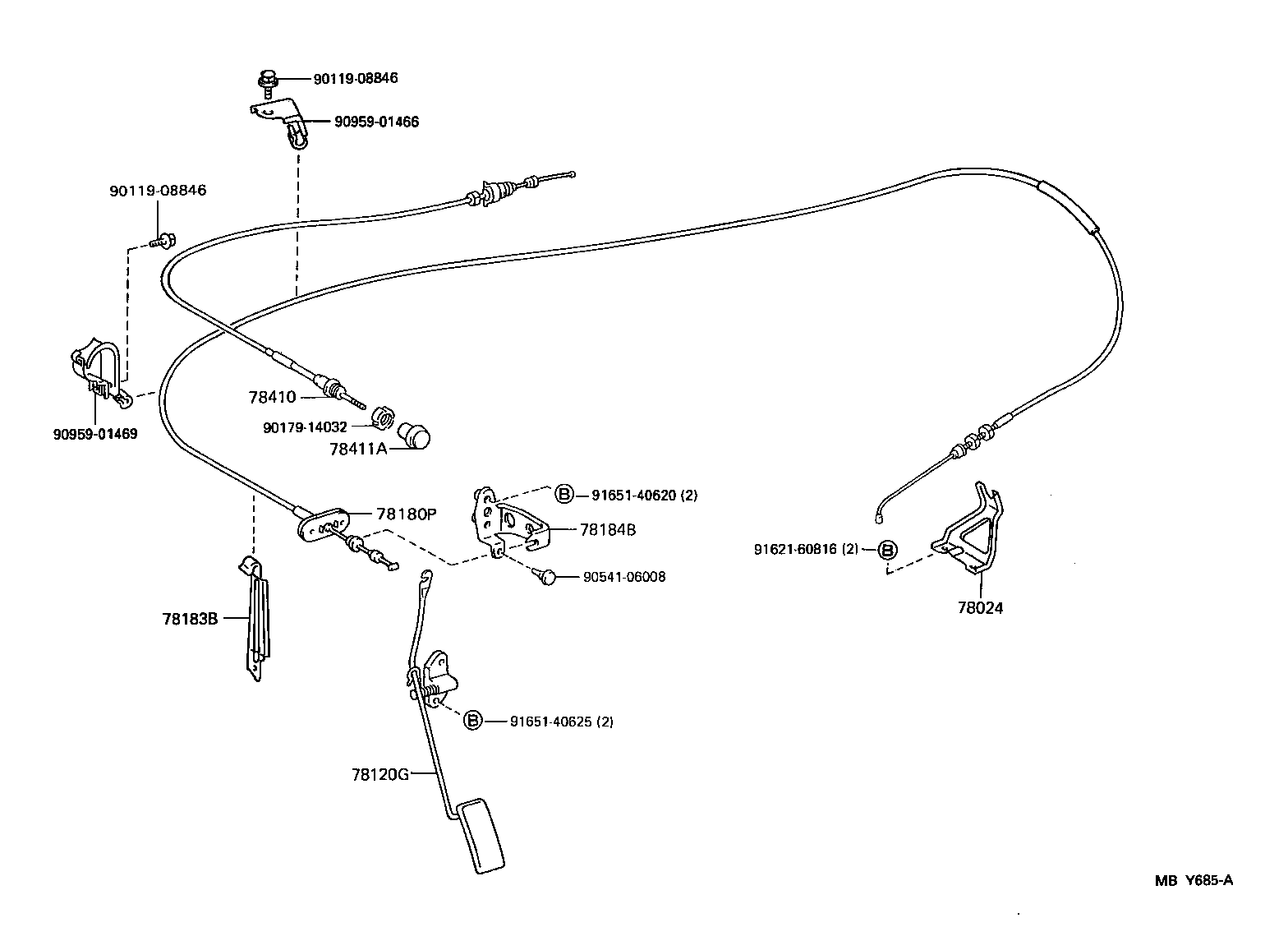

Click highlighted areas on diagram

diagram 78024 78120G 78180P 78183B 78184B 78410 78411A 9011908846 9011908846 9017914032 9054106008 9095901466 9095901469 9162160816 9165140620 9165140625
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60020

FZJ80

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60080

FZJ80..LHD..CBR;FZJ80,HDJ80..LHD..4FC

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60240

FZJ80..LHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-60030

FJ80,FZJ80

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-60090

FJ80,FZJ80..LHD

 1
78410-60090

FZJ80..LHD

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78402-60030

FJ80,FZJ80,HDJ80,HZJ80

 1
Common parts
90119-08846
90179-14032
90541-06008
90959-01466
90959-01469
91621-60816
91651-40620
91651-40625
