FZJ80L-GCMRUV (1992)
Toyota Land Cruiser

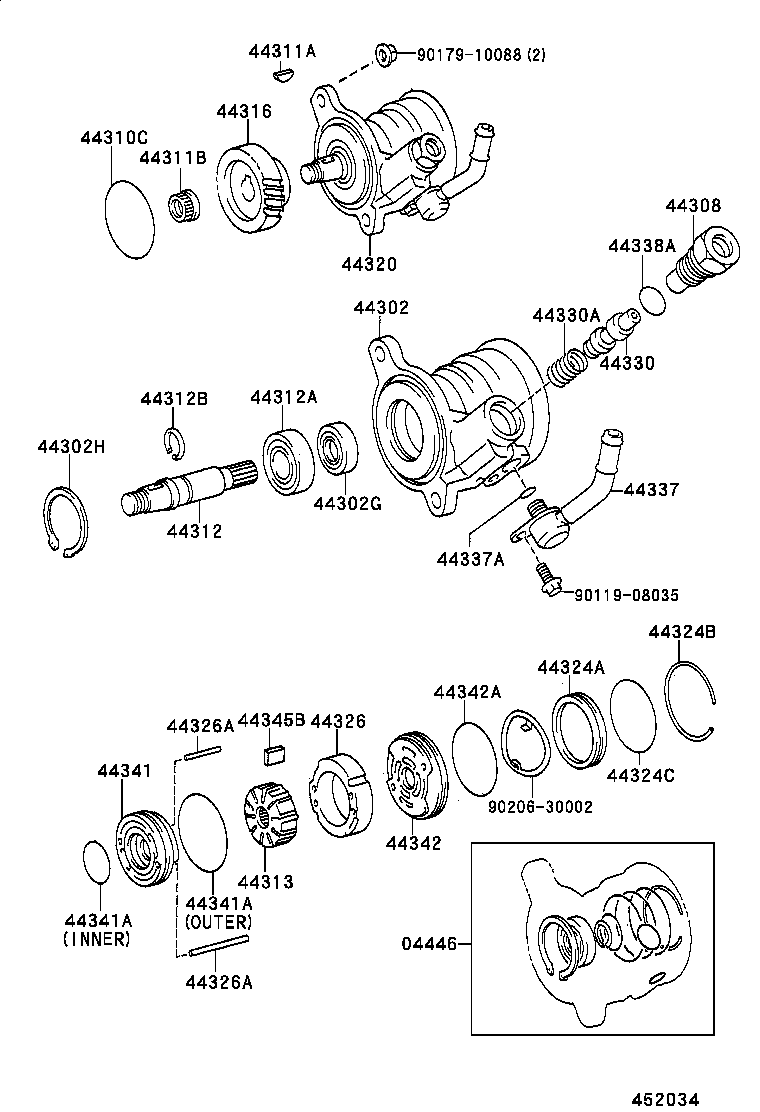

ILLUST NO. 1 OF 2(9201- )FZJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-60060 |
FZJ80 |
1 | ||
| 04446-60080 |
FZJ80 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-60050 |
FZJ80 |
1 | ||
| 44302-60040 |
FZJ80 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90316-17003 |
FZJ80 |
1 | ||
| 90316-17003 |
FZJ80 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
FZJ80 |
1 | ||
| 90521-44002 |
FZJ80 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-60030 |
FZJ80 |
1 | ||
| 44308-60030 |
FZJ80 |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-73004 |
FZJ80 |
1 | ||
| 90301-73004 |
FZJ80 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
FJ80,FZJ80 |
1 | ||
| 90280-05008 |
FZJ80 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-14009 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 90179-14009 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-60010 |
FZJ80 |
1 | ||
| 44312-60010 |
FZJ80 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17016 |
FZJ80 |
1 | ||
| 90363-17016 |
FZJ80 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15005 |
FZJ80 |
1 | ||
| 90520-15005 |
FZJ80 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26100 |
FZJ80 MARK 4 |
1 | ||
| 44313-26080 |
FZJ80 MARK 2 |
1 | ||
| 44313-26090 |
FZJ80 MARK 3 |
1 | ||
| 44313-26090 |
FZJ80 MARK 3 |
1 | ||
| 44313-26060 |
FZJ80 NO MARK |
1 | ||
| 44313-26070 |
FZJ80 MARK 1 |
1 | ||
| 44313-26070 |
FZJ80 MARK 1 |
1 | ||
| 44313-26080 |
FZJ80 MARK 2 |
1 | ||
| 44313-26100 |
FZJ80 MARK 4 |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60020 |
FZJ80 |
1 | ||
| 44316-60020 |
FZJ80 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-60181 |
FZJ80 |
1 | ||
| 44320-60182 |
FZJ80 |
1 | ||
| 44320-60180 |
FZJ80 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-20050 |
FZJ80 |
1 | ||
| 44324-60040 |
FZJ80 |
1 | ||
| 44324-12031 |
FJ80,FZJ80 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
FJ80,FZJ80 |
1 | ||
| 90521-62002 |
FZJ80 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53004 |
FJ80,FZJ80 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32280 |
FZJ80 MARK 1 |
1 | ||
| 44325-32270 |
FZJ80 NO MARK |
1 | ||
| 44325-32290 |
FZJ80 MARK 2 |
1 | ||
| 44325-33010 |
FZJ80 NO MARK |
1 | ||
| 44325-32310 |
FZJ80 MARK 4 |
1 | ||
| 44325-32300 |
FZJ80 MARK 3 |
1 | ||
| 44325-33030 |
FZJ80 MARK 2 |
1 | ||
| 44325-33040 |
FZJ80 MARK 3 |
1 | ||
| 44325-33020 |
FZJ80 MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
FJ80,FZJ80 L=43,OD=4.0 |
1 | ||
| 90250-04049 |
FZJ80 L=43,OD=4.0 |
1 | ||
| 90250-04047 |
FZJ80 L=28,OD=4.0 |
1 | ||
| 90250-04047 |
FJ80,FZJ80 L=28,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
FJ80,FZJ80 L=43,OD=4.0 |
1 | ||
| 90250-04049 |
FZJ80 L=43,OD=4.0 |
1 | ||
| 90250-04047 |
FZJ80 L=28,OD=4.0 |
1 | ||
| 90250-04047 |
FJ80,FZJ80 L=28,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-33010 |
FZJ80 MARK A |
1 | ||
| 44330-60100 |
FZJ80 MARK D |
1 | ||
| 44330-60070 |
FZJ80 MARK A |
1 | ||
| 44330-60120 |
FZJ80 MARK F |
1 | ||
| 44330-60080 |
FZJ80 MARK B |
1 | ||
| 44330-33020 |
FZJ80 MARK B |
1 | ||
| 44330-33060 |
FZJ80 MARK F |
1 | ||
| 44330-33030 |
FZJ80 MARK C |
1 | ||
| 44330-60090 |
FZJ80 MARK C |
1 | ||
| 44330-33050 |
FZJ80 MARK E |
1 | ||
| 44330-33040 |
FZJ80 MARK D |
1 | ||
| 44330-60110 |
FZJ80 MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
FJ80,FZJ80 |
1 | ||
| 90501-12103 |
FZJ80 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-60050 |
FZJ80 |
1 | ||
| 44337-60050 |
FZJ80 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11010 |
FZJ80 |
1 | ||
| 90301-11010 |
FZJ80 |
1 | ||
| 90301-11016 |
FZJ80 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
FJ80,FZJ80 ID=19.5,OD=22.5 |
1 | ||
| 90301-19003 |
FZJ80 ID=19.5,OD=22.5 |
1 | ||
| 90301-19013 |
FZJ80 ID=19.2,OD=22.3 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-60010 |
FZJ80 |
1 | ||
| 44341-60010 |
FZJ80 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-53004 |
FJ80,FZJ80 OUTER |
1 | ||
| 90301-28005 |
FZJ80 INNER |
1 | ||
| 90301-28005 |
FZJ80 INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-53004 |
FJ80,FZJ80 OUTER |
1 | ||
| 90301-28005 |
FZJ80 INNER |
1 | ||
| 90301-28005 |
FZJ80 INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-60010 |
FZJ80 |
1 | ||
| 44342-60020 |
FZJ80 |
1 | ||
| 44342-60030 |
FZJ80 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53004 |
FJ80,FZJ80 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26040 |
FZJ80 L=14.994 |
10 | ||
| 44345-26010 |
FZJ80 L=15.000 |
10 | ||
| 44345-26020 |
FZJ80 L=14.998 |
10 | ||
| 44345-60040 |
FZJ80 L=14.994 |
10 | ||
| 44345-26050 |
FZJ80 L=14.992 |
10 | ||
| 44345-26030 |
FZJ80 L=14.996 |
10 | ||
| 44345-26050 |
FZJ80 L=14.992 |
10 | ||
| 44345-60050 |
FZJ80 L=14.992 |
10 | ||
| 44345-26040 |
FZJ80 L=14.994 |
10 | ||
| 44345-26030 |
FZJ80 L=14.996 |
10 | ||
| 44345-26020 |
FZJ80 L=14.998 |
10 | ||
| 44345-60030 |
FZJ80 L=14.996 |
10 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90179-10088 | ||||
| 90206-30002 | ||||

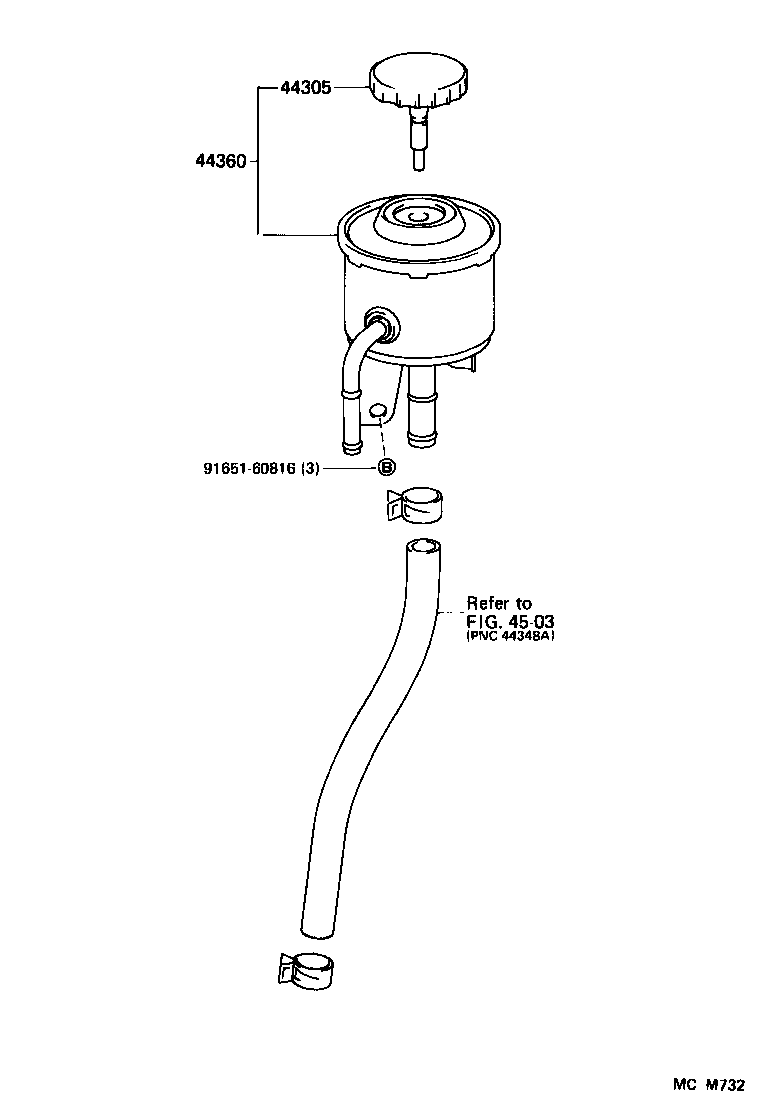

ILLUST NO. 2 OF 2(9201- )FZJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-35010 |
FZJ80 |
1 | ||
| 44305-35010 |
FZJ80 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60150 |
FZJ80 |
1 | ||
| 44360-60150 |
FZJ80..CBR |
1 | ||
| Common parts | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 4503 | ||||
