FZJ80L-GCMRUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )FZJ80,HDJ80,HZJ80..5F

Click highlighted areas on diagram

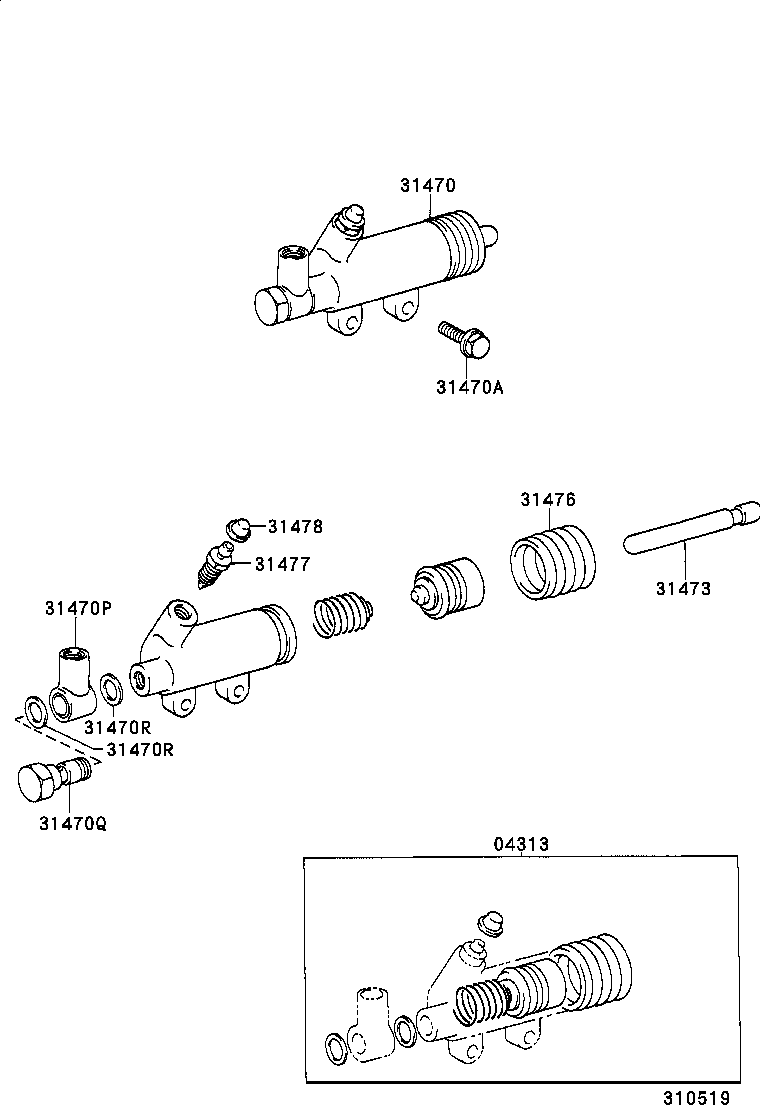

diagram 04313 31470 31470A 31470P 31470Q 31470R 31470R 31473 31476 31477 31478
Part # Description Qty Price
04313 - CYLINDER KIT, CLUTCH RELEASE
04313-60110

FZJ80..5F..STD..GEN..EFI;FZJ80..5F..(ARL,GCC)..EFI;FZJ80,HDJ80..5F..(CBR,TD4);HDJ80,HZJ80..LHD..SOB..(GX,VX)..GEN

 1
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-60180

FZJ80

 1
31470-60180

FZJ80..CBR;FZJ80..5F..ARL

 1
31470-60230

FZJ80..5F

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-60825

FJ80,FZJ80,HDJ80,HZJ80..MTM

*8-1.25PX25-25

 2
91611-B0825

FZJ80,HDJ80,HZJ80..5F

*8-1.25PX25-25

 2
31470P - UNION(FOR CLUTCH RELEASE)
90405-10165

FZJ80,HDJ80,HZJ80..5F

 1
90405-10165

FZJ80,HDJ80,HZJ80..5F

 1
31470Q - BOLT, UNION(FOR CLUTCH RELEASE)
90401-10046

FZJ80,HDJ80,HZJ80..5F

 1
90401-10056

FZJ80,HDJ80,HZJ80..5F

 1
90401-10056

FZJ80,HDJ80,HZJ80..5F

 1
31470R - GASKET(FOR CLUTCH RELEASE)
90430-10074

FZJ80,HDJ80,HZJ80..5F

 2
90430-10074

FZJ80,HDJ80,HZJ80..5F

 2
31470R - GASKET(FOR CLUTCH RELEASE)
90430-10074

FZJ80,HDJ80,HZJ80..5F

 2
90430-10074

FZJ80,HDJ80,HZJ80..5F

 2
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-60130

FZJ80..LHD..5F;FZJ80..5F..GX..EFI;FZJ80..RHD..(GX,STD)..CBR

 1
31473-60150

FZJ80..5F

 1
31473-60130

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-36010

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31476-36010

FZJ80,HDJ80,HZJ80..5F

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
47547-12010

FZJ80,HDJ80,HZJ80..5F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

FJ80,FZJ80,HDJ80,HZJ80..MTM

 1
31478-30010

FZJ80,HDJ80,HZJ80..5F

 1
