FZJ80L-GCMRUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9201- )1FZ#

Click highlighted areas on diagram

diagram 17709D 17709E 17730 17730 17730B 17743 17911A 53199B 53199B 53285G 53299B 53964 53966A 9011906048 9011908518 9011908565 9011908565 9017608029 9017906014 9033320001 9038710078 9048016013 9162140816 9165160616 9166140614 9166140614 9166140616 9356054010 9356054010 9611110880 9611110880 9611110880
Part # Description Qty Price
Common parts
90119-06048
90119-08518
90119-08565
90176-08029
90179-06014
90333-20001
90387-10078
90480-16013
91621-40816
91651-60616
91661-40614
91661-40616
93560-54010
96111-10880

ILLUST NO. 1 OF 2(9201- )1FZF

Click highlighted areas on diagram

diagram 17061 1708 1709 1709 1709 17700 17700 17700 17700A 17700A 17700A 17700V 17703A 17703A 17703A 17703C 17703C 17703C 17705 17705 17705 17728 17781A 17781A 17801 17801 17801 17805 17841 17841 17841 17841 17841 17841 17845 17845 17845 17881 17881 17881A 17881A 17882A 17893 9011606024 9011908171 9011908171 9011908171 9017906027 9017908096 9017908096 9017908096 9033903005 9033903005 9033903005 9046400082 9099992002 9099992002 9162160814
Part # Description Qty Price
Common parts
90116-06024
90119-08171
90179-06027
90179-08096
90339-03005
90464-00082
90999-92002
91621-60814
Linked diagrams
1708
1709

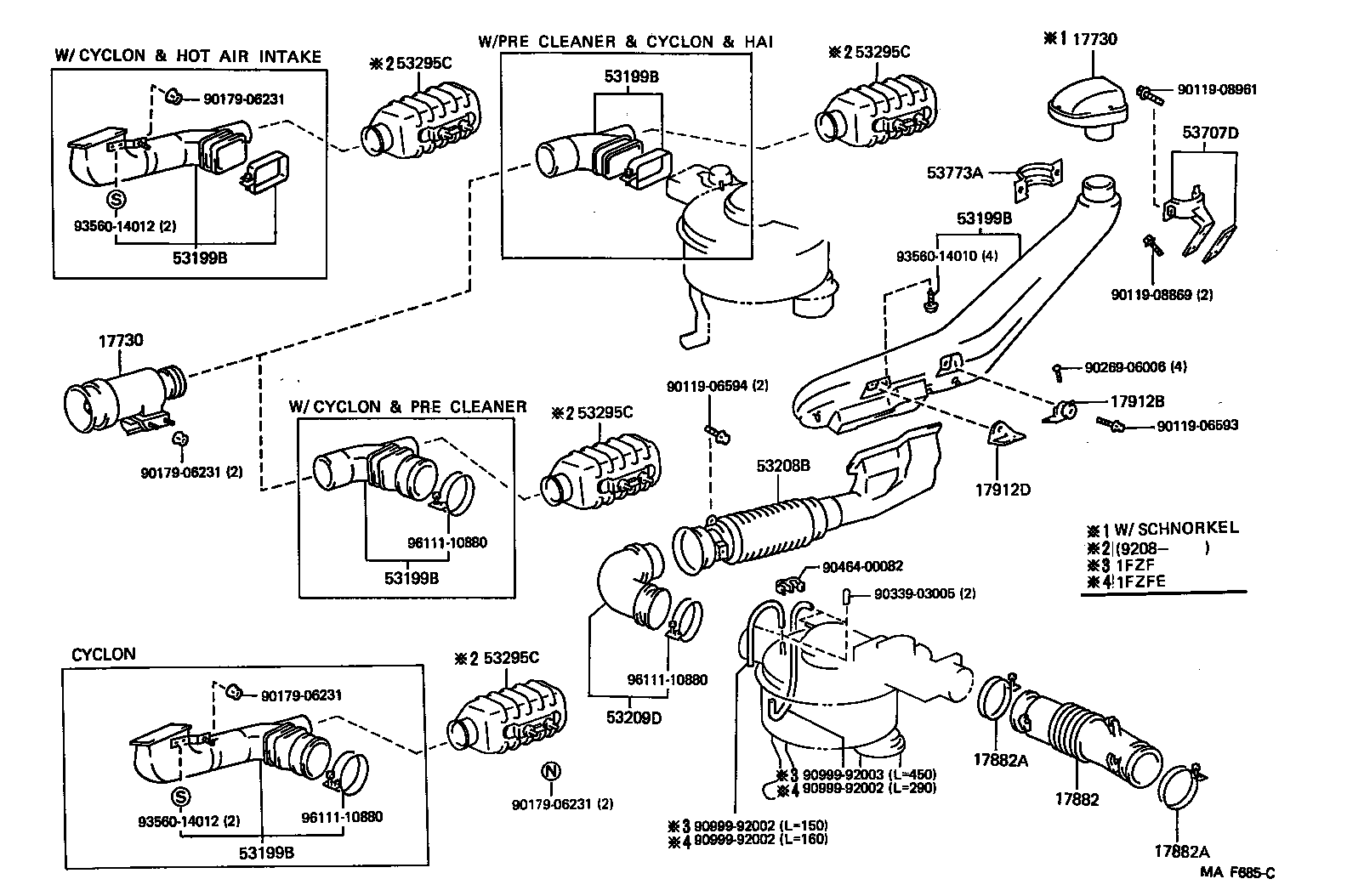

ILLUST NO. 2 OF 2(9201- )1FZ#

Click highlighted areas on diagram

diagram 17730 17730 17882 17882A 17882A 17912B 17912D 53199B 53199B 53199B 53199B 53199B 53208B 53209D 53295C 53295C 53295C 53295C 53707D 53773A 9011906593 9011906594 9011908869 9011908961 9017906231 9017906231 9017906231 9017906231 9026906006 9033903005 9046400082 9099992002 9099992002 9099992002 9099992003 9356014010 9356014012 9356014012 9611110880 9611110880 9611110880
Part # Description Qty Price
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-17010

1FZF..FZJ80..RHD..STD;1FZF..FZJ80..STD..GCC;1FZ#..FZJ80..(GX,VX)..(GCC,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
17730-17020

1FZF,3F..FJ80,FZJ80..GCC,GEN

CYCLON & W(SNORKEL)

 1
17730-17020

1FZF..FZJ80

CYCLON & W(SNORKEL)

 1
17730-17010

3F..FJ80..GCC,GEN;1FZF..FZJ80..GX,VX;1FZF..FZJ80..RHD..STD;1FZF..FZJ80..STD..GCC

W(PRE CLEANER) & W/O(SNORKEL)

 1
17730-17010

1FZFE..FZJ80;1FZF..FZJ80..GCC;1FZF..FZJ80..LUB..STD

 1
17730-17010

1FZF..FZJ80..SOB..STD;1FZ#..FZJ80..(GX,VX)..(GCC,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
17730 - PRECLEANER ASSY, AIR W/HOSE
17730-17010

1FZF..FZJ80..RHD..STD;1FZF..FZJ80..STD..GCC;1FZ#..FZJ80..(GX,VX)..(GCC,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
17730-17020

1FZF,3F..FJ80,FZJ80..GCC,GEN

CYCLON & W(SNORKEL)

 1
17730-17020

1FZF..FZJ80

CYCLON & W(SNORKEL)

 1
17730-17010

3F..FJ80..GCC,GEN;1FZF..FZJ80..GX,VX;1FZF..FZJ80..RHD..STD;1FZF..FZJ80..STD..GCC

W(PRE CLEANER) & W/O(SNORKEL)

 1
17730-17010

1FZFE..FZJ80;1FZF..FZJ80..GCC;1FZF..FZJ80..LUB..STD

 1
17730-17010

1FZF..FZJ80..SOB..STD;1FZ#..FZJ80..(GX,VX)..(GCC,GEN)

W(PRE CLEANER) & W/O(SNORKEL)

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-66030

1FZF..FZJ80

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10930

1FZ#..FZJ80

AIR CLEANER SIDE

 1
96111-10930

1FZF..FZJ80

AIR CLEANER SIDE

 1
96111-10830

1FZF..FZJ80

AIR CONNECTOR SIDE

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10930

1FZ#..FZJ80

AIR CLEANER SIDE

 1
96111-10930

1FZF..FZJ80

AIR CLEANER SIDE

 1
96111-10830

1FZF..FZJ80

AIR CONNECTOR SIDE

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52805-60011

1FZ#..FZJ80..GCC,GEN

 1
52805-60011

1FZF..FZJ80..GX,STD;1FZF..FZJ80..VX..GEN

 1
17912D - BRACKET, COOL AIR INTAKE DUCT, NO.3
52853-60010

1FZ#..FZJ80..GCC,GEN

 1
52853-60010

1FZF..FZJ80..GX,STD;1FZF..FZJ80..VX..GEN

 1
52853-60010

1FZF,3F..FJ80,FZJ80..GCC,GEN

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60120

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60100

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

CYCLON & W(SNORKEL)

 1
53207-60101

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..CBR

CYCLON & W(SNORKEL)

 1
53207-60121

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

FZJ80..GCC;FZJ80..4FC..STD;FZJ80..LUB..STD..CBR

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60120

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60100

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

CYCLON & W(SNORKEL)

 1
53207-60101

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..CBR

CYCLON & W(SNORKEL)

 1
53207-60121

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

FZJ80..GCC;FZJ80..4FC..STD;FZJ80..LUB..STD..CBR

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60120

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60100

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

CYCLON & W(SNORKEL)

 1
53207-60101

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..CBR

CYCLON & W(SNORKEL)

 1
53207-60121

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

FZJ80..GCC;FZJ80..4FC..STD;FZJ80..LUB..STD..CBR

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60120

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60100

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

CYCLON & W(SNORKEL)

 1
53207-60101

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..CBR

CYCLON & W(SNORKEL)

 1
53207-60121

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

FZJ80..GCC;FZJ80..4FC..STD;FZJ80..LUB..STD..CBR

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-60120

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60100

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

CYCLON & W(SNORKEL)

 1
53207-60101

FZJ80..GX,VX;FZJ80..SOB..STD

 1
53207-60041

FZJ80..CBR

CYCLON & W(SNORKEL)

 1
53207-60121

FZJ80..GX,VX;FZJ80..SOB..STD

W(PRE CLEANER) & W/O(SNORKEL)

 1
53207-60121

FZJ80..GCC;FZJ80..4FC..STD;FZJ80..LUB..STD..CBR

 1
53208B - DUCT SUB-ASSY, COOL AIR INTAKE, NO.2
53208-60010

FZJ80..GCC,GEN

 1
53208-60010

FJ80,FZJ80..GCC,GEN

 1
53208-60010

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

 1
53209D - DUCT SUB-ASSY, COOL AIR INTAKE, NO.3
53209-60030

FJ80,FZJ80..GCC,GEN

 1
53209-60030

FZJ80..GCC,GEN

 1
53209-60030

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

 1
53295C - SILENCER, COOL AIR INTAKE
53295-60010

FZJ80

 1
53295C - SILENCER, COOL AIR INTAKE
53295-60010

FZJ80

 1
53295C - SILENCER, COOL AIR INTAKE
53295-60010

FZJ80

 1
53295C - SILENCER, COOL AIR INTAKE
53295-60010

FZJ80

 1
53707D - BRACKET SUB-ASSY, COOL AIR INTAKE, NO.3
53707-60010

FJ80,FZJ80..GCC,GEN

 1
53707-60010

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

 1
53707-60010

FZJ80..GCC,GEN

 1
53773A - BRACKET, AIR CLEANER MOUNTING
53773-60010

FJ80,FZJ80..GCC,GEN

 1
53773-60010

FZJ80..GCC,GEN

 1
53773-60010

FZJ80..VX..GEN..CBR;FZJ80..(GX,STD)..CBR

 1
Common parts
90119-06593
90119-06594
90119-08869
90119-08961
90179-06231
90269-06006
90339-03005
90464-00082
90999-92002
90999-92003
93560-14010
93560-14012
96111-10880
