FZJ80L-GCMRUV (1992)

Toyota Land Cruiser

Production Jan 1992 - Jan 1998
Engine 1FZF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )1FZ#

Click highlighted areas on diagram

diagram 12311 12315 1231951010 1231951010 12361 12361 12371 12511 12511A 1903 9017912024 9017912024 9017912090 9017912090 9017912115 9151281230 9151281230 91512G1025 91629B1225
Part # Description Qty Price
Common parts
12319-51010
90179-12024
90179-12090
90179-12115
91512-81230
91512-G1025
91629-B1225
Linked diagrams
1903

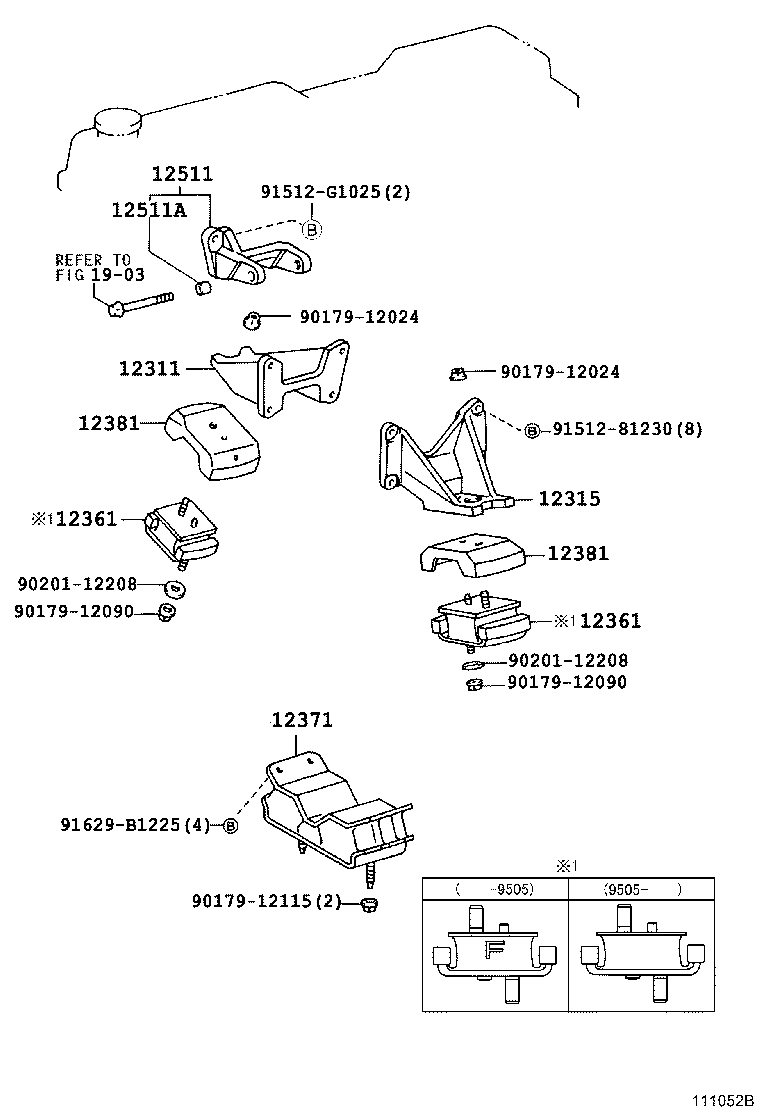

(9201- )1FZ#

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 12511A 1903 9017912024 9017912024 9017912090 9017912090 9017912115 9020112208 9020112208 9151281230 91512G1025 91629B1225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-66030

1FZF..FZJ80

 1
12311-66030

1FZ#..FZJ80

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-66030

1FZF..FZJ80

 1
12315-66031

1FZ#..FZJ80

 1
12315-66030

1FZ#..FZJ80

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-66030

1FZF..FZJ80

 2
12361-17011

1FZ#..FZJ80

 2
12361-66030

1FZ#..FZJ80

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-66030

1FZF..FZJ80

 2
12361-17011

1FZ#..FZJ80

 2
12361-66030

1FZ#..FZJ80

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61050

1FZF,3F..FJ80,FZJ80..MTM

 1
12371-61050

1FZ#..FZJ80..5F

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-66010

1FZ#..FZJ80

 2
12381-66010

1FZF..FZJ80

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-66010

1FZ#..FZJ80

 2
12381-66010

1FZF..FZJ80

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-66010

1FZF..FZJ80

 1
12511-66010

1FZ#..FZJ80

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10101

1FZF..FZJ80

 1
90387-10101

1FZ#..FZJ80

 1
Common parts
90179-12024
90179-12090
90179-12115
90201-12208
91512-81230
91512-G1025
91629-B1225
Linked diagrams
1903
